Shure DL4 Microphone
Model DL4B-O-LM3-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

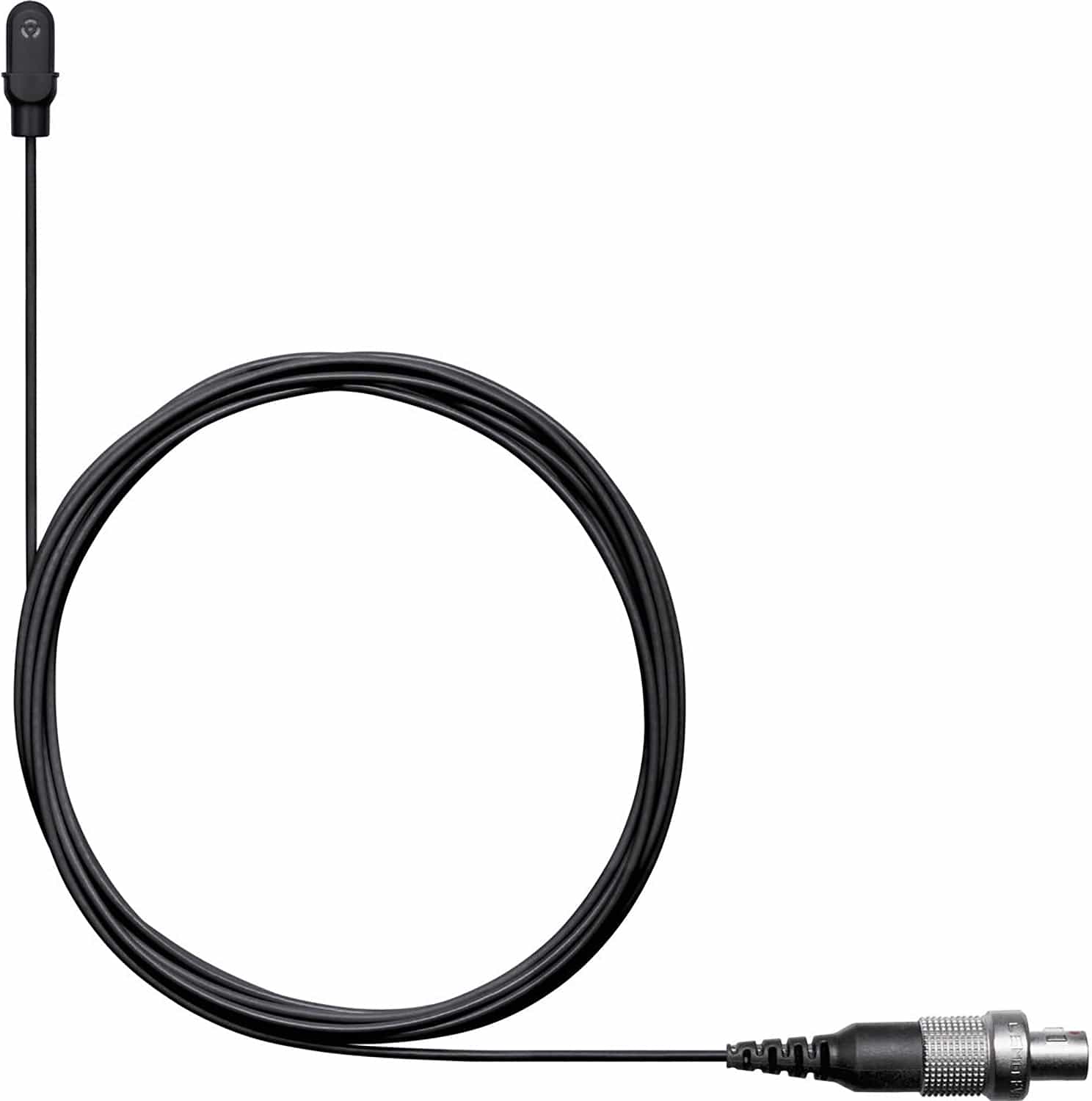

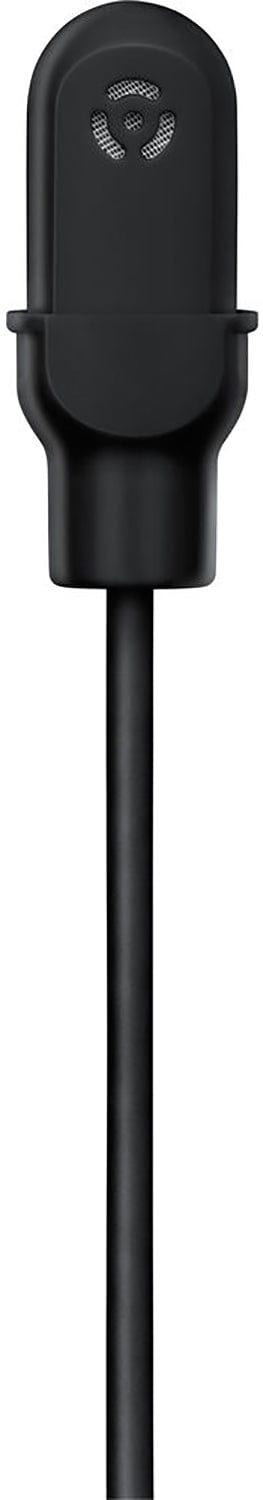

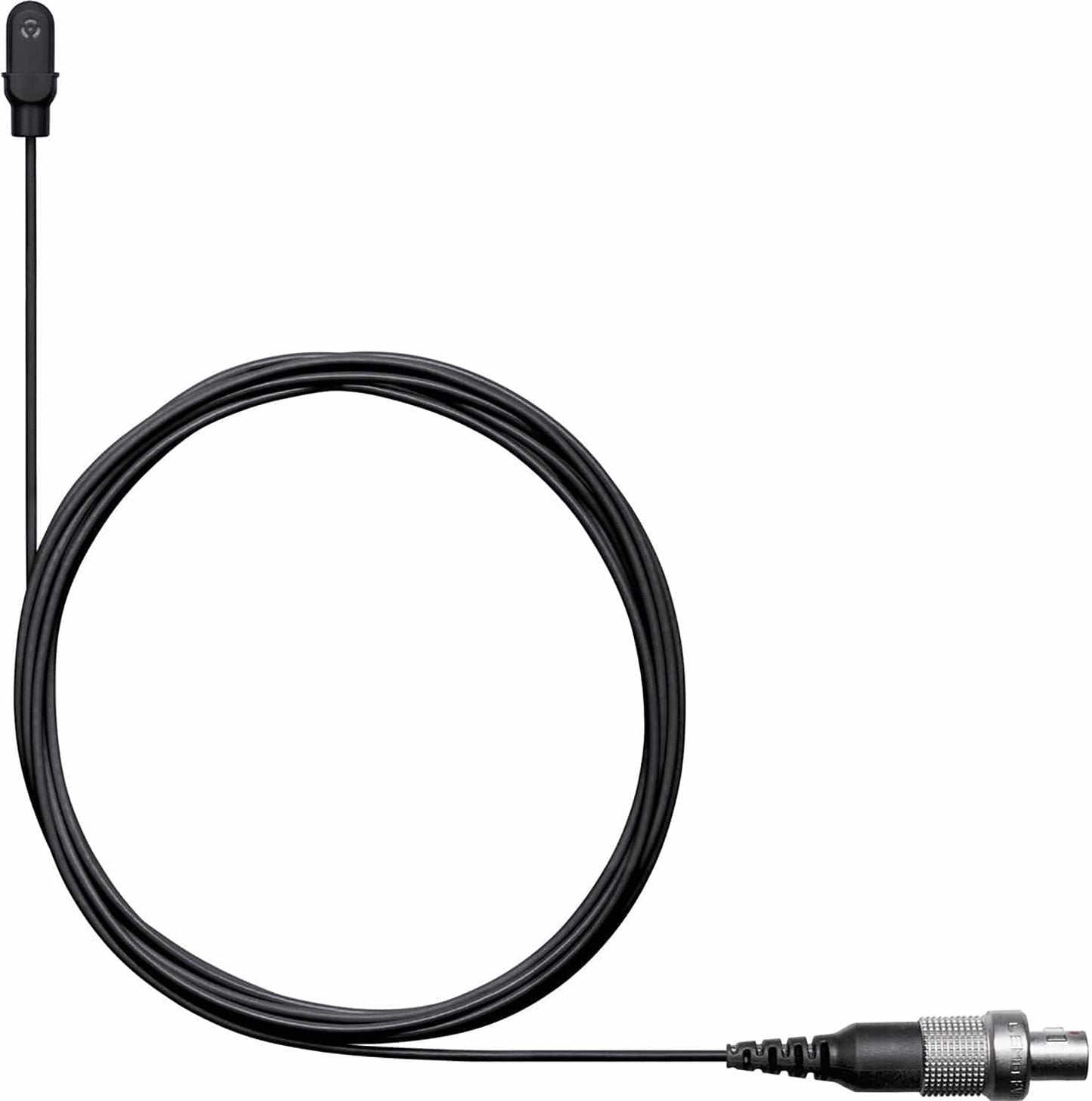

Shure DL4 DuraPlex Omnidirectional Subminiature Waterproof Microphone
Available in lavalier or headset form, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. Whether shooting reality TV, mounting a professional theatrical tour, or working in any other demanding environment, contending with the elements won't slow down performance. As comfortable on the beach as it is in a broadcast studio, the Shure DL4B/O-LM3-A DuraPlex features a neutral, full sound quality that meets the highest audio standards.
The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero "memory effect," does not kink, and is fully paintable.
The Shure DL4 Microphone is available with LEMO3 or MTQG plugs. Also, it comes in black, cocoa, tan and white.
See it in detail
Product Video
Why this product
Key Benefits
-
5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
-
IP57 dust-resistant, waterproof rated
-
Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
-
Advanced 1.6 mm Shure Plex cable: Dual redundant ground in cable serves as secondary shield for unprecedented longevity - Immune to memory effect and kinks - Fully paintable with typical theater paints, pens, and polishes
-
Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
-
Color: Cocoa
-
Connector types: LEMO
-

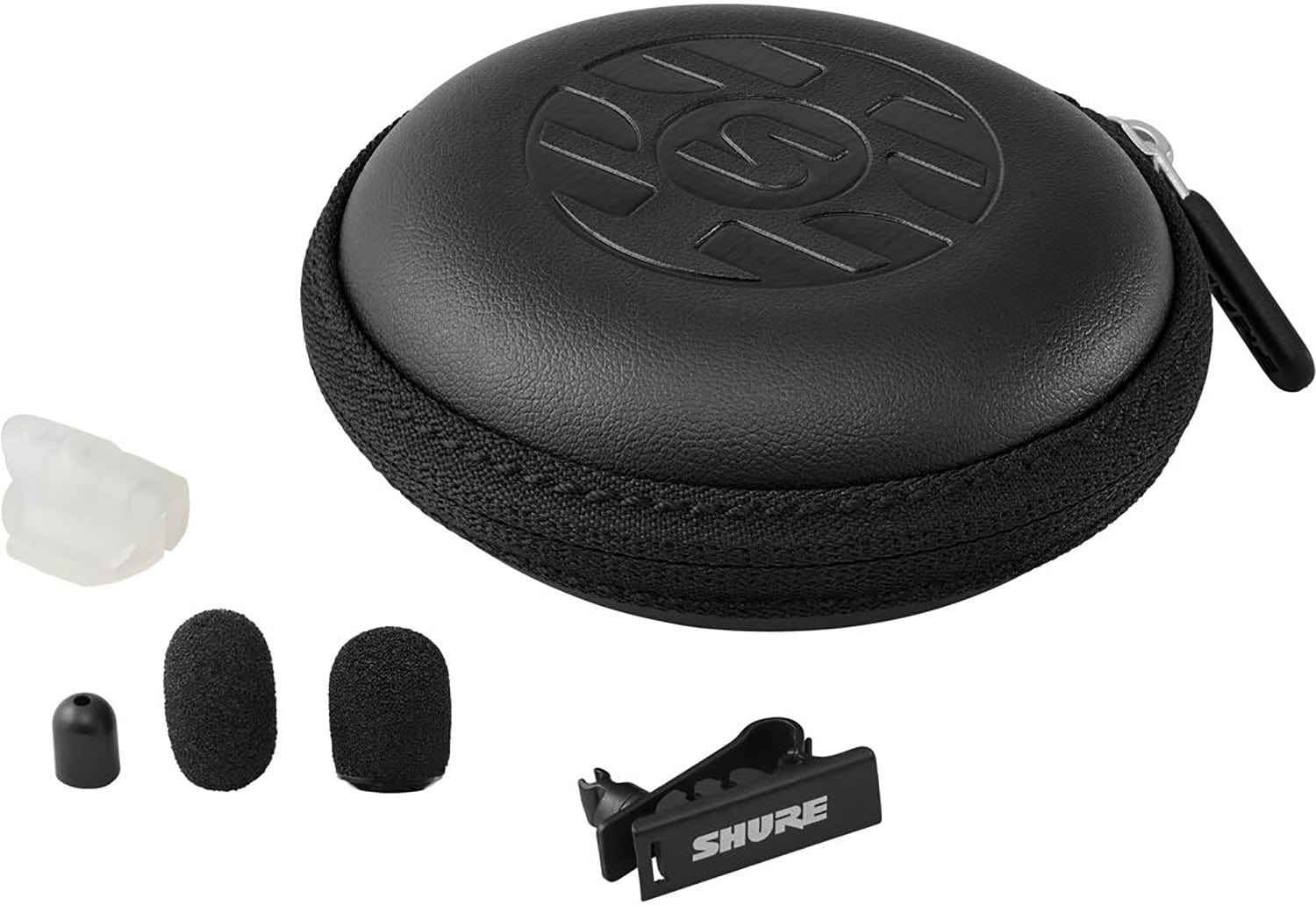

Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- MEMS
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Self-Noise
- 31 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio
- 63 dB
- Dynamic Range
- 101.0 dB Typical
Connectivity
- Polarity
- Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter
- 1.6 mm
- Cable Length
- 66.0 in (1.67 m)
Power
- Microphone Current Draw
- 220 µA, maximum
Physical
- Housing
- Molded ABS
- Net Weight
- 15.0 g (0.53 oz)
- Capsule Dimensions (L x D)
- 14.5 mm x 5.2 mm
More details
Additional Information
Specifications:
- Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz
- Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
