Shure DL4 DuraPlex Omnidirectional Subminiature Waterproof Microphone
Model DL4B-O-MTQG-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

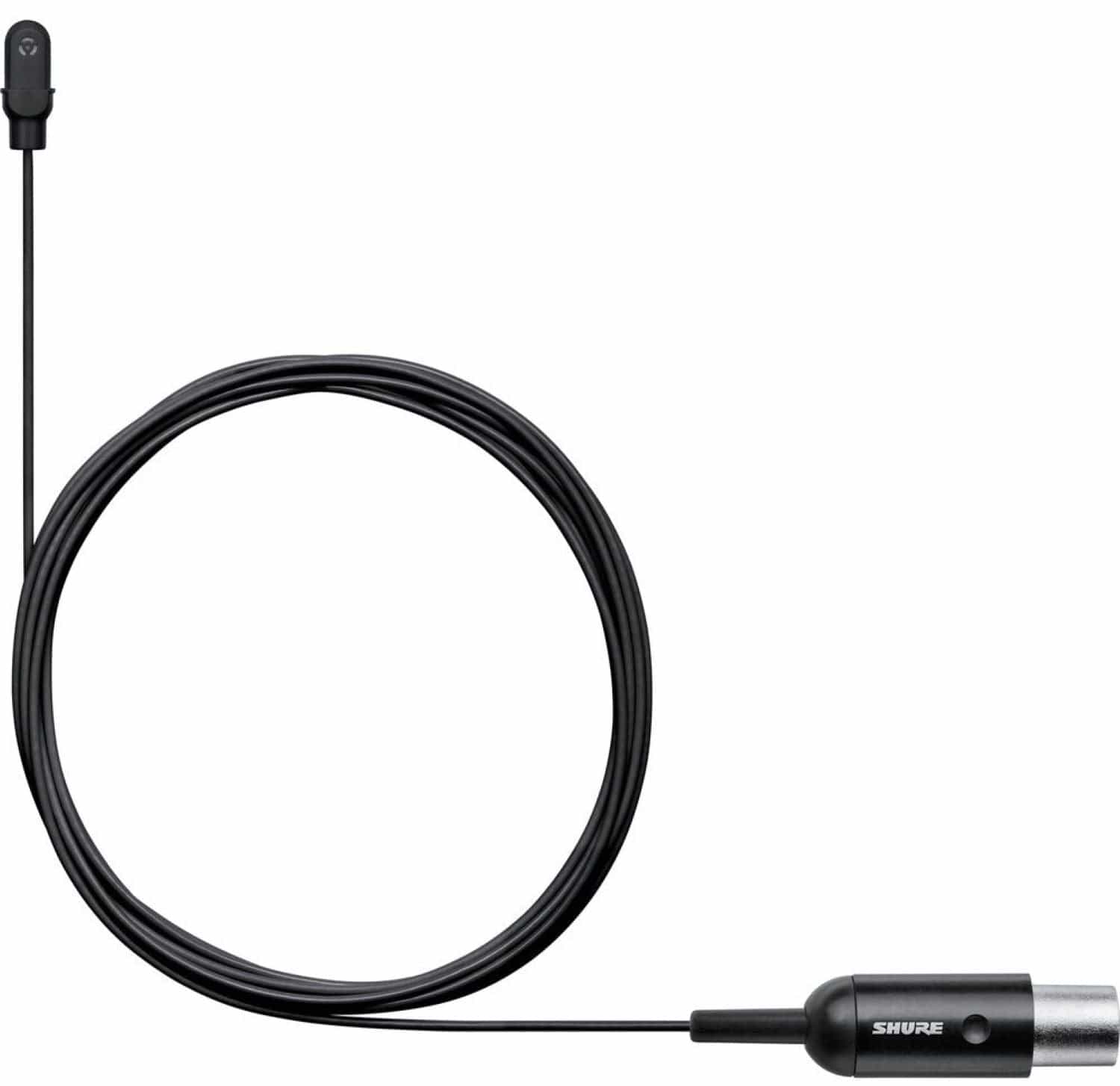

Shure DL4 DuraPlex Omnidirectional Subminiature Waterproof Microphone
Available in lavalier or headset form, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. Whether shooting reality TV, mounting a professional theatrical tour, or wherever audio takes you, contending with the elements won’t slow you down. As comfortable on the beach as it is in a broadcast studio, DuraPlex features a neutral, full sound quality that lives up to the highest audio standards.
The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground which doubles as a secondary shield. It also offers virtually zero “memory effect,” won’t kink, and is fully paintable.
Why this product
Key Benefits
-

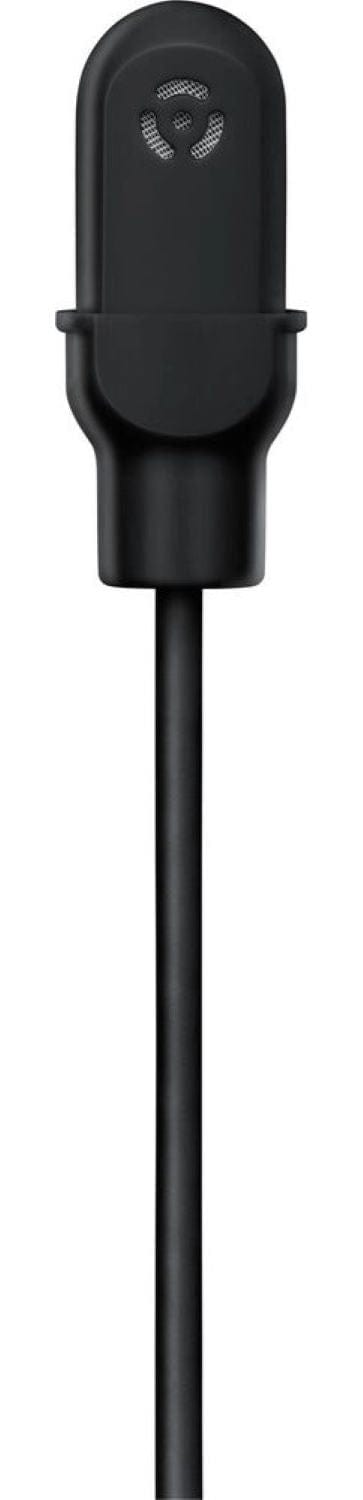

5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
-
IP57 dust-resistant, waterproof rated
-
Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
-
Advanced 1.6 mm Shure Plex cable
:
-
Dual redundant ground in cable serves as secondary shield for unprecedented longevity
-
Immune to memory effect and kinks
-
Fully paintable with typical theater paints, pens, and polishes
-
Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
-
Available in four colors: Black, Cocoa, Tan, White
-
Available in two connector types: TA4F (mTQG) and LEMO
-

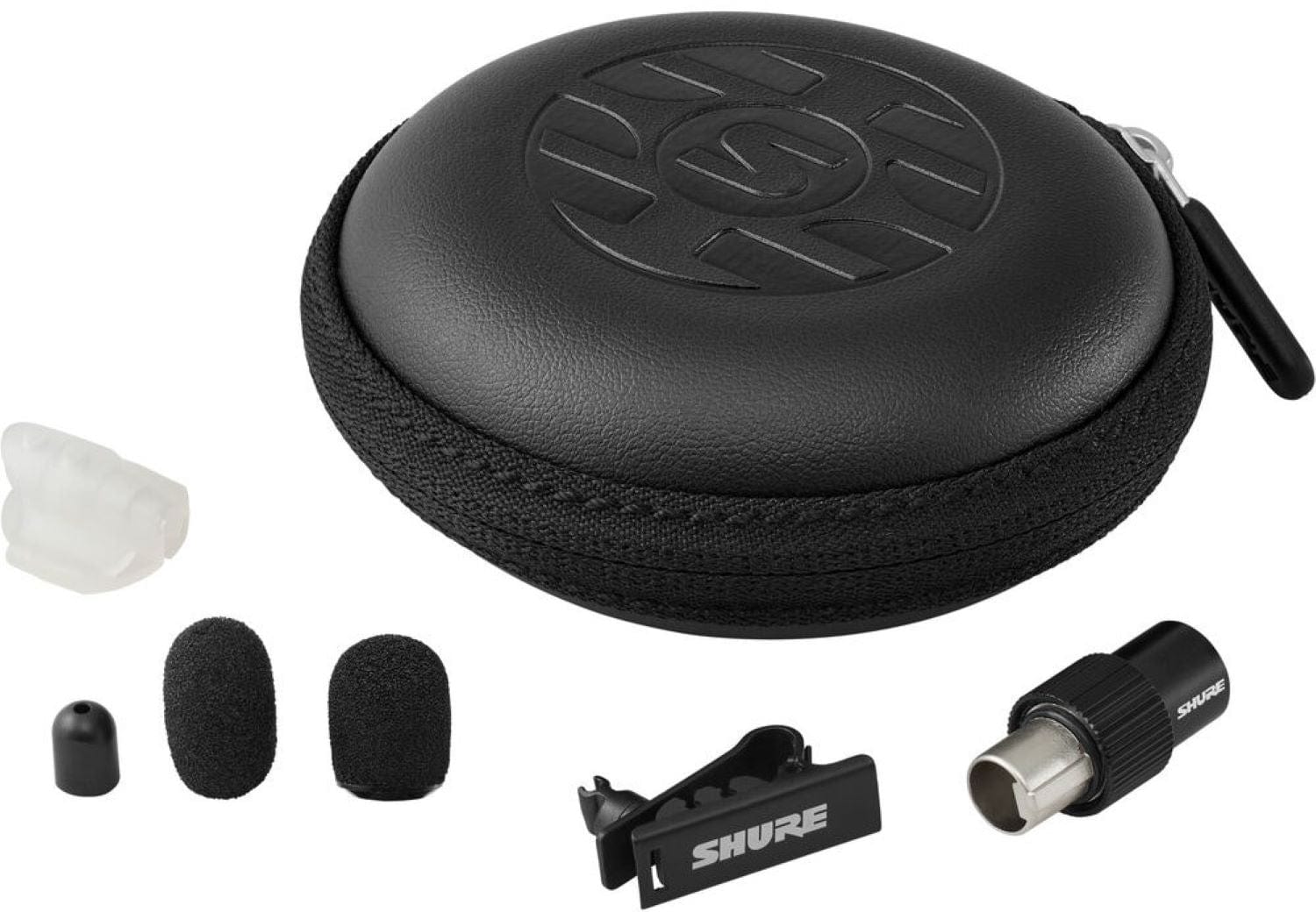

Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount, TQG Locking Collar (mTQG/TA4F SKUs only)
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- MEMS
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Self-Noise
- 31 dB SPL-A (A-weighted, Equivalent Acoustical)
- Signal-to-Noise Ratio
- 63 dB
- Dynamic Range
- 101.0 dB (Typical)
Connectivity
- Cable Diameter
- 1.6 mm
- Cable Length
- 66.0 in (1.67 m)
Power
- Microphone Current Draw
- 220 µA, maximum
Physical
- Housing
- Molded ABS
- Net Weight
- 15.0 g (0.53 oz)
- Capsule Dimensions (L × D)
- 14.5 mm × 5.2 mm
General
- MTQG
- Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- LEMO
- Positive pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
More details
Additional Information
Specifications:
- Sensitivity: –42.5 dBV (7.5 mVRMS) @ 1 kHz
- Maximum SPL: 132.0 dB SPL (1 kHz @ 1% THD, typical)
- Bias Voltage (Recommended Operating Voltage): 5 VDC
- Polarity:
