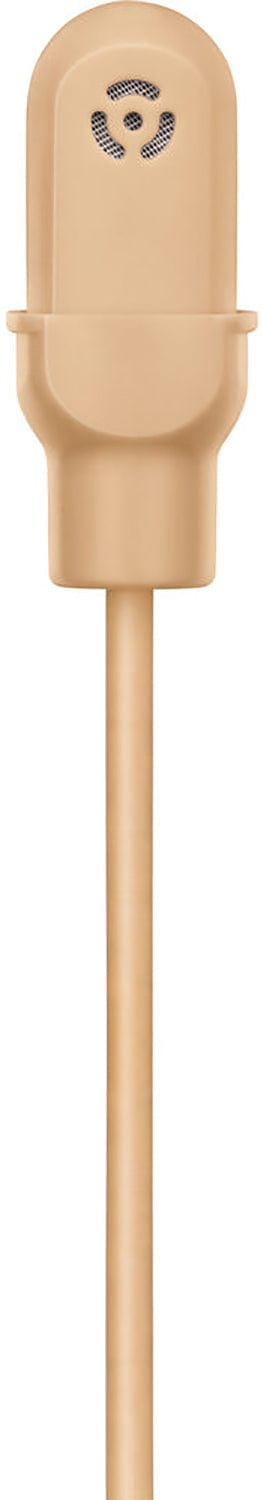

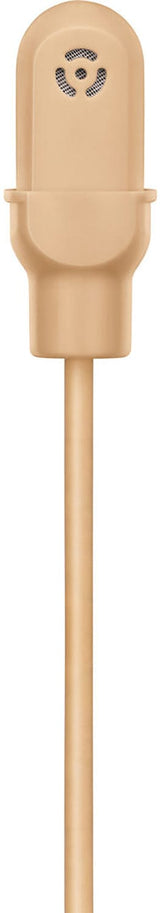

Shure DL4T/O-MTQG-A DuraPlex Omnidirectional Subminiature Waterproof Microphone - MTQG Plug - Tan
Model DL4T-O-MTQG-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

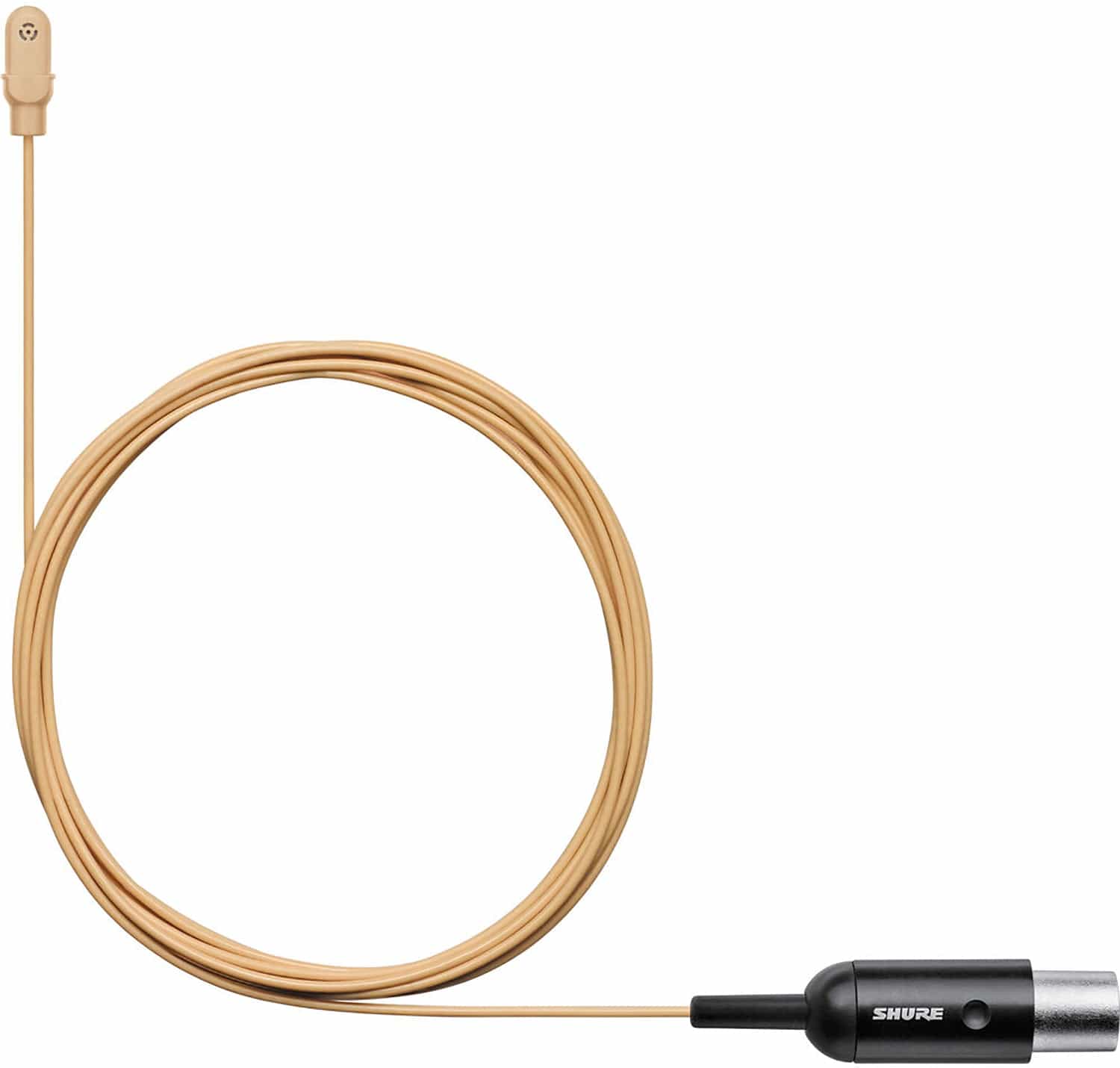

Shure DL4T/O-MTQG-A DuraPlex Omnidirectional Subminiature Waterproof Microphone - MTQG Plug - Tan
Available in lavalier or headset form, DuraPlex has been extensively tested to ensure an IP57 dust-resistant, waterproof rating. Whether shooting reality TV, mounting a professional theatrical tour, or working in any other demanding environment, contending with the elements won't slow down performance. As comfortable on the beach as it is in a broadcast studio, the Shure DL4T/O-MTQG-A DuraPlex features a neutral, full sound quality that meets the highest audio standards.
The advanced 1.6 mm Shure Plex cable, first introduced with the award-winning TwinPlex subminiature microphone, lasts longer than competing cables due to a dual redundant ground that doubles as a secondary shield. It also offers virtually zero "memory effect," does not kink, and is fully paintable.
Why this product
Key Benefits
-
5 mm omnidirectional subminiature design for discrete placement and improved gain-before-feedback
-
IP57 dust-resistant, waterproof rated
-
Neutral, full sound quality for film, broadcast, speech, theater, and performance applications
-
Advanced 1.6 mm Shure Plex cable: Dual redundant ground in cable serves as secondary shield for unprecedented longevity - Immune to memory effect and kinks - Fully paintable with typical theater paints, pens, and polishes
-
Presence Cap included for tailored frequency response provides additional vocal clarity and presence (3-4 dB boost near 10 kHz)
-
Color: Tan
-
Connector types: TA4F (mTQG)
-

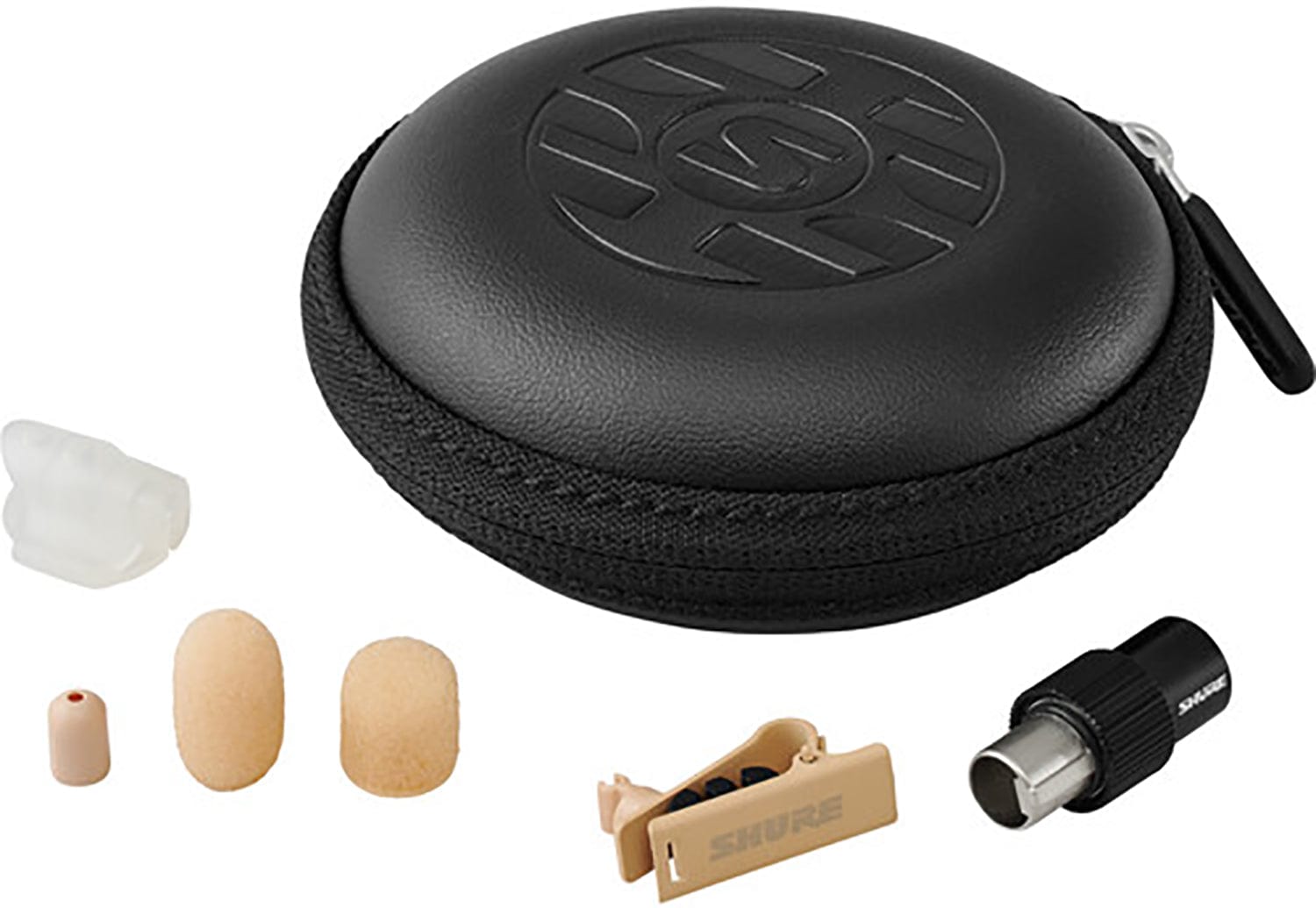

Kit includes the following accessories: Case, Foam Windscreen, Snap-fit Windscreen, Single Tie Clip, Sticky Mount
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- MEMS
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Self-Noise
- 31 dB SPL-A A-weighted, Equivalent Acoustical
- Signal-to-Noise Ratio
- 63 dB
- Dynamic Range
- 101.0 dB Typical
Connectivity
- Polarity
- Positive Pressure on diaphragm produces positive voltage on Pin 3 with respect to Pin 1
- Cable Diameter
- 1.6 mm
- Cable Length
- 66.0 in (1.67 m)
Power
- Microphone Current Draw
- 220 µA, maximum
Physical
- Housing
- Molded ABS
- Net Weight
- 15.0 g (0.53 oz)
- Capsule Dimensions (L x D)
- 14.5 mm x 5.2 mm
More details
Additional Information
Specifications:
- Sensitivity: -42.5 dBV (7.5 mVRMS) @ 1 kHz
- Maximum SPL: 132.0 dB SPL 1 kHz @ 1% THD, typical
- Bias Voltage Recommended Operating Voltage: 5 VDC
