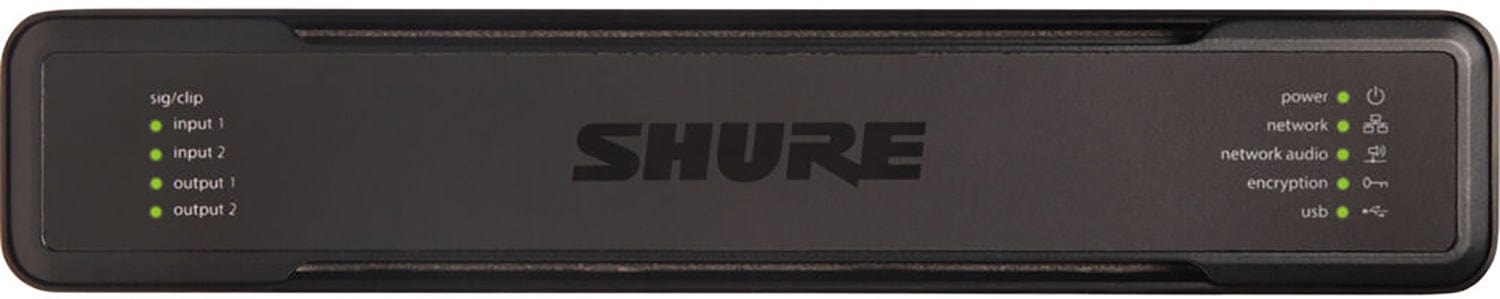

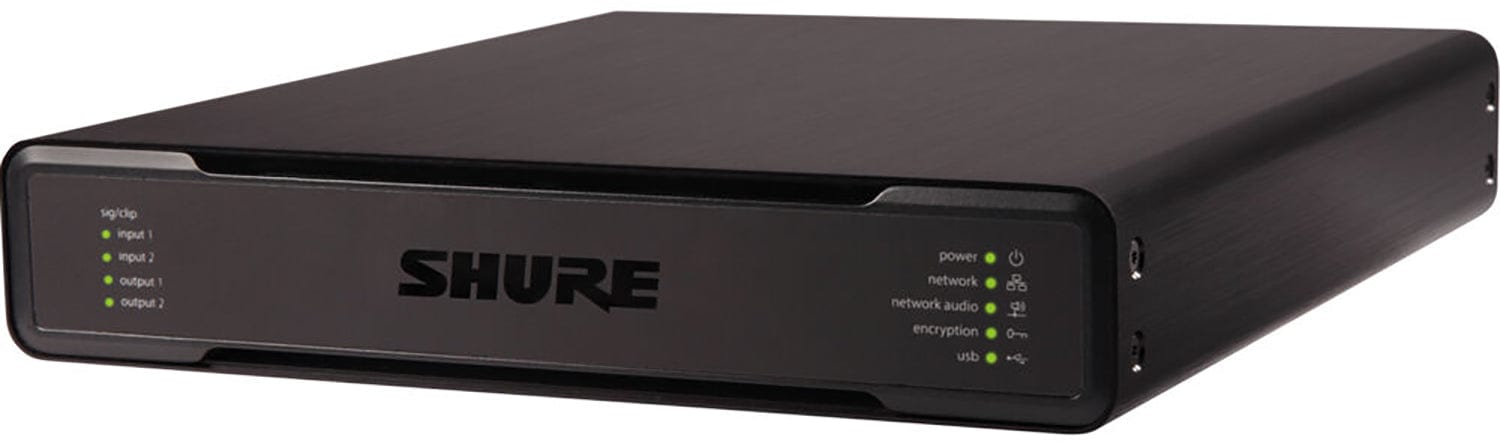

Shure IntelliMix P300 Processor
Model P300-IMX
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure IntelliMix P300 Audio Conferencing Processor
The IntelliMix P300 Audio Conferencing Processor offers a predefined matrix and presets to simplify the set up process reducing the lengthy commissioning time often associated with DSP. The unobtrusive form factor allows discrete installations, making it compatible for a wider variety of meeting rooms. Versatile connectivity options provide freedom of choice when joining a room video system including via soft codec, or connecting laptops and mobile devices. Featuring acoustic echo cancellation, noise reduction and automatic gain control for up to 8 Dante channels, the P300 ensures echo- and noise-free conference room audio.
Why this product
Key Benefits
-
Connects 10 Dante audio inputs, 2 analog inputs, USB and a mobile device to an AV conferencing system or a PC-based videoconferencing application
-
Includes Shure developed DSP algorithms to enhance audio quality in AV conferences: 8 channels of microphone processing featuring AEC, noise reduction, and automatic gain control, IntelliMix automatic mixing, matrix mixing, delay, compressor and PEQ
-

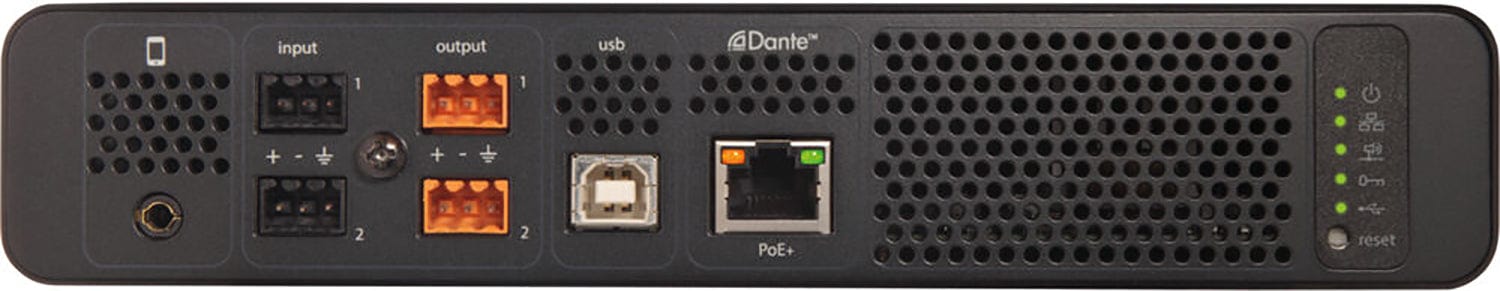

Flexible signal routing and connectivity: analog audio (2 block in / 2 block out) to connect to room AV conferencing system; USB (1 in/out) to connect to laptop or room PC; one 3.5 mm TRRS jack to connect to a mobile device to enable an additional participant to join
-
Power-over-Ethernet (PoE+) eliminates the need for an outboard power supply
-
Compact form factor is easy to mount without equipment rack
Technical details
Technical Specifications
Microphone
- Frequency Response
- 20 Hz to 20 kHz (+1, -1.5 dB)
- Input Clipping Level
- Line +27 dBV, Aux+15 dBV
- Input Clipping Level
- +4 dBV
Connectivity
- Sampling Rate
- 48 kHz
- Dante 1-8 In to Dante Out (AEC enabled)
- 15.4 ms
- Dante 1-8 In to Dante Out (AEC disabled)
- 8.7 ms
- Dante 9-10 In to Dante Out
- 3.4 ms
- Analog In to Analog Out
- 3.8 ms
- Dante 1-8 In to Dante Out (AEC Enabled)
- 12.5 ms
- Dante 1-8 In to Dante Out (AEC Disabled)
- 5.8 ms
- Dante 9-10 In to Dante Out
- 1.8 ms
- Analog In to Analog Out
- 2.2 ms
- Input Impedance
- 9.6 Kilohms
- Output Impedance
- 80 Ohms
- Output Clipping Level
- Line +20 dBV, Aux +0 dBV, Mic -26 dBV
- Connector
- 1/8" / 3.5 mm
- Input Impedance
- 3.7 Kilohms
- Output Impedance
- 1.4 Kilohms
- Analog Output
- 2 x 3-Pin Block Connector (Impedance Balanced)
- Networking
- Cable Requirements: Cat 5e or Higher (Shielded Cable Recommended)
- Polarity
- Non-Inverting, Any Input to Any Output
Power
- Power Requirements
- 802.3 at Type 2 (PoE Plus), Class 4
- Power Consumption
- 17.5 W, Maximum
Physical
- Dimensions
- 1.6 x 8.3 x 8.9" / 4 x 21 x 22.6 cm
- Weight
- 3.8 lb / 1.71 kg
Environmental
- Operating Temperature Range
- 20 to 122° F / -6.7 to 50° C
- Storage Temperature Range
- -20 to 165° F / -29 to 74° C
General
- Bit Rate
- 24 Bit
- Bit Rate
- 24 / 16 Bit
- Tail Length
- Up to 300 ms
- Pin Assignments
- Tip: Audio Input (Left), Ring 1: Audio Input (Right), Ring 2: Ground, Sleeve: Audio Output (To Phone)
- Control Software
- Shure Designer
- Maximum
- 17.5 W (60 BTU/Hr)
- Typical
- 14.6 W (50 BTU/Hr)
More details
Additional Information
Specifications:
- Audio:
- Dante Digital Audio:
- USB Audio:
- Latency:
- Firmware 4.1 and Newer:
- Firmware 3.1 and Older:
- Firmware 4.1 and Newer:
- Acoustic Echo Cancelling:
- Analog Connections
- Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 113 dB, Dante to Analog: 117 dB
- Equivalent Input Noise (20 Hz to 20 kHz, A-Weighted, Input Terminated with 150 Ohms): Line -86 dBV, Aux -98 dBV
- Total Harmonic Distortion at 1 kHz, 0 dBV Input, 0 dB Analog Gain: <0.05%
- Common Mode Rejection Ratio (150-Ohm Balanced Source @ 1 kHz): > 50 dB
- Mobile:
- Dynamic Range (20 Hz to 20 kHz, A-Weighted, Typical): Analog to Dante: 99 dB, Dante to Analog: 90 dB
- Total Harmonic Distortion (at 1 kHz, 0 dBV Input, 0 dB Analog Gain): <0.05%
- Output Clipping Level (Output Terminated with 2.2 Kilohms): -20 dBV
- Dante Digital Audio:
- General:
- Analog Input:
- 2 x 3-Pin Block Connector (Active Balanced)
- 1 x 1/8" / 3.5mm TRRS Input
- USB:
- USB 2.0, Type B
- Single Port Carries 2 Input and 2 Output Channels (Summed Mono)
- Network Connection:
- 1 x RJ45
- 10 x Dante Inputs
- 8 x Dante Outputs
- Thermal Dissipation:
- Analog Input:
