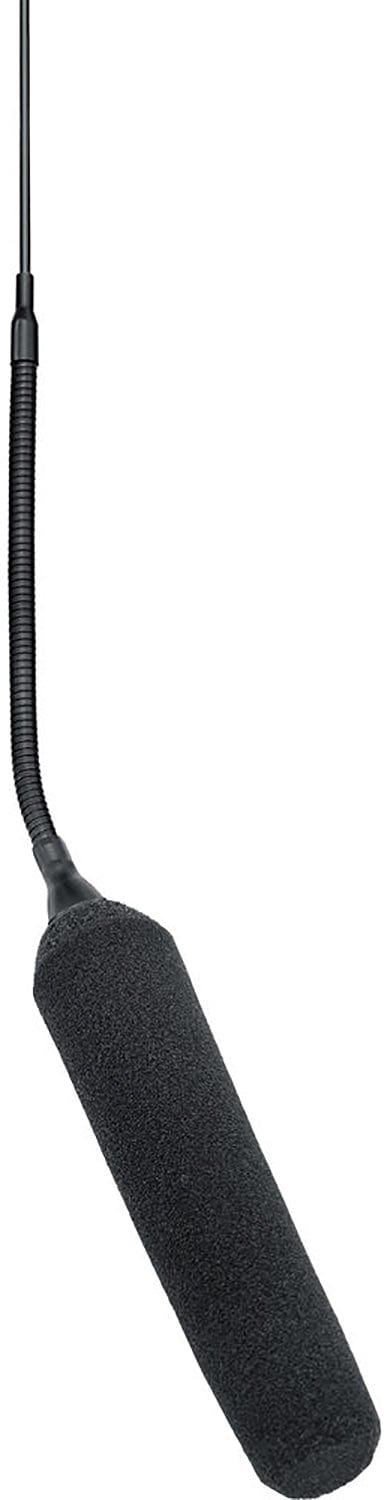

Shure MX202BP/MS Mini-Condenser Microphone - Mini Shotgun Cartridge - TQG Connector - Preamp - Black
Model MX202BP-MS
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MX202BP/MS Mini-Condenser Microphone - Mini Shotgun Cartridge - TQG Connector - Preamplifier - Black
Shure’s MX202 Microflex® Overhead condenser microphones capture high-quality sound in a compact, adjustable package. Each model features a choice of interchangeable cardioid, supercardioid, or mini-shotgun condenser microphone cartridges attached to a flexible, four inch gooseneck with a 30 foot cable. It’s hard to believe that such small, unobtrusive microphones can produce such great sound, but it's true. Available with plate mount preamps.
Why this product
Key Benefits
-
Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
-
Balanced, transformerless output for increased immunity to noise over long cable runs
-
Black finish that blends unobtrusively with surroundings
-
Preamp offers easy installation in ceilings or microphone stands
Technical details
Technical Specifications
Microphone
- Frequency Response
- 50–17000 Hz
- Polar Pattern
- Mini-shotgun
- Maximum SPL, 1 kHz at 1% THD, 1 kΩ load
- 121 dB
- Self Noise, A-weighted
- 26 dB SPL
- Clipping Level at 1% THD
- −6 dBV (0.5 V)
Connectivity
- Output Impedance
- 180 Ω
- Output Configuration
- Active Balanced
- Polarity
- 3-pin XLR - Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
Power
- Power Requirements
- Phantom Power, 11–52 V DC, 2.0 mA
Environmental
- Operating Temperature
- –18–57°C (0–135°F)
- Storage Temperature
- –29–74°C (–20–165°F)
- Relative Humidity
- 0–95%
General
- Type
- Electret Condenser
- Common Mode Rejection
- 10 Hz to 100 kHz, 45 dB, minimum
More details
Additional Information
Specifications:
- Sensitivity @ 1 kHz, open circuit voltage: -33 dBV/Pa (22 mV), 1 Pa=94 dB SPL
- Signal-to-Noise Ratio, Ref. 94 dB SPL at 1 kHz: 68 dB
- Dynamic Range, 1 kΩ load, @ 1 kHz: 96 dB
- Environmental Conditions:
