Shure MX395 Boundary Microphones
Model MX395W-BI-LED
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

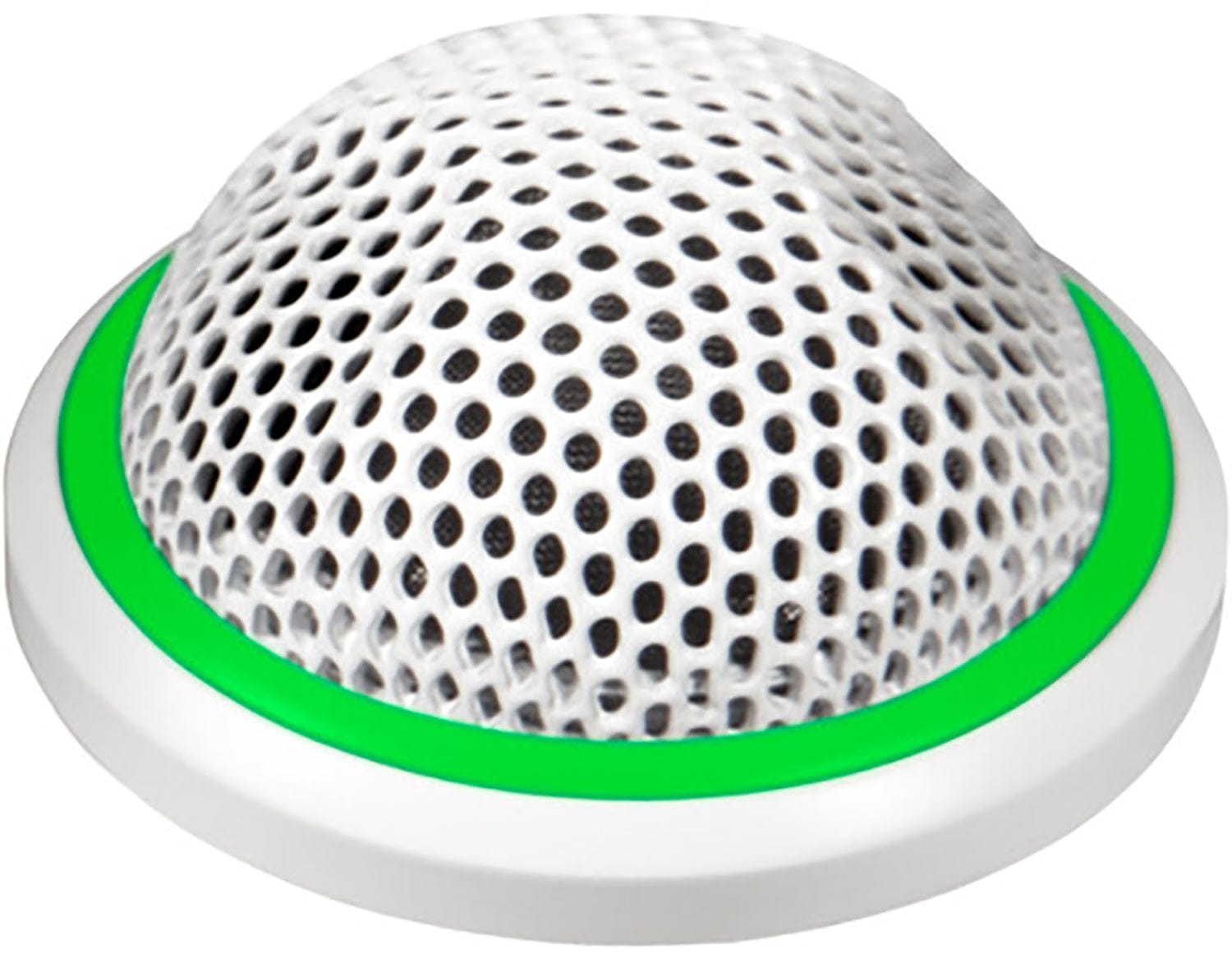

Shure MX395 Microflex Low Profile Boundary Microphones
Boundary microphone delivers exceptional sound pickup and a low-profile design in a variety of colors and pickup patterns to suit any meeting room. It features wide dynamic range and smooth frequency response, remote LED control, and White color.
The Shure MX395 Boundary Microphones is available with 5-Pin XLR or 3-Pin XLR connectors. It is also available as omnidirectional, cardioid or bidirectional.
Why this product
Key Benefits
-
Only 1.25 inch (3.8 cm) in diameter
-
Bidirectional polar pattern
-
Wide dynamic range and smooth frequency response
-
Available in aluminum
-
Bi-color status indicator available with -LED models
-
Logic input for remote LED control
Technical details
Technical Specifications
Microphone
- Frequency Response
- 50–17000 Hz
- Polar Pattern (at 1 kHz)
- Bidirectional
- Maximum SPL (1 kHz at 1% THD, 1 kΩ load)
- 123 dB
- Dynamic Range (1 kΩ load at 1 kHz)
- 94 dB
Connectivity
- Output Impedance
- EIA Rated at 150 Ω (170 Ω actual)
- Output Configuration
- Active Balanced
- Equivalent Output Noise (A-weighted)
- 29 dB
- Preamplifier Output Clipping Level
- -8 dBV (0.4 V) (1% THD)
- 5-Pin XLR
- Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector.
- Logic Connections
- LED IN: Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
Environmental
- Operating Temperature
- -18–57 °C (0–135 °F)
- Storage Temperature
- -29–74 °C (-20–165 °F)
- Relative Humidity
- 0–95%
Shipping & Packaging
- Packaged
- 0.374 kg (0.825 lbs)
General
- Type
- Condenser (electret bias)
- Common Mode Rejection
- 45 dB minimum (10 Hz to 100 kHz)
- Net
- .136 kg (.30 lb)
- MX395-LED
- 48–52 Vdc phantom, 8.0 mA
More details
Additional Information
Specifications:
- Sensitivity (at 1 kHz, open circuit voltage) 1 Pascal=94 dB SPL: –37 dBV/Pa (14 mV)
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 65 dB
- Polarity:
- Weight:
- Environmental Conditions:
- Power Requirements:
