Shure MX396 Boundary Microphone
Model MX396-C-DUAL
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

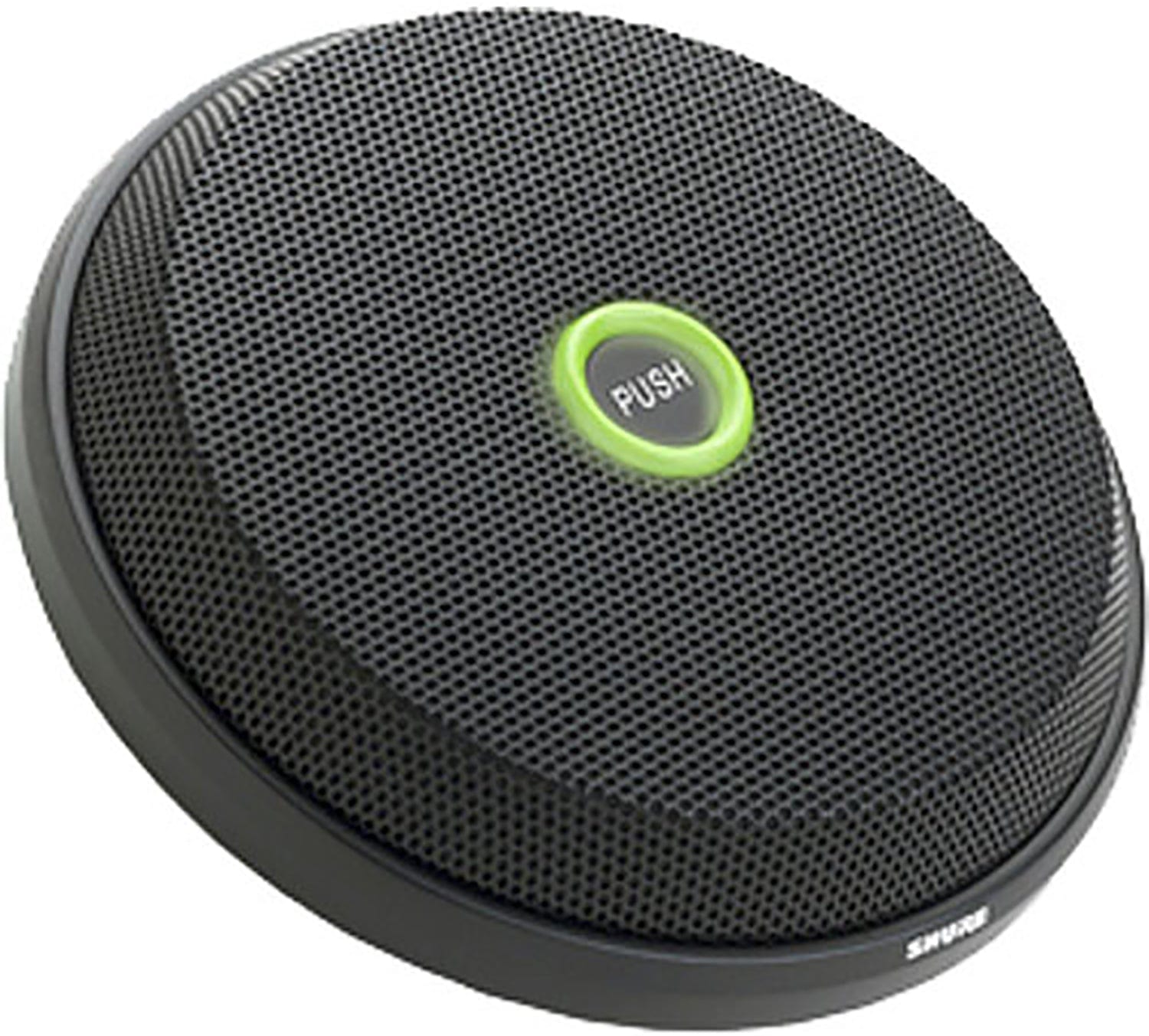

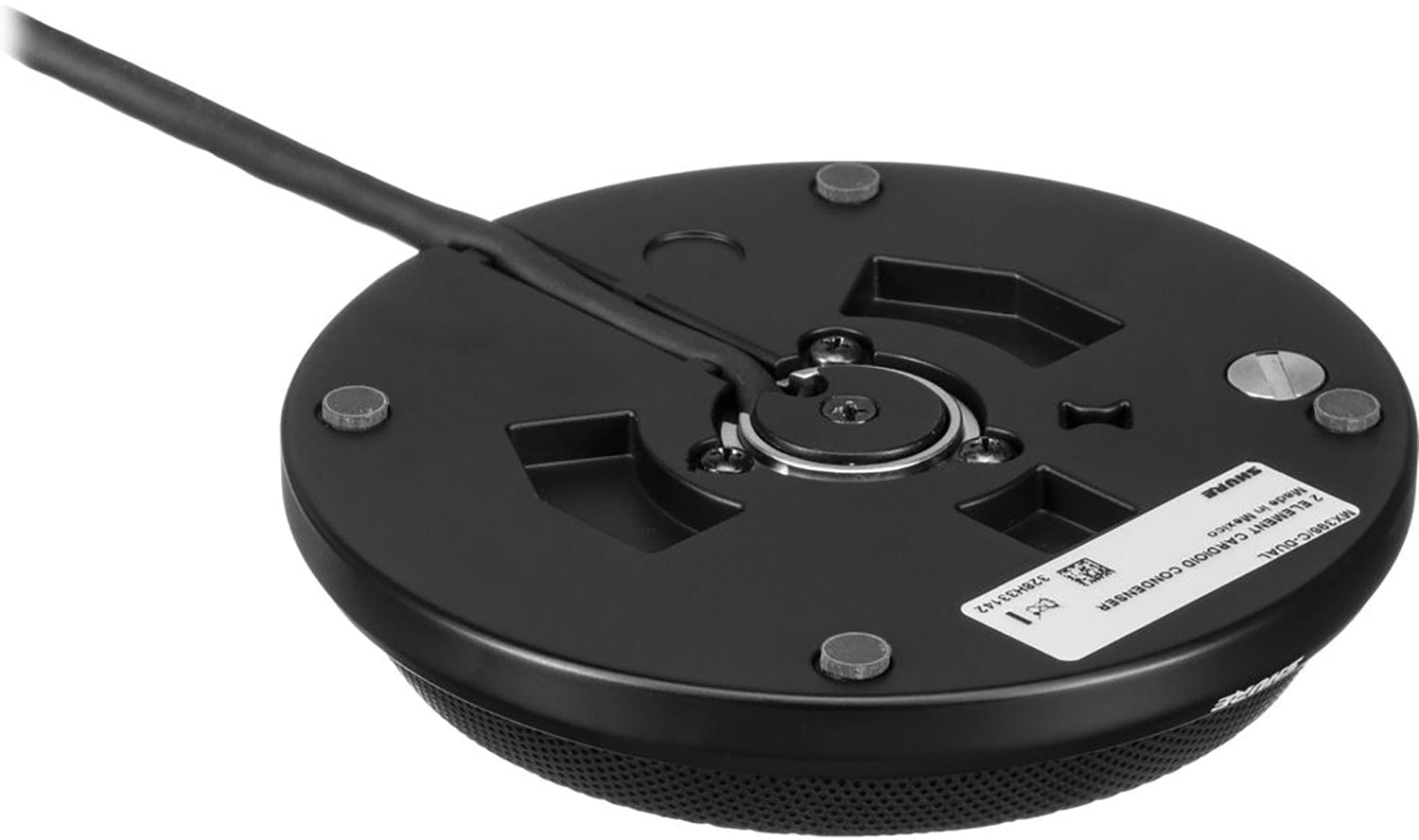

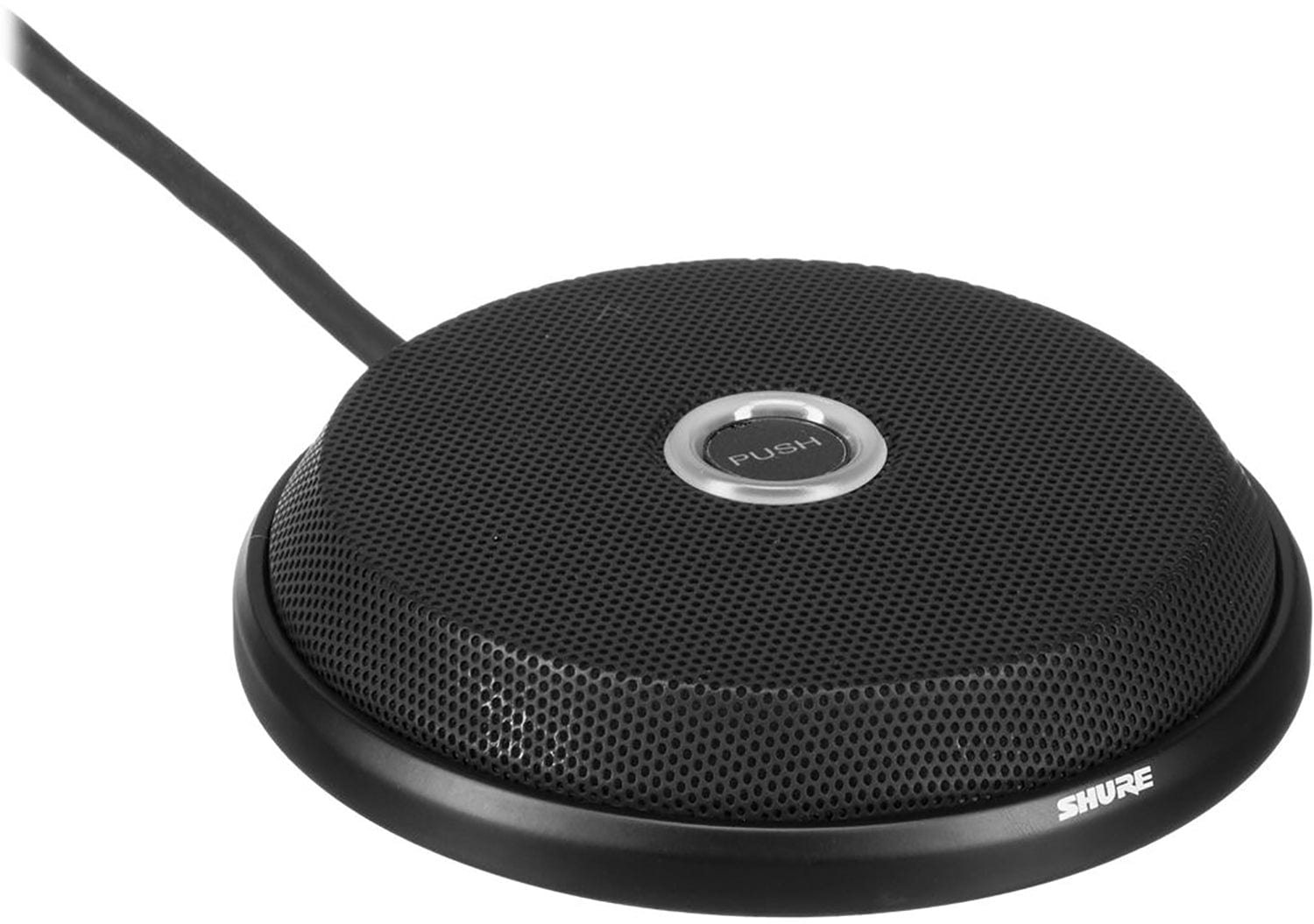

Shure MX396 Microflex Multi-Element Boundary Microphone
Microflex Multi-Element Boundary microphones deliver a unique and versatile tool for conference room installations. Clean and simple in appearance, Multi-Element Boundary mics come in two or three element configurations, combining the coverage of multiple microphones into one small, compact package.
Why this product
Key Benefits
-
Low profile, aesthetic design
-
Wide dynamic range and smooth frequency response
-
Configurable mute switch with logic output
-
RF filtering with CommShield™ technology
-
End of table (300°), center of table (360°), or cross table (bidirectional) coverage patterns
-
Individual control of each element
-
Bi-color status indicator
-
Logic input/output for remote LED and mute control
Technical details
Technical Specifications
Microphone
- Frequency Response
- 50 to 17000 Hz
- Polar Pattern
- MX396/C-DUAL: 2 x Cardioid
- Dynamic Range (1 kilohm load at 1 kHz)
- 94 dB
Connectivity
- Output Impedance
- EIA Rated at 150 Ohms (170 Ohms actual)
- Output Configuration
- Active balanced
- Cable
- 6.1 m (20 ft) attached unterminated cable with three shielded audio pairs and three shielded conductors for logic control
- Equivalent Output Noise (A-weighted)
- 28 dB SPL
Power
- Absolute maximum voltage
- -0.7V to 50V (up to 50V through 3 kilohms)
- Power Requirements
- MX396/C-DUAL: 48–52 Vdc phantom, 10.0 mA
Environmental
- Operating Temperature
- -18 to 57 deg. C (0 to 135 deg. F)
- Storage Temperature
- -29 to 74 deg. C (-20 to 165 deg. F)
- Relative Humidity
- 0 to 95%
Shipping & Packaging
- Packaged
- 0.916 kg (2.02 lbs.)
General
- Type
- Condenser (electret bias)
- Common Mode Rejection (10 Hz to 100 kHz)
- 45 dB minimum
- Net
- 0.587 kg (1.29 lbs.)
- LED IN
- Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V.
- LOGIC OUT
- Active low (≤1.0V), sinks up to 20mA, TTL compatible.
- Mute Switch Attenuation
- -50 dB minimum
More details
Additional Information
Specifications:
- Preamplifier Output Clipping Level (1% THD): -7 dBV (0.5 V)
- Weight:
- Logic Connections:
- Environmental Conditions:
- Sensitivity (at 1 kHz , open circuit voltage): -35 dBV/Pa (18 mV)
- Maximum SPL (1 kHz at 1% THD, 1 kilohms load): 122 dB
- Signal-to-Noise Ratio (referenced at 94 dB SPL at 1 kHz): 66 dB
