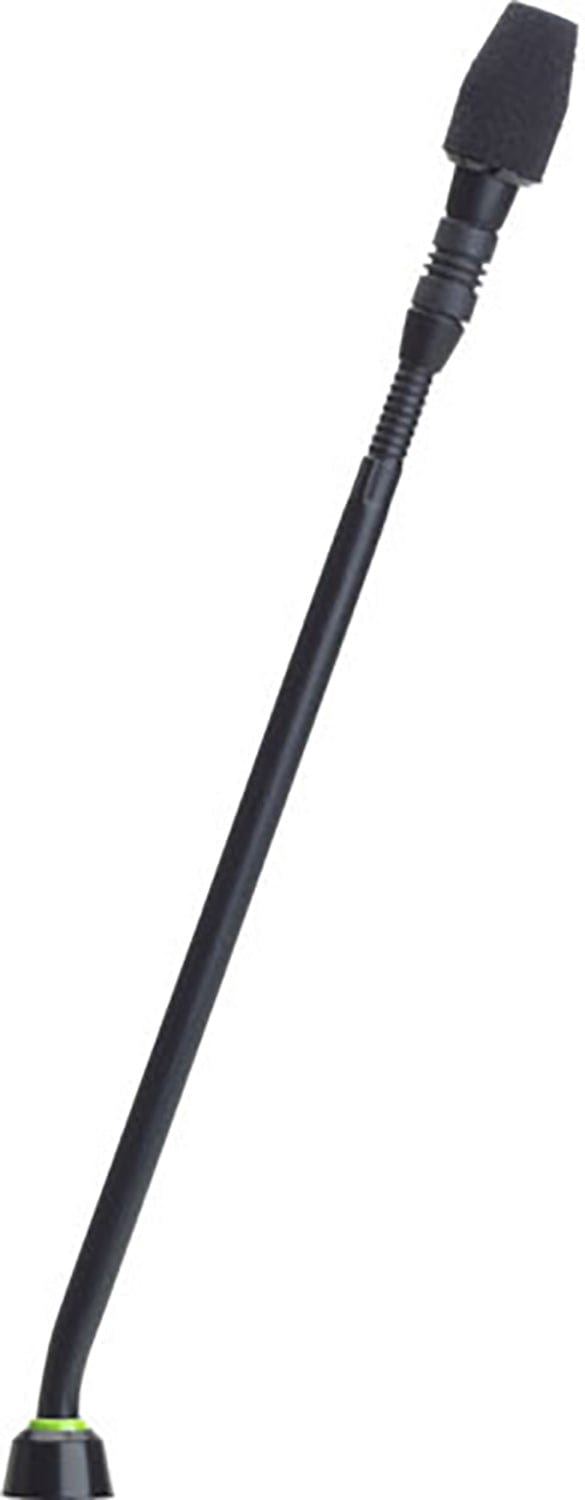

Shure MX410RLP/N 10 Inch Shock-Mounted Gooseneck Microphone - No Capsule - LED Ring - No Preamp
Model MX410RLP-N
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MX410RLP/N 10 Inch Shock-Mounted Gooseneck Microphone - No Capsule - LED Ring - No Preamplifier
The Shure MX410 Gooseneck Microphone is a flexible speech microphone designed for applications in meeting rooms, lecture halls, houses of worship, and anywhere a high-quality speech microphone is desired. The mic features a 10 inch adjustable gooseneck for optimal positioning and an interchangeable capsule design that lets you choose between cardioid, supercardioid, or omnidirectional capsules.
Why this product
Key Benefits
-
10 inch (254 mm) length
-
Single color light ring
-
Programmable mute switch (desktop models only)
-
Logic input/output for remote LED and mute control
-
Surface-mount and wired or wireless desktop base options
-
CommShield™ Technology for improved RF filtering
Technical details
Technical Specifications
Microphone
- Frequency Response
- 50 to 17000 Hz
- Dynamic Range (1 kilohm load at 1 kHz)
- 3 dB
Connectivity
- Output Impedance
- EIA Rated at 150 Ohms (170 Ohms actual)
- Output Configuration
- Active balanced
- 3-Pin XLR
- Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- 5-Pin XLR
- Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
- Cable
- MX400DP20 ft (6.1 m) attached cable with shielded audio pair terminated at a 3-pin male XLR and three unterminated conductors for logic control
Power
- Power Requirements
- 48-52 Vdc phantom, 8.0 mA
Physical
- Net Weight
- 0.068 kg (0.150 lbs)
Environmental
- Operating Temperature
- -18-57 °C (0-135 °F)
- Storage Temperature
- -29-74 °C (-20-165 °F)
- Relative Humidity
- 0-95%
General
- Type
- Condenser (electret bias)
- Common Mode Rejection (10 Hz to 100 kHz)
- 45 dB minimum
- LED IN
- Active low (≤1.0V), TTL compatible. Absolute maximum voltage: -0.7V to 50V
- LOGIC OUT
- Active low (≤1.0V), syncs up to 20mA, TTL compatible. Absolute maximum voltage: -0.7V to 50V (up to 50V through 3 kilohms)
- Mute Switch Attenuation
- -50 dB minimum
More details
Additional Information
Specifications:
- Preamplifier Output Clipping Level (1% THD): -8 dBV (0.4 V)
- Polarity:
- Logic Connections:
- Environmental Conditions:
