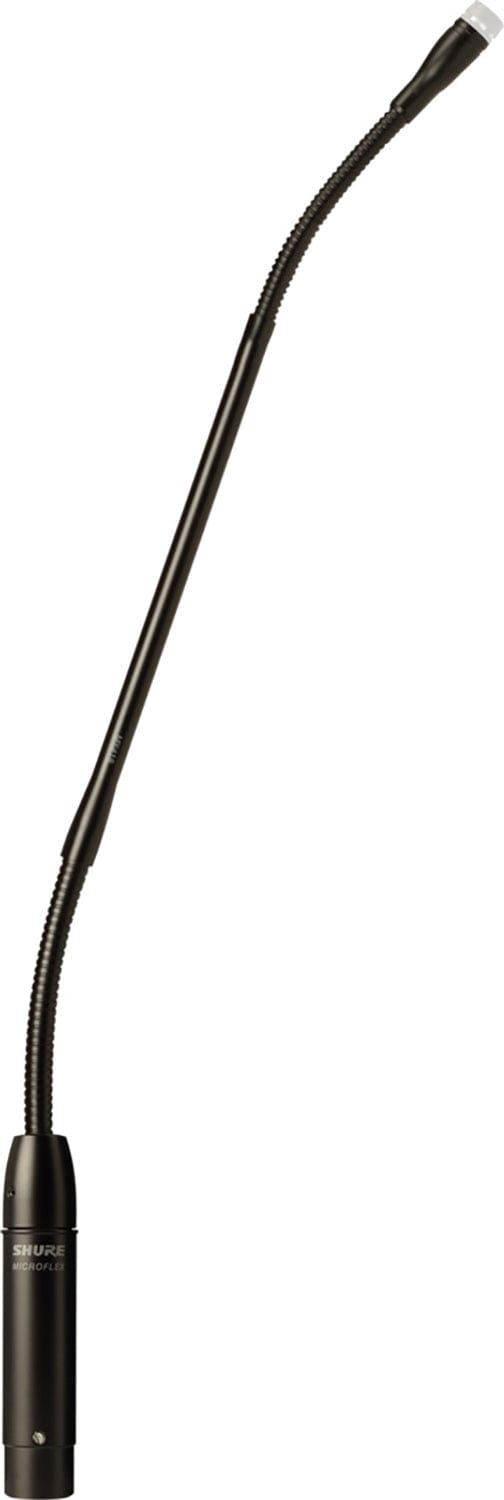

Shure MX412/N 12 Inch Microflex Standard Gooseneck Condenser Microphone - No Cartridge - Preamp
Model MX412-N
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MX412/N 12 Inch Microflex Standard Gooseneck Condenser Microphone - No Cartridge - Preamplifier
Gooseneck microphone offers interchangeable cartridges and enhanced length and flexibility for reliably clear sound reproduction. It features high sensitivity and maximum resistance to electromagnetic hum and RF interference, even over long cables.
Why this product
Key Benefits
-
Engineered to capture and inspire.
-
Interchangeable cartridges provide the right polar pattern for every application
-
Locking flange mount for permanently securing microphone to surfaces
-
Snap-fit foam windscreen
-
Shock mount provides over 20 dB isolation from surface vibration noise
-
Wide dynamic range and frequency response for accurate sound reproduction across the audio spectrum
-
Balanced, transformerless output for increased immunity to noise over long cable runs
-
New RF filtering
Technical details
Technical Specifications
Microphone
- Frequency Response
- 50 Hz to 17 kHz
- Dynamic Range at 1 kOhm Load
- 96.2 dB
Connectivity
- Output Impedance (at 1000 Hz)
- Rated at 150 ? (180 ? actual)
- Equivalent Output Noise (A-weighted)
- 26.5 dB SPL
- Polarity
- Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output connector.
Power
- Power Requirements
- 11 to 52 Vdc phantom, 2.0 mA
Physical
- Gooseneck
- 12" (30 cm)
- Diameter
- 2.62" (66.70 mm)
- Depth
- 0.56" (14.40 mm)
- Gooseneck length
- 12 inch (30.5 cm)
Environmental
- Operating Temperature Range
- –18° C to 57° C (0° F to 135° F)
- Relative Humidity
- 0 to 95%
General
- Common Mode Rejection
- 45.0 dB minimum
- Head Diameter
- 0.46" (11.68 mm)
- Base Length
- 3.86" (98.04 mm)
- Base Diameter
- 0.79" (20.07 mm)
More details
Additional Information
Specifications:
- Open Circuit Sensitivity (at 1 kHz, ref. 1V/Pa): -33.5 dB (21.1 mV)
- Maximum SPL (1 kHz at 1% THD, 1 kOhm load): 122.7 dB
- Signal to Noise Ratio (referenced at 94 dB SPL): 67.5 dB
- Mute Switch Attenuation (switched models only): 50.0 dB minimum
- Preamplifier Output Clipping Level (1% THD): –6.0 dBV (0.5 V)
- Environmental Requirements
- Dimensions:
- Microphone:
- Mounting Flange
