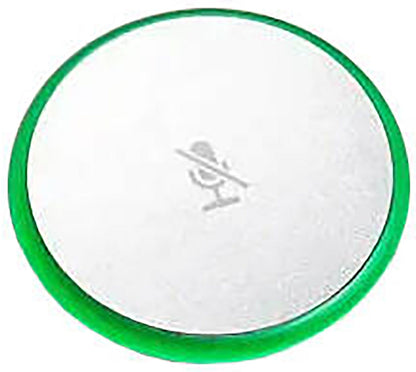

Shure MXA-NMB Network Mute Button for Shure Networked Audio Products
Model MXA-NMB
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MXA-NMB Network Mute Button for Shure Networked Audio Products
Configurable PoE-powered mute button accessory designed for Shure networked audio products, including Microflex® Advance™ Array Microphones as well as the IntelliMix® P300 and IntelliMix Room DSPs, and ANIUSB-MATRIX. One or many of the low-profile touch sensitive mute buttons can be configured to mute one or multiple microphones, depending on user needs or room configurations.
Why this product
Key Benefits
-
Designer System Configuration software for easy setup and configuration
-
SystemOn™ Asset Management for remote management & troubleshooting
-
PoE powered
-
Compatible with third party control systems via programmable control strings
-
LED status ring with configurable colors and brightness
-
Configurable as toggle, push to talk and push to mute functionality
-
IPX1 rated
-
Easy table installation in 1” (25mm) or 7/8” (22mm) holes
-
Available with microphone icon
Technical details
Technical Specifications
Connectivity
- Connector Type
- RJ45, 8-pin power cable
- Cable Requirements
- Cat 5e or higher (shielded cable recommended)
Power
- Power Requirements
- Power over Ethernet (PoE), Class 1
- Power Consumption
- 2 W, maximum
Environmental
- Ingress Protection Rating
- IEC 60529 IPX1 Water Protected
General
- Control Software
- Shure Designer
More details
Additional Information
Specifications:
- Electrical:
- Mechanical:
- Operating Temperature Range −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range −29°C (-20°F) to 74°C (165°F)
- Dimension (H x W x D):
- Base 3.74 x 3.74 x 1.06 in. (94.96 x 94.96 x 27.04 mm)
- Mute Button 1.54 x 1.54 x 0.2 in. (39.02 x 39.02 x 5.02 mm)
- Mute Button Tube 0.87 x 0.87 x 3.03 in. (22 x 22 x 76.98 mm)
- Grommet 1.97 x 1.97 x 0.31 in. (49.97 x 49.97 x 8 mm)
- Spacer 1.93 x 1.93 x 0.05 in. (49 x 49 x 1.2 mm)
