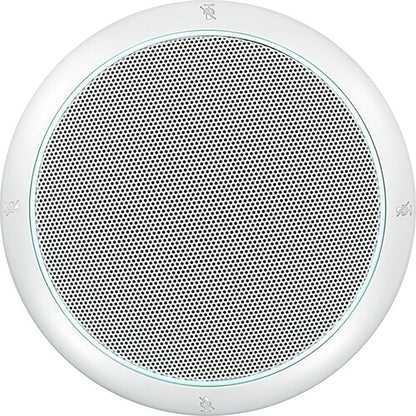

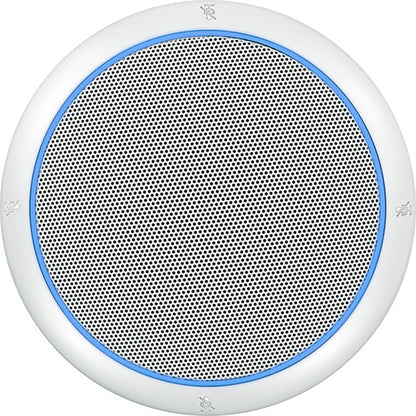

Shure MXA310W Table Array Microphone - White
Model MXA310W
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MXA310W Table Array Microphone - White
Features Steerable Coverage™ of 4 separate polar patterns, plus the new toroid polar pattern, which rejects overhead HVAC and fan noise. Intuitive user interface allows for easy configuration of presets, templates and polar patterns.

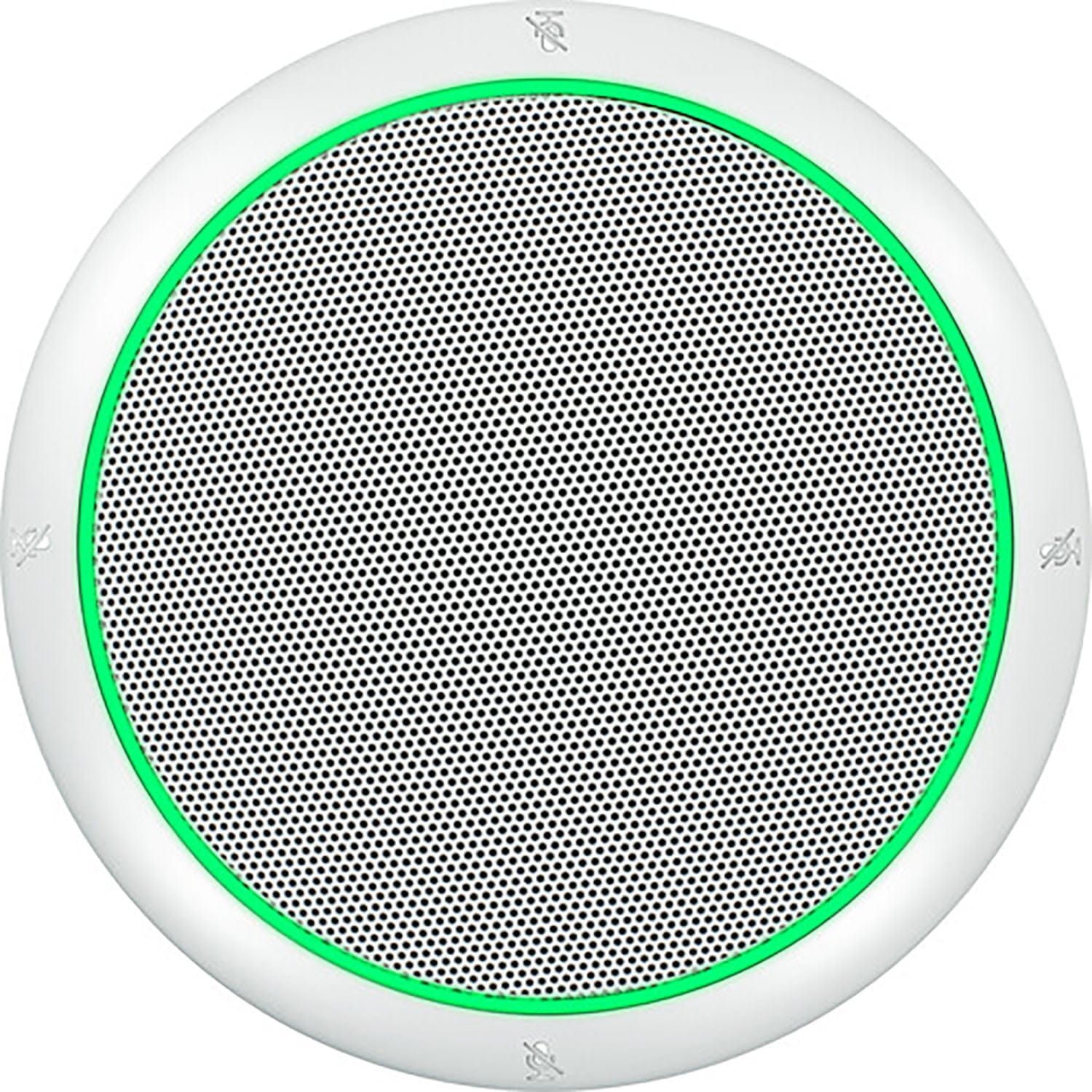

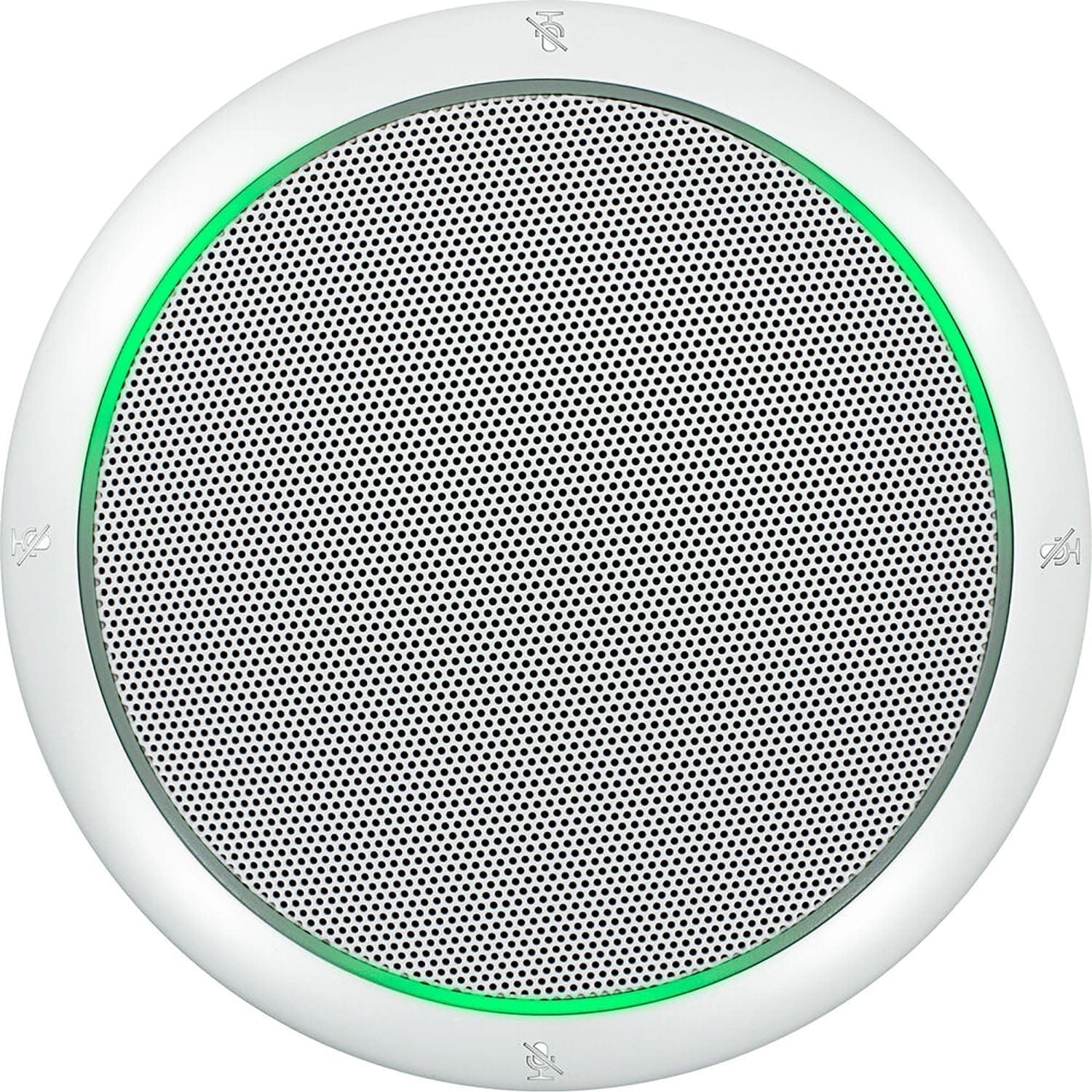

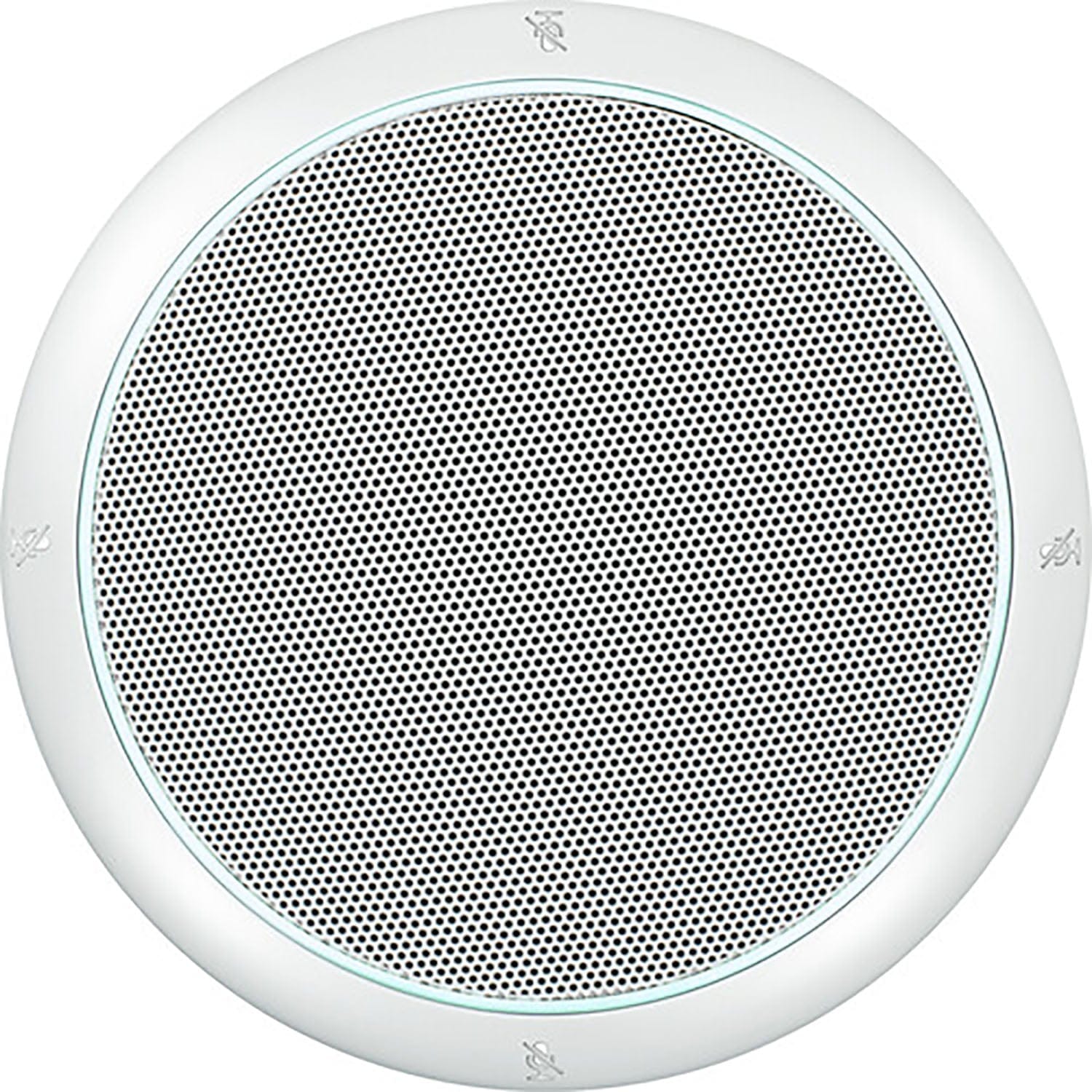

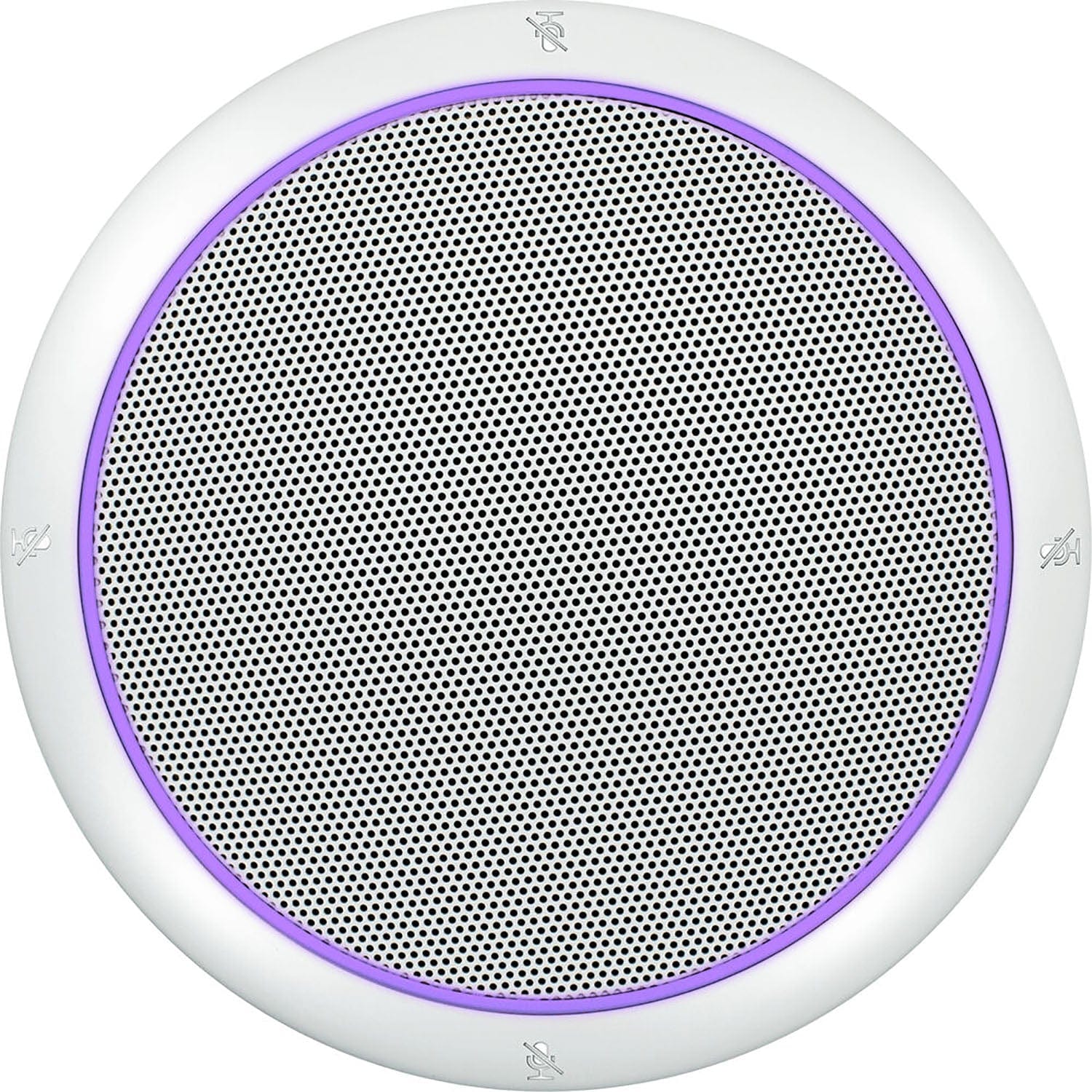

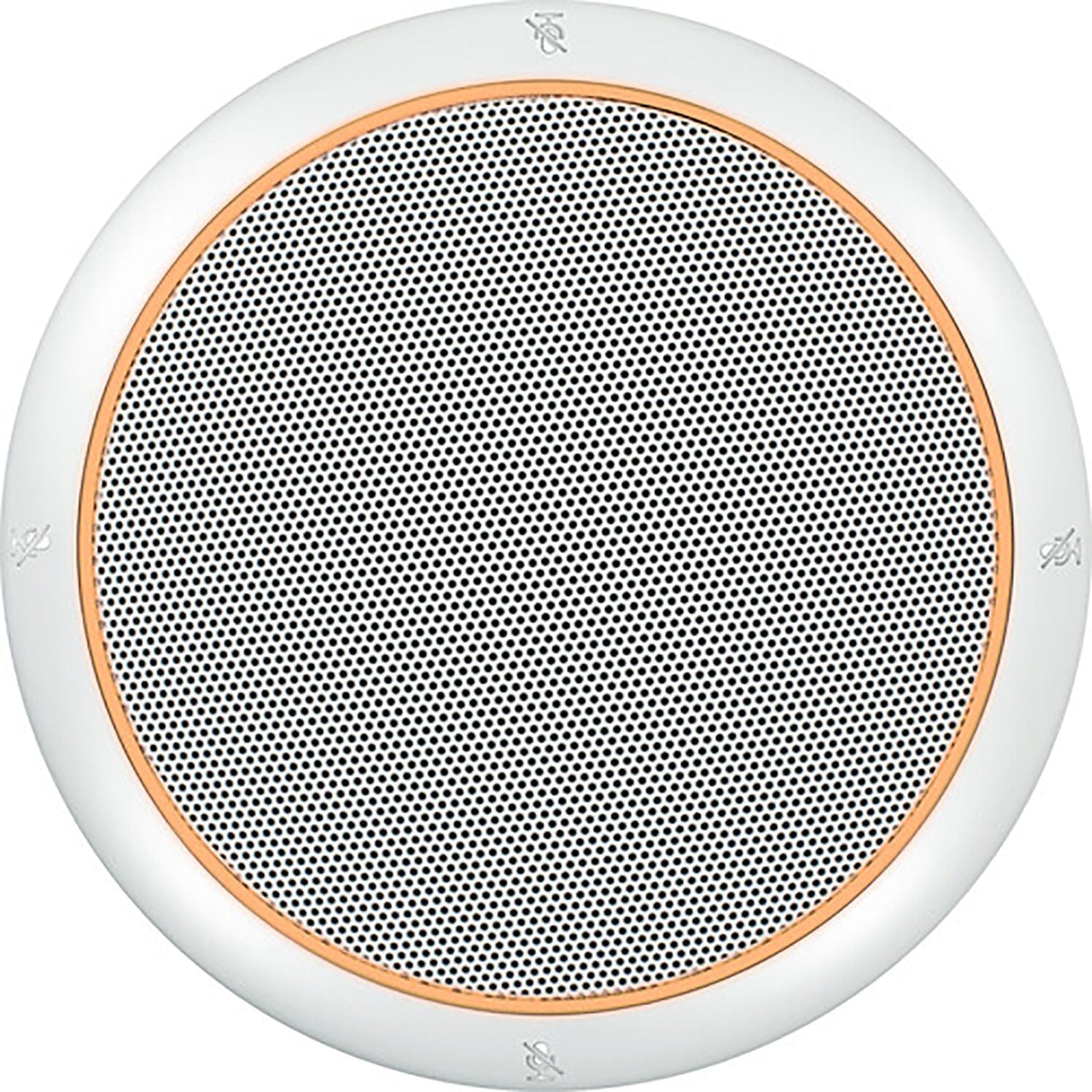

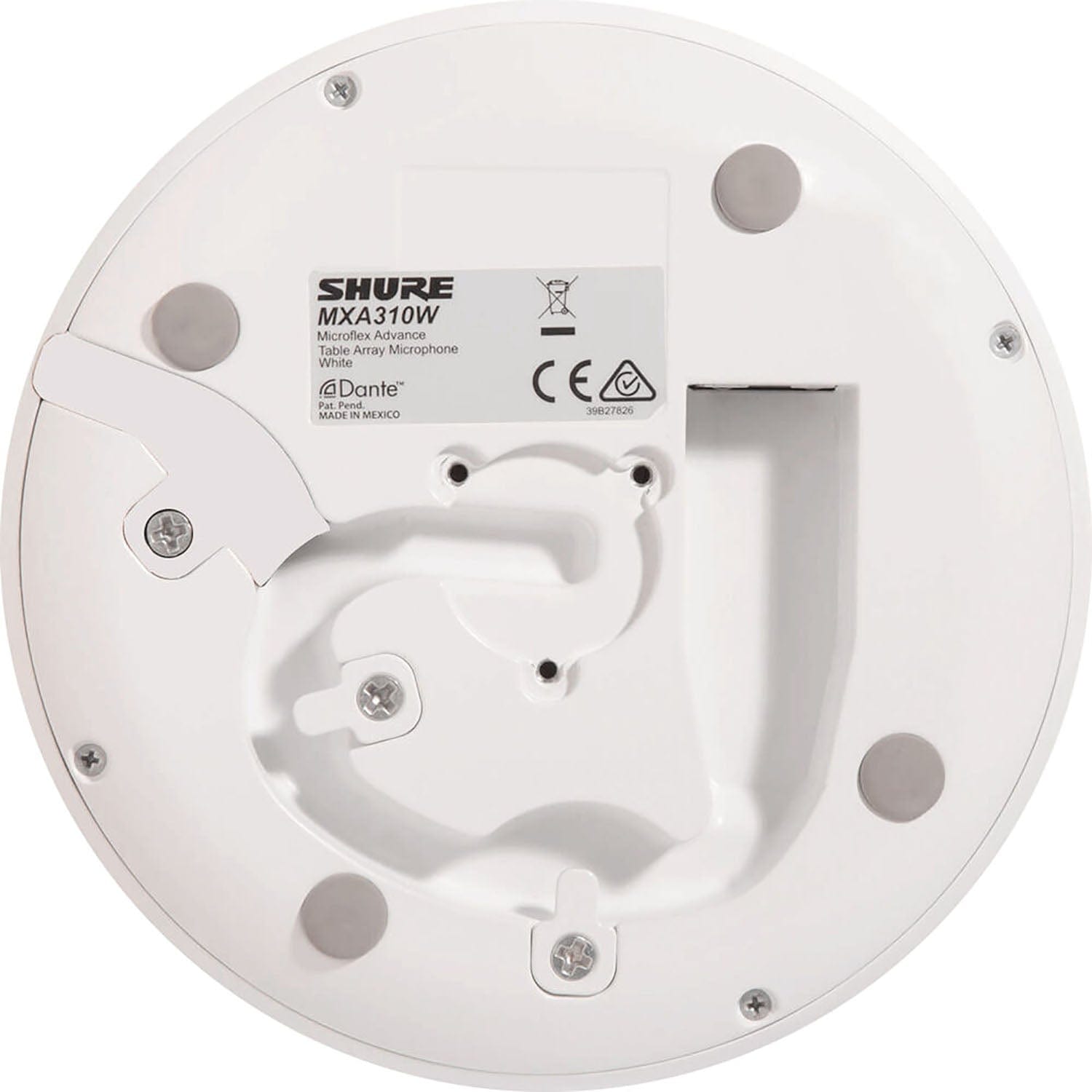

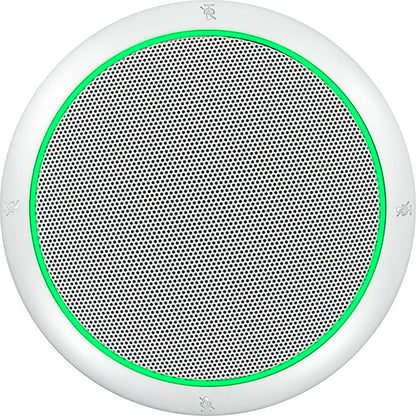

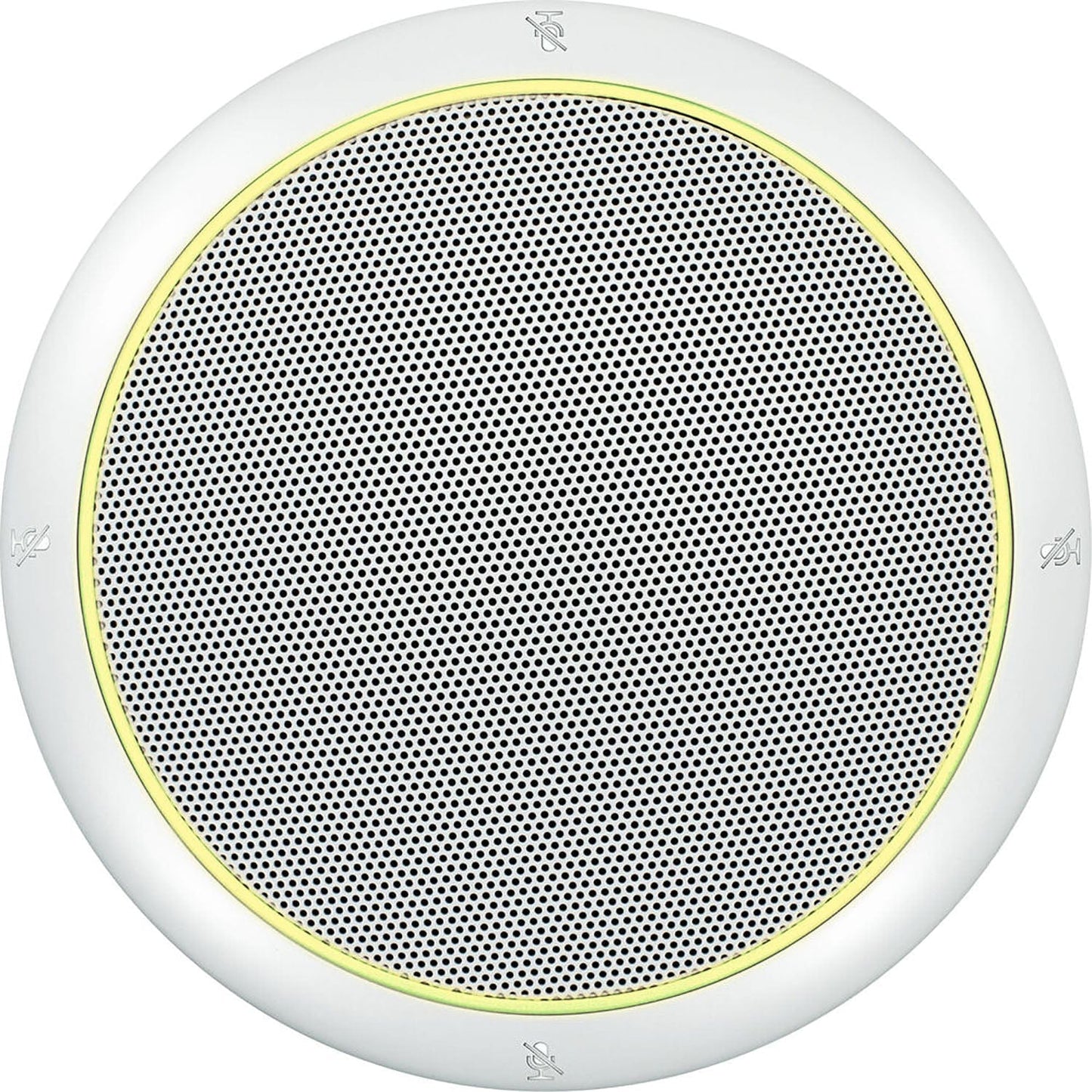

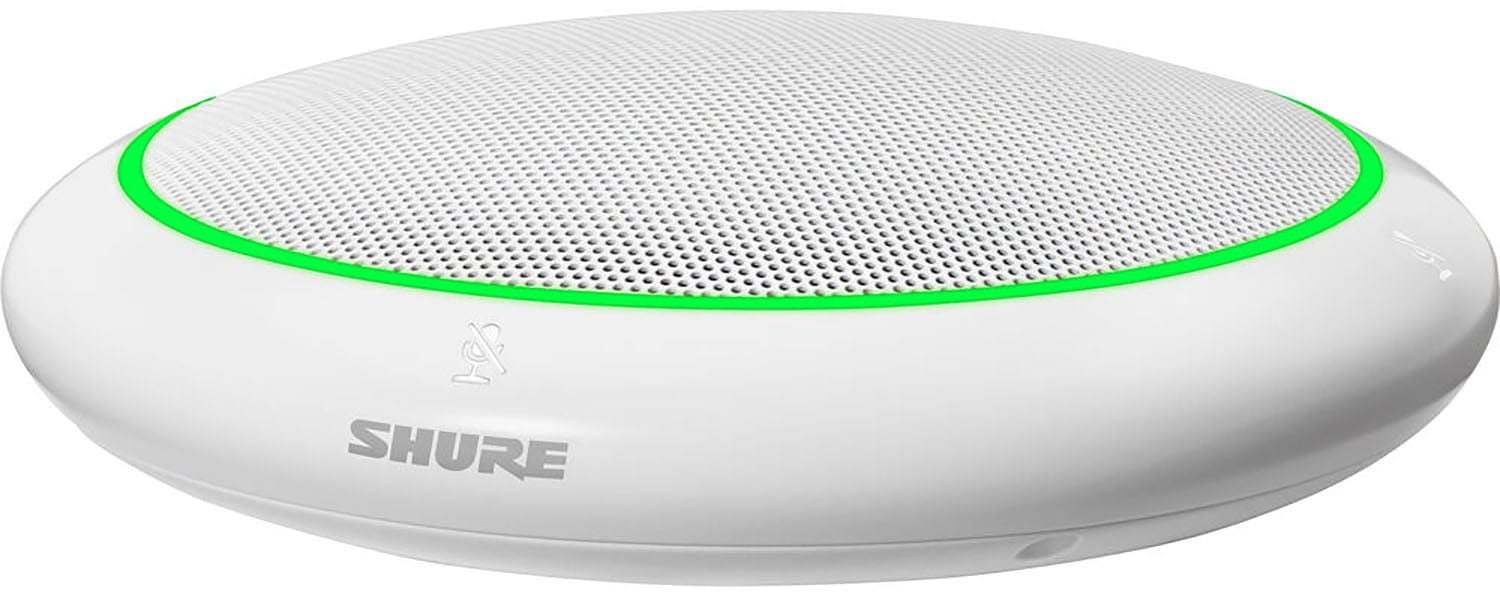

The Shure MXA310 is a tabletop array microphone boasting a sleek white finish, crafted to seamlessly blend into various conference or meeting environments, such as boardrooms, huddle rooms, and multipurpose areas. Its impressive feature set, including Steerable Coverage, multiple pickup patterns, auto-mixing, and more, ensures clear and precise speech capture. Additionally, the configurable color LED indicator conveniently displays mute and channel statuses. With its elegant and unobtrusive low-profile design, this microphone requires just a single connecting cable and offers two discreet permanent mounting options: either on the table using the provided hardware or via the A310-FM flush mount (available separately).
Why this product
Key Benefits
-
Send two channels of audio wirelessly to performers onstage
-
24-bit digital audio provides clear, detailed sound
-
Patented Audio Reference Companding sounds more like wired
-
Up to 90 dB signal-to-noise ratio
-
Exceptionally wide stereo separation
-
Solid analog RF connection over a 300 ft (90 m) range
-
Create a personal mix from the bodypack with MixMode® technology or stereo mode
-
Frequency scan and IR sync quickly finds and assigns a clean channel
-
Half-rack, single channel transmitter with included rack mount kit
-
P3R bodypack systems available with SE112 Sound Isolating™ Earphones
-
P3RA professional bodypack systems available with SE215 Sound Isolating™ Earphones
Technical details
Technical Specifications
Microphone
- Polar Pattern
- Cardioid, Hypercardioid, Supercardioid, Toroid, Omnidirectional, Bidirectional
- Frequency Response
- 100 to 20,000 Hz
- Sensitivity
- -21 dBFS/Pa
- Maximum SPL
- 115.2 dB SPL
- Cardioid
- 75 dB
- Cardioid
- 19.2 dB SPL-A
- Cardioid
- 96 dB
Wireless
- Channel Count
- 5 total channels (4 independent transmit channels, 1 Automatic mixing transmit channel)
- Latency
- <1 ms
Connectivity
- Connector Type
- RJ45
- Sampling Rate
- 48 kHz
- Cable Requirements
- Cat 5e or higher (shielded cable recommended)
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0
- Power Consumption
- 4W, maximum
Physical
- Weight
- 362 g (0.8 lbs)
- Dimensions H x W x D
- 3.6 x 13.4 x 13.4 cm (1.4 x 5.3 x 5.3 in.)
Environmental
- Operating Temperature Range
- −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range
- −29°C (-20°F) to 74°C (165°F)
General
- Control Application
- HTML5 Browser-based
- Bit Depth
- 24
- Toroid
- 67 dB
- Toroid
- 26.8 dB SPL-A
- Toroid
- 90 dB SPL
More details
Additional Information
Specifications:
- Audio:
- Dante Digital Output:
- Signal-To-Noise Ratio:
- Self Noise:
- Dynamic Range:
- Built-in Digital Signal Processing:
- Per Channel Equalizer (4-band Parametric) , Mute, Gain (140 dB range)
- System Automatic mixing, Low-Cut Filter (-12 dB/octave @150 Hz)
- Dante Digital Output:
- Networking:
