Shure MXA710 Microphone
Model MXA710AL-2FT
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

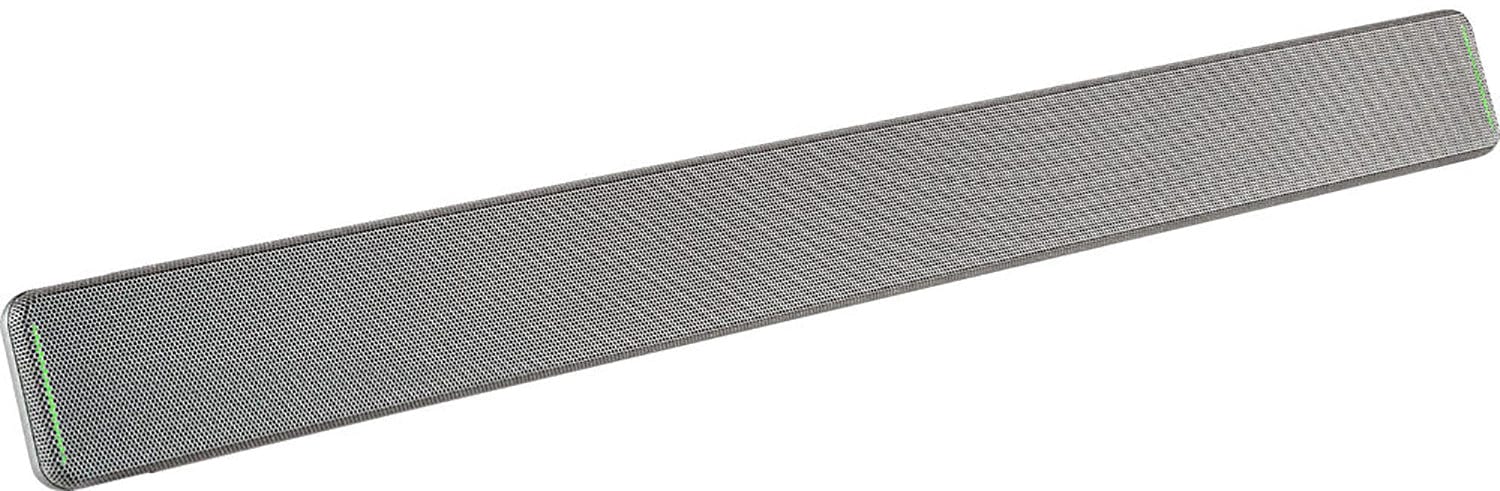

Shure MXA710 MXA710 Linear Array Microphone
The MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The sleek, linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, ceiling, or into a conference room table. The MXA710 includes proprietary Shure IntelliMix® DSP and Autofocus™ technology that provides all the processing needed for echo and noise-free conference audio.
The Shure MXA710 Microphone is available in aluminium, black or white.
See it in detail
Product Video
Why this product
Key Benefits
-
Steerable Coverage™ technology to capture audio anywhere in the room (up to 4 lobes with a 2-foot array, 8 lobes with a 4-foot array)
-
Autofocus technology fi ne-tunes each lobe position in real time, even if meeting participants lean back or stand up.
-
Default room coverage template enables quick and easy lobe optimization for wall, ceiling, or table installations.
-
IntelliMix DSP includes automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control.
-
Shure Designer System Configuration software for easy setup and configuration
-
SystemOn Audio Asset Management software for remote management and troubleshooting
-
PoE powered
-
LED status bars with configurable colors and brightness
-
Dante & AES67 audio networking protocols
-
Shure network audio encryption compatible
-
Multiple mounting accessories for wall, ceiling, or table installation
Technical details
Technical Specifications
Microphone
- Frequency Response
- 100 Hz to 20 kHz
- Sensitivity at 1 kHz
- –7.4 dBFS/Pa
Wireless
- Channel Count
- 6 total channels (4 independent transmit channels, 1Automix output, 1 AEC reference in channel)
Connectivity
- Connector Type
- RJ45
- Sampling Rate
- 48 kHz
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0
- Power Consumption
- 10 W maximum
Physical
- Weight
- 2 lbs (0.91 kg)
- Dimensions
- 0.87 x 2.36 x 25.04 in. (22.09 x 60 x 636 mm) H x W x L
Environmental
- Plenum Rating
- UL2043 (Suitable for Air Handling Spaces)
- Dust Protection
- IEC 60529 IP5X Dust Protected
- Operating Temperature Range
- −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range
- −29°C (-20°F) to 74°C (165°F)
General
- Lobe Width (adjustable)
- Narrow 30 degrees, Medium 40 degrees, Wide 70 degrees
- Control Software
- Shure Designer
- Bit Depth
- 24
More details
Additional Information
Specifications:
- AES67 or Dante Digital Output
