Shure MXA710AL-4FT 4 Foot Linear Array Microphone - Aluminium
Model MXA710AL-4FT
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

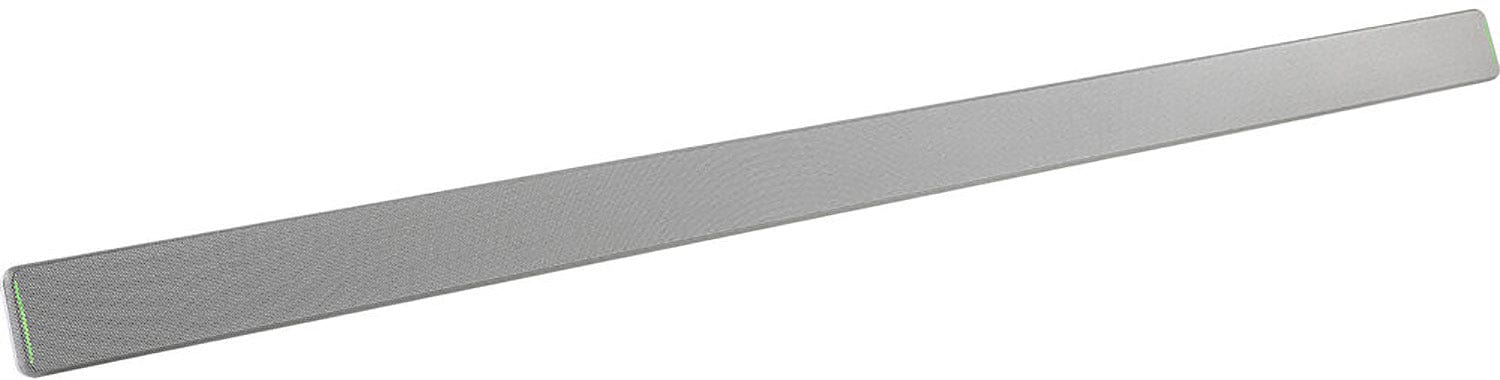

Shure MXA710AL-4FT 4 Foot Linear Array Microphone - Aluminium
The Shure Microflex® Advance™ MXA710 Linear Array Microphone represents the next evolution in Shure array microphone technology, designed for high-quality audio capture in premium AV conferencing environments. The linear form factor of the MXA710 allows for placement virtually anywhere in a meeting space, including on a wall, around a display, on a ceiling, or in a conference room table.
Why this product
Key Benefits
-
Steerable Coverage™ technology to capture audio anywhere in the room (up to 4 lobes with a 2-foot array, 8 lobes with a 4-foot array)
-
Autofocus technology fine-tunes each lobe position in real time, even if meeting participants lean back or stand up
-
Default room coverage template enables quick and easy lobe optimization for wall, ceiling, or table installations
-
IntelliMix DSP includes automatic mixing, acoustic echo cancellation, noise reduction, and automatic gain control
-
Shure Designer System Configuration software for easy setup and configuration
-
SystemOn Audio Asset Management software for remote management and troubleshooting
-
PoE powered
-
LED status bars with configurable colors and brightness
-
Dante & AES67 audio networking protocols
-
Shure network audio encryption compatible
-
Multiple mounting accessories for wall, ceiling, or table installation
Technical details
Technical Specifications
Microphone
- Frequency Response
- 100 Hz to 20 kHz
- Sensitivity at 1 kHz
- –7.9 dBFS/Pa
Wireless
- Channel Count
- 10 total channels (8 independent transmit channels, 1 Automix output, 1 AEC reference in channel)
Connectivity
- Connector Type
- RJ45
- Sampling Rate
- 48 kHz
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0
- Power Consumption
- 10 W maximum
Physical
- Weight
- 3.7 lbs (1.67 kg)
- Product Dimensions
- 0.87 x 2.36 x 49.12 in. (22.09 x 60 x 1247.76 mm) H x W x L
Environmental
- Plenum Rating
- UL2043 (Suitable for Air Handling Spaces)
- Dust Protection
- IEC 60529 IP5X Dust Protected
- Operating Temperature Range
- −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range
- −29°C (-20°F) to 74°C (165°F)
General
- Lobe Width (adjustable)
- Narrow 30 degrees, Medium 40 degrees, Wide 70 degrees
- Control Software
- Shure Designer
- Bit Depth
- 24
More details
Additional Information
Specifications:
- AES67 or Dante Digital Output
