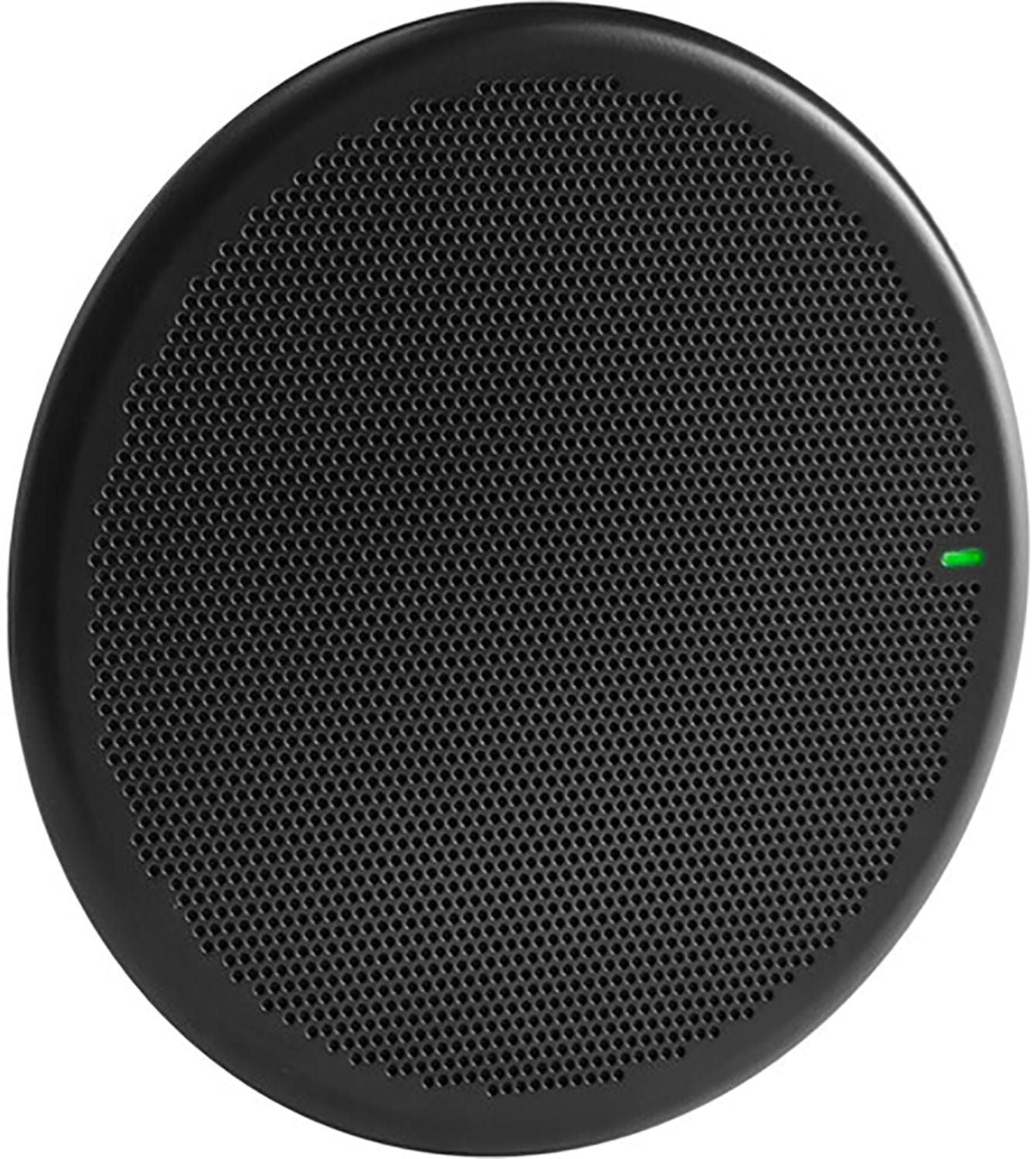

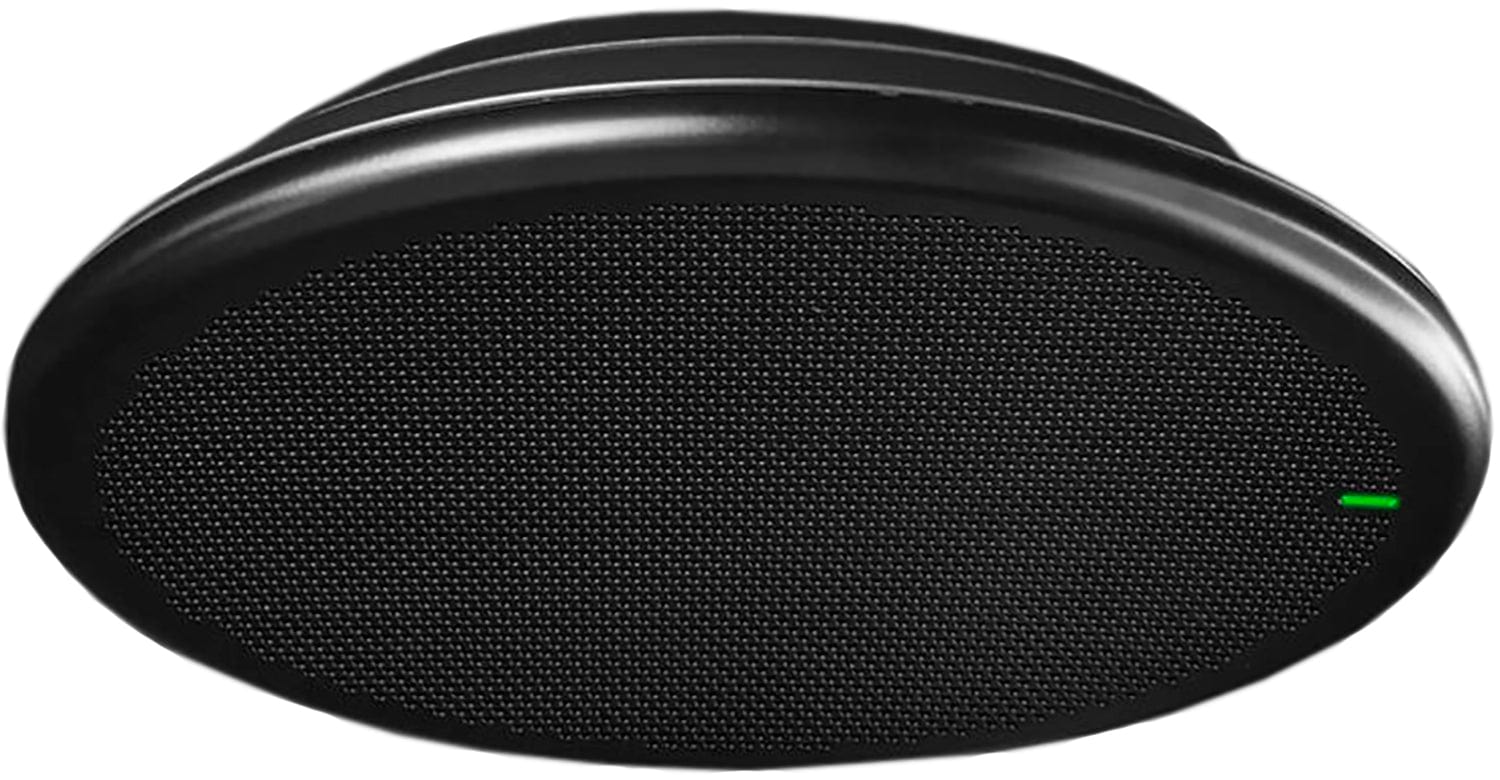

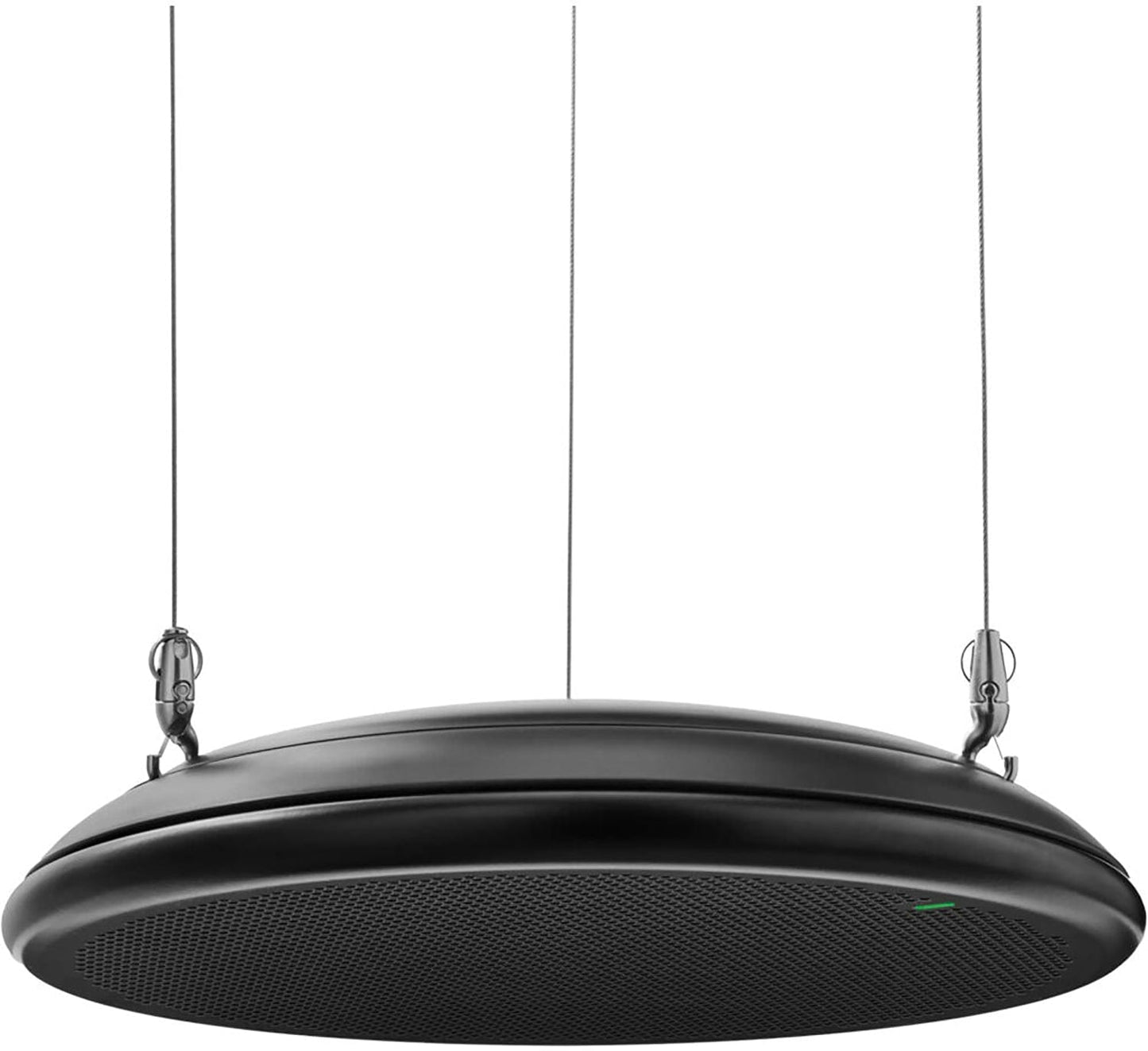

Shure MXA901B-R Microflex Advance 13.5 Inch Round Ceiling Array Microphone - Black
Model MXA901B-R
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MXA901B-R Microflex Advance 13.5 Inch Round Ceiling Array Microphone - Black
The sleekest ceiling array microphone yet, the MXA901 provides superb AV conferencing audio in a discreet and stylish 13.5-inch round form factor that complements any interior design. Single Zone Automatic Coverage™ technology captures talkers clearly with no setup. One MXA901 can be used in smaller rooms or multiple units can be used in larger spaces. Onboard IntelliMix® DSP delivers echo- and noise-free audio, while next-generation array architecture ensures natural speech and enhanced directional pickup.
Why this product
Key Benefits
-
Single Zone Automatic Coverage
-
Covers 20 x 20 Foot area out of the box, The maximum recommended mounting height is 12 feet (3.7 m).
-
Onboard IntelliMix DSP provides automatic mixing, echo cancellation, noise reduction, and gain control
-
13.5 Inch Round Form Factor
-
Certified for use with Teams and Zoom
-
Shure Audio Encryption keeps meeting content secure
Technical details
Technical Specifications
Microphone
- Microphone Elements
- 85 MEMS
- Frequency Response
- 100 Hz to 20 kHz
- Sensitivity at 1 kHz
- -4.4 dBFS/Pa
- Maximum SPL Relative to 0 dBFS overload
- 98.4 dB SPL
- Self Noise
- 26.9 dB SPL-A
- Dynamic Range
- 71.5 dB
Wireless
- Latency
- Does not include Dante latency / 33.5 ms
Connectivity
- Cable Requirements
- Cat 5e or higher (shielded cable recommended)
- Connector Type
- RJ45
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0
- Power Consumption
- 10.1 W maximum
Physical
- Weight
- 5 lb
- Height
- 1.64 Inches
Environmental
- Plenum Rating
- UL2043 (Suitable for Air Handling Spaces)
- Dust Protection
- IEC 60529 IP5X Dust Protected
- Operating Temperature Range
- -6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range
- -29°C (-20°F) to 74°C (165°F)
General
- Coverage Area Size
- 20 x 20 feet (6.1x6.1 meters); The maximum recommended mounting height is 12 feet (3.7 m)
- Coverage Type
- Single-zone automatic
- Control Software
- Shure Designer or web application
- Built-in Digital Signal Processing
- Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail Length
- Up to 250 ms
- Circumference
- 13.5 Inches
- Smaller top circumference
- 11.61 Inches
More details
Additional Information
Specifications:
- Signal-To-Noise Ratio Ref. 94 dB SPL at 1 kHz: 67.1 dB A-weighted
- Dimensions:
