Shure MXA902 Microphone + Loudspeaker
Model MXA902W-S-60CM
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

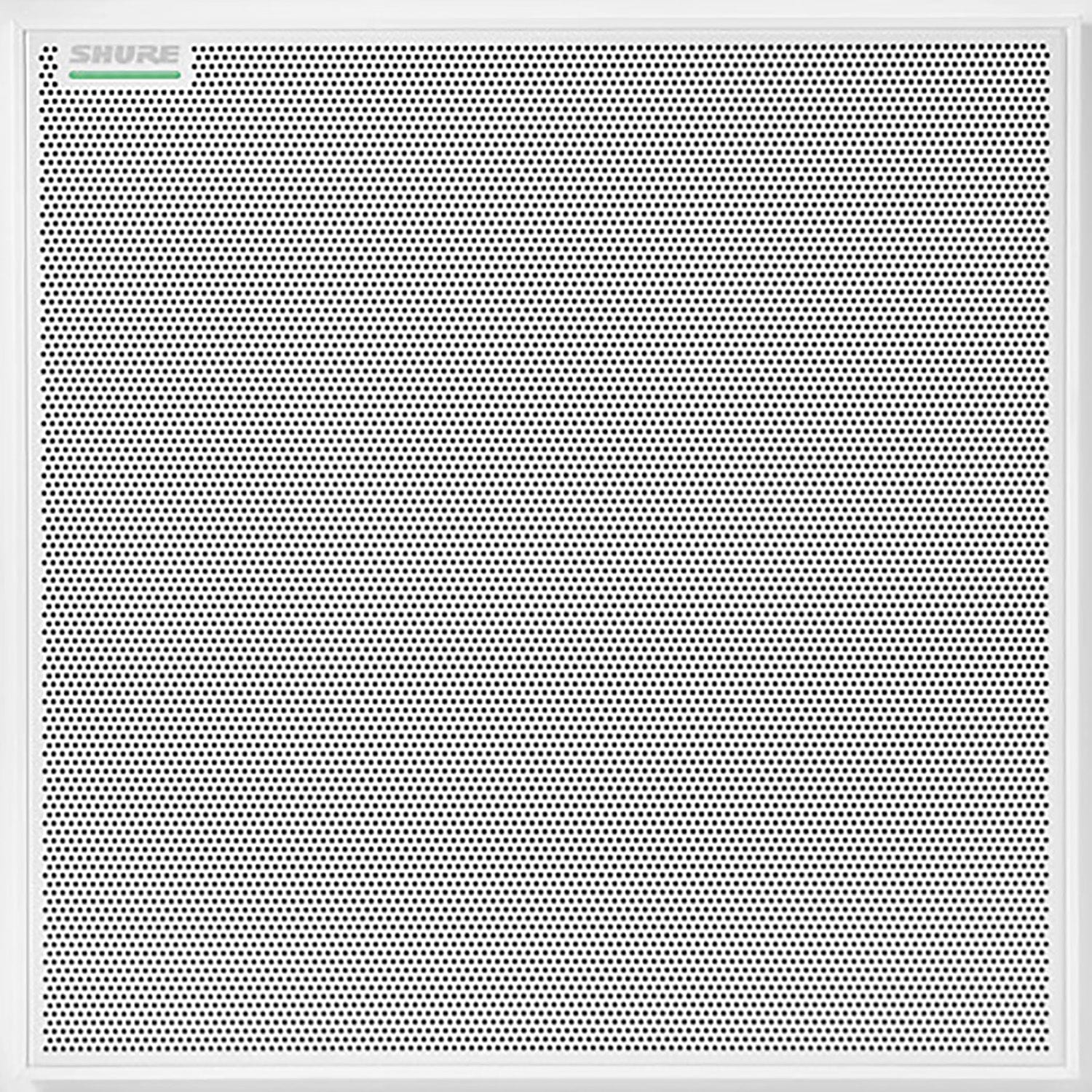

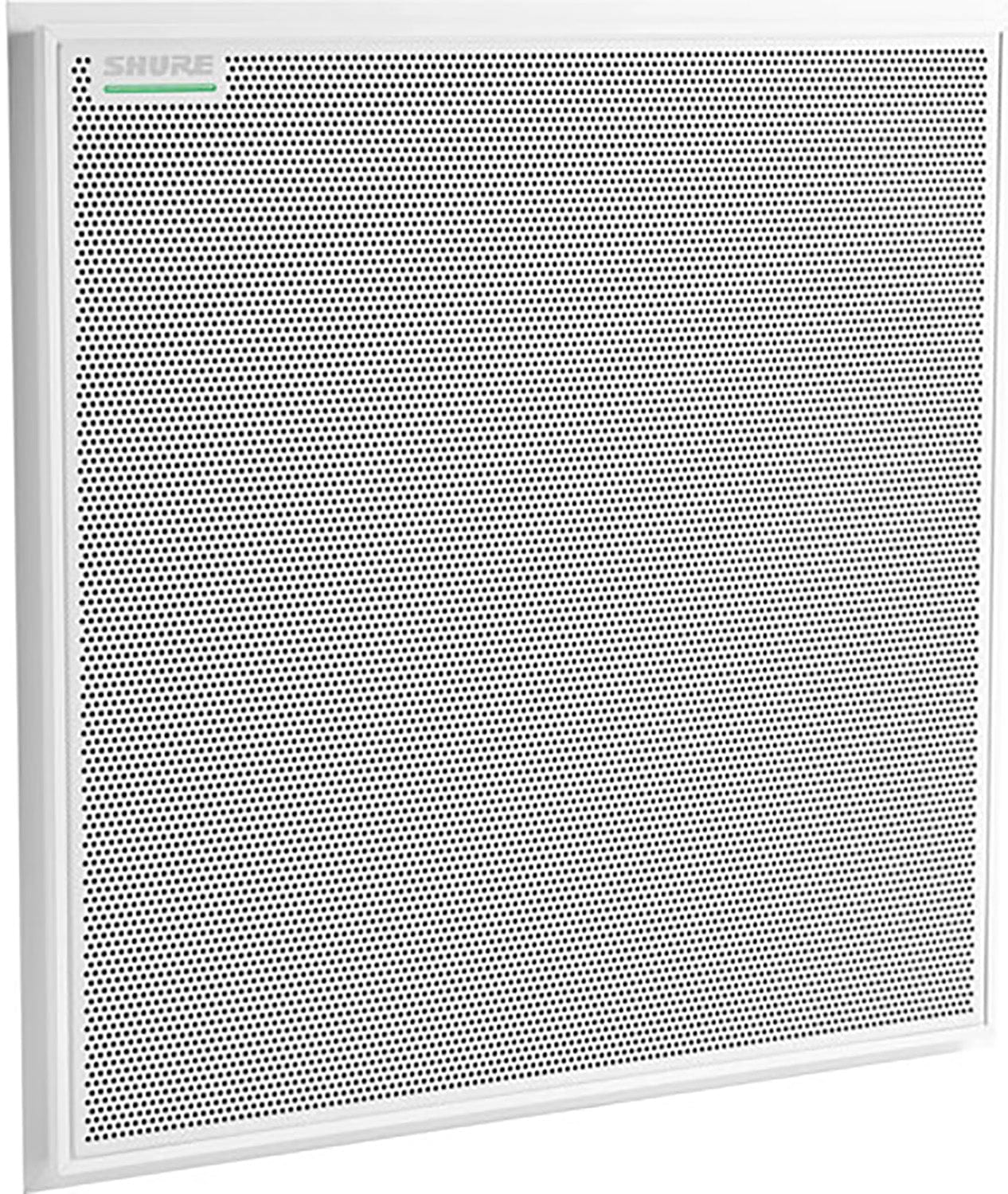

Shure MXA902 Ceiling Array Microphone + Loudspeaker
The first combination ceiling array microphone and loudspeaker for AV conferencing in small & medium spaces. With only one device to mount and one cable to connect, you’ll have cleaner, clearer sound faster than ever. Single Zone Automatic Coverage™ technology covers a 20 by 20 foot (6 by 6 meter) area while onboard IntelliMix® DSP delivers echo- and noise-free audio.
See it in detail
Product Video
Why this product
Key Benefits
-
Array microphone and loudspeaker in one unit for premium sound with minimal installation time
-
Single Zone Automatic Coverage™ technology to capture audio from a 20 by 20 foot (6 by 6 meter) area out of the box
-
Integrated 2.5-inch wide-dispersion loudspeaker for clear, intelligible speech reproduction
-
Onboard IntelliMix DSP with Acoustic Echo Cancellation, Noise Reduction, automatic mixing, AGC, EQ for echo- and noise-free audio
-
Square form factor available in 2 ft or 60 cm sizes with paintable white finish
-

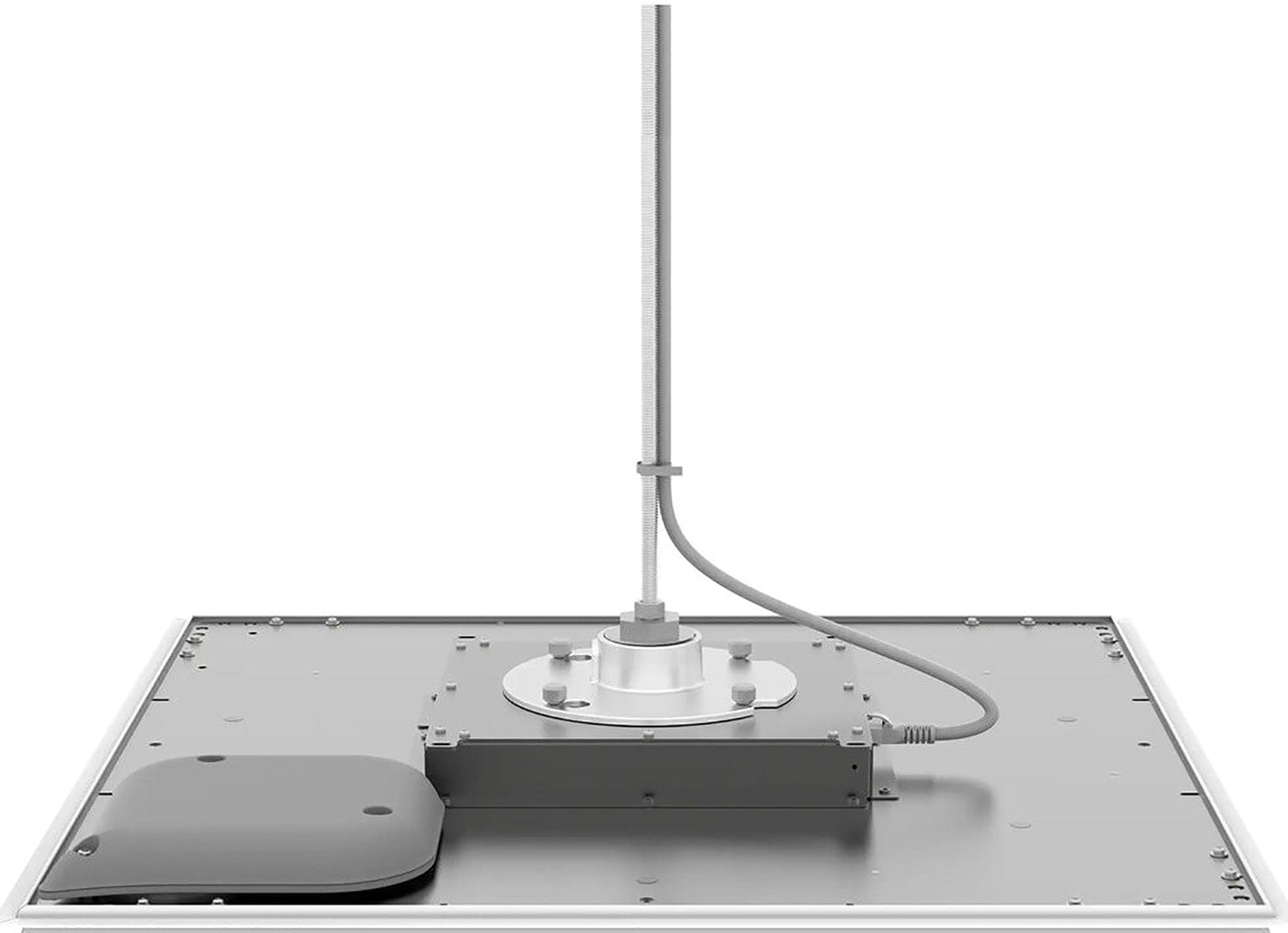

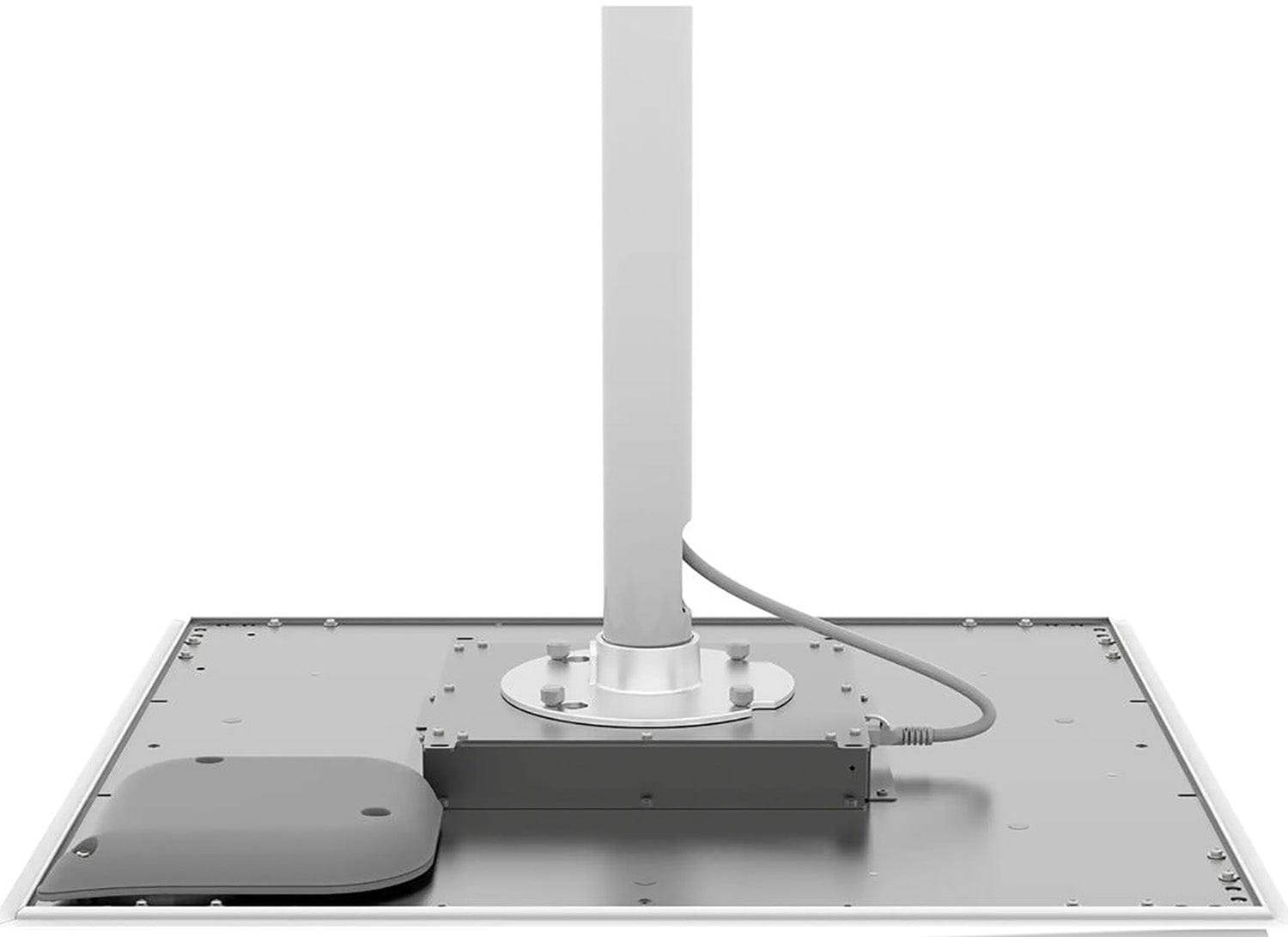

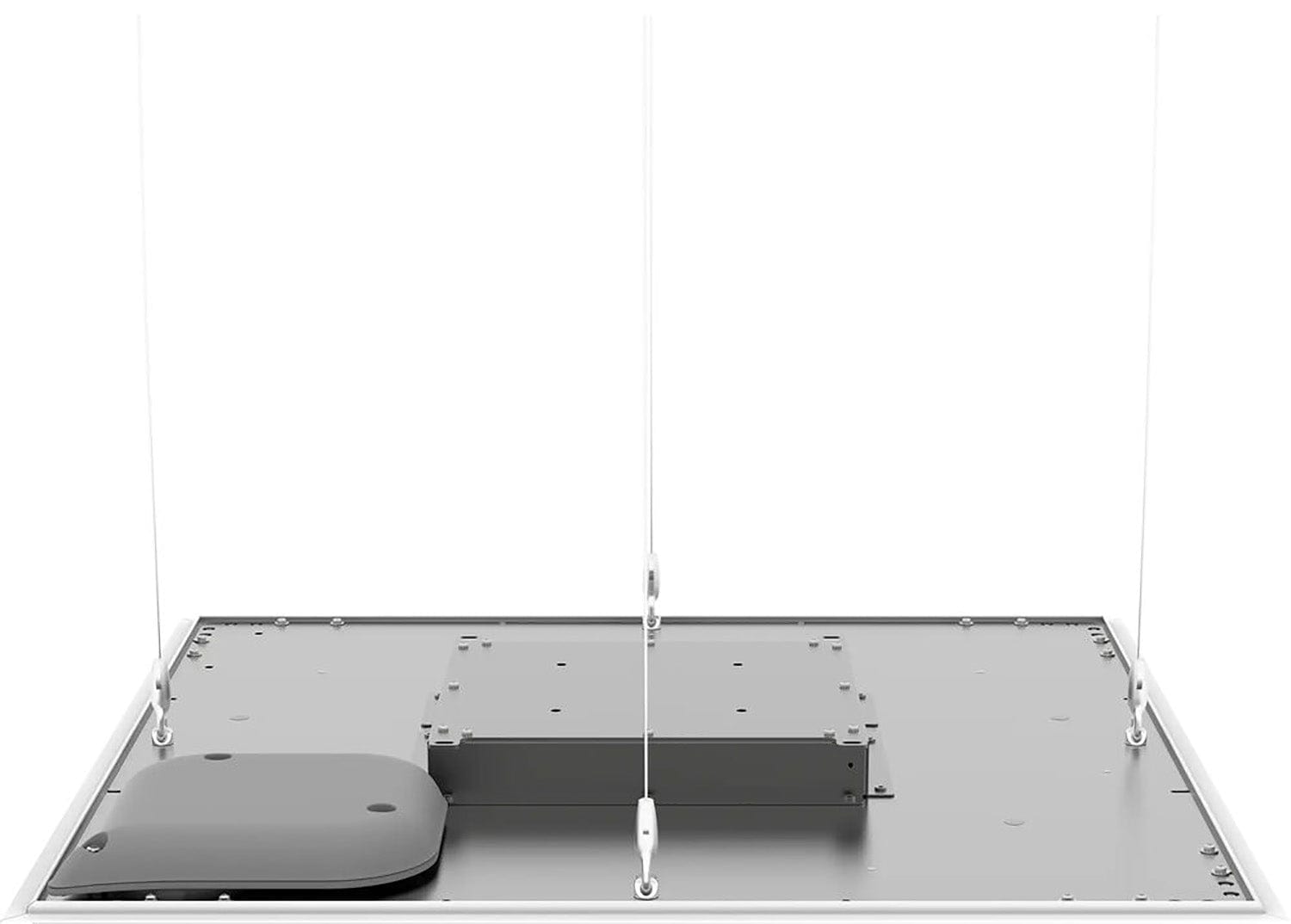

Versatile options for ceiling, pole, or wire rope suspension mounting
Technical details
Technical Specifications
Microphone
- Microphone Elements
- 113 MEMS
- Frequency Response
- 125 Hz to 20,000 Hz
- Sensitivity
- at 1 kHz, −1.74 dBFS/Pa
- Maximum SPL
- Relative to 0 dBFS overload, 95.74 dBSPL
- Signal-to-Noise Ratio
- Ref. 94 dBSPL at 1 kHz, 75.76 dB A-weighted
- Self Noise
- 18.24 dB SPL-A
- Dynamic Range
- 77.5 dB
Connectivity
- Cable Requirements
- Cat5e or higher (shielded cable recommended)
- Connector Type
- RJ45
- Sampling Rate
- 48 kHz
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0
- Power Consumption
- 10.1 W maximum
Physical
- Weight
- MXA920-S: 11.8 lbs (5.4 kg)
Environmental
- Plenum Rating
- UL2043 (Suitable for Air Handling Spaces)
- Dust Protection
- IEC 60529 IP5X Dust Protected
- Operating Temperature Range
- −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range
- −29°C (−20°F) to 74°C (165°F)
General
- Coverage Type
- Automatic or steerable
- Control Software
- Designer or web application
- Automatic coverage on
- 2 total channels (1 output, 1 AEC reference in channel)
- Automatic coverage off
- 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
- Bit Depth
- 24
- Digital Signal Processing
- Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail Length
- Up to 250 ms
More details
Additional Information
Specifications:
- General:
- Audio:
- AES67 or Dante Digital Output:
- Channel Count:
- Channel Count:
- AES67 or Dante Digital Output:
- Dimensions:
