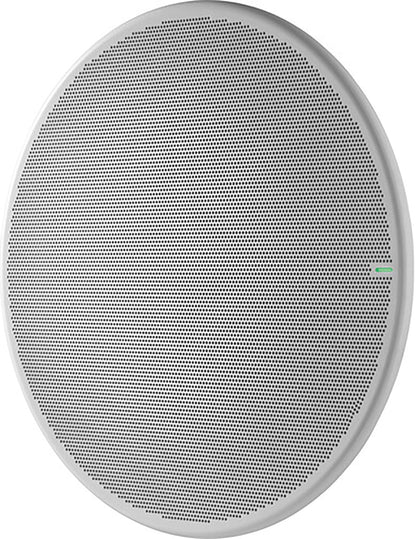

Shure MXA920 Microphone
Model MXA920AL-R
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

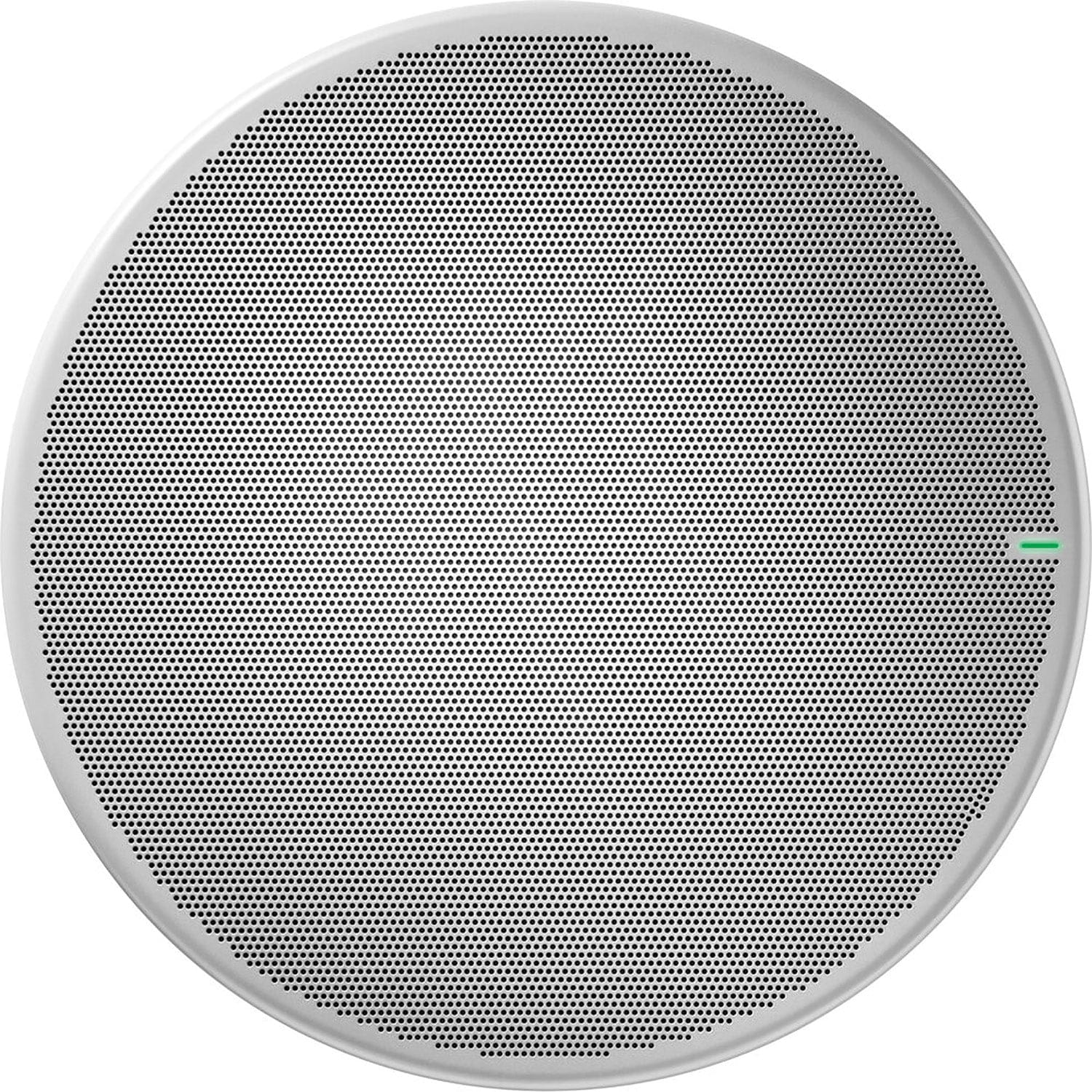

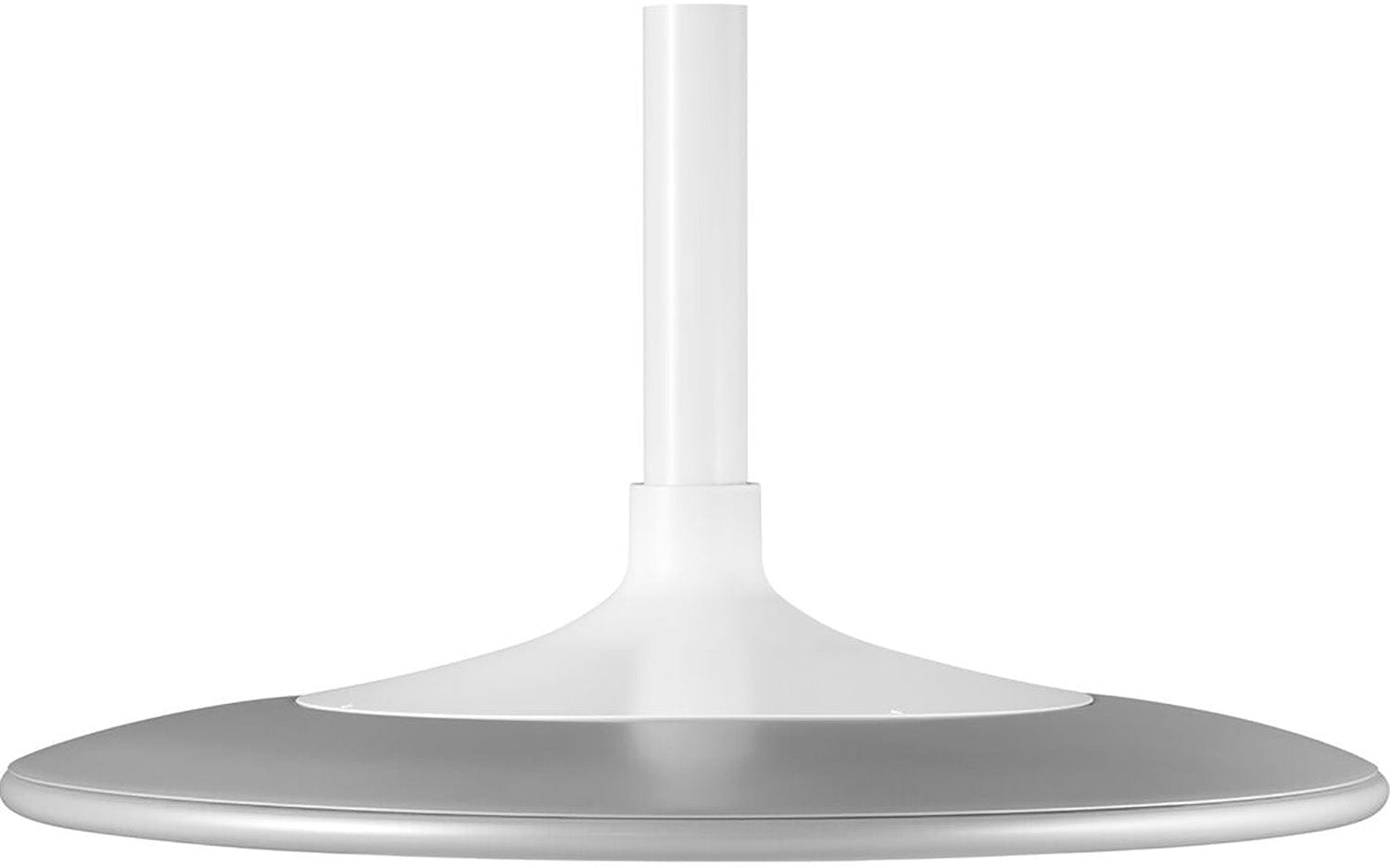

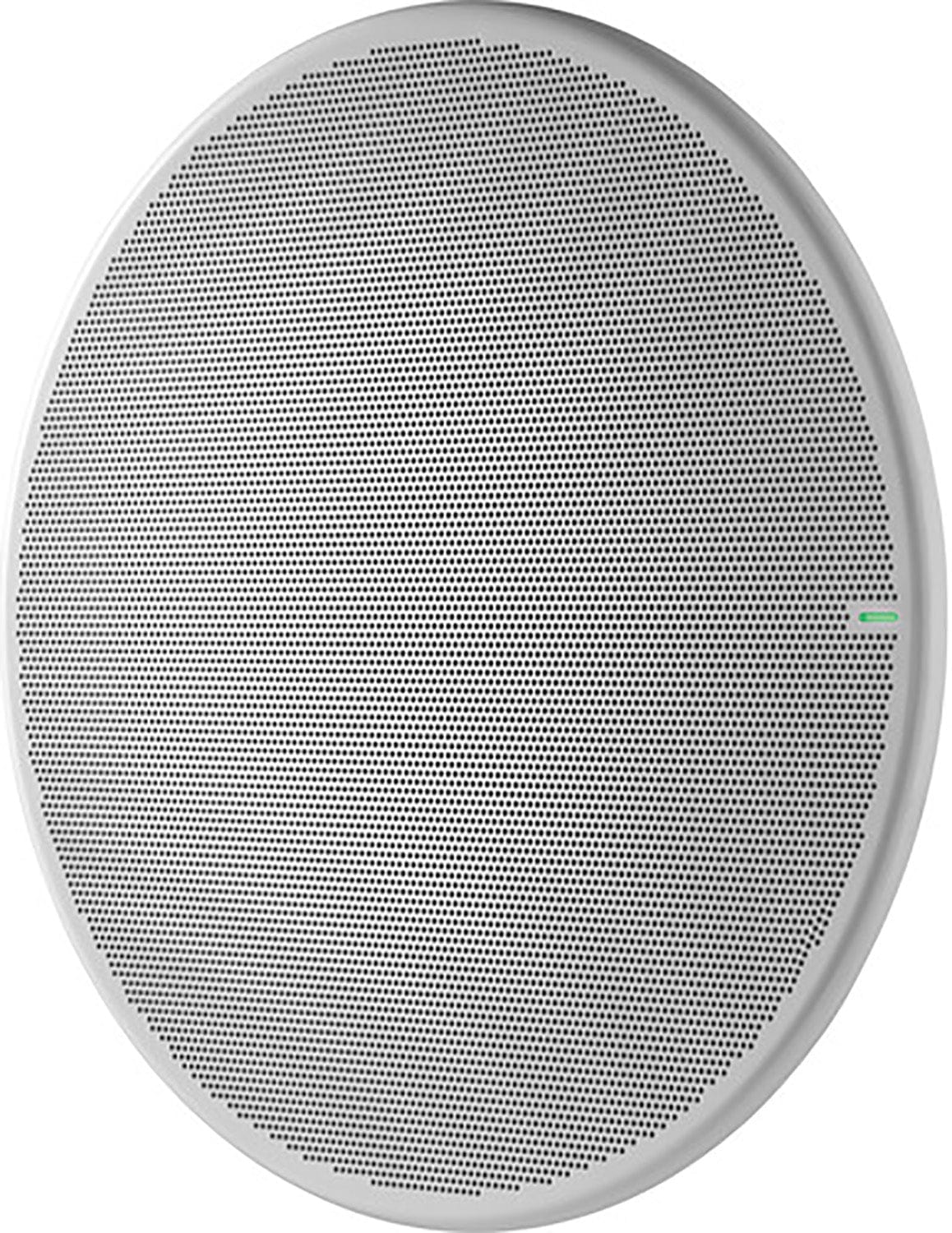

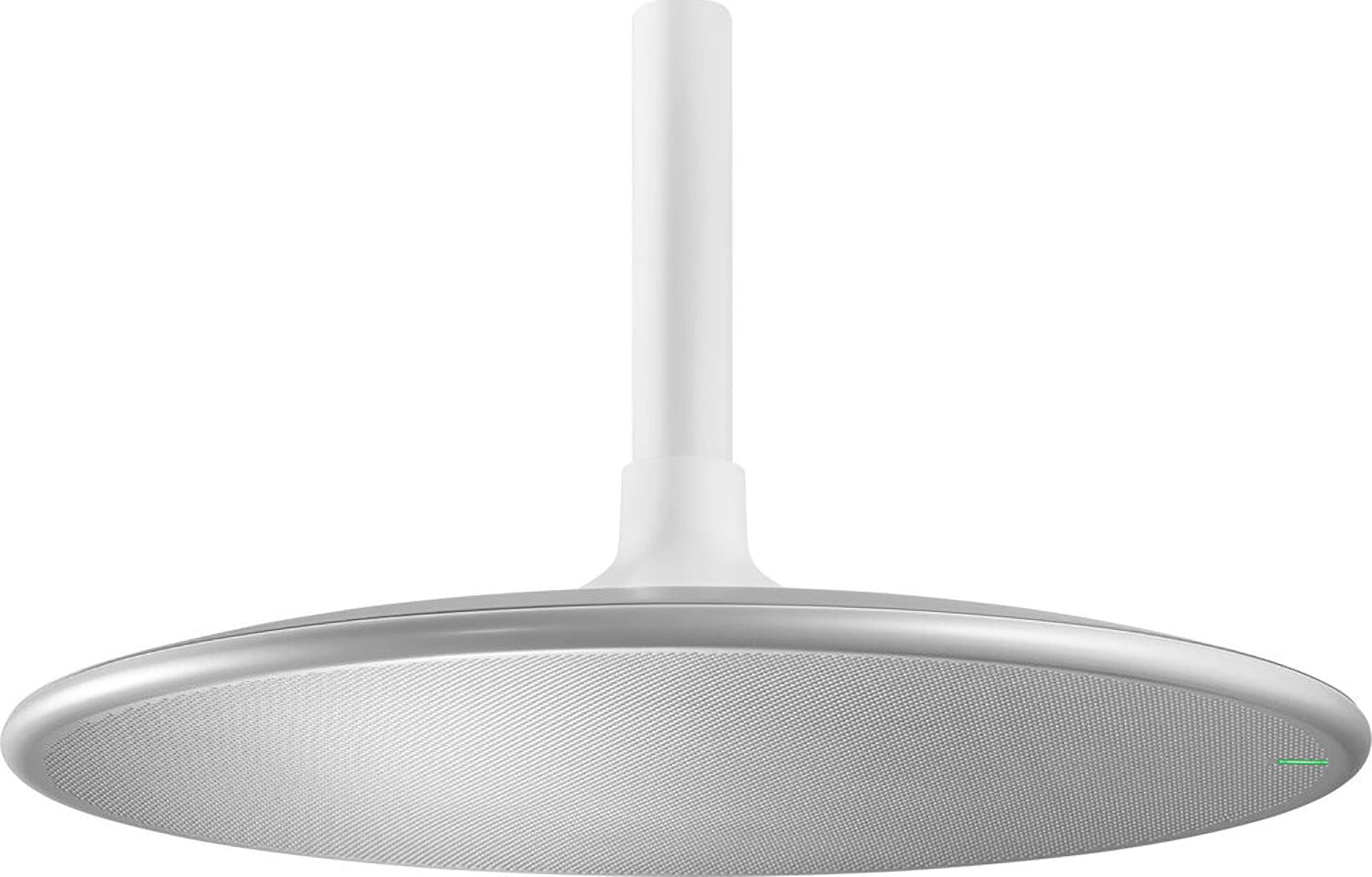

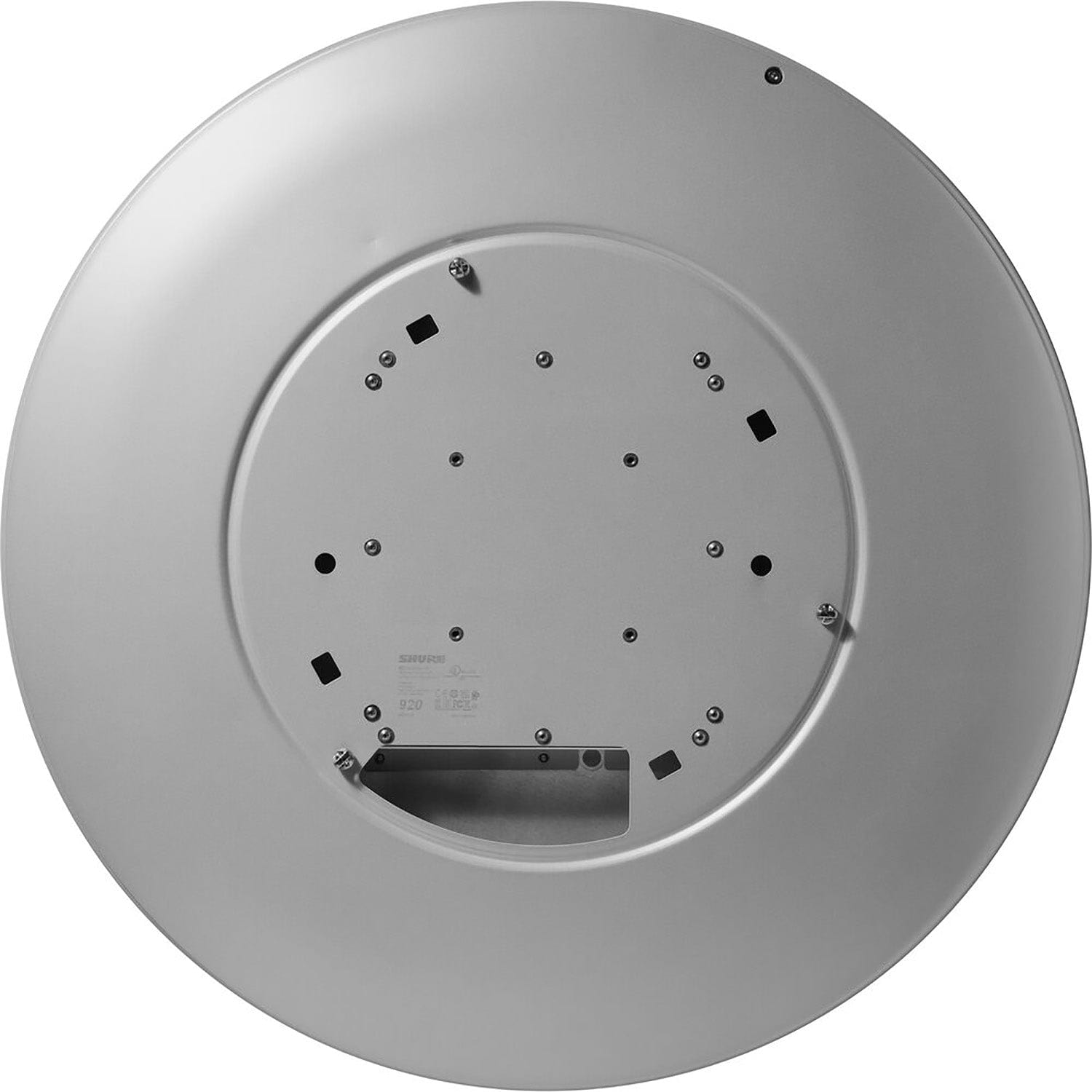

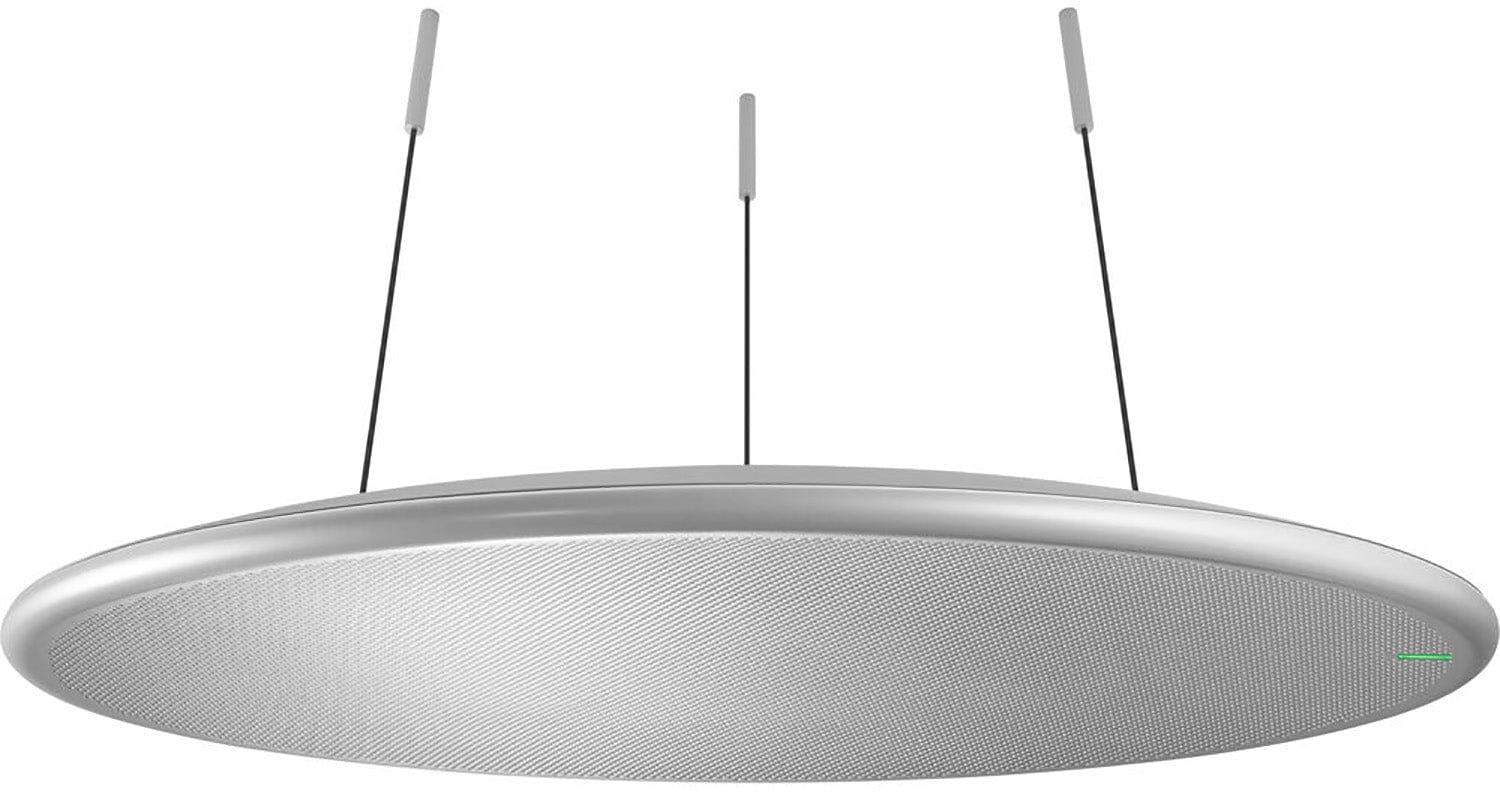

Shure MXA920 Ceiling Array Microphone
Automatic Coverage™ technology requires no setup yet gives you precise control of audio capture if desired. With next-generation array architecture for enhanced directional pickup and more natural speech, the MXA920 ceiling array microphone is easy to use and quick to deploy for AV conferencing, camera tracking, voice lift, or sound reinforcement.
See it in detail
Product Video
Why this product
Key Benefits
-
For Meetings, Conferences, Presentations
-
Covers 30 x 30' Area, Requires No Setup
-
Automatic and Steerable Coverage Options
-
Captures Multiple Talkers
-
Automatic Mixing and Gain Control
-
Noise Reduction and Echo Cancellation
-
Dante, PoE, and Audio via Single Cable
-
Secure Audio Encryption
-
8 Pickup Lobes with Individual Outputs
-
Designer System Configuration Software
Technical details
Technical Specifications
Microphone
- Microphone Elements
- 113 MEMS
- Frequency Response
- 125 Hz to 20,000 Hz
- Sensitivity
- at 1 kHz, −1.74 dBFS/Pa
- Maximum SPL
- Relative to 0 dBFS overload, 95.74 dBSPL
- Signal-to-Noise Ratio
- Ref. 94 dBSPL at 1 kHz, 75.76 dB A-weighted
- Self Noise
- 18.24 dB SPL-A
- Dynamic Range
- 77.5 dB
Connectivity
- Cable Requirements
- Cat5e or higher (shielded cable recommended)
- Connector Type
- RJ45
- Sampling Rate
- 48 kHz
Power
- Power Requirements
- Power over Ethernet (PoE), Class 0
- Power Consumption
- 10.1 W maximum
Physical
- Weight
- MXA920-R: 12.7 lbs (5.8 kg)
Environmental
- Plenum Rating
- UL2043 (Suitable for Air Handling Spaces)
- Dust Protection
- IEC 60529 IP5X Dust Protected
- Operating Temperature Range
- −6.7°C (20°F) to 40°C (104°F)
- Storage Temperature Range
- −29°C (−20°F) to 74°C (165°F)
General
- Coverage Type
- Automatic or steerable
- Control Software
- Designer or web application
- Automatic coverage on
- 2 total channels (1 output, 1 AEC reference in channel)
- Automatic coverage off
- 10 total channels (8 independent transmit channels, 1 automix output, 1 AEC reference in channel)
- Bit Depth
- 24
- Digital Signal Processing
- Automatic mixing, acoustic echo cancellation (AEC), noise reduction, automatic gain control, compressor, delay, equalizer (4-band parametric), mute, gain (140 dB range)
- Acoustic Echo Cancellation Tail Length
- Up to 250 ms
More details
Additional Information
Specifications:
- General:
- Audio:
- AES67 or Dante Digital Output:
- Channel Count:
- Channel Count:
- AES67 or Dante Digital Output:
- Dimensions:
