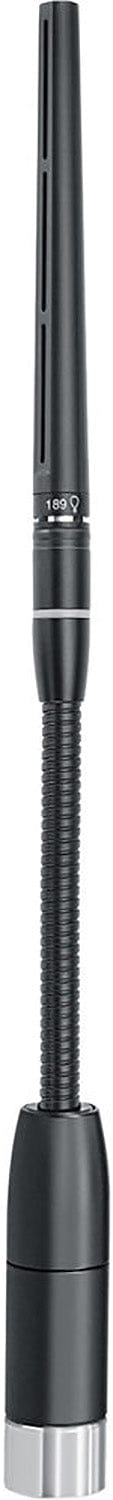

Shure MXC406/MS Gooseneck Microphone
Model MXC406-MS
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MXC406/MS Gooseneck Microphone
The MXC406/MS is a short gooseneck microphone equipped with the R189 mini-shotgun cartridge. Compatible with MXC and MXCW-series conference units, the MXC406/MS is ideal for situations where room aesthetics require a shorter, less visible gooseneck microphone.
Its narrow pickup angle rejects unwanted ambient noise and helps to compensate for the greater distance from the talker, making it especially useful in rooms with higher noise levels.
An integrated bi-color LED indicates microphone status. CommShield® Technology provides enhanced immunity to RF noise from mobile phones or tablets.
Why this product
Key Benefits
-
Compatible with MXC and MXCW conference units ONLY
-
Lobar mini-shotgun polar pattern with 100-degree pickup angle; narrower than supercardioid
-
10-pin modular lockable connector
-
6 inch (15 cm) gooseneck bends at the bottom only
-
Bi-color light ring indicates microphone status
-
CommShield® Technology for improved RF filtering
-

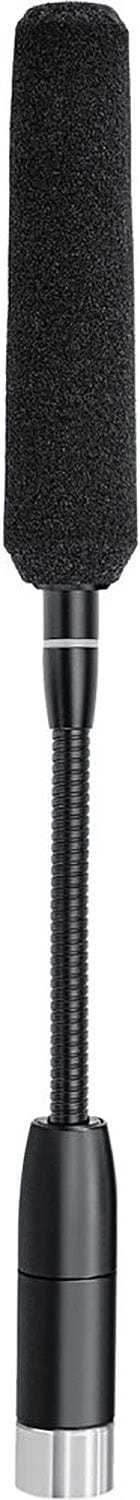

Foam windscreen included
Technical details
Technical Specifications
Microphone
- Transducer Type
- Electret Condenser
- Polar Pattern
- Lobar
- Frequency Response
- 50 to 17,000 Hz
- Maximum SPL (1 kHz at 1% THD)
- 121 dB SPL
- Signal-to-Noise Ratio
- 68 dB
- Dynamic Range
- 95 dB SPL
Connectivity
- Output Impedance
- 170 Ω
- Preamplifier Output Clipping Level
- -8 dBV (0.4 V)
- 3-Pin XLR
- Positive sound pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
- 5-Pin XLR
- Positive sound pressure on diaphragm produces positive voltage on pin 4 relative to pin 2 of output XLR connector
Power
- Power Requirements
- Phantom Power, 48-52 V DC, 8.0 mA
Environmental
- Operating Temperature Range
- -18°C (0°F) to 57°C (135°F)
General
- Common Mode Rejection
- 45 dB, minimum
More details
Additional Information
Specifications:
- Sensitivity (open circuit voltage, @ 1 kHz, typical): –33 dBV/Pa (22 mV)
- Self Noise (equivalent SPL, A-weighted, typical): 36 dB
- Polarity:
