Shure MXCWAPT-B Wireless Access Point Transceiver - Canada/Mexico
Model MXCWAPT-B
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MXCWAPT-B Wireless Access Point Transceiver - Canada/Mexico
The MXCWAPT-B Access Point Receiver from Shure is a hub for the Microflex Complete Wireless Conference System designed to operate in Canada and Mexico. It can be used to manage audio routing, frequency coordination, and system control for up to 125 wireless conference units.

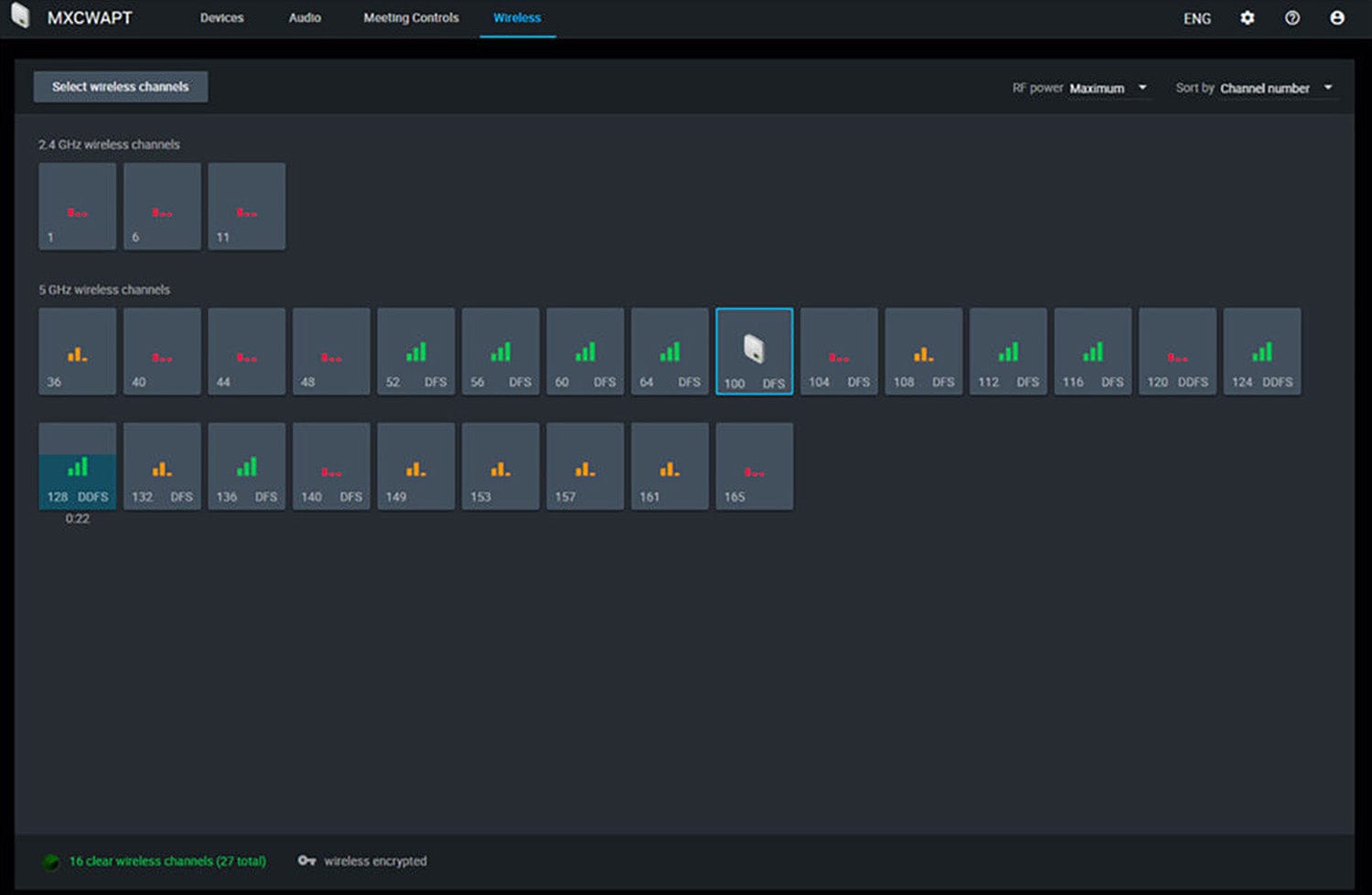

The MXCWPT-B scans the 2.4 and 5 GHz frequency bands and identifies the clearest channel. It then conveys that information to the conference units. The system takes advantage of limited-access DFS spectrum to expand the number of available channels. If a conflict is identified, the Access Point instructs all conference units to change channels. It features AES-128 encryption for enhanced privacy.

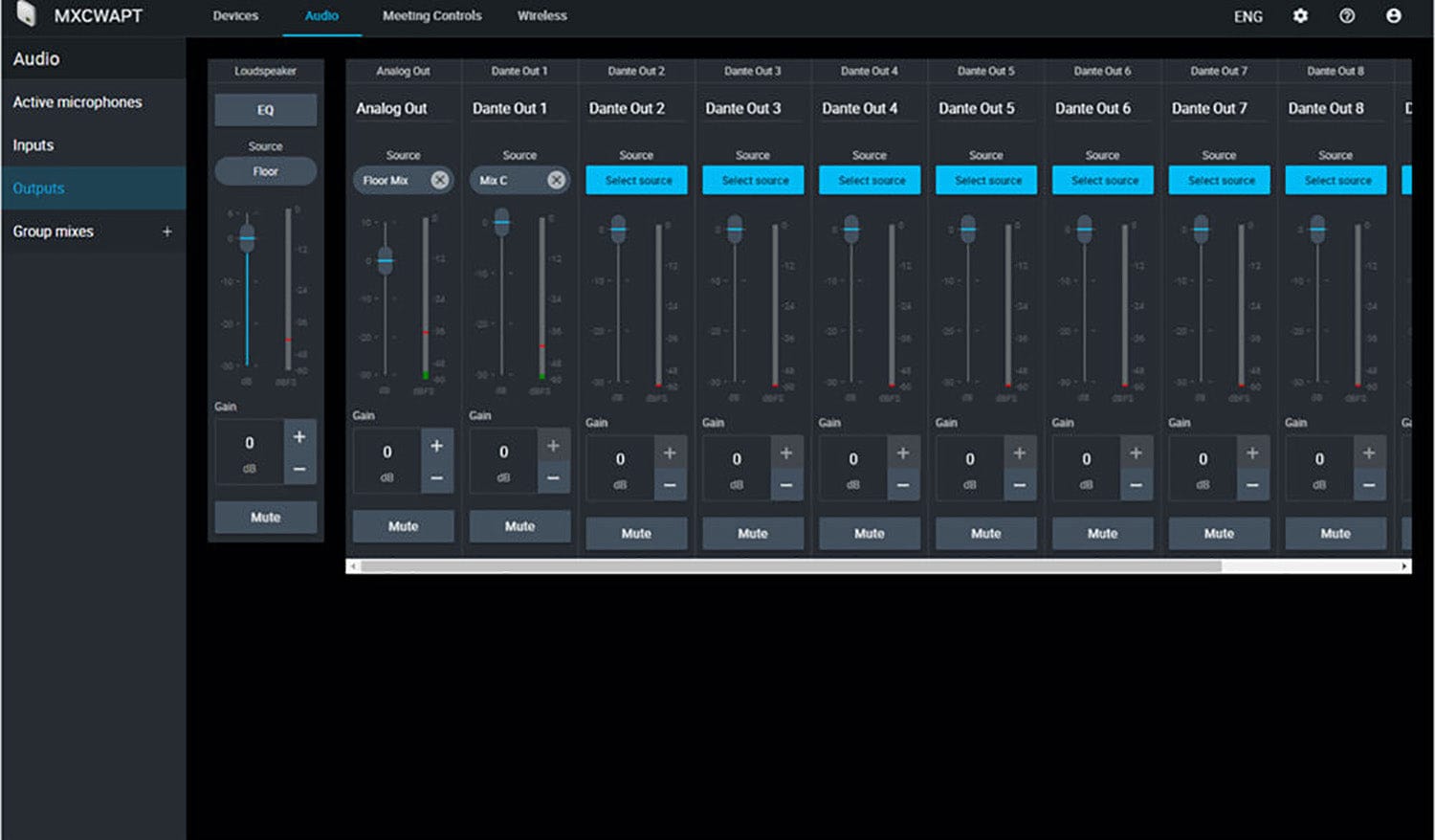

Furthermore, this Access Point includes a Dante networked audio connection that supports up to 10 input and 10 output channels. Analog XLR audio input and output allow for connection of a wireless microphone for a presenter or an external sound reinforcement system for an audience.

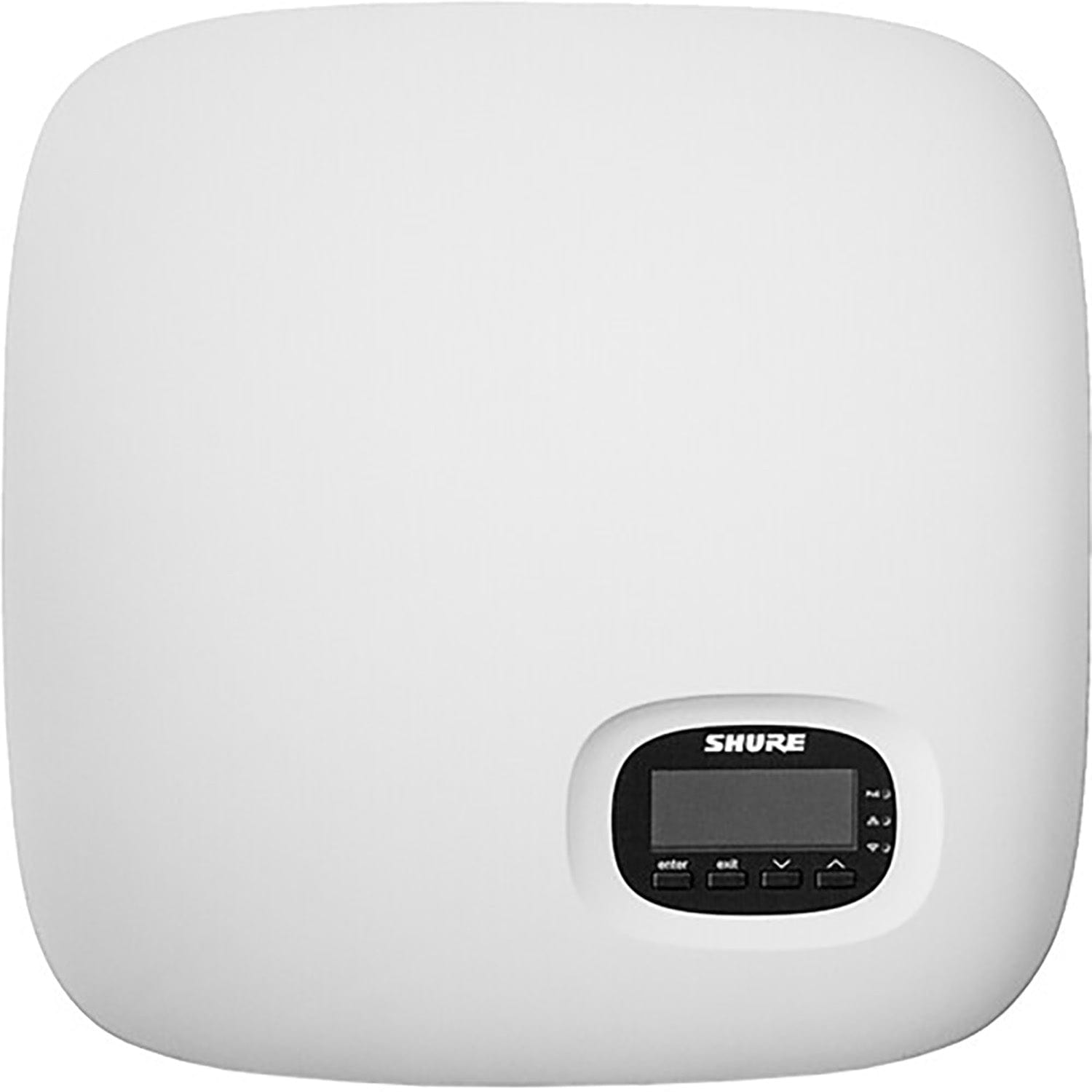

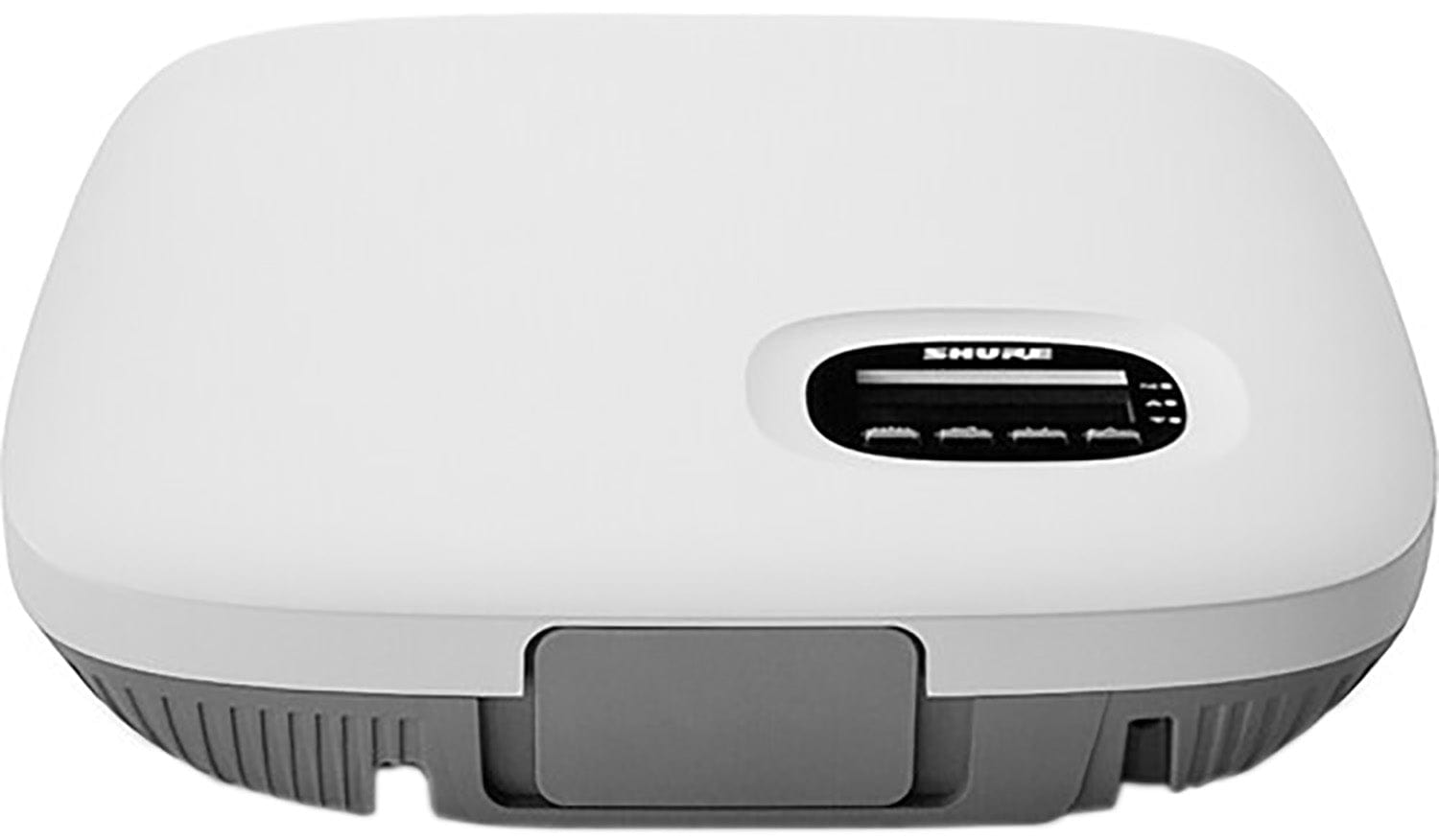

The MXCWAPT-B includes an information display and controls for basic system configuration without a laptop. It is powered by a standard PoE switch or power injector. Finally, it can be mounted on the wall or ceiling with the included mounting bracket and paintable cover or placed on a table for temporary meetings.
Why this product
Key Benefits
-
Controls up to 125 MXCW640 wireless conference units
-
Bidirectional wireless connection provides audio to and from conference units and enables real-time control of all settings
-
Operates in 2.4/5 GHz frequency bands, including DFS spectrum
-
Automatic frequency coordination, interference detection and avoidance
-
Dante digital audio (10 inputs/10 outputs)
-
Analog audio input and output (XLR)
-
One Ethernet cable for audio, control, and PoE power
-
AES-128 encryption for enhanced privacy
-
Display for basic system configuration without a laptop
-
LEDs indicate power, wireless connection, and network status
-

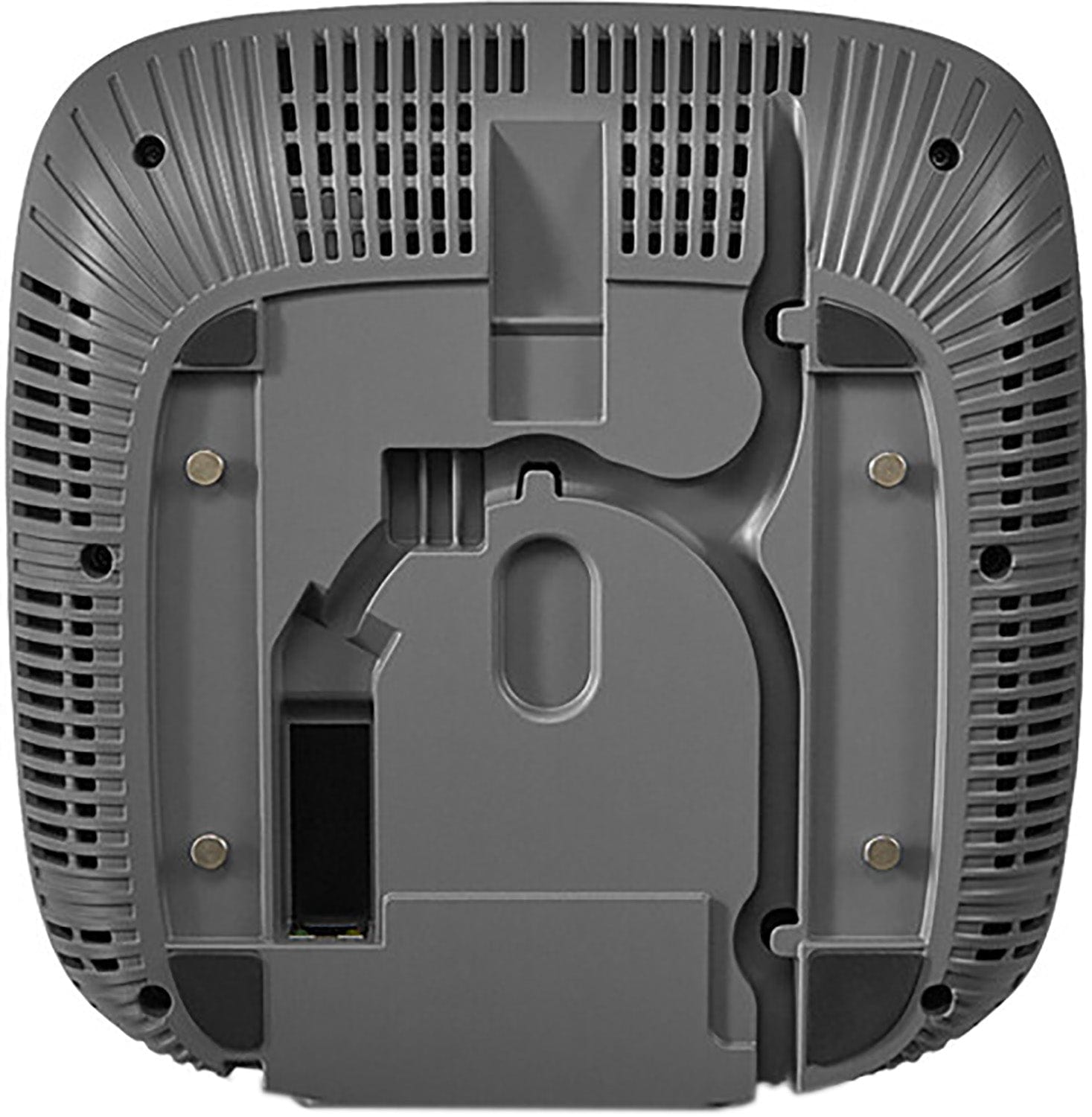

Includes wall/ceiling mounting plate
Technical details
Technical Specifications
Microphone
- Frequency Response
- 1 Hz to 20 kHz (+0.5 dB/-3 dB), Audio Injected at Dante Input, -6 dBFS Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB
- Total Harmonic Distortion/Noise
- 0.01% (Typical, Audio Injected at Dante Input, -6 dBFS Input, 1 kHz, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB, 22 Hz to 22 kHz BW)
- Dynamic Range (Typical)
- 100 dB [A-Weighted, 97 dB (Unweighted), Typical Audio Injected at Dante Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB, 22 Hz to 22 kHz BW]
- Equivalent Noise Level
- -104 dBV [A-Weighted, Typical Aux Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW], Input Impedance 10 Kilohms Line Level
- Sensitivity
- -80 dBm at 10% PER
Wireless
- Frequency Bands
- 2.4 GHz ISM, 5 GHz UNII
- RF Output Power
- 1 mW (Low), 5 mW (Medium), 13 mW (High), 25 mW (Maximum)
- Antenna Type
- Proprietary Internal Bi-Level Dual-Band (PIFA), Patent Pending
Connectivity
- Connector Type
- XLR-3-Pin Female (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -)
- Maximum Output Level
- 4.3 dBV (1% THD+N, Audio Injected at Dante Input, Dante Input Gain = 0 dB, Analog Output Gain = 0 dB)
- Load Impedance
- >600 Ohms, Typical
- Connector Type
- 3-Pin XLR Male [Standard XLR Pinout (Pin 1 = Ground, Pin 2 = Audio +, Pin 3 = Audio -)]
- Interface
- Gigabit Ethernet, Dante Digital Audio
- Network Addressing Capability
- DHCP or Manual IP Address
- Cable Length
- 328' / 100 m Maximum
- Cable Type
- Cat 5e or Higher
Power
- Supply Type
- Power over Ethernet (PoE) 802.2 af, Class 0 PD
- Supply Voltage
- 37 to 57 V
- Power Consumption
- 12.95 W Maximum, 6.5 W Typical
Physical
- Display Size
- 1.84 x 0.074" / 46.7 x 18.8 mm
- Display Resolution
- 152 x 78 (78 ppi)
- Housing
- Molded Plastic, Die-Cast Aluminum
- Mounting
- Ceiling Bracket or Wall
- Dimensions
- 1.88 x 9.55 x 9.52" / 47.8 x 242.5 x 241.8 mm
- Weight
- 2.54 lb / 1.15 kg
Environmental
- Operating Temperature Range
- 19.4 to 120.2° F / 7 to 49° C
- Storage Temperature
- -20.2 to 140° F / -29 to 60° C
General
- Ground Lift
- XLR GND Lift Switch Position - "Left (Pin 1-GND Connected) Right (Pin 1-GND Disconnected)"
- Configuration
- Balanced
- IEEE WLAN Standard
- IEEE 802.11 a, g
- Link
- Speed - 10/100/1000 Mb/s
- Type
- Monochrome FFSTN LCD
More details
Additional Information
Specifications:
- Analog Audio Inputs:
- Maximum Input Level:
- 24.9 dBV (1% THD+N, Measured at Dante Output, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
- 10.3 dBV (1% THD+N, Measured at Dante Output, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
- Frequency Response:
- 22 Hz to 20 kHz (+0.5 dB/-3 dB, Measured at Dante Output, -6 dBFS Input, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
- 22 Hz to 20 kHz (+0.5 dB/-3 dB, Measured at Dante Output, -6 dBFS Input, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB)
- Total Harmonic Distortion/Noise:
- 0.03%, Typical (Measured at Dante Output, -6 dBFS Input, 1 kHz, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW)
- 0.02%, Typical (Measured at Dante Output, -6 dBFS Input, 1 kHz, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW)
- Dynamic Range:
- 115 dB [A-Weighted, 113 dB (Unweighted), Typical Measured at Dante Output, Line Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW]
- 112 dB [A-Weighted, 110 dB (Unweighted), Typical Measured at Dante Output, Aux Level, Analog Input Gain = 0 dB, Dante Output Gain = 0 dB, 22 Hz to 22 kHz BW]
- Equivalent Input Noise:
- Preamplifier:
- -92 dBV (A-Weighted, Typical Line Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW)
- -104 dBV (A-Weighted, Typical Aux Level, Analog Input Gain = 0 dB, 22 Hz to 22 kHz BW)
- Preamplifier:
- Maximum Input Level:
- Analog Audio Outputs:
- Input Impedance:
- 10 Kilohms, Line Level
- 12 Kilohms, Aux Level
- Input Impedance:
- RF Specification:
- Power:
- Network:
- Display:
- General:
