Shure MXCWNCS-US 10-Bay Networked Charging Station for SB930 Batteries - US Power Supply
Model MXCWNCS-US
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure MXCWNCS-US 10-Bay Networked Charging Station for SB930 Batteries - US Power Supply

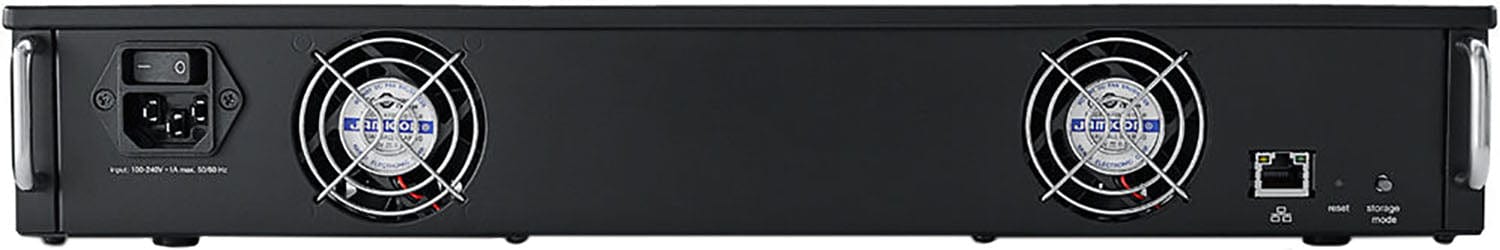

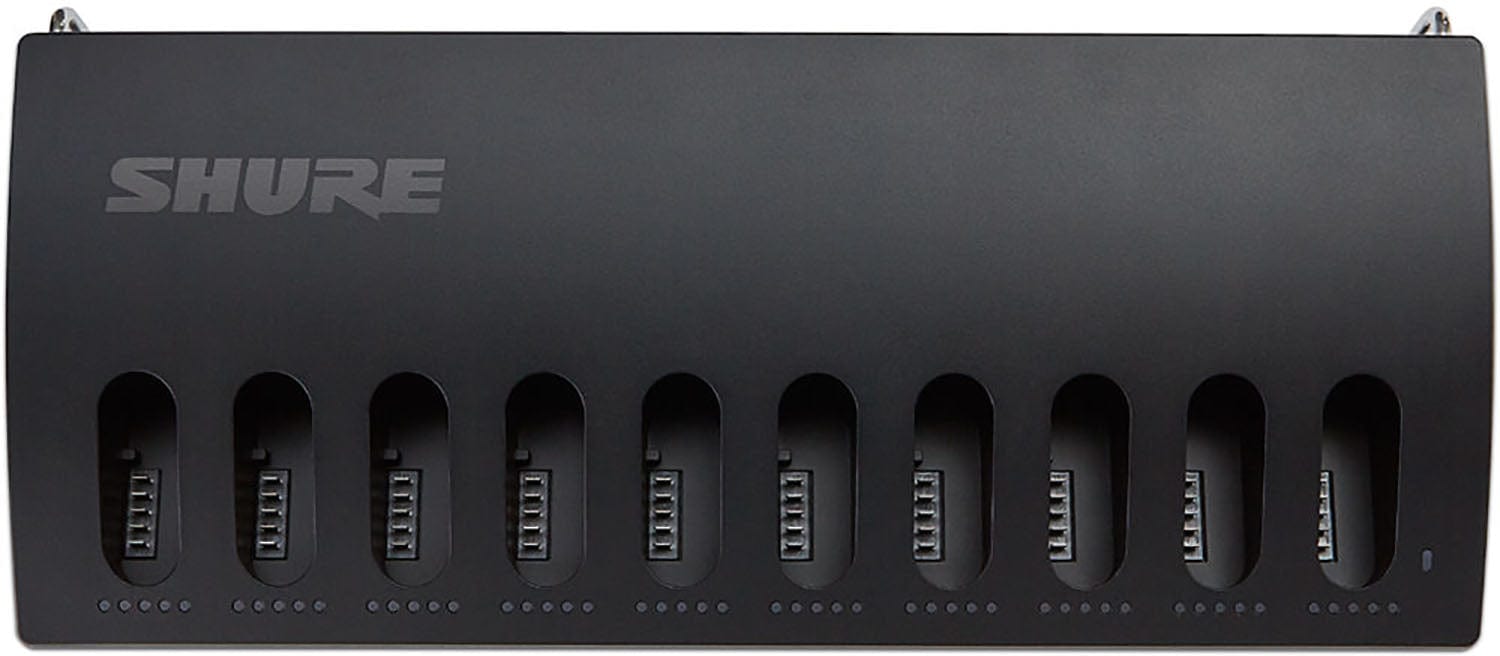

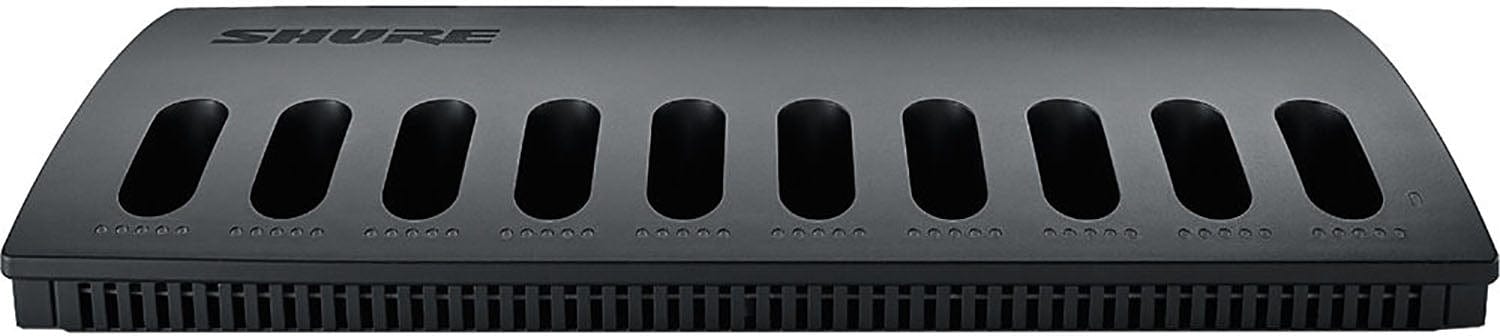

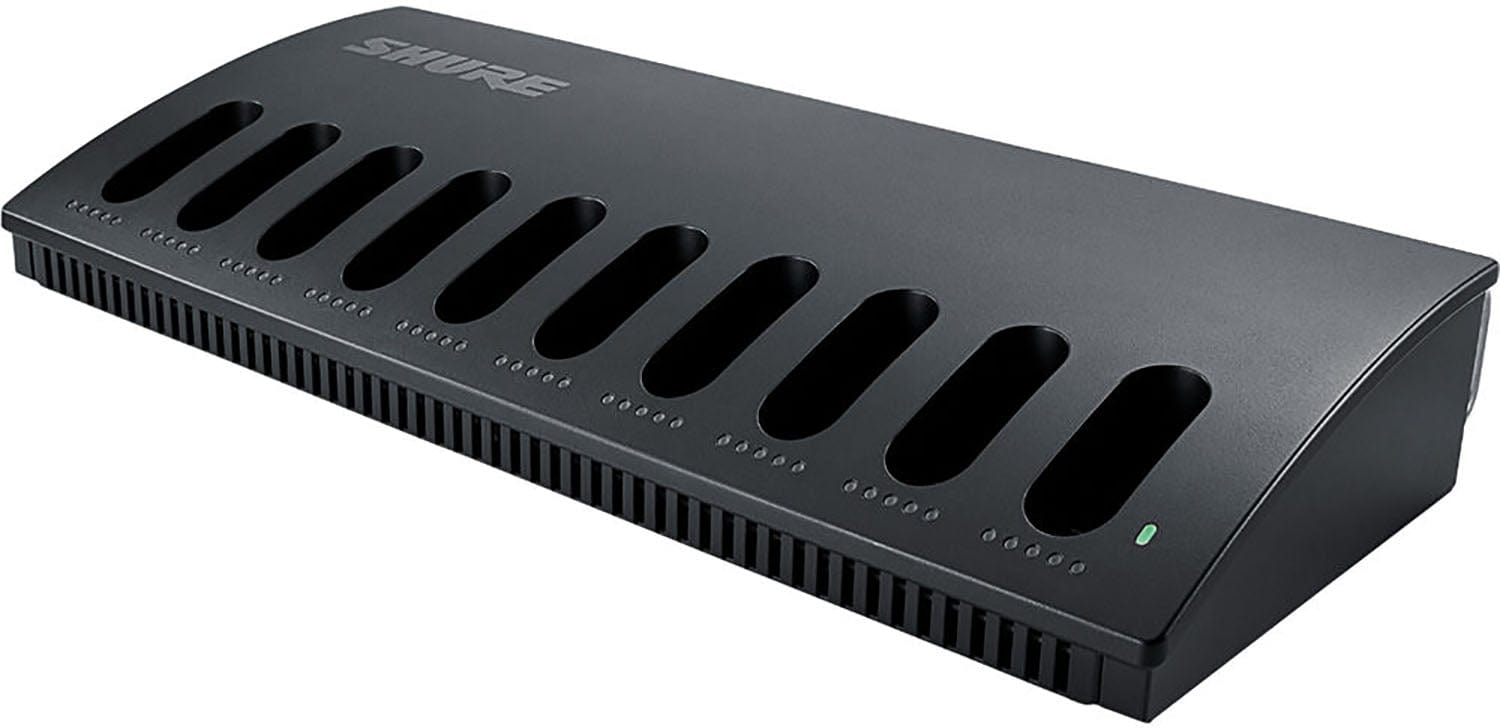

The MXCWNCS Networked Charging Station charges 10 SB930 batteries in 4 hours. LED indicators display charge status, and a RJ-45 Ethernet connection enables battery levels to be monitored remotely. Includes IEC power cable and mounting hardware for wall or rack mounting.
Why this product
Key Benefits
-
Accommodates up to 10 SB930 rechargeable batteries
-
5-segment LEDs on the unit display charge status individually for every battery
-
RJ45 Ethernet connection enables remote monitoring of battery charge status in hours and minutes via Microflex Complete Wireless graphical user interface
-
Charges 10 batteries to 50% charge in 1.5 hours, 100% charge in 4 hours
-
Selectable storage mode partially discharges batteries for long-term storage or shipment
-
Includes hardware for wall and rack mounting
-
Includes power cable
Technical details
Technical Specifications
Connectivity
- Interface
- Ethernet
- Cable Length
- 100m (max)
- Cable Type
- > Cat5e (shielded/unshielded)
- Connector Type
- 1 x RJ45
- Connector LED
- Status (Green) / Link Speed (Amber)
Environmental
- Operating/Discharging Temperature Range
- -20°C (-4°F) to 35°C (95°F) Discharging may occur when storage mode is enabled
- Charging Temperature Range
- 0°C (32°F) to 35°C (95°F)
- Storage Temperature Range
- -29°C (-20.2°F) to 60°C (140°F)
- Relative Humidity
- <95%
Physical
- Dimensions
- 72.4mm x 438.9mm x 193.5mm (2.9" x 17.3" x 7.6")
- Weight
- 2825 g
- Color
- Black
- Material
- Molded Plastic, Steel
- Mounting Type
- Tabletop, wall mount or rack (4U rackspace required)
General
- Link Speed
- 10/100Mbps
- Networking Addressing Capability
- DHCP or Manual IP address
More details
Additional Information
Specifications:
- Network:
- User Interface:
- Display Type:
- 5 LEDs per bay for charging indication
- 1 status LED
- 2 Ethernet LEDs
- Display Type:
- Mechanical:
- Environmental:
