Shure MXN-AMP: Microflex PoE+ Powered Networked Amplifier with 4 Dante Inputs and Outputs, 8 Ohm and 70V Loudspeaker Outputs
Model MXN-AMP
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

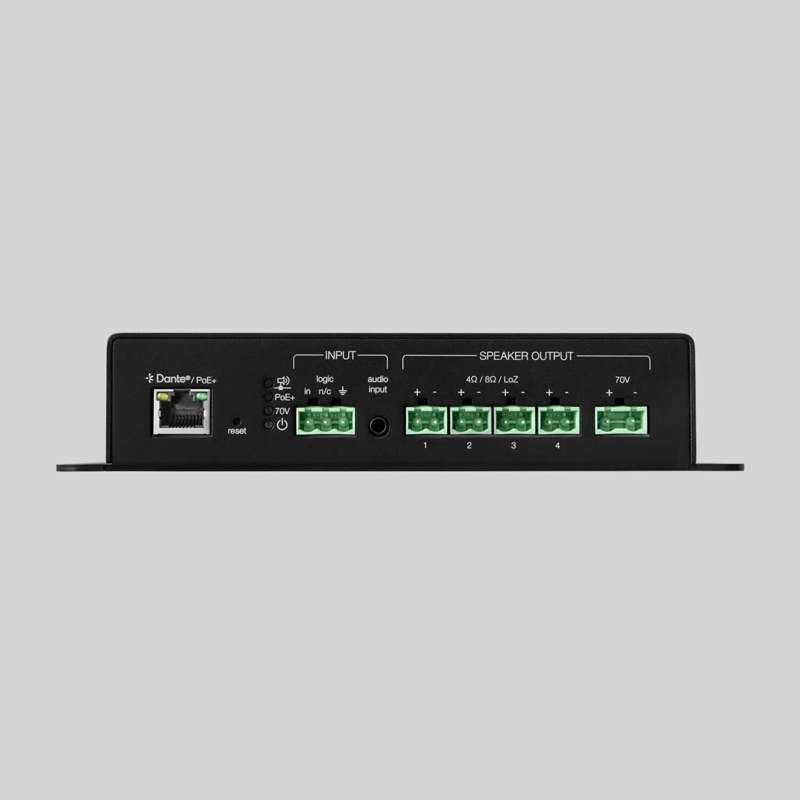

Shure MXN-AMP Microflex PoE+ Networked Conferencing Amplifier
The Shure MXN-AMP is a PoE+ powered multichannel amplifier for Microflex conferencing loudspeakers. It drives up to four MXN or MXP loudspeakers in 8 ohm mode or up to eight MXP-5 or MXP-6 in 70V mode, with four Dante inputs and outputs and onboard Shure DSP. It is plenum rated and mounts in a rack, on a wall or in a ceiling for meeting rooms.
Why this product
Key Benefits
-
Powers up to 4 MXN or MXP loudspeakers in 8 ohm mode or up to 8 MXP-5/MXP-6 in 70V mode
-
14.5 W combined output power from PoE+
-
Four Dante inputs and four Dante outputs
-
Unbalanced stereo analog input and logic input for preset switching
-
Onboard Shure DSP: EQ, delay, limiter, signal and tone generator
-
Presets for all MXP-series loudspeakers
-
802.1X, secure boot and AES encryption for control and audio
-
UL 2043 plenum rated
Technical details
Technical Specifications
System
- DSP
- EQ, delay, limiter, signal and tone generator
Power
- Power
- PoE+
- Output Power
- 14.5 W combined
Connectivity
- Speaker Outputs
- 4 x LoZ (8 ohm) and 70V output
- Network Audio
- 4 Dante inputs, 4 Dante outputs
- Analog Input
- Unbalanced stereo
- Logic Input
- Switches between presets 1 and 2
Physical
- Mounting
- Rack (CRT-1 tray), wall or ceiling
General
- Model
- MXN-AMP
- Security
- 802.1X, secure boot and storage, AES encryption
- Rating
- UL 2043 plenum
In the box
What's Included
-
1 Microflex MXN-AMP PoE Powered Amplifier
-
1 logic input block connector
-
4 LoZ output block connectors
-
1 x 70V output connector
-
2 x 1/4 in screws, #4-40 UNC thread
More details
Additional Information
Frequently Asked Questions:
How many loudspeakers can the Shure MXN-AMP power?
The MXN-AMP can power up to four MXN or MXP loudspeakers in 8 ohm mode, or up to eight MXP-5 or MXP-6 loudspeakers in 70V mode.
What is the output power of the Shure MXN-AMP?
The MXN-AMP is rated at 14.5 watts of combined output power and is powered entirely by PoE+.
What inputs does the MXN-AMP have?
The MXN-AMP has four Dante inputs and four Dante outputs, an unbalanced stereo analog audio input and a logic input that switches between presets 1 and 2.
Does the Shure MXN-AMP include DSP?
Yes. Onboard Shure DSP provides EQ, delay, limiter and a signal and tone generator, with presets for all MXP-series loudspeakers and custom presets in the control software.
Can the MXN-AMP be installed above a ceiling?
Yes. The MXN-AMP is UL 2043 plenum rated and can be wall or ceiling mounted, or rack mounted with the optional CRT-1 rack tray. Shure recommends a safety tether for overhead installs.
