Shure MXW1X Transmitter
Model MXW1X-O-Z10
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

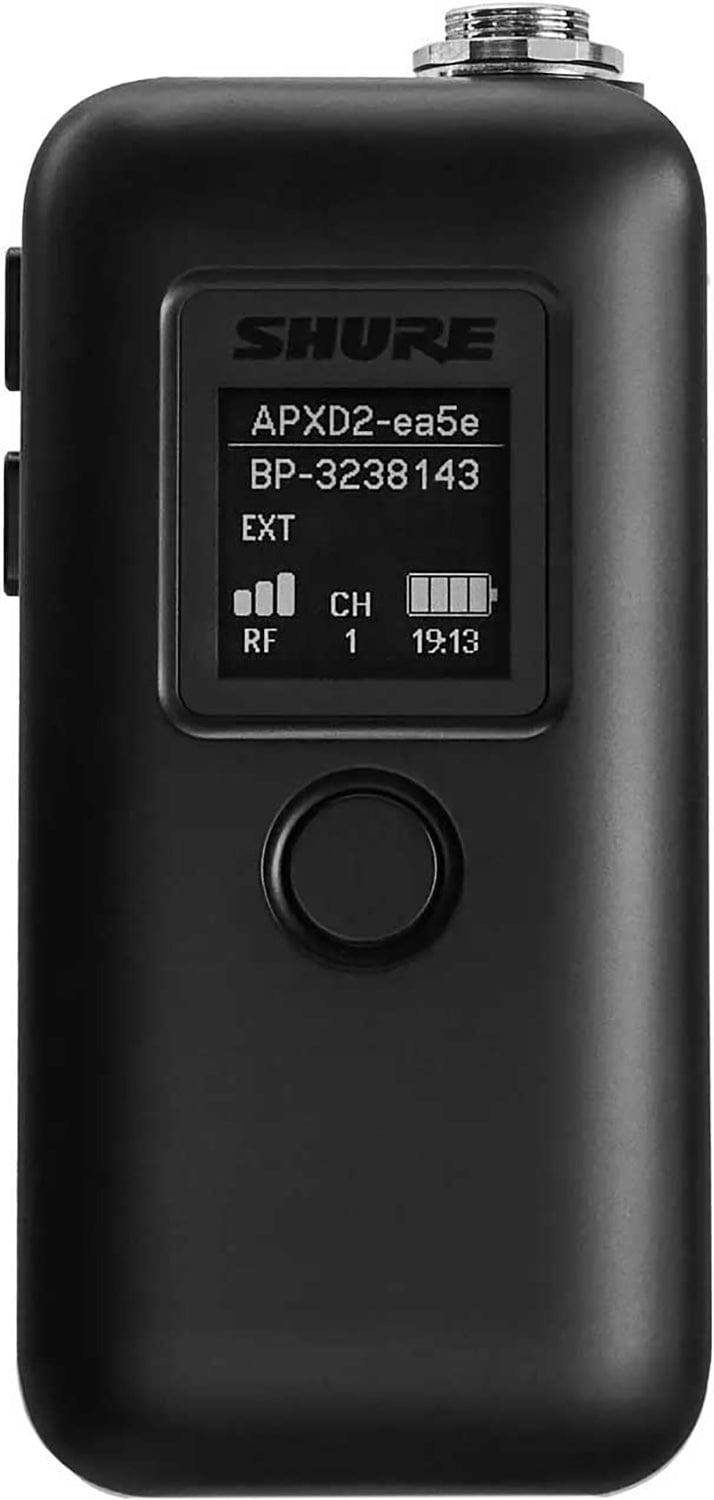

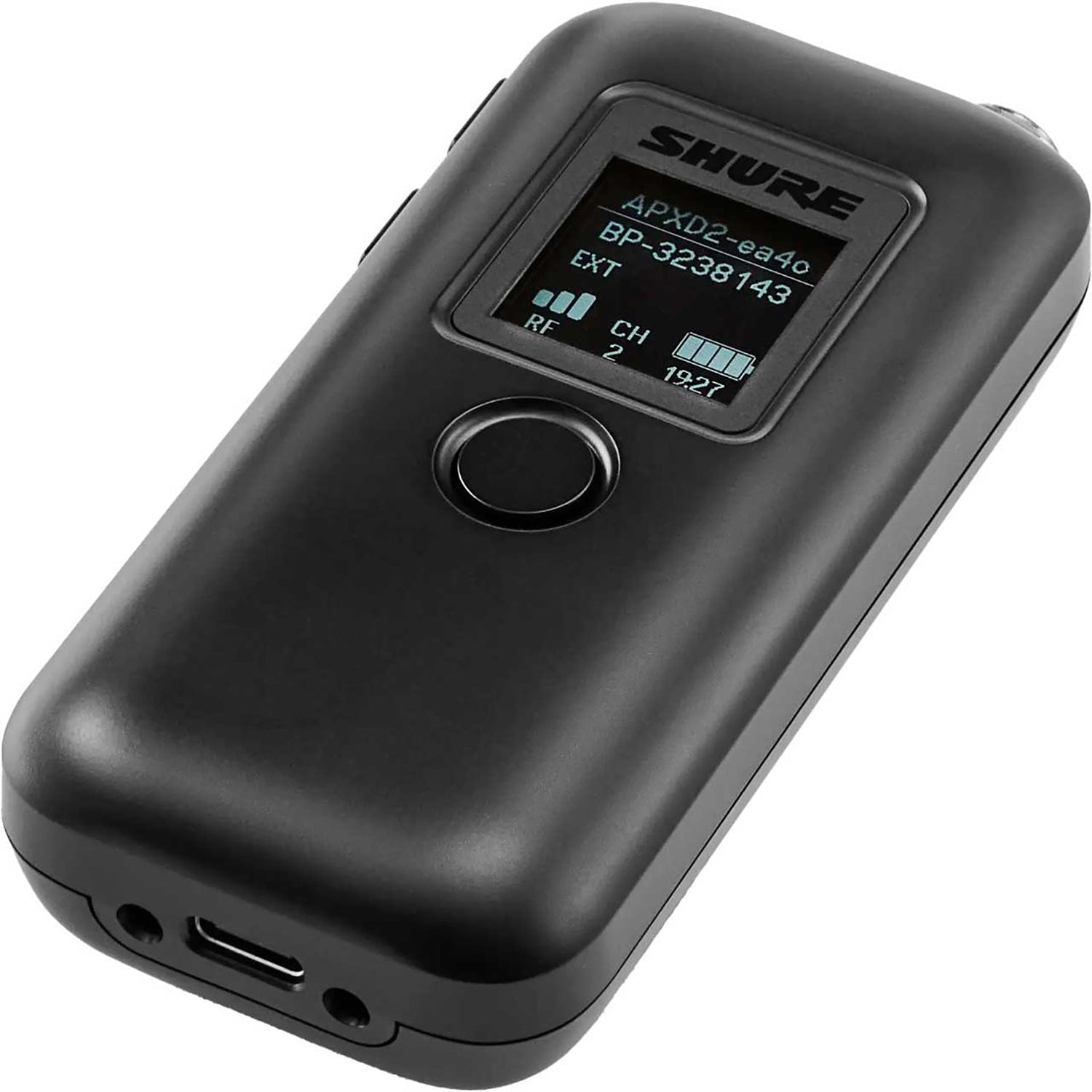

Shure MXW1X Hybrid Bodypack Transmitter
The MXW1 is a hybrid bodypack transmitter compatible with Microflex® Wireless systems. It offers both an integrated omnidirectional microphone and an input jack for connecting an ear-worn or lavalier style microphone. The integrated microphone is perfect for picking up speech while the bodypack is on a lanyard or tucked into a shirt pocket, and a belt clip is included for attachment to clothing.
Why this product
Key Benefits
-
Compact, low-profile design: Fits comfortably into a shirt pocket or attached to clothing
-
Integrated omnidirectional mic: Clearly captures full range audio without connecting an external microphone
-
External microphone input: For connecting multiple styles of ear-worn or lavalier condenser microphones
-
Bi-directional wireless: Enables return channel audio and real time remote control of all wireless microphone settings
-
Earphone output: Listen to audio from a return channel for translation, cueing, or program material
-
Programmable mute button: Customize local or remote muting behavior per application, with options including push-total, push-to-mute, and external control.
-
Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use
-
Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
-
Out of range alert: Emits beeping sound when range limit is exceeded
-
Wide frequency response: Captures full range audio for clear voice transmission
-

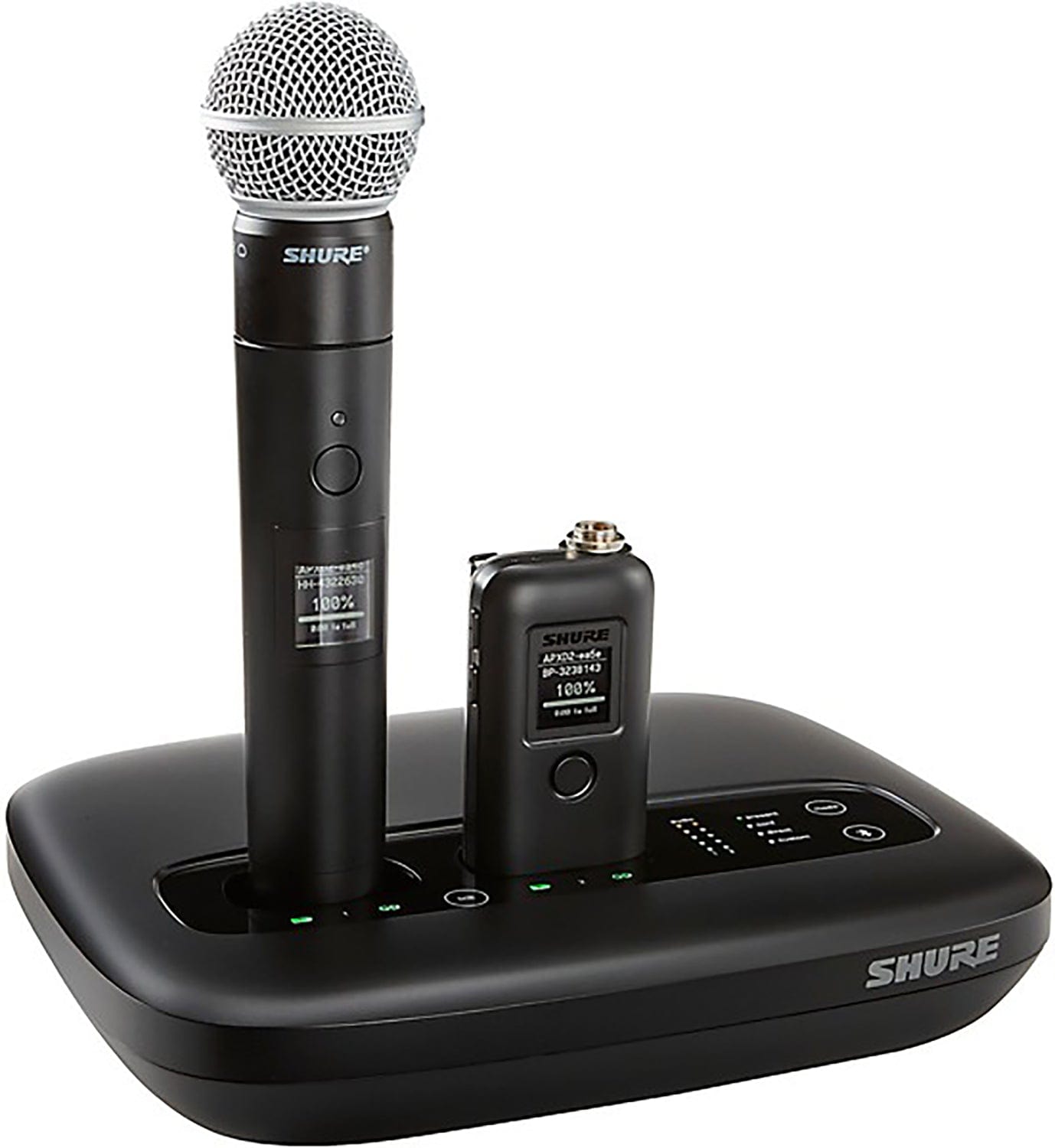

Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing “link”
-
Encrypted wireless: AES 256-bit encryption for secure transmission.
-
Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
-
USB charging: Connects to any standard USB power source for “always on” usage
Technical details
Technical Specifications
Microphone
- Gain Adjustment Range
- -25 to +15 dB (in 1 dB steps)
- Internal Microphone
- Omnidirectional (20 Hz – 20 kHz)
Wireless
- Antenna Type
- Internal, Spacial Diversity, Linear Polarization
Battery
- Battery Type
- Rechargeable Li-Ion
- Battery Life
- Up to 9 hours
- Charge Connector
- USB 3.0 Type A
Connectivity
- Headphone Output
- 3.5 mm (1/8"), dual mono (will drive stereo phones)

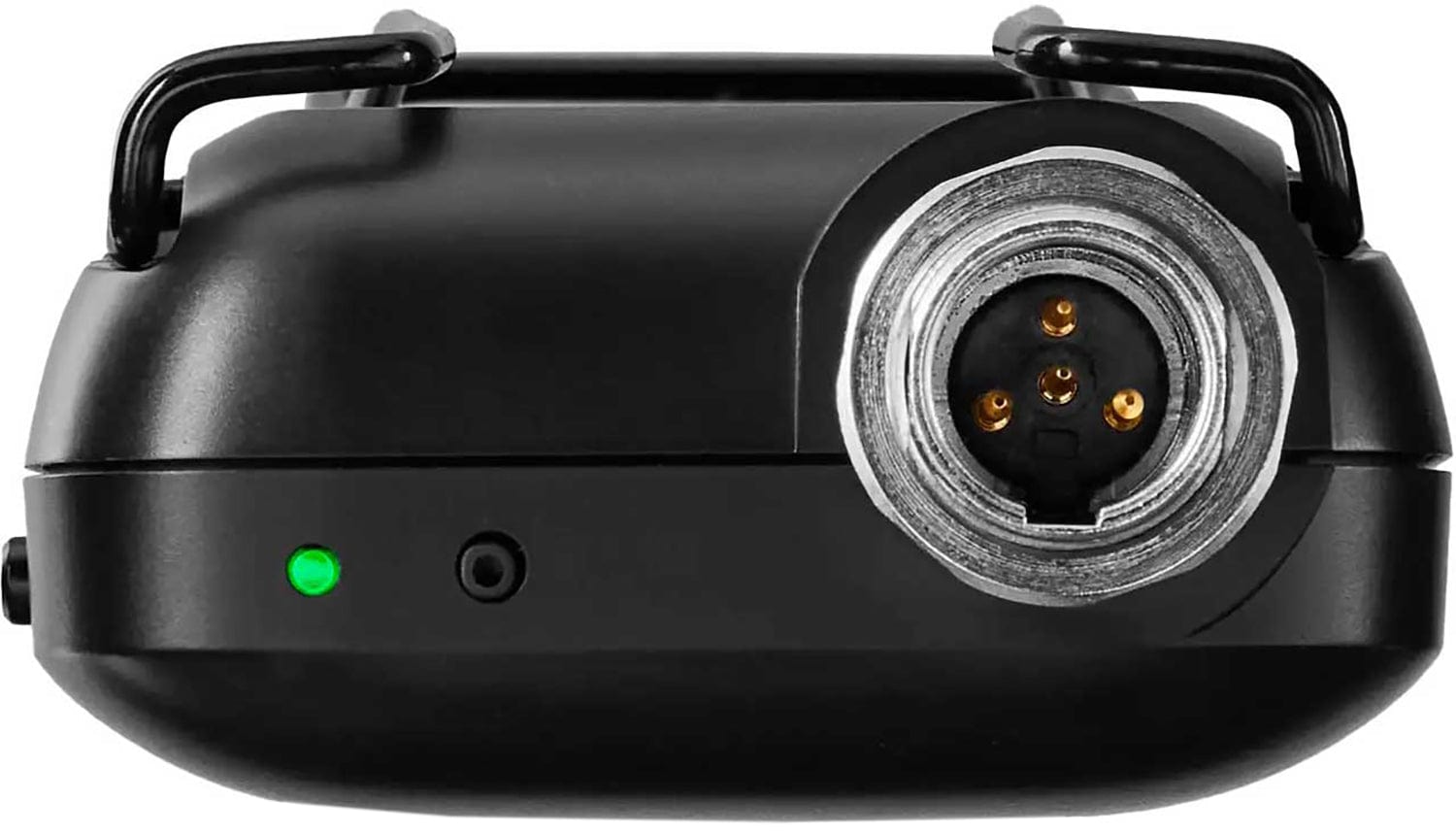

- Microphone Connector
- 4-Pin male mini connector (TA4M), See drawing for details
Physical
- Housing
- Molded Plastic
- Dimensions
- 22 mm × 45 mm × 99 mm (0.9 in. × 1.8 in. × 3.9 in.) H × W × D
- Weight
- 85 g (3.0 oz.) with batteries, without microphone
Environmental
- Recommended Storage Temperature Range
- 0 °C (32 °F) to 25 °C (77 °F)
More details
Additional Information
Specifications:
- Maximum Input Level (Mic gain @ -16 dB): −9 dBV
- Maximum Headphone Output Power (1kHz @ 1% distortion, peak power, @16Ω): 17.5 mW
- Input Impedance (@ 1 kHz): >20 kΩ
