Shure MXW2/VP68 Handheld Transmitter
Model MXW2-VP68-Z10
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

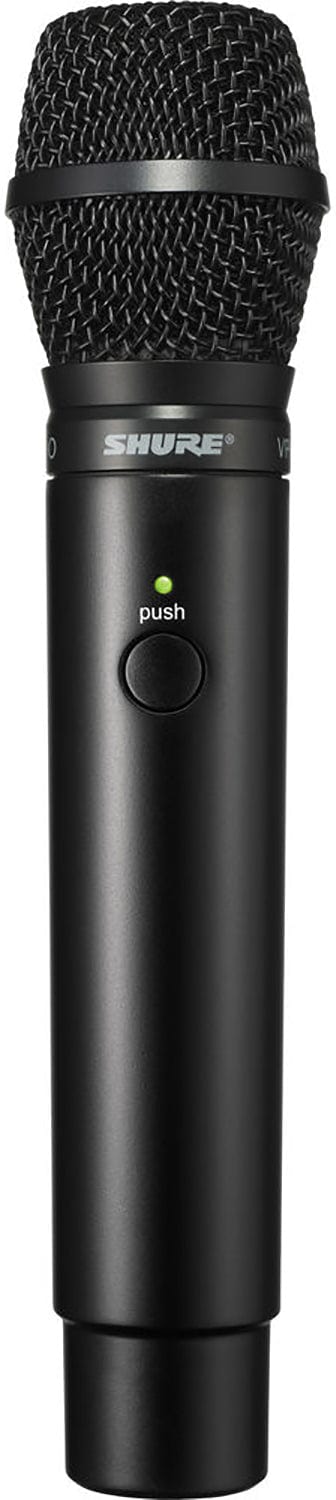

Shure MXW2/VP68 MXW2 Handheld Transmitter with VP68 Capsule
Coupled with the VP68 cartridge, the MXW2 is a handheld transmitter compatible with Microflex Wireless Systems. With lightweight but durable construction and integrated diversity antennas, the MXW2 delivers vivid lifelike sound, intelligent wireless performance, encrypted transmission, and advanced rechargeability for presentation and conferencing applications.
Why this product
Key Benefits
-
Interchangeable microphone cartridges: Available with the SM58, SM86, Beta 58A and VP68 signature Shure microphones
-
Dual transmit antennas: Maximizes transmission strength depending on hand placement
-
Bi-directional wireless: Enables real time remote control of all wireless microphone settings
-
Programmable mute button: Customize local or remote muting behavior per application, with options including push-to-talk, push-to-mute, and external control.
-
Standby mode: Enabled remotely during breaks or periods of inactivity to significantly extend battery life when not in use.
-
Wide working range: Reliable wireless coverage extends up to 160 feet (50 meters)
-
Range warning alert: Emits beeping sound when range limit is exceeded
-
Easy transmitter linking: Assign the microphone to an Access Point channel by simply docking it into a Networked Charging Station and pressing “link”
-
Encrypted wireless: AES 256-bit encryption for secure transmission.
-
Advanced Li-ion batteries: Smart lithium-ion internal batteries provide up to 9 hours of continuous use, charge to full in 2 hours, and enable remote monitoring over the network of remaining runtime and charge status in hours and minutes
-
USB charging: Connects to any standard USB power source for “always on” usage.
Technical details
Technical Specifications
Microphone
- Gain Adjustment Range
- -25 to 15 dB (in 1 dB steps)
- Frequency Response
- 40 Hz to 20 kHz (based on -3 dB points in normalized response)
- Polar Pattern
- Omnidirectional
- Maximum SPL
- 136.5 dB (1% THD)
- Self Noise
- 18.5 dB(A)
Wireless
- Antenna Type
- Internal, spatial diversity, linear polarization
Battery
- Battery Type
- Rechargeable Li-Ion
- Battery Life
- Up to 15 hours (Calculated with a new battery. Runtimes vary depending on battery health)
- Charge Connector
- USB 3.0 Type A
Connectivity
- Headphone Output
- 1/8" (3.5 mm) dual mono (will drive stereo headphones)
Power
- Power Requirements
- 1.9 x 3" (49 x 76 mm)
Physical
- Housing
- Molded plastic
- Weight
- 7 oz (200 g)
- Dimensions
- 2.0 x 8.9" (51 x 226 mm)
- Weight
- 11.4 oz (323 g) with batteries and microphone capsule
Environmental
- Temperature Range
- Recommended for Storage: 32 to 77°F (0 to 25°C)
Shipping & Packaging
- Package Weight
- 1.45 lb
- Box Dimensions (LxWxH)
- 11 x 5.3 x 3.2"
General
- Configuration
- Unbalanced
- Type
- Condenser
More details
Additional Information
Specifications:
- Transmitter:
- Maximum Input Level: -9 dBV (mic gain @ -16 dB)
- Output Power: Headphone: 17.5 mW (1 kHz @ 1% distortion, peak power, @ 16 Ω)
- Input Impedance: >20 kΩ (@ 1 kHz)
- Microphone:
- Sensitivity: 41 dBV/Pa (@ 1 kHz)
- Dimensions: 118 dB SPL @ 1,000 Ω
- General:
- Packaging Info:
