Shure P10R+=-L8 Diversity Bodypack Receiver for PSM1000 - L8 Band
Model P10R-PLUS-L8
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

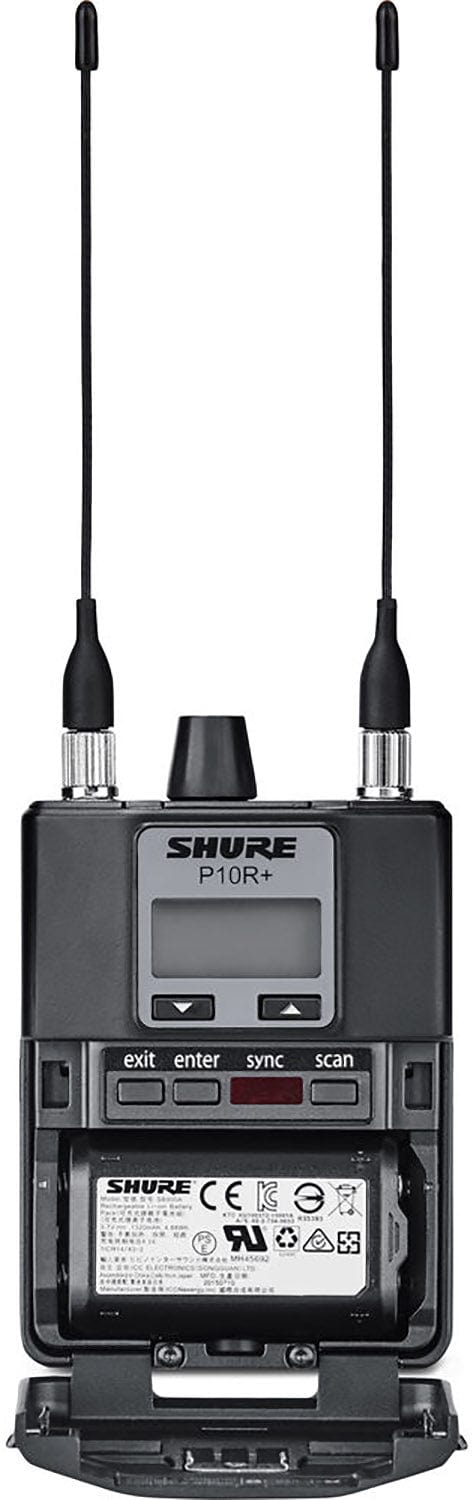

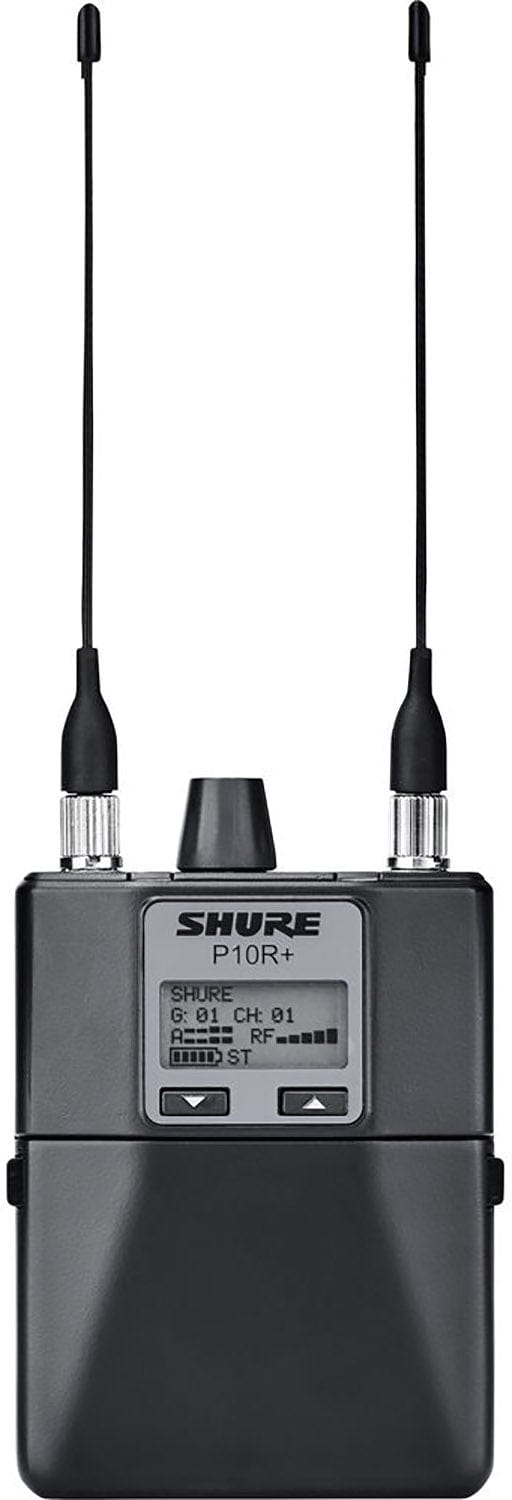

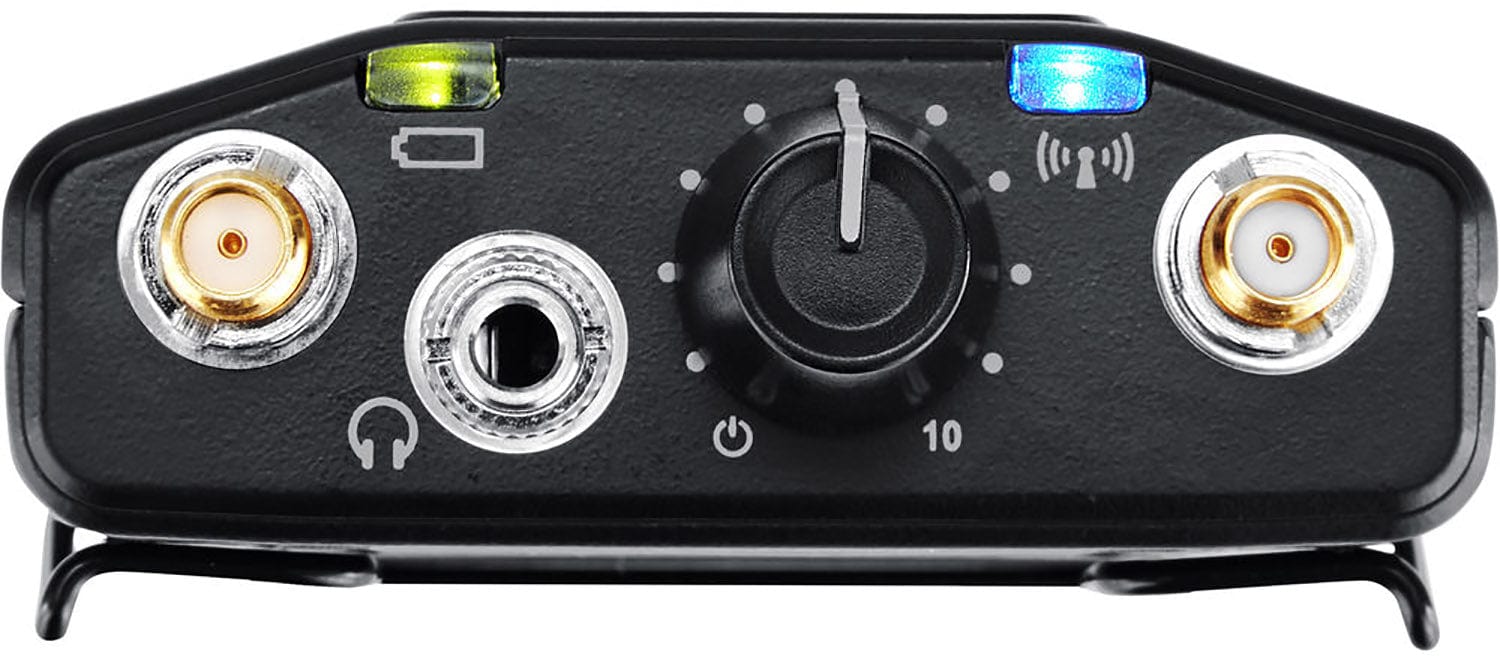

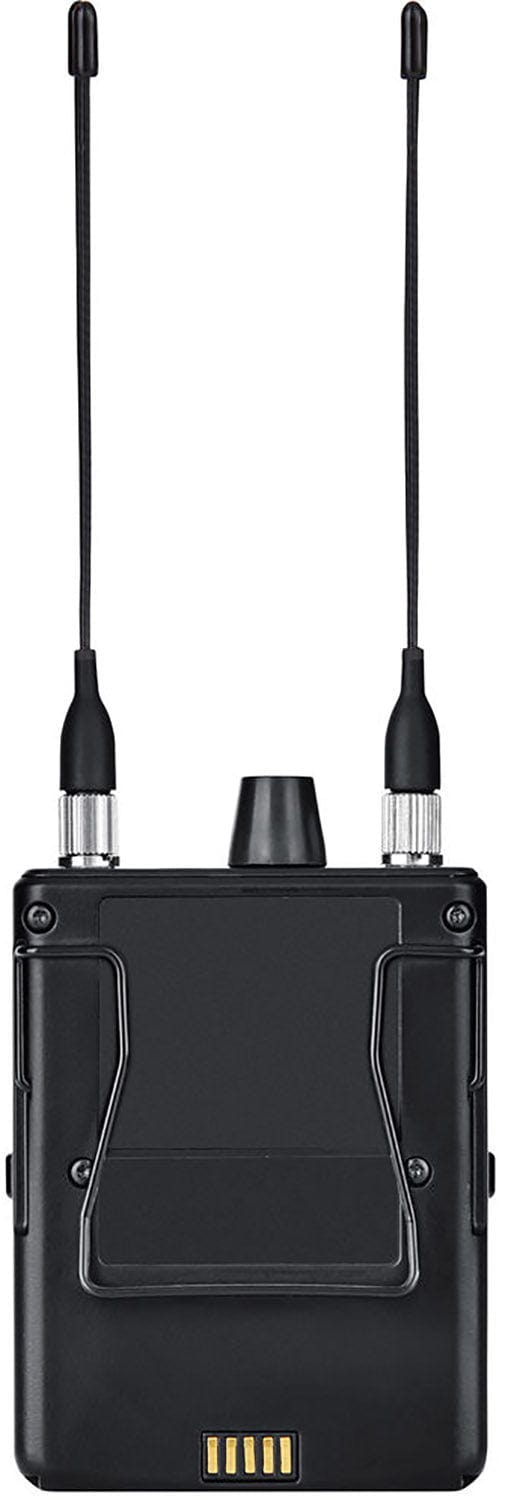

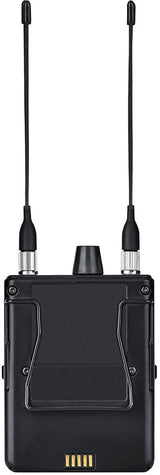

Shure P10R+=-L8 Diversity Bodypack Receiver for PSM1000 - L8 Band
The P10R+ is a low profile, diversity bodypack receiver for use with the PSM® 1000 Wireless Personal Monitor System. It offers premium features like full bandwidth RF scan and Automatic RF Gain Control for unparalleled signal stability and channel availability, all packed in the slimmest form factor available. CueMode allows monitoring of different stage mixes and storing of up to 20 separate channels from one bodypack for quick and easy mix reference. Optional advanced rechargeability eliminates the need for disposable batteries and provides extended usage times with reliable battery life, cycle count, and health metering.
Why this product
Key Benefits
-
Improved audio quality (without changing sound signature)
-
Improved RF performance and reliability
-
Improved battery life with alkaline AA batteries (thanks to new headphone amp technology)
-
Updated firmware with new features and workflow improvements
-
Improved Volume Limiter function (selectable ranges of limiting increased)
-
4-band parametric EQ added
-
Power-Save Mode added (like feature on PSM300 series packs)
Technical details
Technical Specifications
Audio Performance
- Intermodulation Attenuation
- >70 dB
- Minimum Load Impedance
- 4 Ω
- Output Impedance
- <1 Ω
- Selectable Q
- 0.7, 1.4, 2.9, 5.0, 11.5
Wireless & RF
- Tri-band RF Filtering
- –3 dB at 30.5 MHz from the center frequency of each band
- Active RF Gain Control
- 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
- RF Sensitivity (20 dB SINAD)
- 2.2 μV
- Squelch Threshold
- 22 dB SINAD (±3 dB), default setting
- Adjacent Channel Rejection
- >70 dB
- Blocking
- >80 dB
- Image Rejection
- >90 dB
Battery & Charging
- Battery Life
- 4–6 hours (continuous use) with AA batteries
Physical
- Net Weight
- 158 g, without batteries
- Dimensions
- 99 mm x 66 mm x 23 mm (3.9 in. x 2.6 in. x 0.9 in.) H x W x D
General
- Selectable
- 0 dB to -48 dB in 3 dB steps
- Selectable
- 0 dB to -70 dB
More details
Additional Information
Specifications:
- Audio Output Power (1kHz @ <1% distortion, peak power, @16Ω): 100 mW per output
- 4-Band Parametric EQ:
- Low Shelf:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @100 Hz
- Low Mid:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @160 Hz, 250 Hz, 400 Hz, 500 Hz, 630 Hz
- High Mid:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @1 kHz, 1.6 kHz, 2.5 kHz, 4 kHz, 6.3 kHz
- High Shelf:
- Selectable Gain: ±2 dB, ±4 dB, ±6 dB @10 kHz
- Low Shelf:
- Volume Limiter:
- Volume Lock:
