Shure P10T J8A (551-616Mhz) Dual Channel Wireless Transmitter Used Package
Model TZ-PCK-P10TJ8A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure P10T J8A (551-616Mhz) Dual Channel Wireless Transmitter Used Package

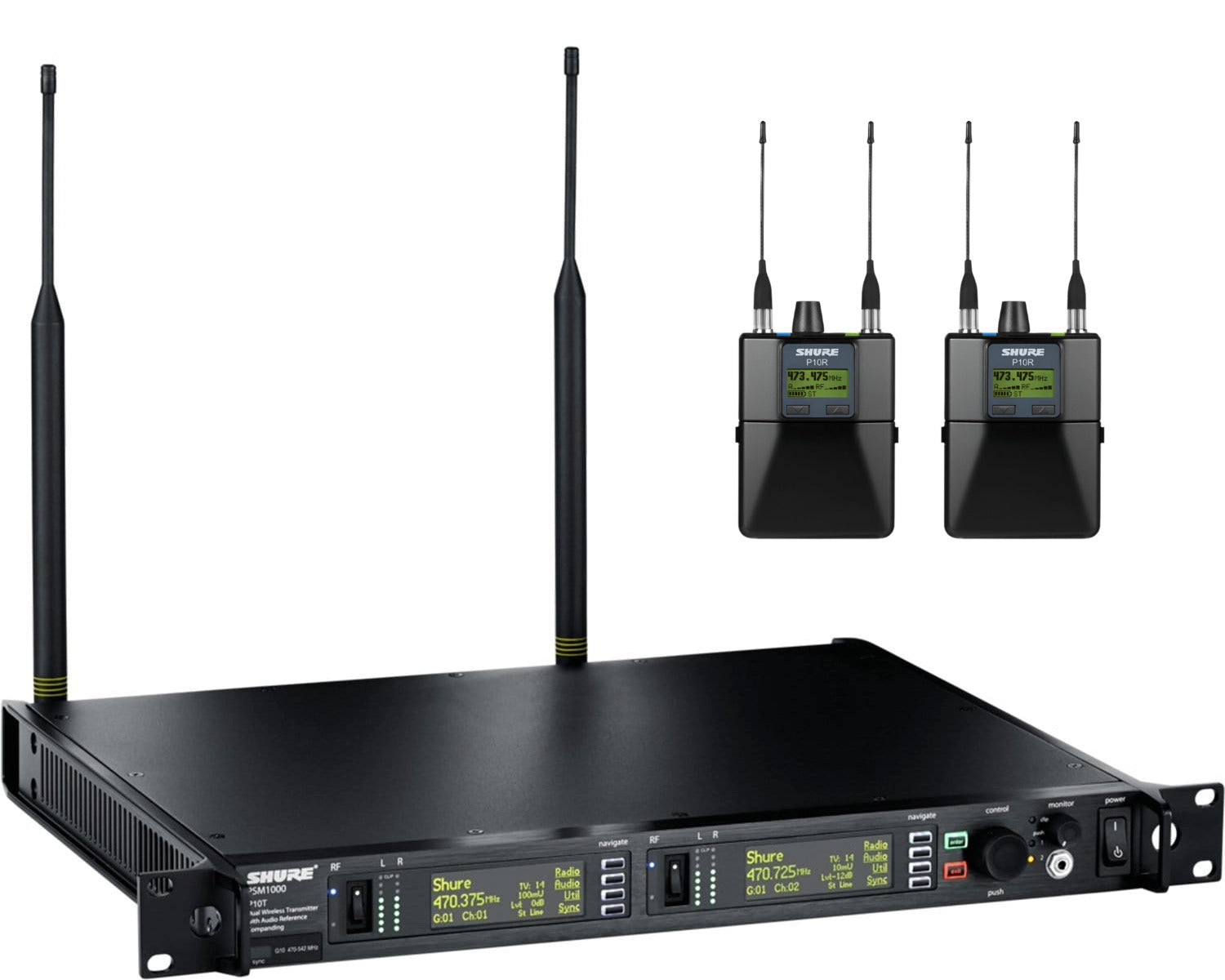

Package includes:

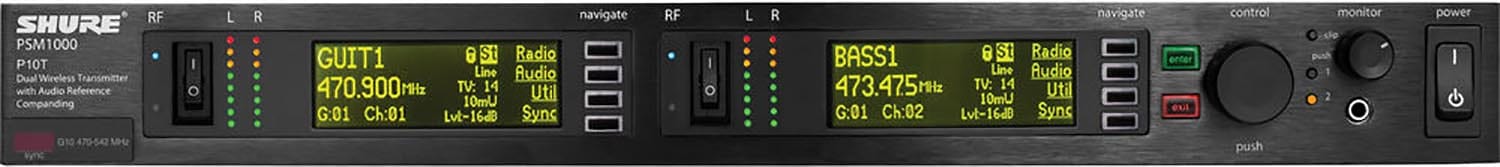

- 1x P10T Dual-Stereo IEM Transmitter J8A 551-616MHz

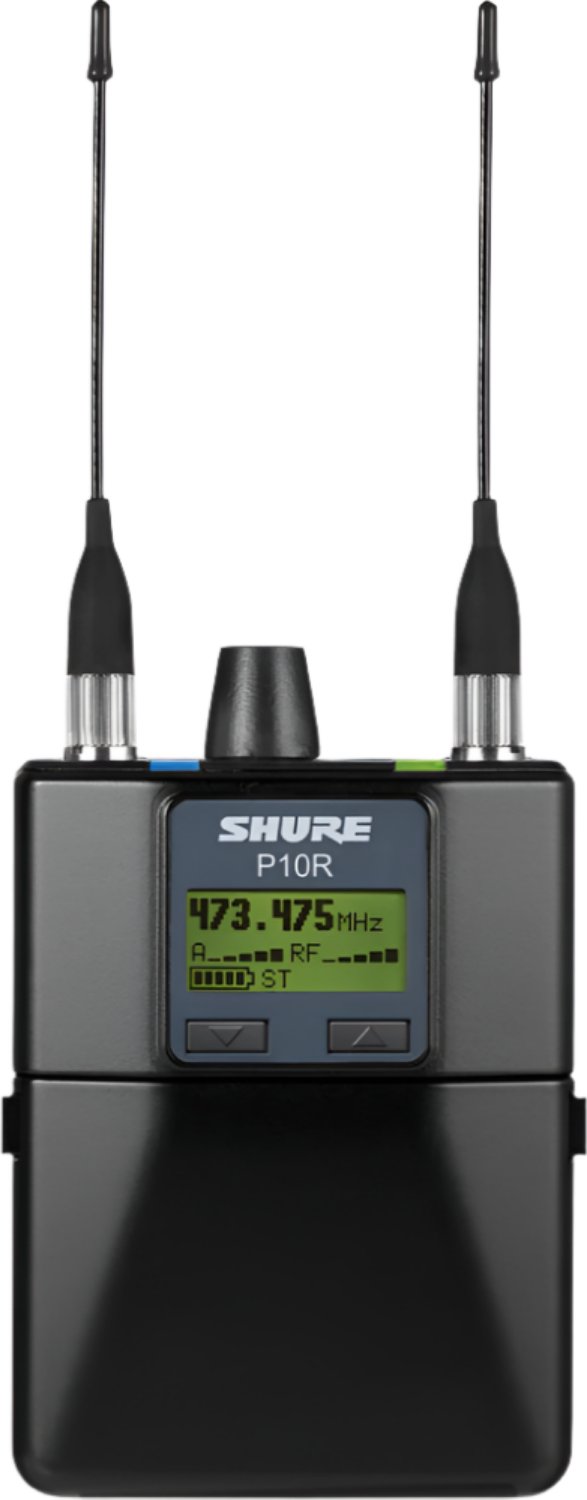

- 2x P10R IEM Beltpack Receiver J8A 551-616MHz

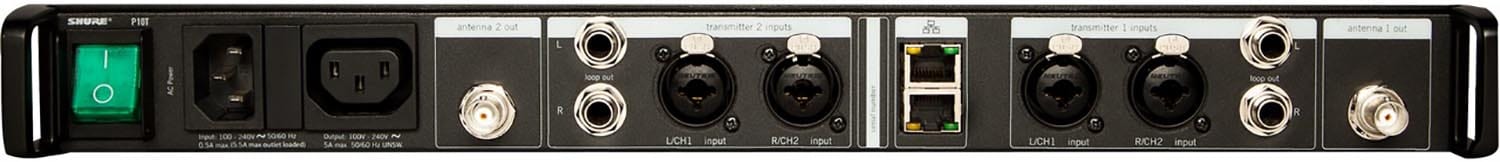

The Shure P10T Dual Wireless Transmitter is intended for use with the P10R wireless bodypack personal listening receivers, as part of the PSM1000 series. The dual channel P10T allows for up to 2 programs to be transmitted simultaneously, on different frequency channels. The P10T features balanced 1/4" phone and XLR connections, as well as an extra 1/4" input on the front. Its 72 MHz wide tuning bandwidth is sure to provide stable transmission. Additional features include networked remote control via Wireless Workbench software and PSM900 backwards compatibility.
Why this product
Key Benefits
-
Frequency Band: J8A / 551-616MHz
-
For P10R Personal Listening Receivers
-
Dual Chanel for Double Program Material
-
72MHz Wide Bandwidth Tuning Range
-
Networkable via Ethernet
-
Wireless Workbench Software Control
-
Front Panel Audio Input
-
Switchable RF Output Power
Technical details
Technical Specifications
Microphone
- Nominal Input Level
- Switchable: +4 dBu, -10 dBV
Wireless
- RF Output Impedance
- 50 Ω (typical)
Connectivity
- Impedance 70.2k Ω
- (actual)
- Input
- Combination XLR and 6.35 mm (1/4") TRS
- Output
- 1/4" TRS (6.35mm)
- XLR
- 1=ground, 2=hot, 3=cold
- 1/4" TRS (6.35mm)
- Tip=hot, Ring=cold, Sleeve=ground
- XLR
- Non-inverting (pin 2 positive with respect to pin 3)
- 1/4" (6.35mm) TRS
- Tip positive with respect to ring
- Input
- 100―240V AC, 50/60 Hz, 0.5A max (5.5 max outlet loaded)
- Output
- 100―240V AC, 5A max, unswitched
Power
- Phantom Power
- Phantom power protection: Up to 60 VDC
Physical
- Dimensions
- 19 x 13.50 x 1.73" (483 x 343 x 44mm)
- Weight
- 1.87 lbs. (850 g)
Shipping & Packaging
- Package Weight
- 16.5 lbs.
- Box Dimensions (LxWxH)
- 27.6 x 17.7 x 3.74"
General
- Selectable
- 10, 50, 100 mW (+20 dBm) varies by region
- +4 dBu
- +29.2 dBu
- -10 dBV
- +12.2 dBu
More details
Additional Information
Specifications
- RF Output Power:
- Maximum Input Level:
- Connector Type:
- Pin Assignments
- Polarity
- Electronically balanced
- Pin Assignments
- Power Requirements:
- Packaging Info:
