Shure P10TR+425CL-H22 PSM1000 Monitor System - Dual Transmitter/2x Bodypacks/2x Earphones - H22 Band
Model P10TR-PLUS-425CL-H22
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure P10TR+425CL-H22 PSM1000 Monitor System - Dual Transmitter/2x Bodypacks/2x Earphones - H22 Band

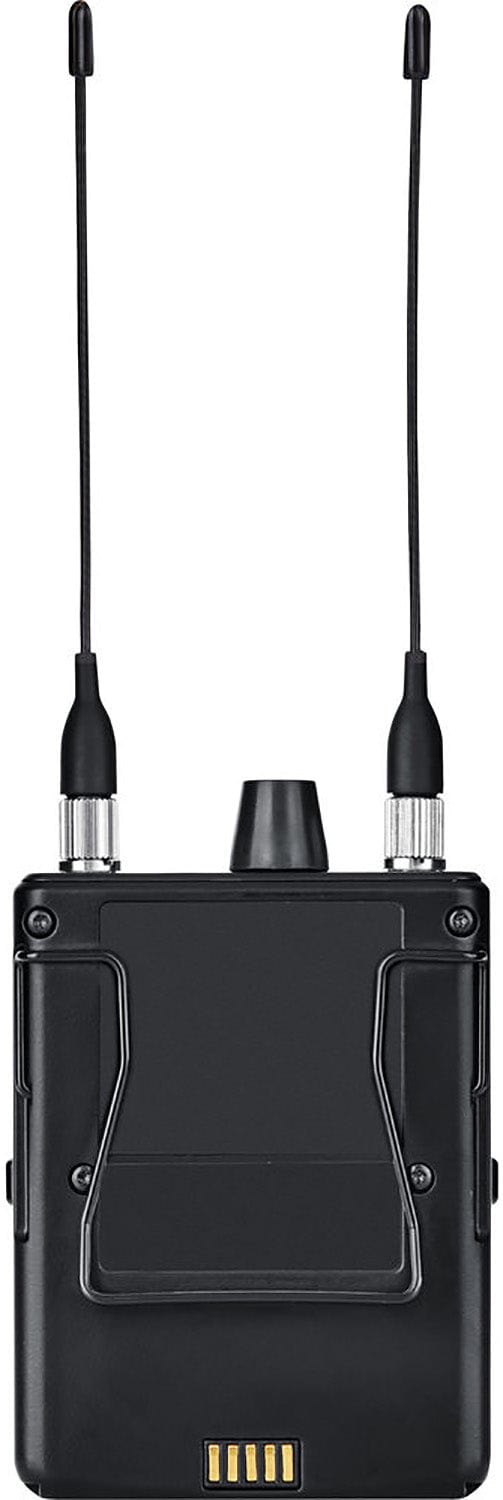

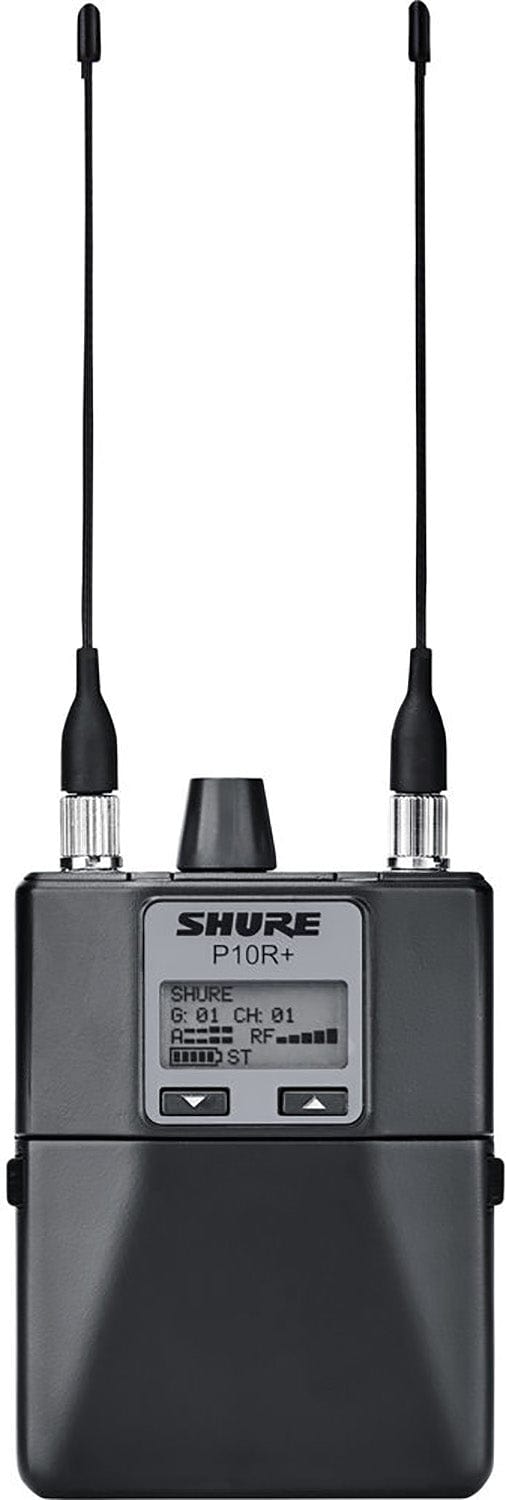

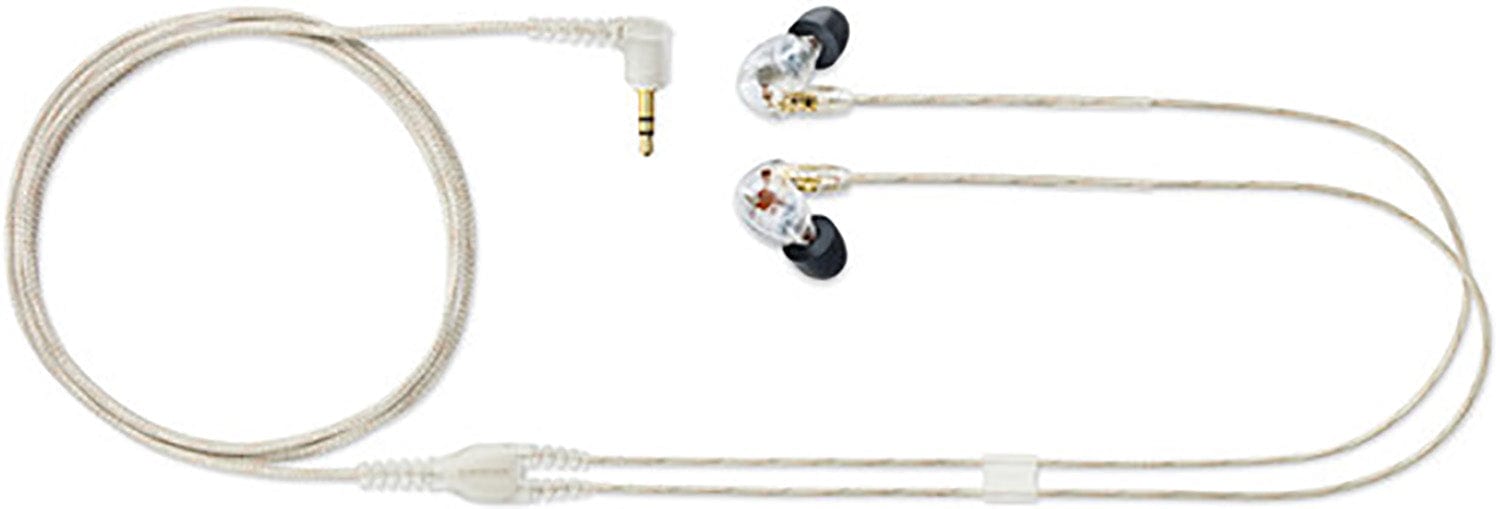

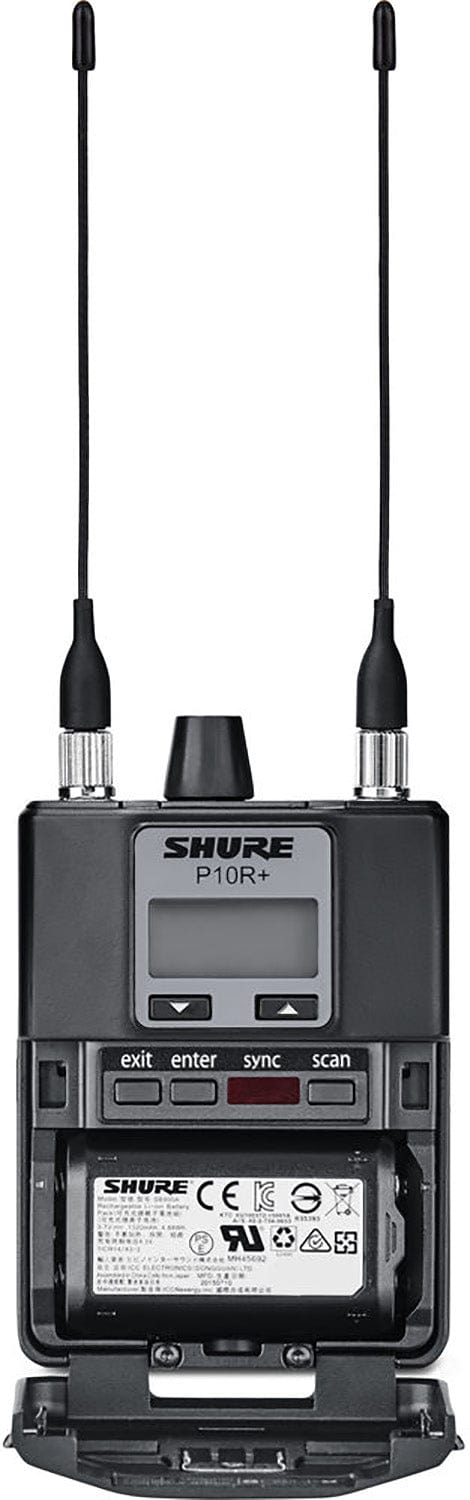

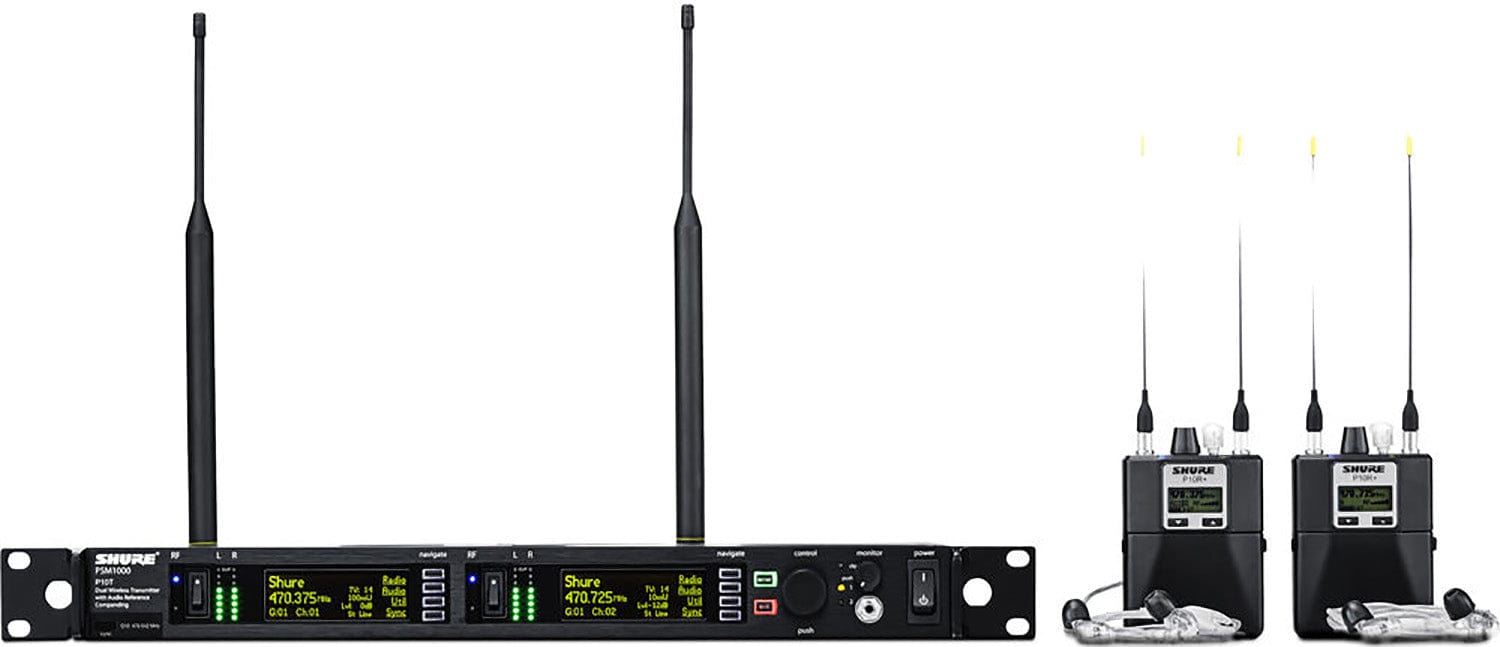

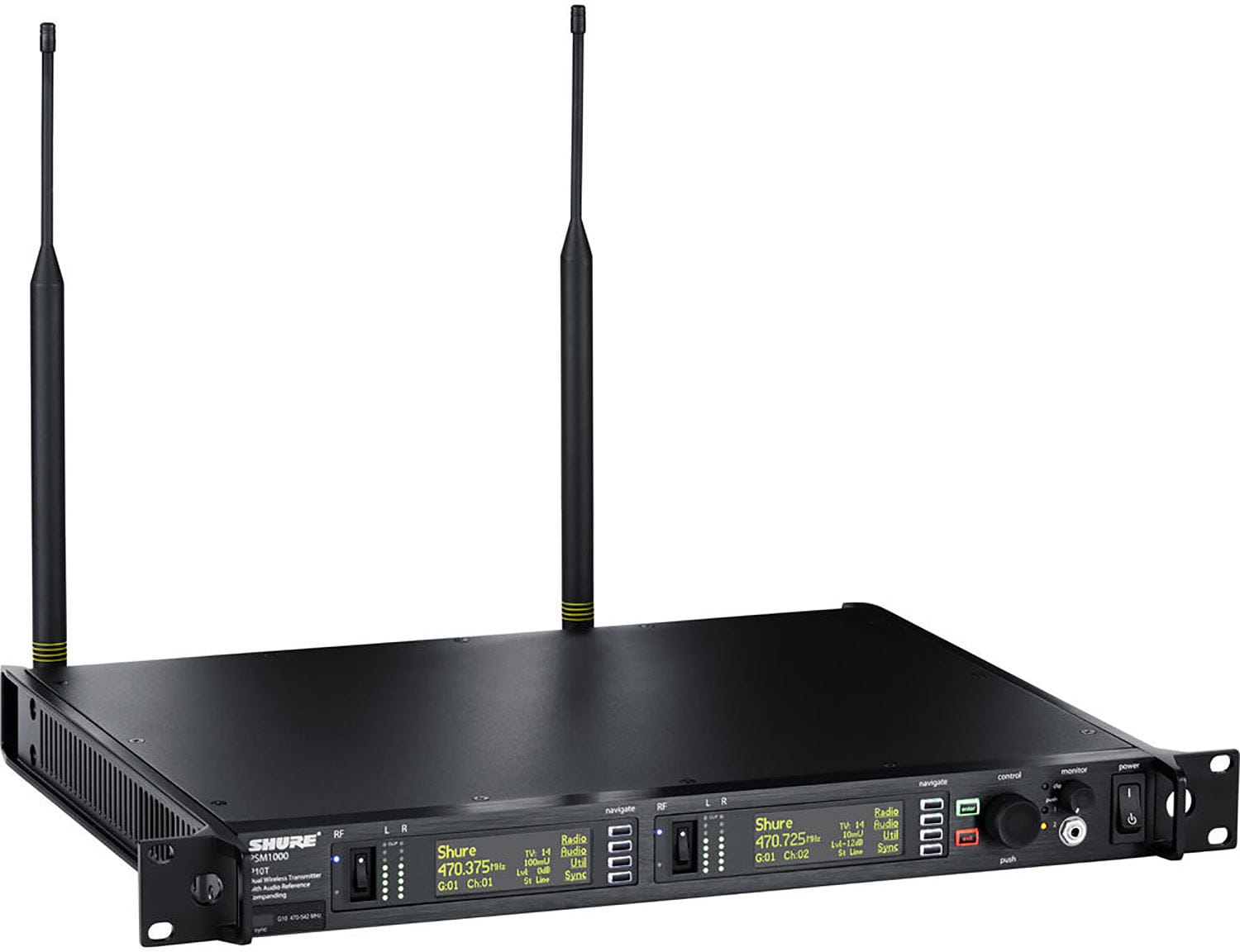

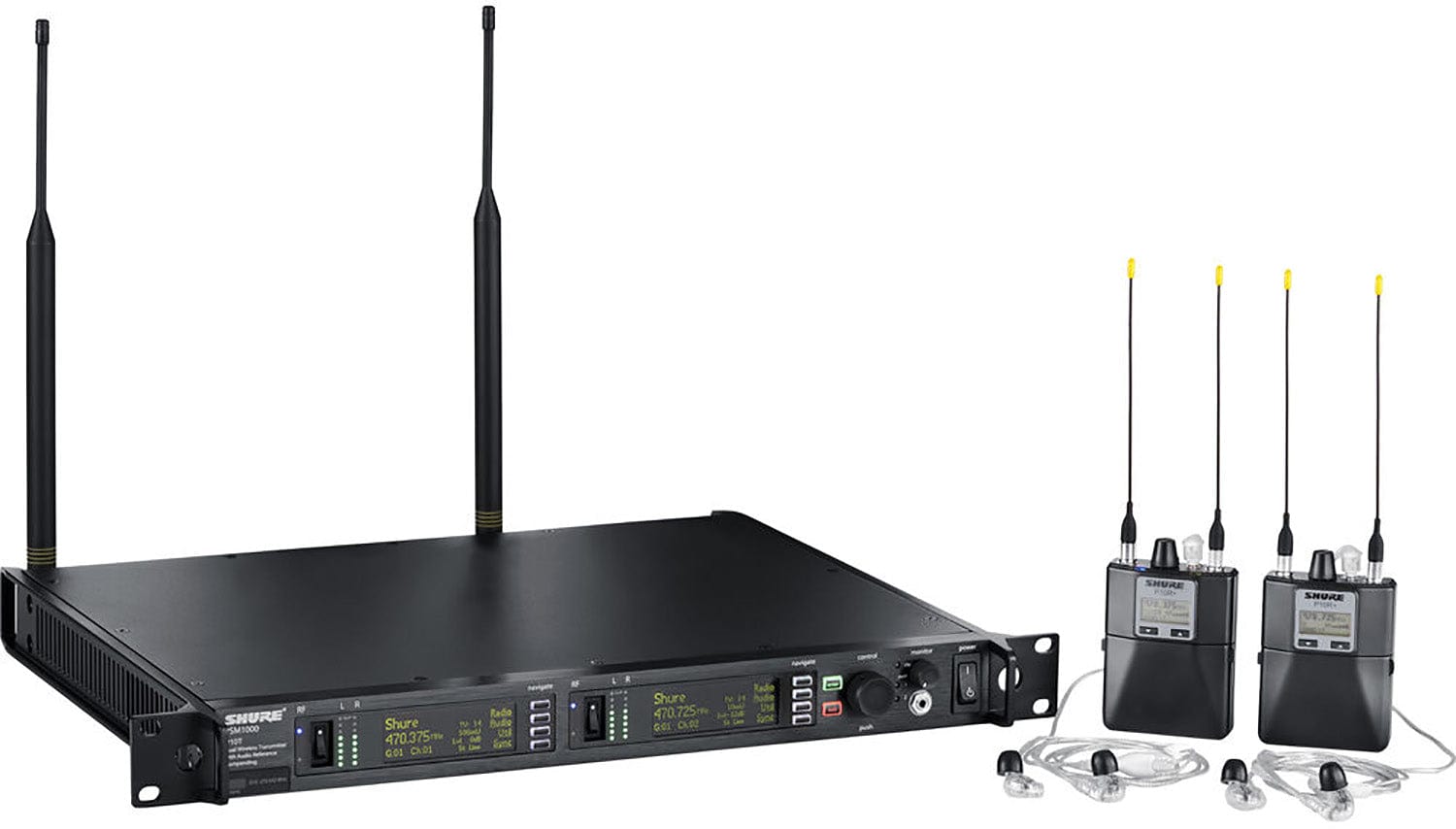

The PSM1000 Dual-Channel Personal Monitor System from Shure includes a P10T full-rack dual-channel wireless transmitter, two Shure P10R+ wireless diversity bodypack receivers, two pairs of SE425 sound isolating earphones, two antennas for the full-rack wireless transmitter, and four antennas for the bodypack receivers. A hardware rackmount kit, link bar, zipper bag, bumper kit, and front-mount antenna cables are also included. This system can be used to deliver pristine RF signal and audio quality for professional touring applications, live stage and theater events, or permanent installations.
The PSM1000 system features network control via Ethernet connection and internal power supply with IEC in/out ports for easy power chaining when installed in a rack. It is backwards compatible with PSM 900 receivers and the diversity bodypack improves signal reception with increased range. The 72 MHz tuning bandwidth provides flexibility in today's crowded and unpredictable RF environments.
Furthermore, a full bandwidth scan from the P10R+ bodypack receiver finds clean, compatible frequencies and provides a graphic spectrum plot viewable from the bodypack menu screen. Finally, Wireless Workbench 6 software offers full compatibility with advanced RF spectrum plotting, comprehensive frequency coordination, and live monitoring and adjustment of transmitter settings.
Why this product
Key Benefits
-
2 x P10R+ Wireless Bodypack Receivers
-
2 x SE425 Sound-Isolating Earphones
-
Full-Rack 2-Channel Wireless Transmitter
-
Networkable via Ethernet
-
Bodypack Rechargeability
-
49 Compatible Frequencies per Band
-
72 MHz Tuning Bandwidth
-
Includes Antennas and Cables
-
Includes Power Supply and Rackmount Kit
Technical details
Technical Specifications
Microphone
- Frequency Response
- 35 Hz to 15 kHz (±1 dB)
- Signal to Noise Ratio
- 90 dB (Typical) A-weighted
- Total Harmonic Distortion (THD)
- Ref. ±34 kHz deviation at 1 kHz <0.5% (Typical)
- Nominal Input Level
- Switchable - +4 dBu, -10 dBV
- Sound Field
- Stereo
- Number of Drivers
- 2 per earpiece
- Driver Type
- Dynamic
- Active Noise Cancellation
- No
Wireless
- RF Carrier Frequency Range
- H22: 518 to 584 MHz
- Tuning Bandwidth
- 72 MHz
- Operating Range
- 300' / 90 m (Environment dependent)
- Companding
- Patented Shure audio reference companding
- Frequency Stability
- ±2.5 ppm
- MPX Pilot Tone
- 19 kHz (±0.3 kHz)
- Modulation
- FM (±34 kHz deviation at 1 kHz) MPX stereo ref.
- RF Output Power
- Selectable: 10, 50, 100 mW (+20 dBm)
- RF Output Impedance
- 50 ohms (typical)
- RF Filter Range
- (Tri-band) -3 dB at 30.5 MHz from the center frequency of each band
- RF Gain
- (Active) 31 dB (adjusts RF sensitivity to provide more RF dynamic range)
- RF Sensitivity
- 2.2 μV (20 dB SINAD)
- Squelch Threshold
- 22 dB SINAD (±3 dB), default setting
- Adjacent Channel Rejection
- >70 dB
- Intermodulation Attenuation
- >70 dB
- Blocking
- >80 dB
- Image Rejection
- >90 dB
Battery
- Battery Life
- 4-6 hours (continuous use) with AA batteries
Connectivity
- Input
- 100 to 240 VAC, 50/60 Hz, 0.5 A max (5.5, with outlet loaded)
- Output
- 100 to 240 VAC, 50/60 Hz, 5 A max, unswitched
- Audio Input
- Combination XLR-1/4" /6.3 mm TRS
- XLR
- Non-inverting (Pin 2 positive with respect to pin 3)
- Impedance
- 70.2 kilohms (actual)
- XLR
- 1=Ground, 2=Hot, 3=Cold
- 1/4" / 6.3 mm TRS
- Tip=Hot, Ring=Cold, Sleeve=Ground
- Connector Type
- 1/4" / 6.3 mm TRS
- Impedance
- Connected directly to inputs
- Minimum Load Impedance
- 4 ohms
- Output Impedance
- <1 ohm
- Impedance
- 22 ohms
- Audio Connector
- 1x 1/8" / 3.5 mm TRS
- Connector Plating
- Gold
- Cable Design
- Detachable / Straight
- Audio Connector to Earpiece
- MMCX
- Cable Length
- 5.3' / 1.6 m
Power
- Phantom Power Protection
- Up to 60 VDC
Physical
- Dimensions
- 1.7 x 19.0 x 13.5" / 4.3 x 48.3 x 34.3 cm
- Weight
- 10.4 lb / 4.7 kg
- Dimensions
- 3.9 x 2.6 x 0.9" / 9.9 x 6.6 x 2.3 cm
- Weight
- 5.6 oz / 158.0 g without batteries
- Earpiece Design
- In-ear (intra-aural)
- Color
- Clear
Environmental
- Operating Temperature
- 0 to 135°F / -18 to 57°C
Included & Optional Accessories
- Included Adapter
- 1/4"
General
- Compatible Frequencies
- Per band - 39
- Spurious Rejection
- Ref. 12 dB SINAD - >80 dB (Typical)
- 1/4" / 6.3 mm
- Tip positive with respect to ring
- Configuration
- Electronically balanced
- +4 dBu
- +29.2 dBu
- -10 dBV
- +12.2 dBu
- Selectable Q
- 0.7, 1.4, 2.9, 5.0, 11.5
- Volume Limiter
- Selectable - 0 to -48 dB in 3 dB steps
- Selectable
- 0 to -70 dB
- Wearing Style
- Dual wired earbud with behind-ear cabling
- Open/Closed-Back
- Closed-back
- Volume Limiting / Child-Safe
- No
- Built-In Mic
- No
More details
Additional Information
Specifications:
- Shure P10T Full-Rack Dual-Channel Wireless Transmitter (H22: 518 to 584 MHz) Specs:
- Specifications:
- Transmitter:
- Power Requirement:
- Polarity:
- Maximum Input Level:
- Pin Assignments:
- Power Requirement:
- Audio Output:
- Physical Characteristics:
- Specifications:
- Shure P10R+ Wireless Bodypack Receiver (H22: 518 to 584 MHz) Specs:
- Physical Characteristics:
- Audio Output Power: 100 mW per output (1 kHz @ <1% distortion, peak power, @ 16 ohms)
- 4-Band Parametric Equalizer:
- Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz
- Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz
- High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz
- High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz
- Volume Lock:
- Limits volume adjustment knob
- Selected value analogous to volume knob increment
- Physical Characteristics:
- Shure SE425 Sound Isolating In-Ear Stereo Headphones (Clear) Specs:
- Headphone:
- Connectivity:
- Physical:
- Headphone:
