Shure P3T=-G20 Shure P3T=-G20 PSM300 Wireless Transmitter - G20 Band
Model P3T-G20
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure P3T=-G20 Shure P3T=-G20 PSM300 Wireless Transmitter - G20 Band
The P3T is a wireless transmitter for use with the PSM 300 Personal Monitor System.

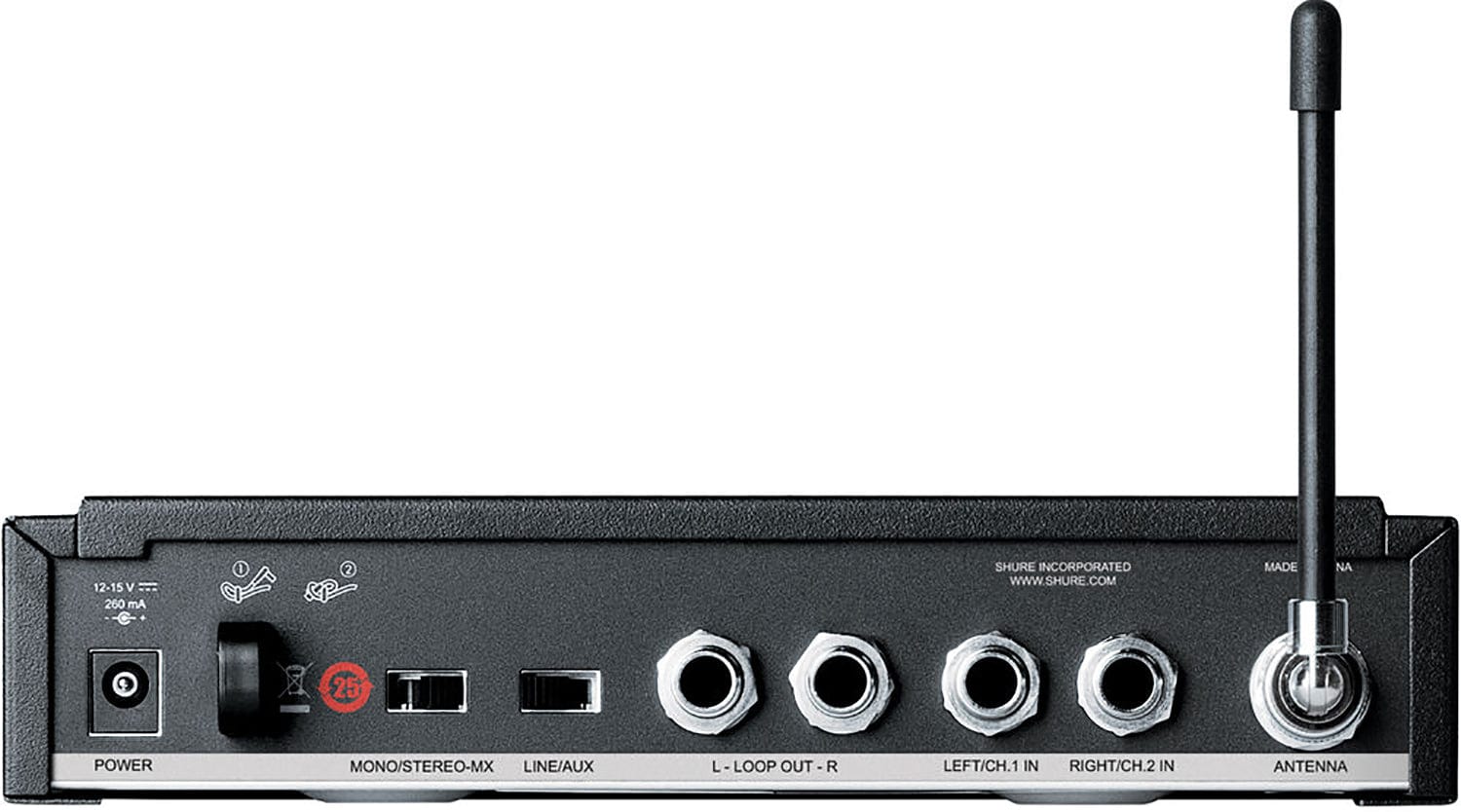

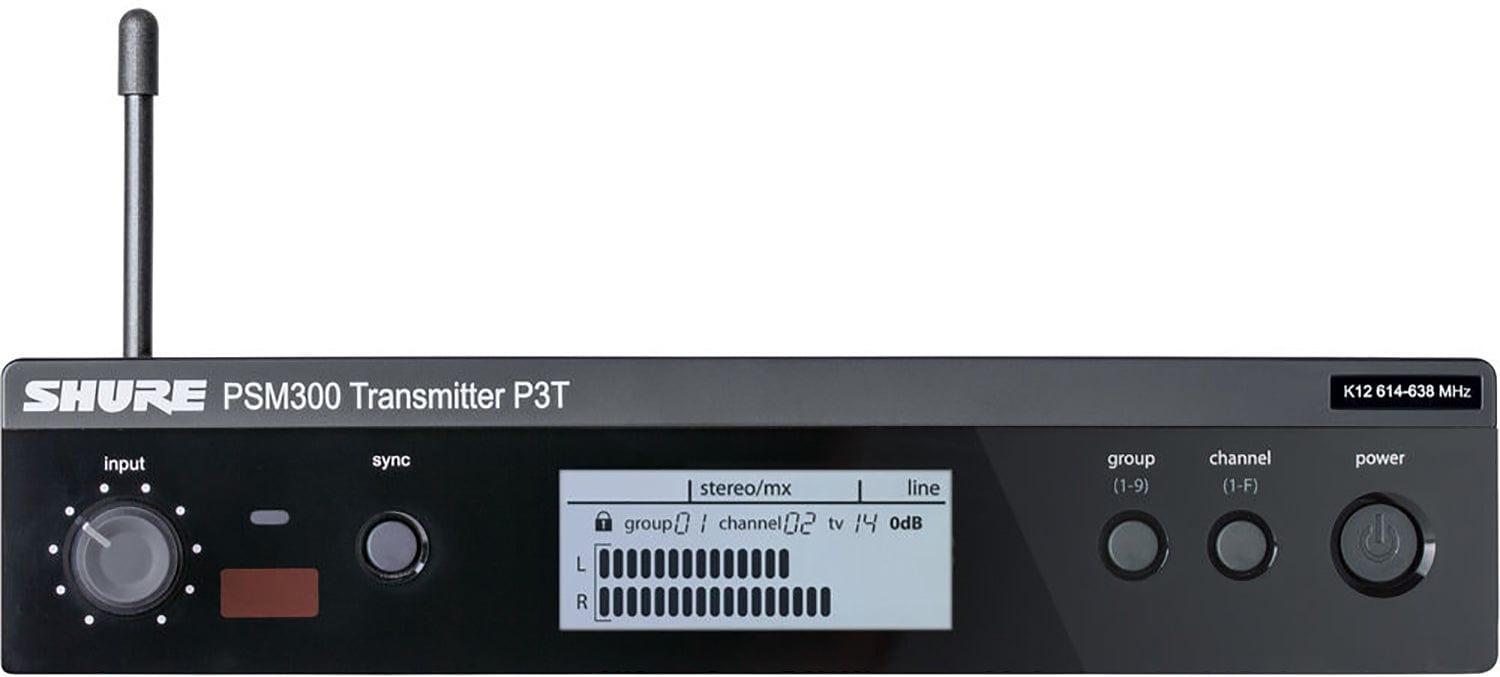

Dependable wireless transmission and 24-bit digital audio deliver a superior personal monitoring mix for every performance. Send 2 channels of audio to a bodypack receiver up to 90 meters away, with patented Audio Reference Companding to ensure transparent sound quality with no artifacts or dropouts. The rugged, half rack transmitter features easy front-panel controls including one-touch sync and input level knob to enable quick setup and easy operation. Rear-panel balanced inputs and loop outputs provide versatile connectivity to audio sources and other P3T units.
Why this product
Key Benefits
-
Single channel, half-rack transmitter with included rack mount kit
-
Sends a stereo or mono mix wirelessly to performers onstage
-
Rock-solid wireless connection to PSM300 receivers over a 90 meter range
-
One-touch IR sync instantly links transmitter to receiver
-
Up to 30 mW output power (region dependent)
-
Up to 24 MHz tuning range (region dependent)
-
¼” (6.3 mm) TRS balanced inputs and loop outputs
-
High-contrast LCD screen with left/right audio output meters
-
Detachable ¼ wave antenna
-
Selectable line/aux level
Technical details
Technical Specifications
Microphone
- Nominal Input Level
- Switchable, +4 dBu, -10 dBV
- Maximum Input Level
- +4 dBu: +22 dBu, -10 dBV: +12.2 dBu
Wireless
- RF Output Power
- 10, 20, 30 mW Note: varies by region
- RF Output Impedance
- 50 Ω (typical)
Connectivity
- Connector Type
- 6.35 mm (1/4") TRS
- Polarity
- Tip positive with respect to ring
- Impedance
- 40 kΩ (actual)
- Connector
- Types 6.35 mm (1/4") TRS
- Impedance
- Connected directly to inputs
Power
- Power Requirements
- 12–15 V DC, 260 mA maximum
- Phantom Power Protection
- Up to 60 V DC
Physical
- Net Weight
- 783 g (27.6oz.)
- Dimensions
- 43 × 198 × 172 mm (1.7 × 7.8 × 6.8 in.), H × W × D
General
- Configuration
- Electronically balanced
- Pin Assignments
- Tip=hot, Ring=cold, Sleeve=ground
