Shure P3TR112GR-J13 PSM300 Wireless System with SE112-GR Earphones - G20 Band
Model P3TR112GR-J13
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

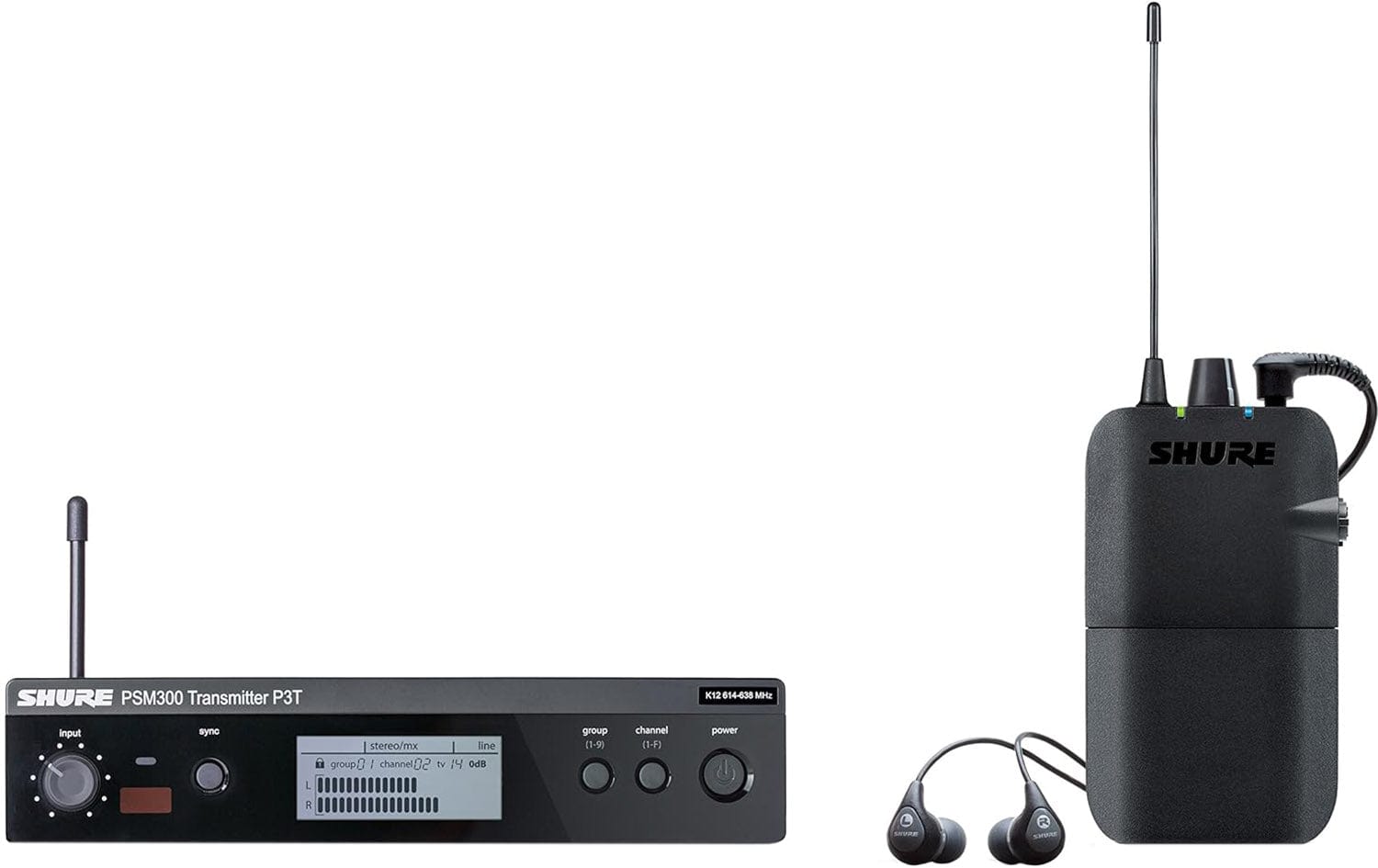

Shure P3TR112GR-J13 PSM300 Wireless System with SE112-GR Earphones - G20 Band
Part of the PSM 300 wireless Stereo Personal Monitor systems family, the P3TR112GR brings wireless freedom to the stage. PSM 300 Systems ensure reliable performance throughout, with patented Audio Reference Companding delivering crystal-clear sound, minimal noise, and no distortions.
Setting up and operating PSM 300 systems is effortless, thanks to features like one-touch frequency scan and sync, enabling the quick and clean assignment of wireless channels. Users can easily adjust volume and utilize MixMode technology or stereo mode to craft a personalized mix from two audio channels.
Experience the liberation of wireless performance without the constraints of cables and wedges. With detailed, 24-bit digital audio, every note is vividly rendered, allowing performers to hear clearly from any position on any stage.
Why this product
Key Benefits
-

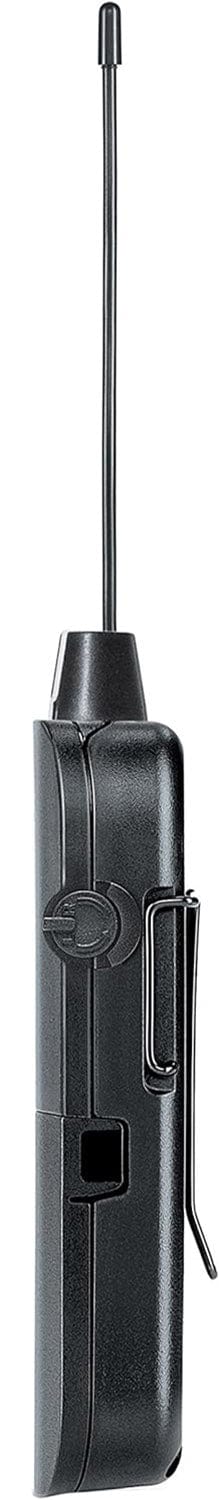

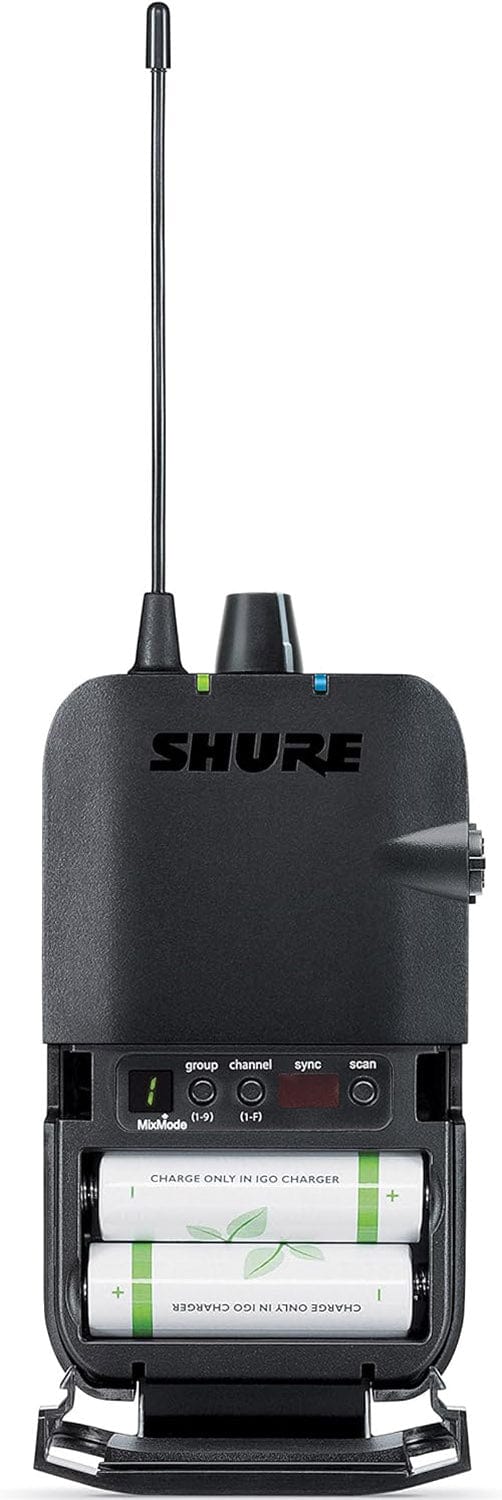

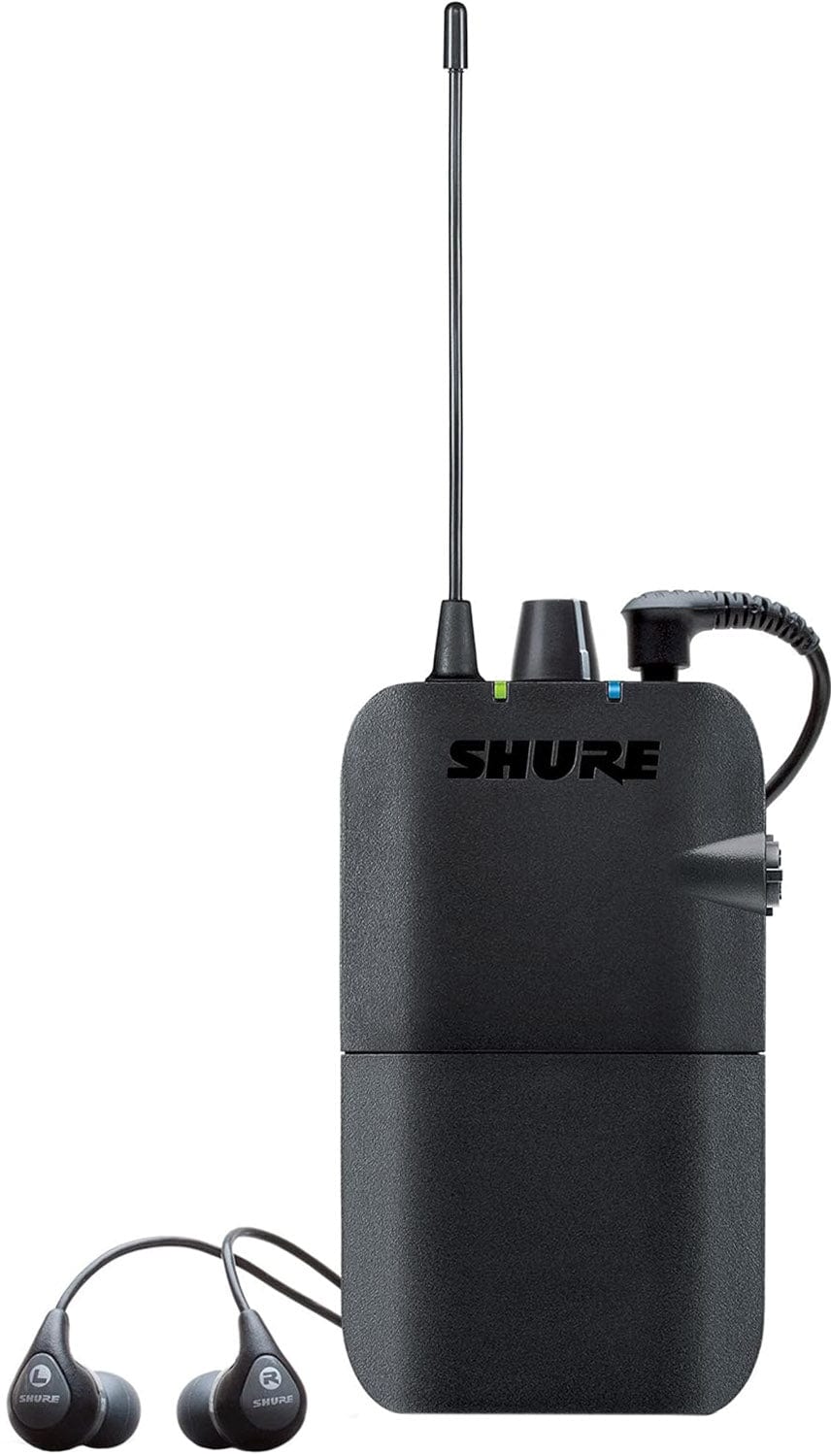

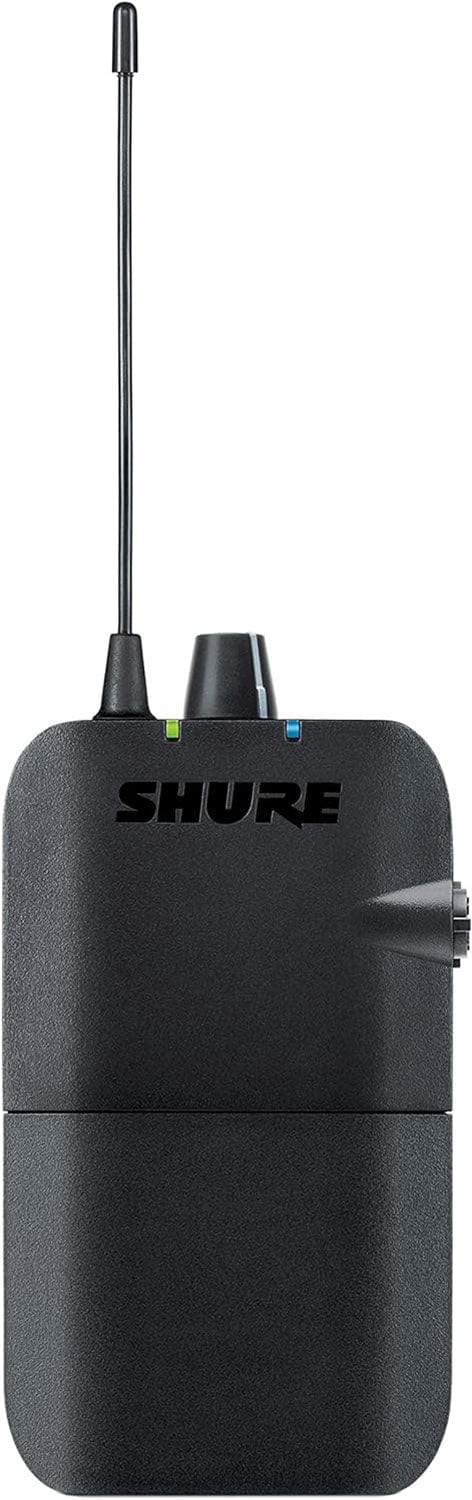

P3R Wireless Bodypack Receiver
:
-
Use MixMode or stereo mode to create a personal 2 channel mix
-
Easy-to-adjust volume and mix controls
-
Scan function quickly finds an open frequency
-
Over 90 dB of dynamic range for precise, low-noise audio
-
Up to 6 hours continuous use from 2 AA batteries
-
Slim, lightweight bodypack attaches easily to a belt or guitar strap
-

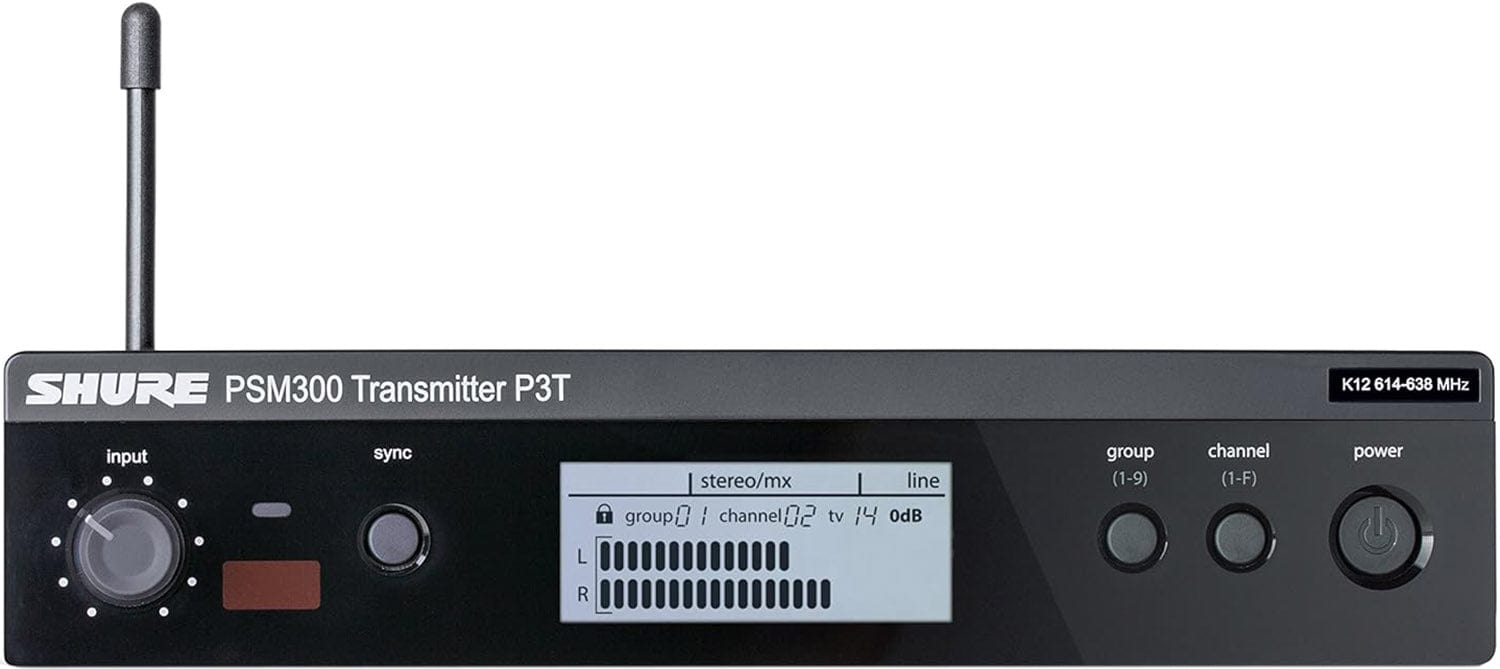

P3T Wireless Transmitter
:
-
Sends a stereo or mono mix wirelessly to performers onstage
-
Detailed, 24-bit digital audio
-
Rock-solid analog wireless connection over a 300 foot (90 meter) range
-
One-touch IR sync instantly links transmitter to bodypack receiver
-
High-contrast LCD screen with audio metering
-
Selectable line/aux level
-

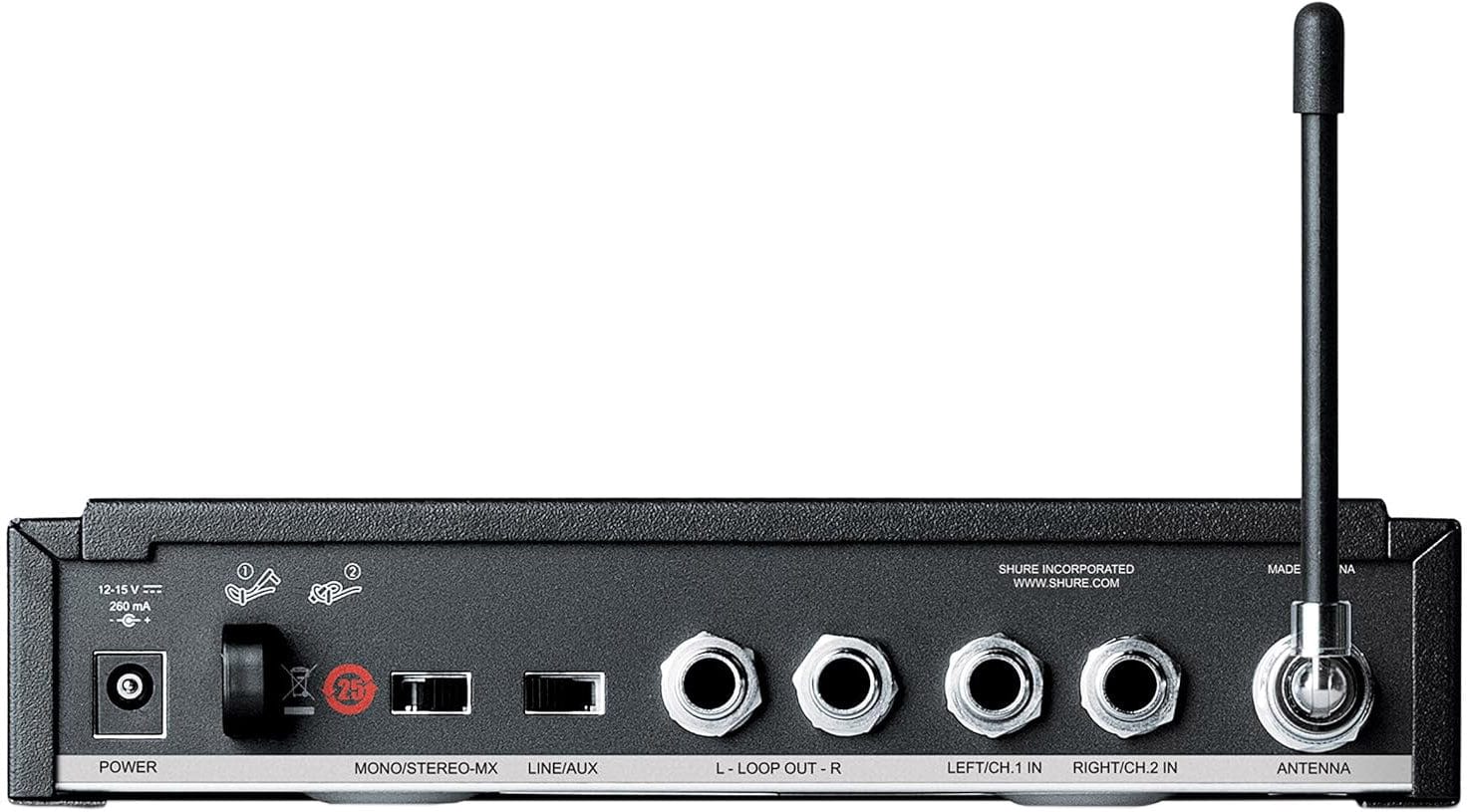

1/4" (6.3 mm) TRS balanced inputs and loop outputs
-
Detachable 1/4 wave antenna
-
Rack hardware kit included
Technical details
Technical Specifications
Microphone
- Audio Frequency Response
- 38 Hz-15 kHz
- Signal-to-Noise Ratio
- 90 dB (typical)
Wireless
- Frequency Range
- 488–512 MHz
- Compatible Frequencies Per Band
- up to 15
- Tuning Bandwidth
- 24 MHz maximum (Note: varies by region)
- Operating Range
- 90 m (300 ft)
- Companding
- Patented Shure Audio Reference Companding
- Frequency Stability
- +/-2.5 ppm
- MPX Pilot Tone
- 19 kHz (±1 Hz)
- Active RF Sensitivity (at 20 dB SINAD)
- 2.2 µV
- Image Rejection
- >90 dB
- Adjacent Channel Rejection
- >60 dB
- Intermodulation Attenuation
- >50 dB
- Blocking
- >60 dB
- RF Output Power
- 10, 20, 30 mW Note: varies by region
- RF Output Impedance
- 50 Ω (typical)
Battery
- Battery Life
- 5-7 hours (continuous use) AA batteries
Connectivity
- Minimum Load Impedance
- 16 Ω
- Headphone output
- 3.5 mm (1.8") stereo
Power
- Power Requirements
- 12-15 V DC, 260 mA maximum
Physical
- Net Weight
- 98 g (3.5 oz.) (without batteries)
- Dimensions (H + W + D)
- 110 + 64 + 21 mm (4.3 x 2.5 x 0.8 in.)
- Net Weight
- 783 g (27.6oz.)
- Dimensions (H + W + D)
- 43 + 198 + 172 mm (1.7 + 7.8 + 6.8 in.)
Environmental
- Operating Temperature
- -18 °C (0 °F) to +63 °C (145 °F)
General
- Total Harmonic Distortion
- <0.5% (typical)
- Spurious Rejection
- >80 dB (typical)
More details
Additional Information
Specifications:
- PSM 300 System:
- Modulation: FM*, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
- P3R Wireless Bodypack Receiver:
- Audio Output Power 1 kHz @ ,1% distortion, Peak power, @32Ω: 80mW (per output)
- P3T Transmitter:
