Shure P3TRA215TWP-G20 PSM300 Twinpack Pro Monitoring System with Earphones - G20 Frequency
Model P3TRA215TWP-G20
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

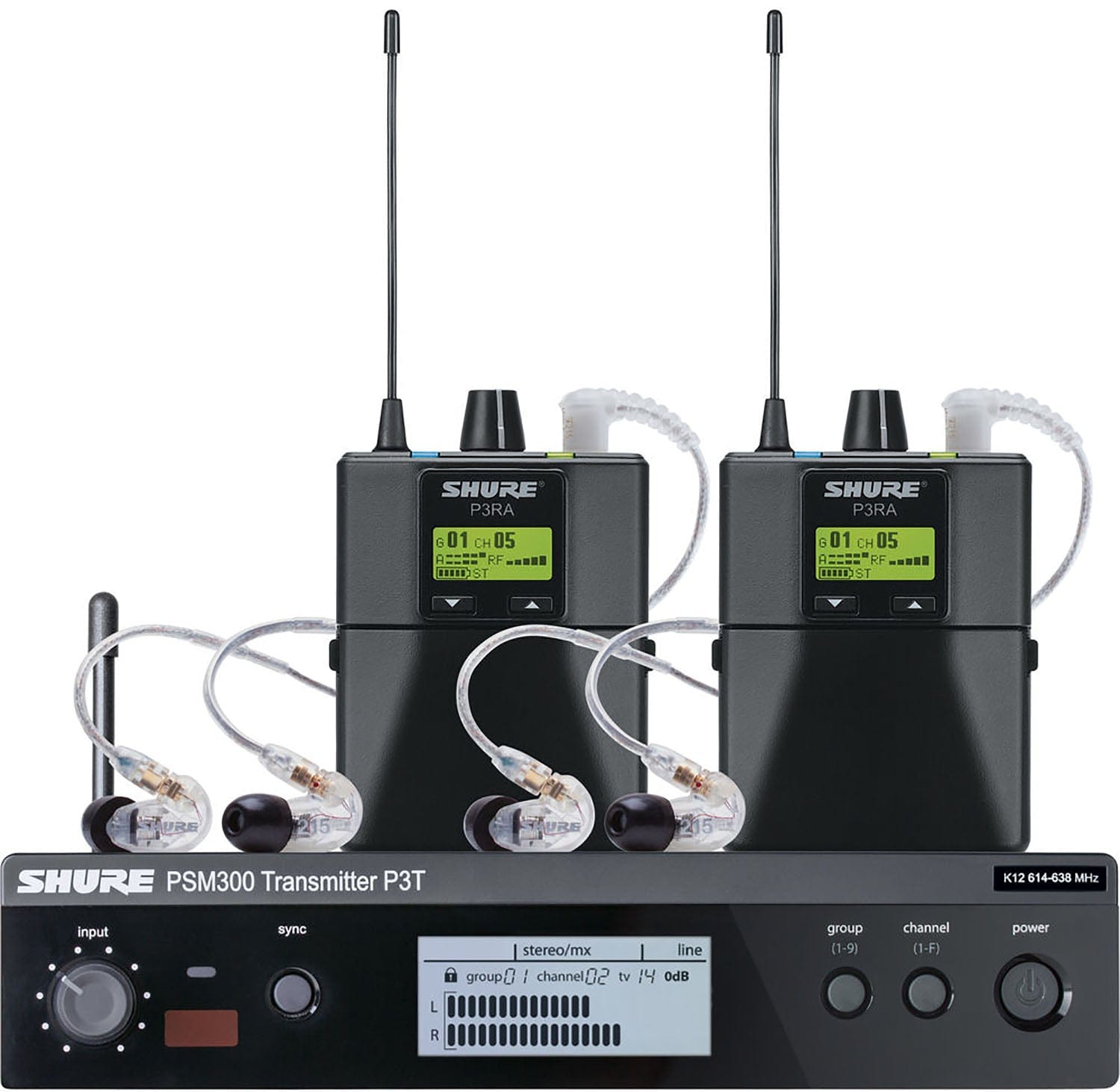

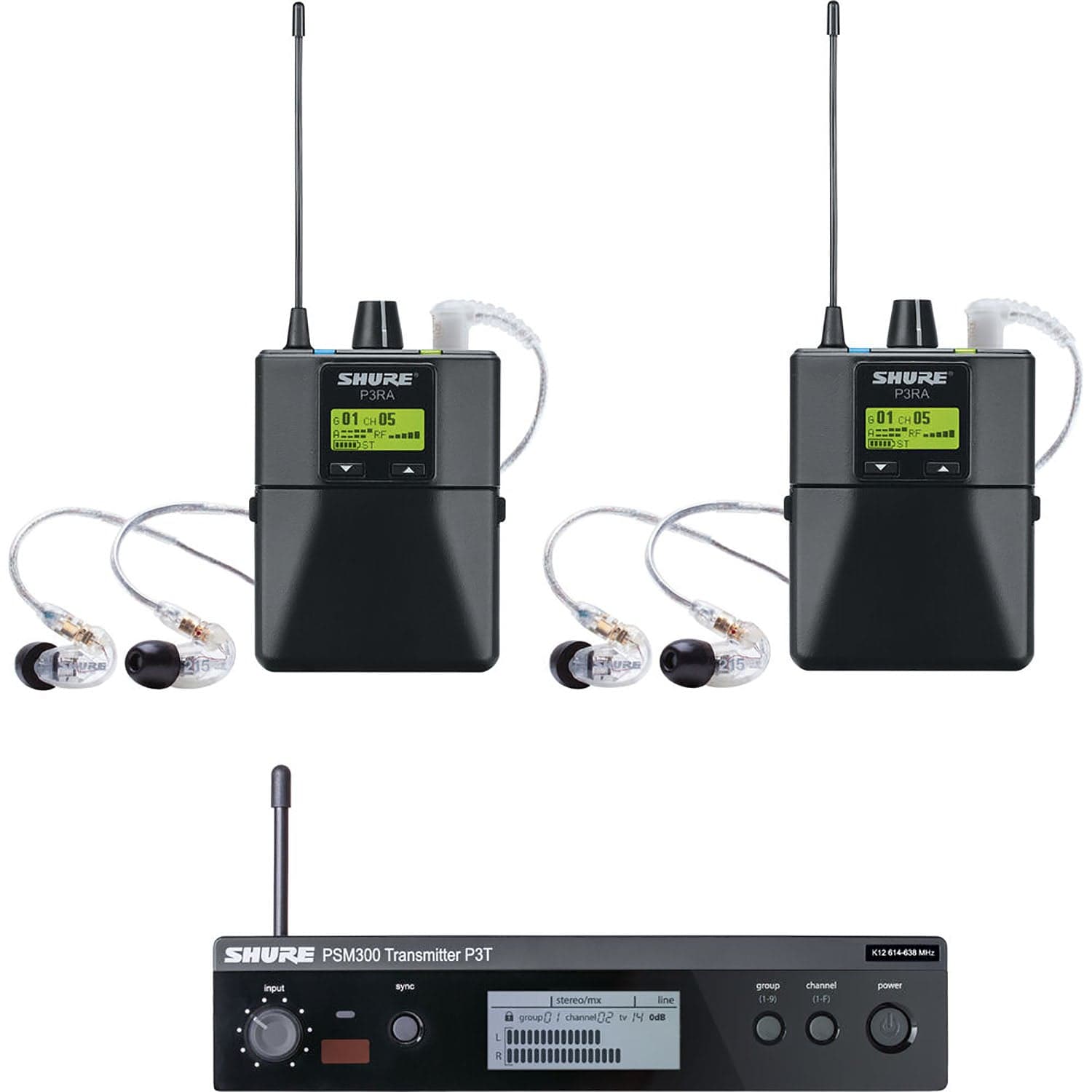

Shure P3TRA215TWP-G20 PSM300 Twinpack Pro Monitoring System with Earphones - G20 Frequency
The Shure PSM 300 Twin Pack Pro offers an ideal monitoring solution for two performers, featuring a durable metal construction multi-bodypack system-in-a-box. It includes SE215 Sound Isolating™ earphones designed for clear, precise stereo mixes on stage, with the option to use the SB900A rechargeable battery for added convenience.
Why this product
Key Benefits
-
PSM 300 Monitor System
:
-
Send two channels of audio wirelessly to performers onstage
-
24-bit digital audio provides clear, detailed sound
-
Patented Audio Reference Companding sounds more like wired
-
Up to 90 dB signal-to-noise ratio
-
Exceptionally wide stereo separation
-
Solid analog RF connection over a 300' (90m) range
-
Create a personal mix from the body-pack with MixMode® technology or stereo mode
-
Frequency scan and IR sync quickly finds and assigns a clean channel
-
Half-rack, single channel transmitter with included rack mount kit
-
P3R body-pack systems available with SE112 Sound Isolating™ Earphones
-
P3RA professional body-pack systems available with SE215 Sound Isolating™ Earphones
-
P3T Wireless Transmitter
:
-
Single channel, half-rack transmitter with included rack mount kit
-
Sends a stereo or mono mix wirelessly to performers onstage
-
Rock-solid wireless connection to P3R receiver over 300' (90m) range
-
One-touch IR sync instantly links transmitter to receiver
-
Up to 30 mW output power (region dependent)
-
24 MHz tuning range (region dependent)
-
¼" (6.3mm) TRS balanced inputs and loop outputs
-
High-contrast LCD menu with detailed L/R audio output meters
-
Detachable antenna
-
External power supply
-
Selectable line/aux level
-

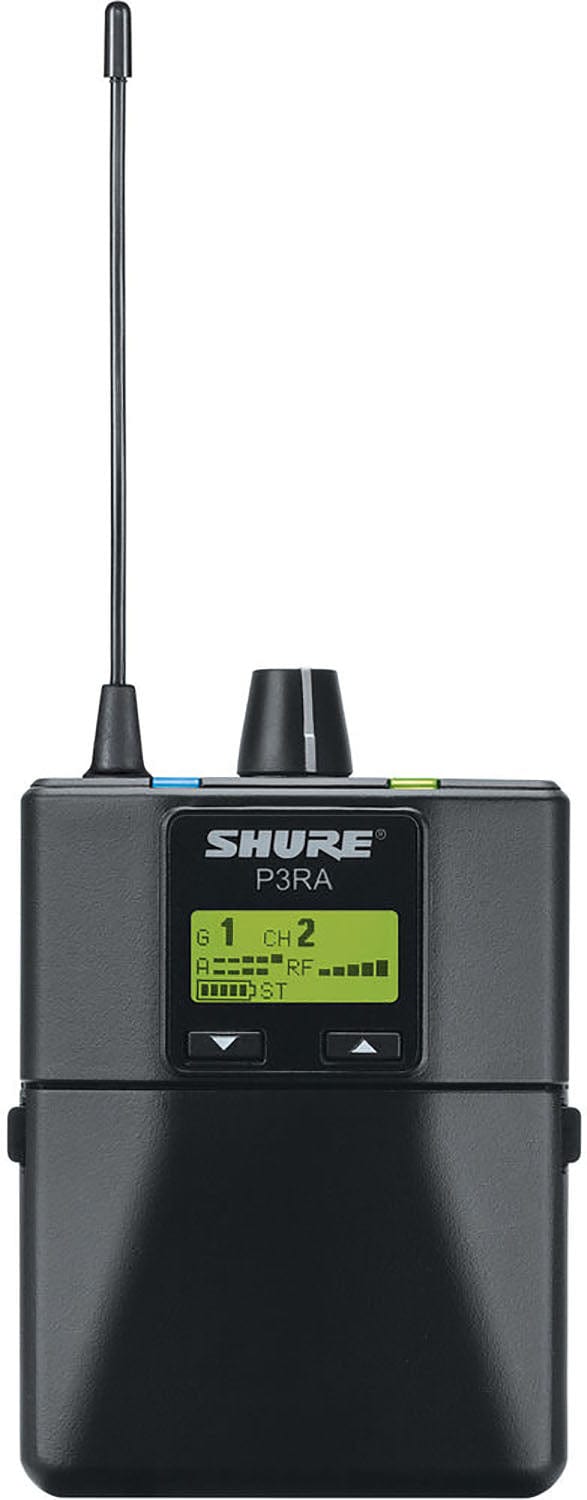

P3R Wireless Body-pack Receiver
:
-
Slim, lightweight, durable form factor
-
Frequency scan and IR sync quickly finds and assigns a clean channel
-
MixMode® technology enables adjustment of two independent monitoring mix levels
-
Stereo mode enables adjustment of left/right balance
-
Easy to adjust volume knob and mix control
-
2 AA batteries provide up to 6 hours of continuous operation
-
Power save mode preserves battery life when earphones are not connected
-
Power and battery status LED
Technical details
Technical Specifications
Microphone
- Audio Frequency Response
- 38 Hz-15 kHz
- Signal-to-Noise Ratio A-weighted
- 90 dB (typical)
- Maximum Input Level +4 dBu
- +22 dBu
- Nominal Input Level
- Switchable, +4 dBu, -10 dBV
- Maximum Input Level
- +4 dBu: +22 dBu, -10 dBV: +12.2 dBu
Wireless
- RF Carrier Range
- 488-937.5 MHz
- Compatible Frequencies Per band
- up to 15
- Tuning Bandwidth
- 24 MHz maximum (Note: varies by region)
- Operating Range Environment dependent
- 90 m (300 ft)
- Companding
- Patented Shure Audio Reference Companding
- Frequency Stability
- ±2.5 ppm
- MPX Pilot Tone
- 19 kHz (±1 Hz)
- RF Output Power
- 10, 20, 30 mW Note: varies by region
- Active RF Sensitivity (at 20 dB SINAD)
- 2.2 microvolts
- Image Rejection
- >90 dB
- Adjacent Channel Rejection
- >60 dB
- Intermodulation Attenuation
- >50 dB
- Blocking
- >60 dB
- Frequency Range
- G20: 488-512 MHz
- RF Output Impedance
- 50 Ohms (typical)
- Transmission Range
- 300' (90 m)
- Antenna
- 1/4 wave, detachable
Connectivity
- Minimum Load Impedance
- 16 ohms
- Headphone output
- 3.5 mm (1.8") stereo
- Connector Type
- 1/4" TRS (6.35 mm)
- Polarity
- Tip positive with respect to ring
- Impedance
- 40 kOhms (actual)
- Connector Types
- 1/4" TRS (6.35 mm)
- Impedance
- Connected directly to inputs
Power
- Phantom Power Protection
- Up to 60 VDC
- Power Requirement
- 12 to 15 VDC, 260 mA maximum
Physical
- Dimensions
- 99 x 66 x 23 mm (H x W x D)
- Dimensions (H x W x D)
- 1.7inch x 7.8inch x 6.8inch
- Net Weight
- 27.6 oz
Environmental
- Operating Temperature
- -18 °C (0 °F) to +63 °C (145 °F)
General
- Spurious Rejection ref. 12 dB SINAD
- >80 dB (typical)
- -10 dBV
- +12.2 dBu
- Net Weigh
- t 196 g (6.9 oz.) (with batteries)
- Configuration
- Electronically balanced
- Pin Assignments
- Tip=hot, Ring=cold, Sleeve=ground
More details
Additional Information
Specifications:
- PSM 300 Monitor System:
- Total Harmonic Distortion ref. ±34 kHz deviation @1 kHz: <0.5% (typical)
- Modulation: FM, MPX Stereo (ref. ±34 kHz deviation @ 1 kHz)
- P3T Wireless Transmitter:
- RF Output Impedance 50 O (typical)
- Net Weight 783 g (27.6oz.)
- Dimensions 43 x 198 x 172 mm (1.7 x 7.8 x 6.8 in.), H x W x D
- Power Requirements 12-15 V DC, 260 mA maximum
- Audio Input
- Connector Type 6.35 mm (1/4") TRS
- Polarity Tip positive with respect to ring
- Configuration Electronically balanced
- Impedance 40 kO (actual)
- Nominal Input Level Switchable, +4 dBu, -10 dBV
- Pin Assignments Tip=hot, Ring=cold, Sleeve=ground
- Phantom Power Protection Up to 60 V DC
- Audio Output
- Connector Types 6.35 mm (1/4") TRS
- Configuration Electronically balanced
- Impedance Connected directly to inputs
- P3R Wireless Body-pack Receiver:
- Audio Output Power 1 kHz @ <1% distortion, peak power, @32 ohms: 80 mW (per output)
- Battery Life (continuous use); 4-5.5 hours, AA batteries, 5.5-7 hours, SB900A battery
- Performance:
- Audio Input:
- Audio Output:
- General:
