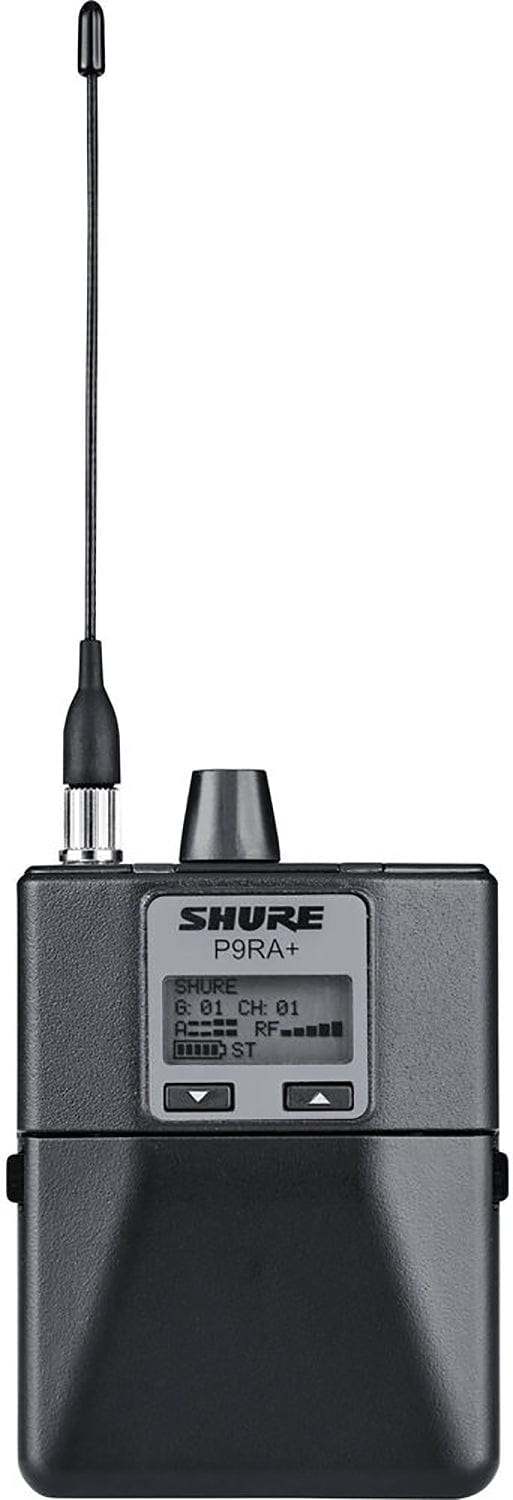

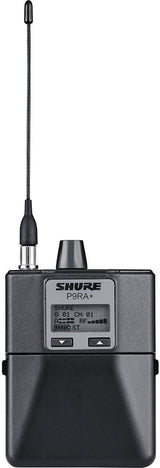

Shure P9RA+=-H21 PSM900 Monitor System Bodypack Receiver - H21 Band
Model P9RA-PLUS-H21
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure P9RA+=-H21 PSM900 Monitor System Bodypack Receiver - H21 Band

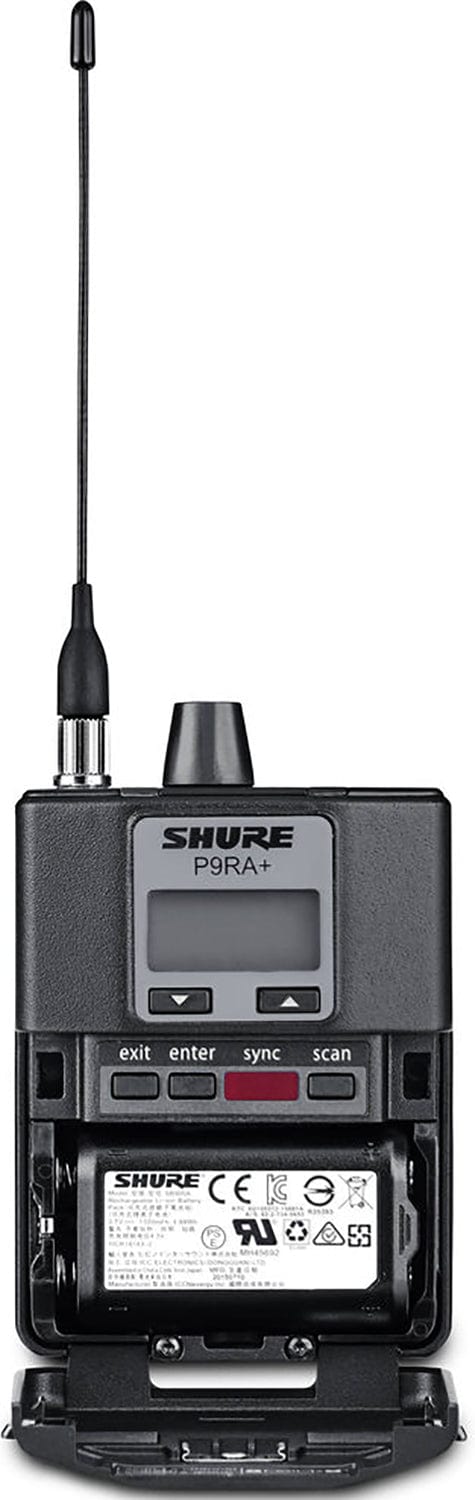

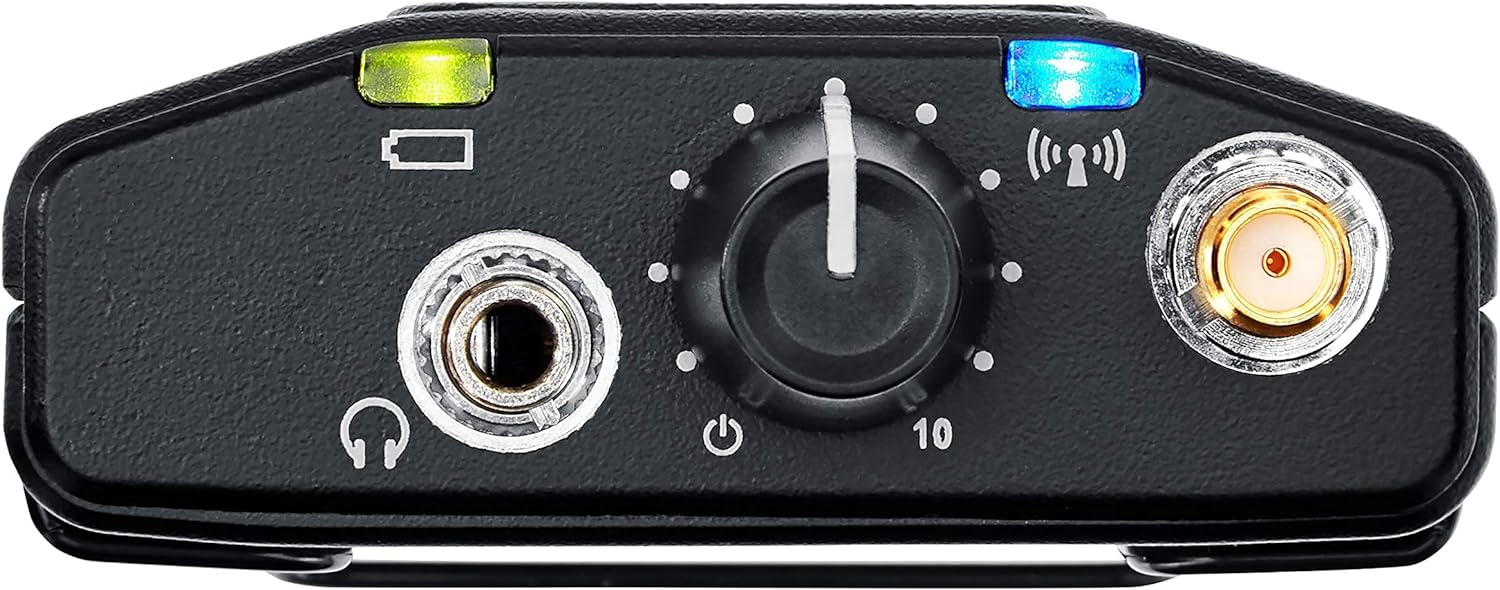

The P9RA+ Wireless Bodypack Receiver from Shure is an upgraded version of the P9RA, designed for the PSM 900 wireless personal monitor system (sold separately). This low-profile, diversity stereo bodypack receiver features a slim and compact extruded aluminum construction, making it easy for performers to wear. The P9RA+ offers enhanced headroom, improved stereo separation, and higher fidelity for robust RF performance, delivering a cleaner and stronger signal with fewer dropouts and artifacts. Equipped with touring-grade features such as full-bandwidth RF scanning, front-end RF filtering, and automatic RF gain control, the P9RA+ is suitable for professional audio applications of all sizes, including IEM and IFB setups.
Why this product
Key Benefits
-
For Shure PSM 900 Monitor Systems
-
Slim and Compact Aluminum Body
-
RF Scan
-
Automatic Gain Control
-
Digital Encoder
-
Transmitter IR Link
-
4-Band Parametric EQ
-
Volume and Balance Controls
-
Indicator LEDs
Technical details
Technical Specifications
Audio Performance
- Intermodulation Attenuation
- >70 dB
- Low-Shelf Selectable Gain
- ±2, ±4, ±6 dB at 100 Hz
- Low-Mid Selectable Gain
- ±2, ±4, ±6 dB at 160, 250, 400, 500, 630 Hz
- Selectable Q
- 0.7, 1.4, 2.9, 5.0, 11.5
- High-Mid Selectable Gain
- ±2, ±4, ±6 dB at 1, 1.6, 2.5, 4, 6.3 kHz
- High-Shelf Selectable Gain
- ±2, ±4, ±6 dB at 10 kHz
Wireless & RF
- Frequency Band
- H21: 542 to 578 MHz
- RF Filter Range
- -3 dB at 30.5 MHz from the Center Frequency of Each Band
- RF Gain
- Active: 31 dB (Adjusts RF Sensitivity to Provide more RF Dynamic Range)
- RF Sensitivity
- 2.2 μV (20 dB SINAD)
- Image Rejection
- >90 dB
- Adjacent Channel Rejection
- >70 dB
- Squelch Threshold
- 22 dB SINAD (±3 dB), Default Setting
- Blocking
- >80 dB
Battery & Charging
- Battery Life
- 4-6 Hours (Continuous Use) with 2 x AA Batteries
Connectivity
- Audio Output Power
- 100 mW Per Output (1 kHz at <1% Distortion, Peak Power, at 16 Ohms)
- Audio Connector
- 1/8" / 3.5 mm
Physical
- Dimensions
- 3.3 x 2.6 x 0.9" / 8.3 x 6.5 x 2.2 cm
- Weight
- 5.4 oz / 154 g without Batteries
General
- Volume Limiter
- Selectable: 0 to -48 dB in 3 dB Steps
- Volume Lock
- Selectable: 0 to -70 dB
- Limits Volume Adjustment Knob
- Selected Value Analogous to Volume Knob Increment
More details
Additional Information
Specifications:
- 4-Band Parametric Equalizer:
