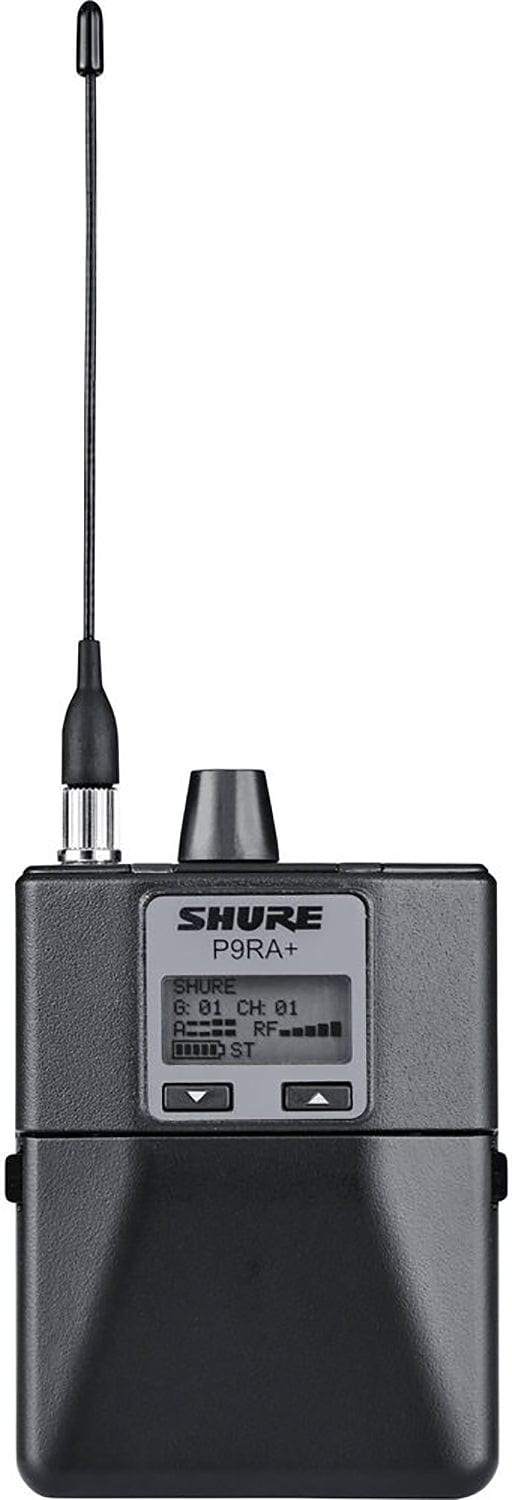

Shure P9RA+ Receiver
Model P9RA-PLUS-X55
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

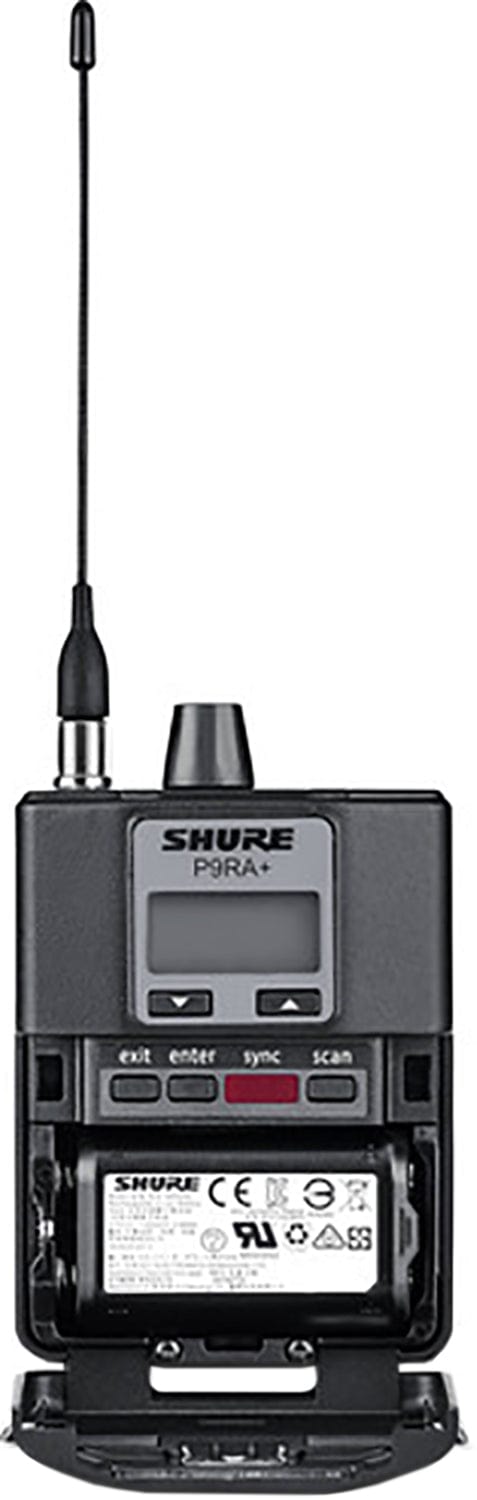

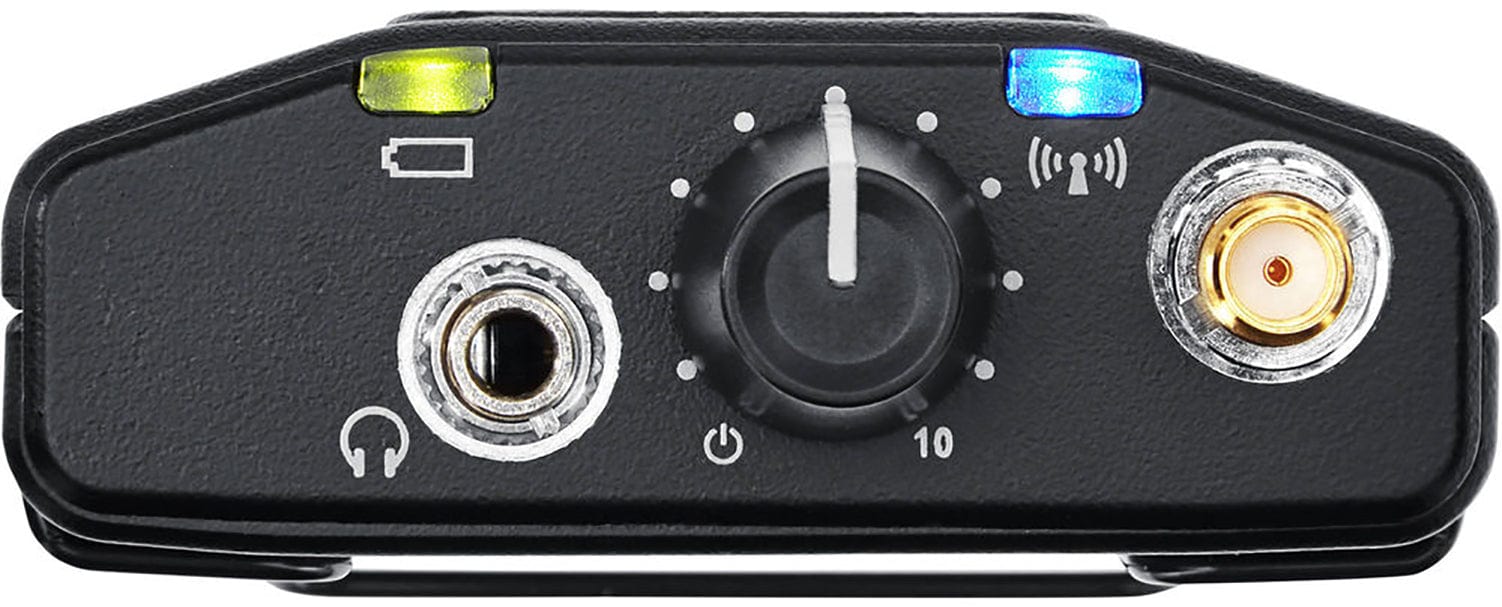

Shure P9RA+ P9RA+ Bodypack Receiver
Shure’s P9RA+ is a compact, stereo bodypack receiver for use with the PSM®900 Wireless Personal Monitor System. With a hybrid analog/digital architecture, the P9RA+ Bodypack Receiver offers unparalleled audio quality with more headroom, better stereo separation, and higher fidelity, along with reliable RF performance for increased RF signal strength to meet the needs of professional audio applications of all kinds, including IEM and IFB applications. All P9RA+ receivers are compatible with P9T and P10T transmitters and all Shure SE Sound Isolating™ Earphones.
The Shure P9RA+ Receiver is available with G6, G7, H21 or L6 bands.
See it in detail
Product Video
Why this product
Key Benefits
-
Improved audio quality (without changing sound signature)
-
Improved RF performance and reliability
-
Improved battery life with alkaline AA batteries (thanks to new headphone amp technology)
-
Updated firmware with new features and workflow improvements
-
Improved Volume Limiter function (selectable ranges of limiting increased)
-
4-band parametric EQ added
-
Power-Save Mode added (similar to feature on PSM 300 Series packs)
Technical details
Technical Specifications
Microphone
- Low-Shelf Selectable Gain
- ±2, ±4, ±6 dB at 100 Hz
- Low-Mid Selectable Gain
- ±2, ±4, ±6 dB at 160, 250, 400, 500, 630 Hz
- High-Mid Selectable Gain
- ±2, ±4, ±6 dB at 1, 1.6, 2.5, 4, 6.3 kHz
- High-Shelf Selectable Gain
- ±2, ±4, ±6 dB at 10 kHz
Wireless
- Frequency Band
- X55: 941 to 960 MHz
- RF Filter Range
- -3 dB at 30.5 MHz from the Center Frequency of Each Band
- RF Gain
- Active: 31 dB (Adjusts RF Sensitivity to Provide more RF Dynamic Range)
- RF Sensitivity
- 2.2 μV (20 dB SINAD)
- Image Rejection
- >90 dB
- Adjacent Channel Rejection
- >70 dB
- Squelch Threshold
- 22 dB SINAD (±3 dB), Default Setting
- Intermodulation Attenuation
- >70 dB
- Blocking
- >80 dB
Battery
- Battery Life
- 4-6 Hours (Continuous Use) with 2 x AA Batteries
Connectivity
- Audio Output Power
- 100 mW Per Output (1 kHz at <1% Distortion, Peak Power, at 16 Ohms)
- Audio Connector
- 1/8" / 3.5 mm
Physical
- Dimensions
- 3.3 x 2.6 x 0.9" / 8.3 x 6.5 x 2.2 cm
- Weight
- 5.4 oz / 154 g without Batteries
General
- Selectable Q
- 0.7, 1.4, 2.9, 5.0, 11.5
- Volume Limiter
- Selectable: 0 to -48 dB in 3 dB Steps
- Selectable
- 0 to -70 dB
More details
Additional Information
Specifications:
- 4-Band Parametric Equalizer:
- Volume Lock:
- Limits Volume Adjustment Knob
- Selected Value Analogous to Volume Knob Increment
