Shure P9T=-H21 P9T Wireless Transmitter for PSM900 Personal Monitor System - H21 Band
Model P9T-H21
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure P9T=-H21 P9T Wireless Transmitter for PSM900 Personal Monitor System - H21 Band

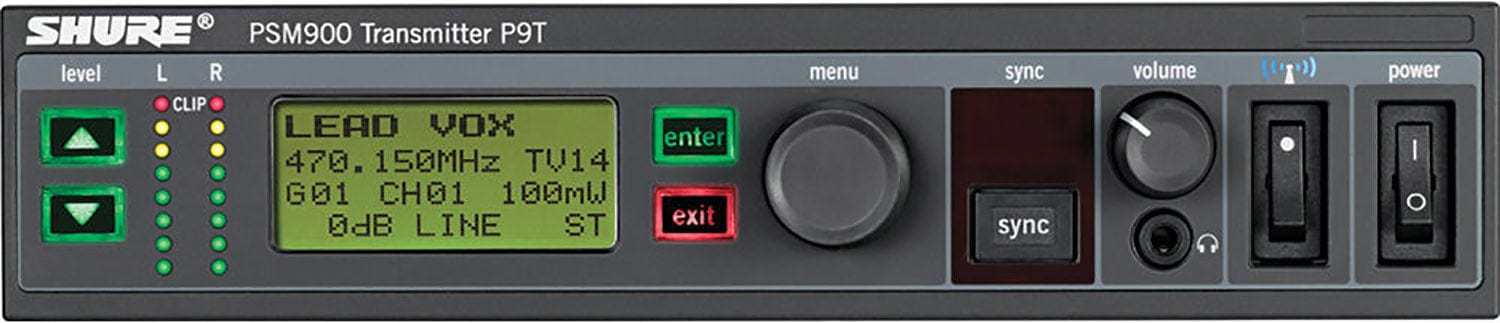

Shure’s P9T is a half-rack, wireless transmitter used in conjunction with the P9RA+ Bodypack receiver as part of the PSM® 900 Wireless Personal Monitor System.
The P9T Wireless Transmitter combines state-of-the-art technology with an ideal set of features for professional monitoring applications of any kind, including IEM and IFB applications.
Why this product
Key Benefits
-
Half-Rack Design
-
Patent-Pending Cue Mode Technology
-
Scan and Sync IR Link
-
RF Mute Switch
-
XLR/TRS Combo Inputs
-
Headphone and Loop Outputs
-
Input Gain Control with LED Meters
Technical details
Technical Specifications
Audio Performance
- Output Impedance
- 50 Ohms (RF, Typical)
- Input Level
- +4 dBu and -10 dBV, Switchable
Wireless & RF
- Frequency Band
- H21: 542 to 578 MHz
Connectivity
- Output Power
- 10/50/100 mW, Selectable (Regionally Dependent)
Power
- Power Requirements
- 415 mA, Typical (RF On, 100 mW Power Mode, No Audio)
Physical
- Dimensions
- 7.75 x 6.5 x 1.6" / 19.7 x 16.6 x 4.2 cm
- Weight
- 1.9 lb / 850 g
More details
Additional Information

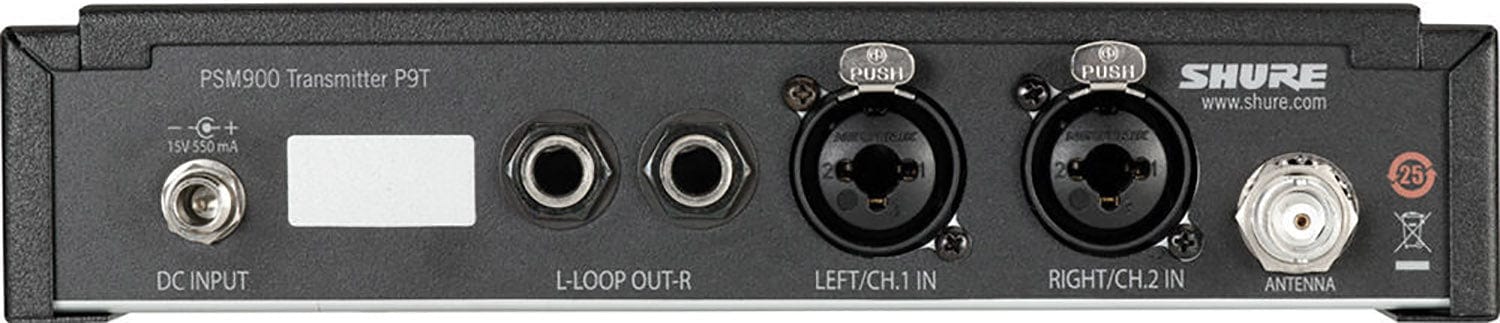

Specifications:
- Connectors:
- 2 x XLR-TRS Combo Inputs
- 2 x 1/4" Loop Outputs
- 1 x DC Power Input
- 1 x Antenna Connector
- 1 x 3.5 mm Headphone Jack
