Shure P9TRA+425CL-G6 PSM900 Personal Monitor System - Transmitter/Bodypack/Earphones - G6 Band

Model P9TRA-PLUS-425CL-G6

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

Shure P9TRA+425CL-G6 PSM900 Personal Monitor System - Transmitter/Bodypack/Earphones - G6 Band
  • Authorized Shure Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

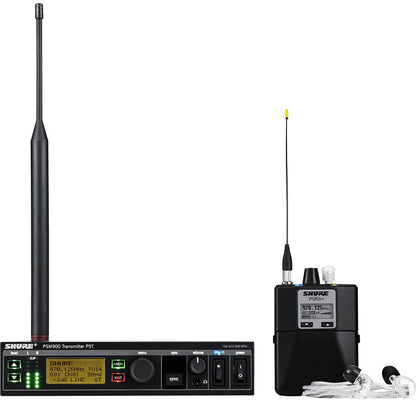

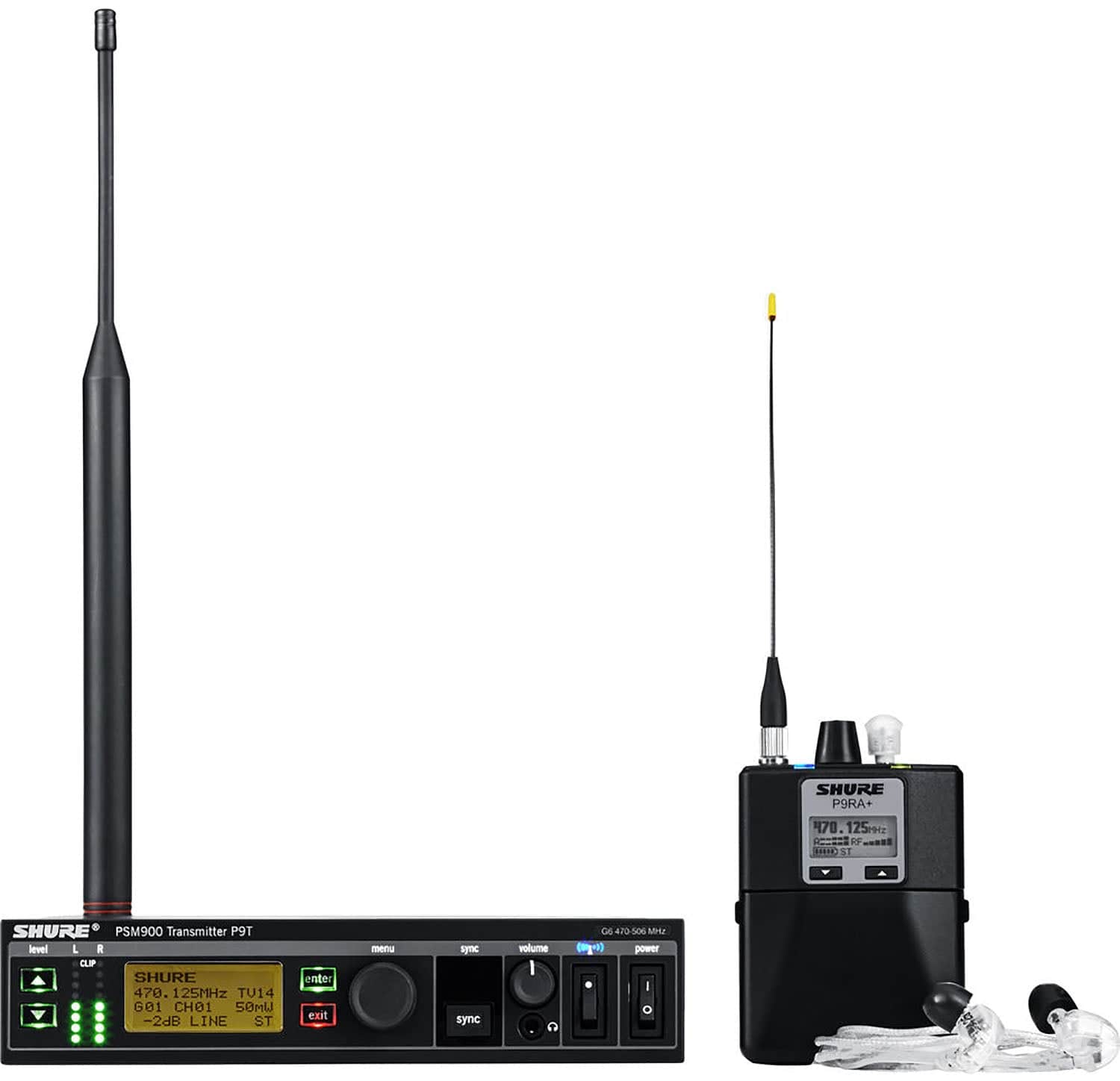

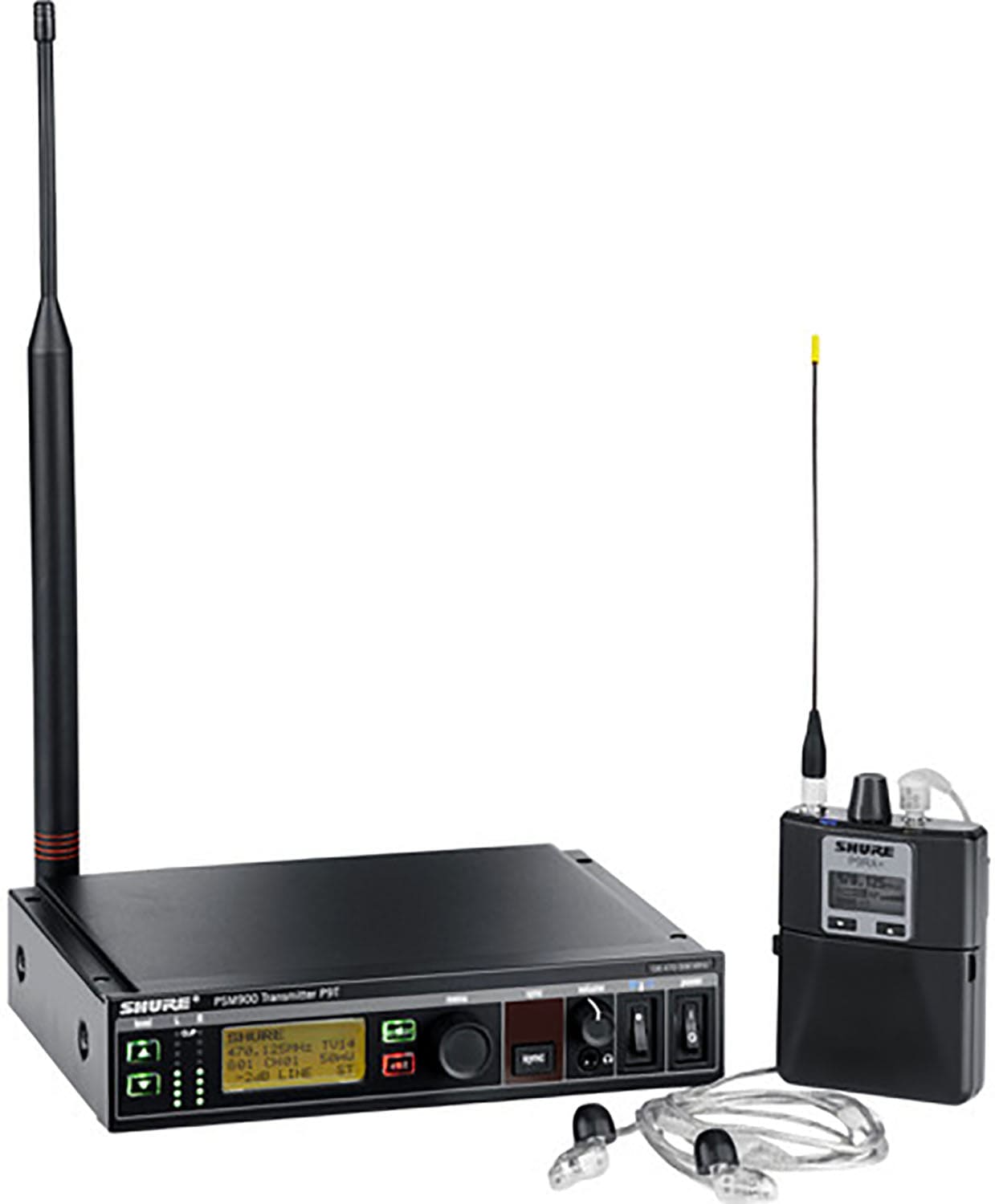

Shure P9TRA+425CL-G6 PSM900 Personal Monitor System - Transmitter/Bodypack/Earphones - G6 Band

PSM®900 Personal Monitor Systems offer superb audio quality, robust RF performance, and category-leading features, including CueMode, which allows the monitoring of different mixes with the touch of a button. Precision front-end RF filtering significantly reduces dropouts, and the enhanced digital stereo encoder provides excellent stereo separation and audio clarity.

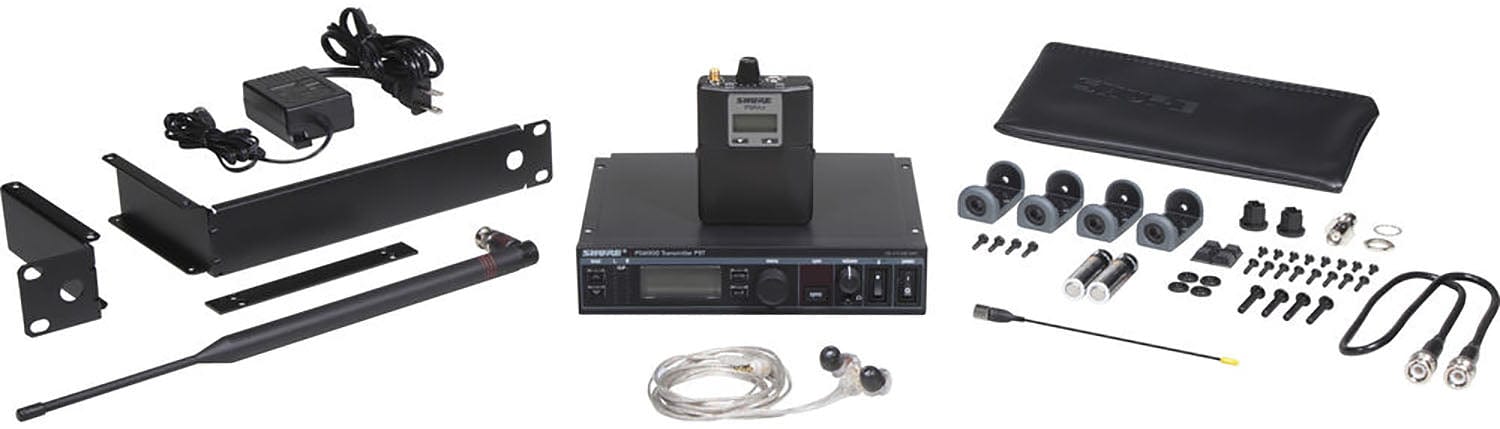

Includes P9T transmitter, P9RA rechargeable bodypack receiver, SE425-CL Sound Isolating Earphones, power supply, protective bumpers with 8 screws, rackmount kit, 2 AA batteries, 2' BNC cable, BNC bulkhead adapter, zipper bag, and user guide.

Why this product

Key Benefits

  • High-quality PSM 900 Personal Monitor System for professional live performances

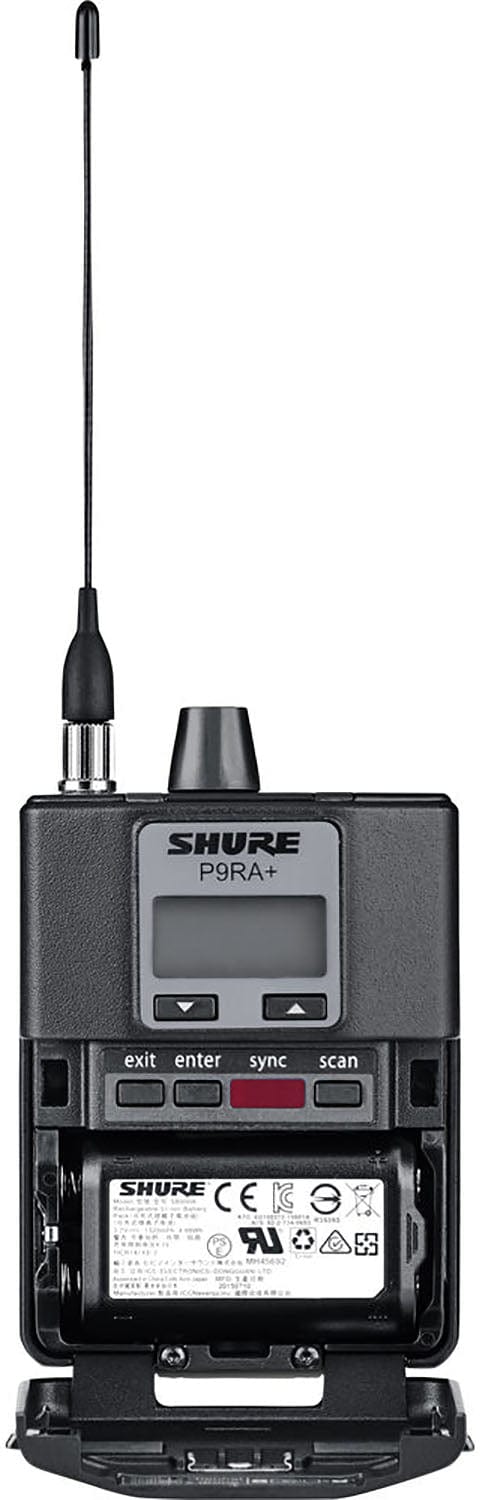

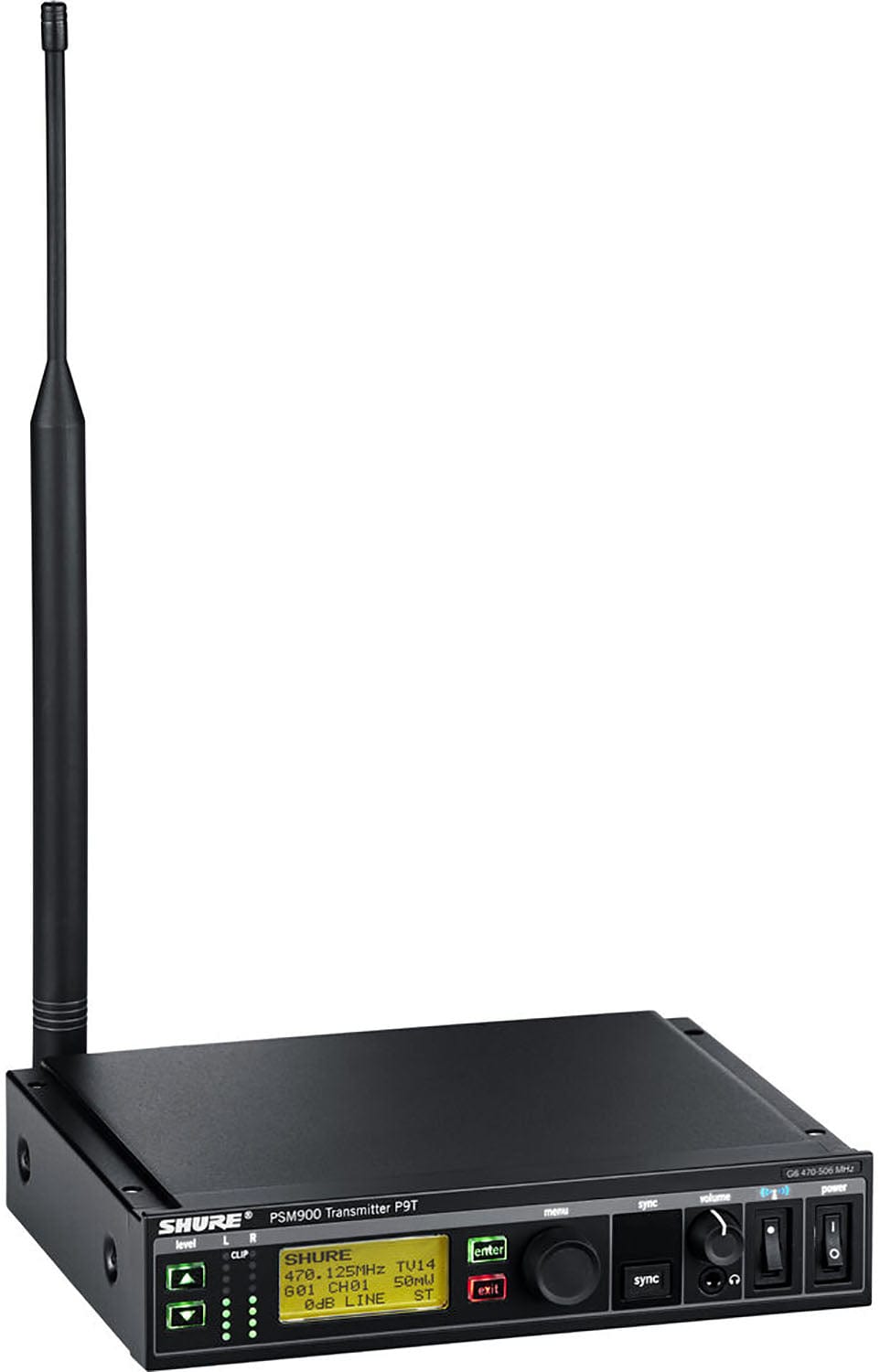

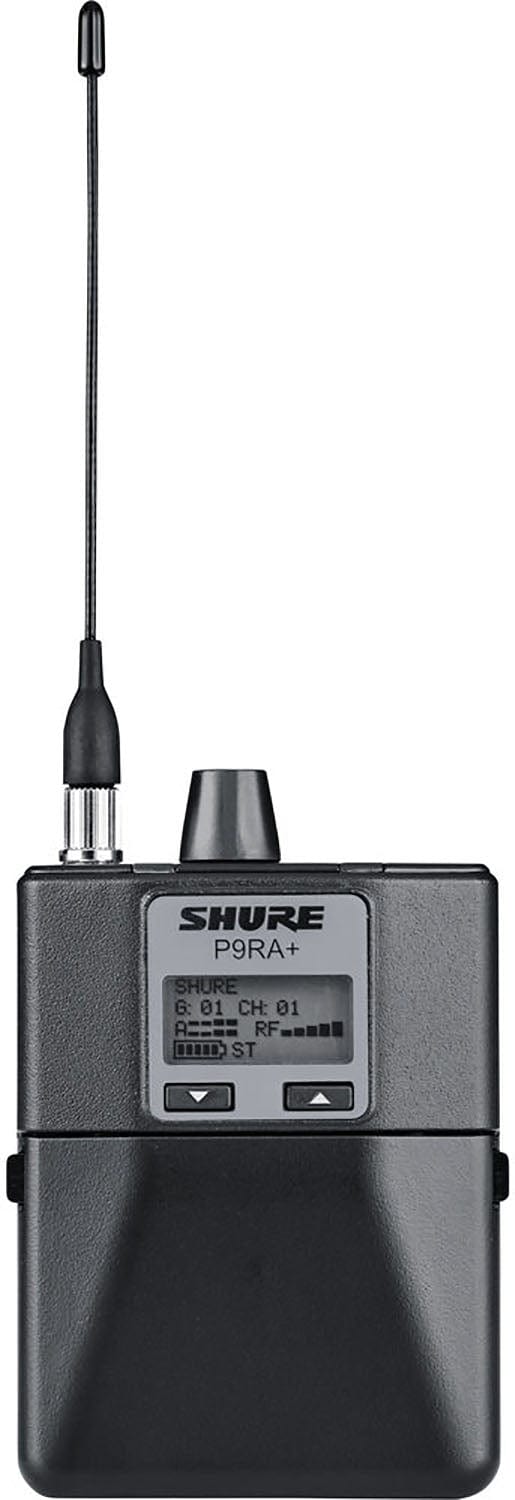

  • Includes P9T rackmountable wireless transmitter and P9RA rechargeable bodypack receiver

  • Features advanced CueMode for monitoring different audio mixes

  • Precision front-end RF filtering for reduced dropouts and stable audio transmission

  • Enhanced digital stereo encoder for superior stereo separation and audio clarity

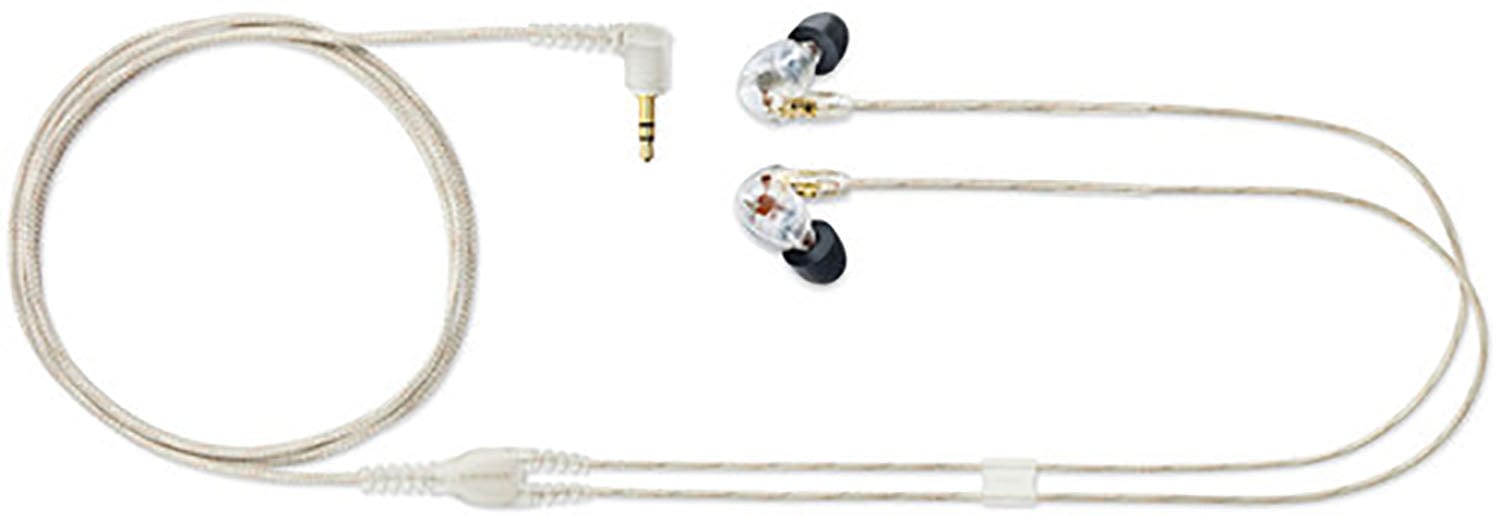

  • Comes with SE425-CL Sound Isolating Earphones and comprehensive accessory kit

Technical details

Technical Specifications

Microphone

Low-Shelf Selectable Gain
+/-2, +/-4, +/-6 dB at 100 Hz
Low-Mid Selectable Gain
+/-2, +/-4, +/-6 dB at 160, 250, 400, 500, 630 Hz
High-Mid Selectable Gain
+/-2, +/-4, +/-6 dB at 1, 1.6, 2.5, 4, 6.3 kHz
High-Shelf Selectable Gain
+/-2, +/-4, +/-6 dB at 10 kHz
Input Level
+4 dBu and -10 dBV, Switchable
Frequency Response
20 Hz to 19 kHz
Sensitivity
109 dB

Wireless

Available Frequency
G6 - 470 to 506 MHz
RF Filter Range
-3 dB at 30.5 MHz from the Center Frequency of Each Band
RF Gain
Active: 31 dB (Adjusts RF Sensitivity to Provide more RF Dynamic Range)
RF Sensitivity
2.2 micro V (20 dB SINAD)
Image Rejection
>90 dB
Adjacent Channel Rejection
>70 dB
Squelch Threshold
22 dB SINAD ( +/-3 dB), Default Setting
Intermodulation Attenuation
>70 dB
Blocking
>80 dB

Battery

Battery Life
4-6 Hours (Continuous Use) with 2x AA Batteries
Battery Info
Required, not included
Battery Material
Alkaline
Battery Type
AA
Battery Quantity
2

Connectivity

Audio Output Power
100 mW Per Output (1 kHz at <1% Distortion, Peak Power, at 16 Ohms)
Audio Connector
1/8" (3.5mm)
Output Power
10/50/100 mW, Selectable (Regionally Dependent)
Output Impedance
50 Ohms (RF, Typical)
Impedance
22 Ohms
Audio Connector
1/8" (3.5mm) TRS
Connector Plating
Gold
Cable Length
5.3' (1.6m)

Power

Power Requirements
415 mA, Typical (RF On, 100 mW Power Mode, No Audio)

Physical

Dimensions
3.3 x 2.6 x 0.9" (8.3 x 6.5 x 2.2cm)
Weight
Without Batteries: 5.4 oz (154g)
Dimensions
7.75 x 6.5 x 1.6" (19.7 x 16.6 x 4.2cm)
Weight
1.9 lbs (850g)

Included & Optional Accessories

Adapter (Included)
1/4"

General

Selectable Q
0.7, 1.4, 2.9, 5.0, 11.5
Volume Limiter
Selectable: 0 to -48 dB in 3 dB Steps
Selectable
0 to -70 dB
Design
In-Ear (Intra-Aural)
Detachable
Yes

More details

Additional Information

Specifications:

  • Bodypack Receiver:
    • 4-Band Parametric Equalizer:
    • Volume Lock:
      • Limits Volume Adjustment Knob
      • Selected Value Analogous to Volume Knob Increment
  • P9T Wireless Transmitter:
    • Connectors:
      • 2x XLR-TRS Combo Inputs
      • 2x 1/4" Loop Outputs
      • 1x DC Power Input
      • 1x Antenna Connector
      • 1x 3.5mm Headphone Jack
  • SE425 Earphones:
