Shure

Shure P9TRA+425CL-H21 PSM1000 Monitor System - Dual Transmitter/2x Bodypacks/2x Earphones - H21 Band

Model P9TRA-PLUS-425CL-H21

Price on Request

Availability: In Stock

WhatsApp an Expert

Call an Expert: +971 56 498 8088 info@corporateav.ae

Shure P9TRA+425CL-H21 PSM1000 Monitor System - Dual Transmitter/2x Bodypacks/2x Earphones - H21 Band
  • Authorized Shure Reseller
  • Manufacturer Warranty
  • Fast UAE Delivery
  • Expert Project Support
Delivery, Warranty, Returns and Installation
Delivery
Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
Warranty
Manufacturer Warranty with Local UAE Support where applicable.
Returns
B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
Installation
Site Surveys, System Design and Professional Installation are available across the UAE.
Call

Product details

Overview

Shure P9TRA+425CL-H21 PSM1000 Monitor System - Dual Transmitter/2x Bodypacks/2x Earphones - H21 Band

The Shure PSM1000 Dual-Channel Personal Monitor System is a comprehensive package designed for professional applications, featuring a P10T full-rack dual-channel wireless transmitter, two P10R+ wireless diversity bodypack receivers, and two pairs of SE425 sound isolating earphones. It also includes antennas for both the transmitter and receivers, along with essential accessories like a hardware rackmount kit, link bar, zipper bag, bumper kit, and front-mount antenna cables. Ideal for touring, stage events, or permanent installations, this system ensures pristine RF signal and audio quality, with network control via Ethernet, internal power supply with IEC in/out ports, and compatibility with PSM 900 receivers. The diversity bodypack enhances signal reception, offering increased range, while the 72 MHz tuning bandwidth provides flexibility in crowded RF environments. Additionally, the P10R+ receiver conducts a full bandwidth scan for clean frequencies, and Wireless Workbench 6 software enables advanced RF spectrum plotting and frequency coordination, along with live monitoring and adjustment of transmitter settings.

Why this product

Key Benefits

  • 2 x P10R+ Wireless Bodypack Receivers

  • 2 x SE425 Sound-Isolating Earphones

  • Full-Rack 2-Channel Wireless Transmitter

  • Networkable via Ethernet

  • Bodypack Rechargeability

  • 49 Compatible Frequencies per Band

  • 66 MHz Tuning Bandwidth

  • Includes Antennas and Cables

  • Includes Power Supply and Rackmount Kit

Technical details

Technical Specifications

Microphone

Frequency Response
35 Hz to 15 kHz (±1 dB)
Signal to Noise Ratio
90 dB (Typical) A-Weighted
Total Harmonic Distortion (THD)
Ref. ±34 kHz Deviation at 1 kHz <0.5% (Typical)
Nominal Input Level
Switchable: +4 dBu, -10 dBV
Frequency Response
20 Hz to 19 kHz
Sensitivity
109 dB

Wireless

RF Carrier Frequency Rang
542-578 MHz
Tuning Bandwidth
72 MHz
Operating Range
300' / 90 m (Environment Dependent)
Companding
Patented Shure Audio Reference Companding
Frequency Stability
±2.5 ppm
MPX Pilot Tone
19 kHz (±0.3 kHz)
RF Output Power
Selectable: 10, 50, 100 mW (+20 dBm)
RF Output Impedance
50 Ohms (typical)
RF Filter Range
Tri-Band: -3 dB at 30.5 MHz from the Center Frequency of Each Band
RF Gain
Active: 31 dB (Adjusts RF Sensitivity to Provide More RF Dynamic Range)
RF Sensitivity
2.2 μV (20 dB SINAD)
Squelch Threshold
22 dB SINAD (±3 dB), Default Setting
Adjacent Channel Rejection
>70 dB
Intermodulation Attenuation
>70 dB
Blocking
>80 dB
Image Rejection
>90 dB

Battery

Battery Life
4-6 Hours (Continuous Use) with AA Batteries

Connectivity

Input
100 to 240 VAC, 50/60 Hz, 0.5 A Max (5.5, with Outlet Loaded)
Output
100 to 240 VAC, 50/60 Hz, 5 A Max, Unswitched
Audio Input
Combination XLR-1/4" /6.3 mm TRS
XLR
Non-Inverting (Pin 2 Positive with Respect to Pin 3)
Impedance
70.2 Kilohms (Actual)
XLR
1=Ground, 2=Hot, 3=Cold
1/4" / 6.3 mm TRS
Tip=Hot, Ring=Cold, Sleeve=Ground
Connector Type
1/4" / 6.3 mm TRS
Impedance
Connected Directly to Inputs
Minimum Load Impedance
4 Ohms
Output Impedance
<1 Ohm
Impedance
22 Ohms
Audio Connector
1/8" / 3.5 mm TRS
Connector Plating
Gold
Cable Length
5.3' / m

Power

Phantom Power Protection
Up to 60 VDC

Physical

Dimensions
1.7 x 19.0 x 13.5" / 4.3 x 48.3 x 34.3 cm
Weight
10.4 lb / 4.7 kg
Dimensions
3.9 x 2.6 x 0.9" / 9.9 x 6.6 x 2.3 cm
Weight
5.6 oz / 158.0 g without Batteries

Environmental

Operating Temperature
0 to 135°F / -18 to 57°C

Included & Optional Accessories

Included Adapter
1/4"

General

Compatible Frequencies
Per Band: 39
Spurious Rejection
Ref. 12 dB SINAD: >80 dB (Typical)
1/4" / 6.3 mm
Tip Positive with Respect to Ring
Configuration
Electronically Balanced
+4 dBu
+29.2 dBu
-10 dBV
+12.2 dBu
Selectable Q
0.7, 1.4, 2.9, 5.0, 11.5
Volume Limiter
Selectable: 0 to -48 dB in 3 dB Steps
Selectable
0 to -70 dB
Design
In-Ear (Intra-Aural)
Detachable
Yes

More details

Additional Information

Specifications:

    • Shure P10T Full-Rack Dual-Channel Wireless Transmitter:
    • Specifications:
  • Modulation:
    • FM (±34 kHz Deviation at 1 kHz)
    • MPX Stereo Ref.
  • Transmitter:
    • Power Requirement:
    • Polarity:
    • Maximum Input Level:
    • Pin Assignments:
  • Audio Output:
  • Physical Characteristics:
  • Shure P10R+ Wireless Bodypack Receiver:
    • Physical Characteristics
    • Audio Output Power: 100 mW per Output (1 kHz @ <1% Distortion, Peak Power, @ 16 Ohms)
    • 4-Band Parametric Equalizer:
      • Low-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 100 Hz
      • Low-Mid Selectable Gain: ±2, ±4, ±6 dB @ 160, 250, 400, 500, 630 Hz
      • High-Mid Selectable Gain: ±2, ±4, ±6 dB @ 1, 1.6, 2.5, 4, 6.3 kHz
      • High-Shelf Selectable Gain: ±2, ±4, ±6 dB @ 10 kHz
    • Volume Lock:
      • Limits Volume Adjustment Knob
      • Selected Value Analogous to Volume Knob Increment

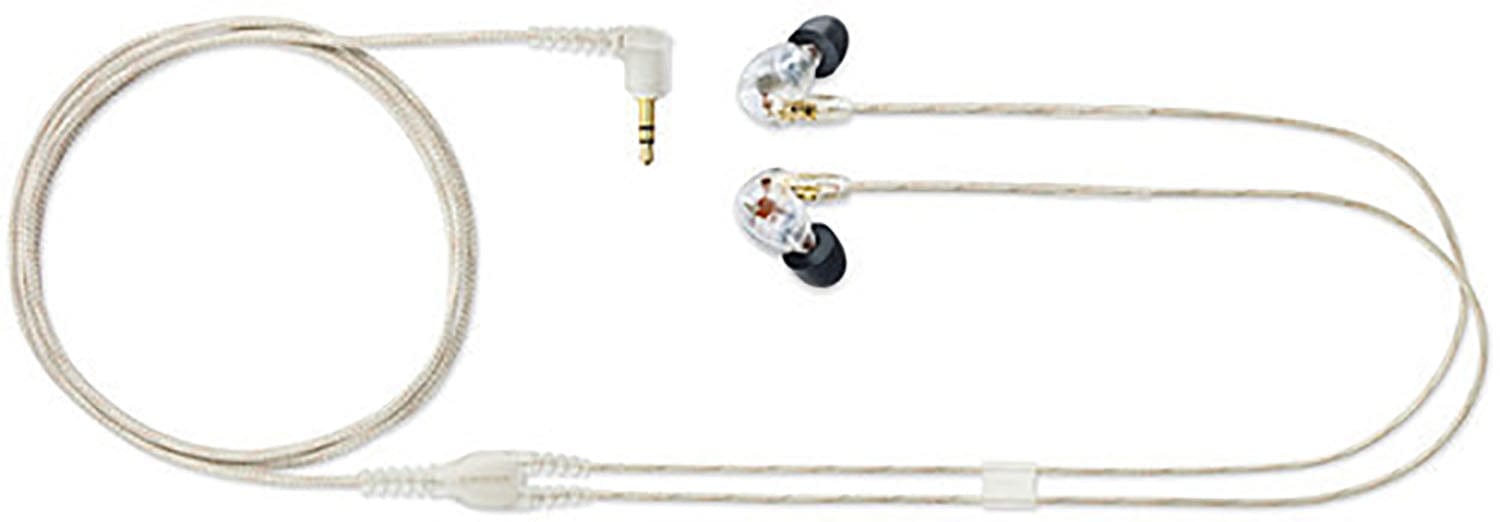

  • Shure SE425 Sound Isolating In-Ear Stereo Headphones (Clear):
    • Earpiece:
    • General:
    • Connectivity:
    • Cable:
