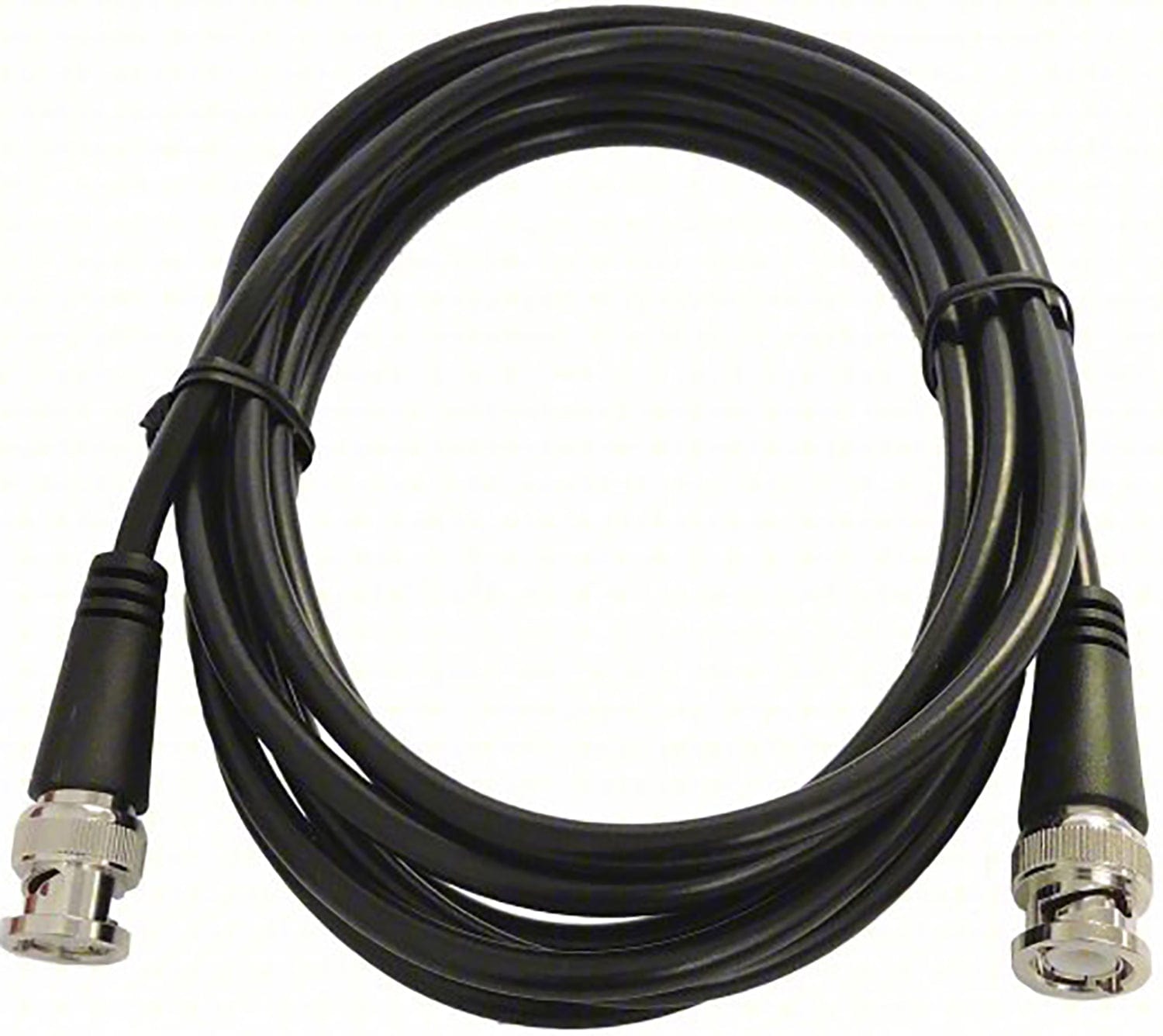

Shure PA805SWB Passive Directional Antenna with 10 Foot BNC Cable - 470-952 MHz
Model PA805SWB
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

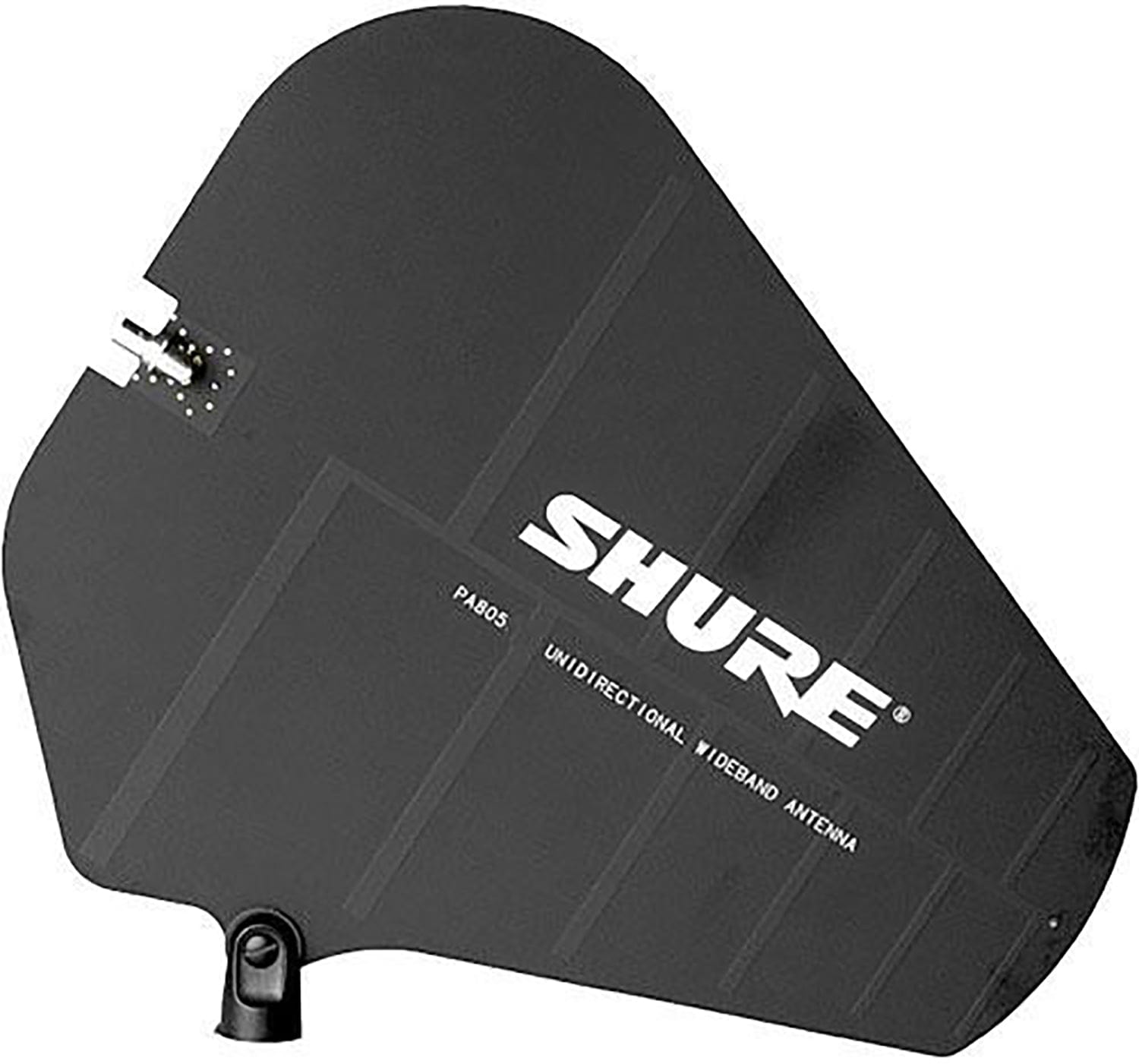

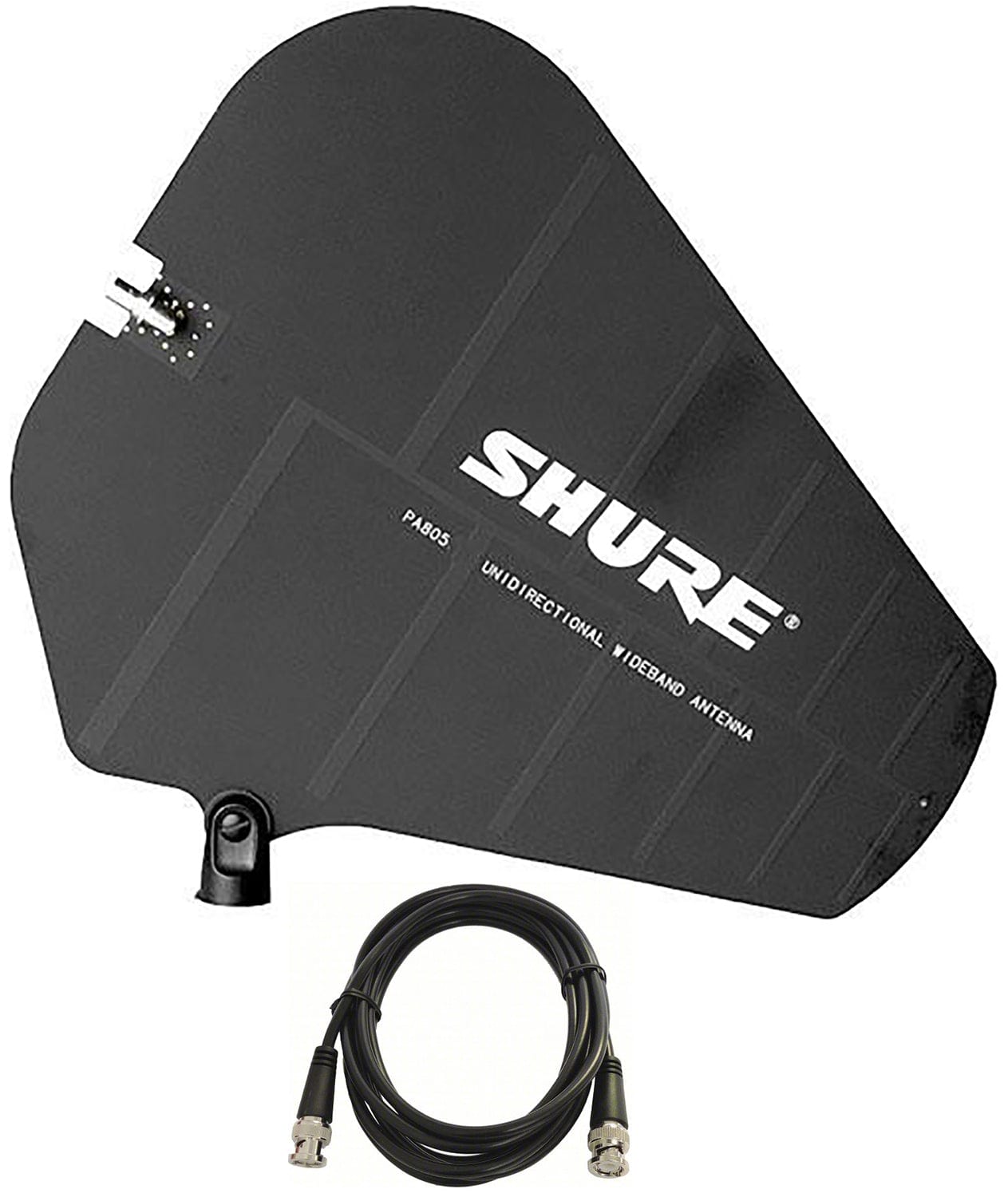

Shure PA805SWB Passive Directional Antenna with 10 Foot BNC Cable - 470-952 MegaHertz
The Shure PA805 is a directional antenna designed for increased range and reduced interference compared to omnidirectional 1/2-wave antennas.
The PA805 can be mounted on a microphone stand or mounted to a wall using the integral swivel adapter bracket.
Why this product
Key Benefits
-
Increases range and reduces interference of PSM wireless systems
-
Integrated break-resistant bracket provides 90° of swivel and mounts easily to a mic stand or a wall
-
50-Ohm female BNC connector
Technical details
Technical Specifications
Audio Performance
- Radiation Pattern
- Directional, cardioid
Wireless & RF
- RF Frequency Range
- 470-952 MHz
- Antenna Gain
- 6.5 dBi typical
Connectivity
- Connector
- 50-Ohm female BNC
Physical
- Dimensions
- 13.15 x 14.88 x 1.1" (334 x 378 x 27.9 mm) (with mounting accessories)
- Weight
- 11.3 oz (319 g) (with mounting accessories)
