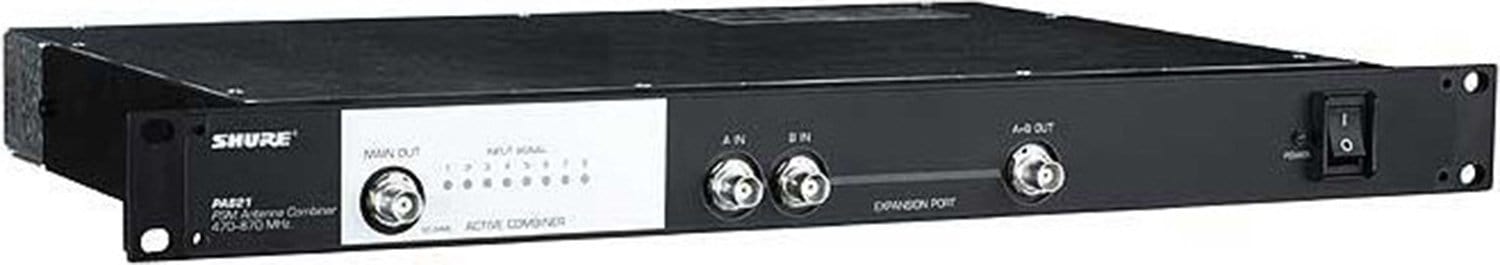

Shure PA821 RF Antenna Combiner UHF 470-870 Megahertz
Model TZ-PA821
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure PA821 RF Antenna Combiner UHF 470-870 Megahertz
The Shure PA821 Antenna Combiners actively combine antenna outputs from up to eight PSM wireless transmitters to a single antenna, improving RF performance and reducing rack clutter.
Technical details
Technical Specifications
Audio Performance
- System Gain
- +0/-5 dB
- Impedance
- 50 Ω nominal
Wireless & RF
- RF Carrier Frequency Range
- 470-870 MHz
Connectivity
- Maximum Input Line VA
- 100 VA
- Input Signal Indicator Threshold
- +4 dBm (2.5 mW), +2 dBm (1.6 mW) typical
Power
- Input AC Line Voltage
- 100-240 Vac, 50/60 Hz
- Maximum RF Input Power
- 24 dBm (250 mW) per channel
Environmental
- Operating Temperature Range
- 0° F (-18° C) to +135° F (+57° C)
Physical
- Net Weight
- 4.53 Kg (10 lbs unpackaged, without power and RF cables)
More details
Additional Information
Specifications
- Maximum Current Drain:
- 0.42-1.0 Amperes
- (Amperes = 100 VA/Input AC Line Voltage)
- Overall Dimensions:
- 43.4 mm high x 398.8 mm wide x331.5 mm deep
- (1 11/16 in. H x 15 11/16 in. W x 13 1/2 in. D)
- Input/Output Connector Type:
- BNC-type 8 input, 1 output ACTIVE
- 2 Inputs, 1 output EXPANSION PORT
