Shure QLXD1 Transmitter
Model QLXD1-V50
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

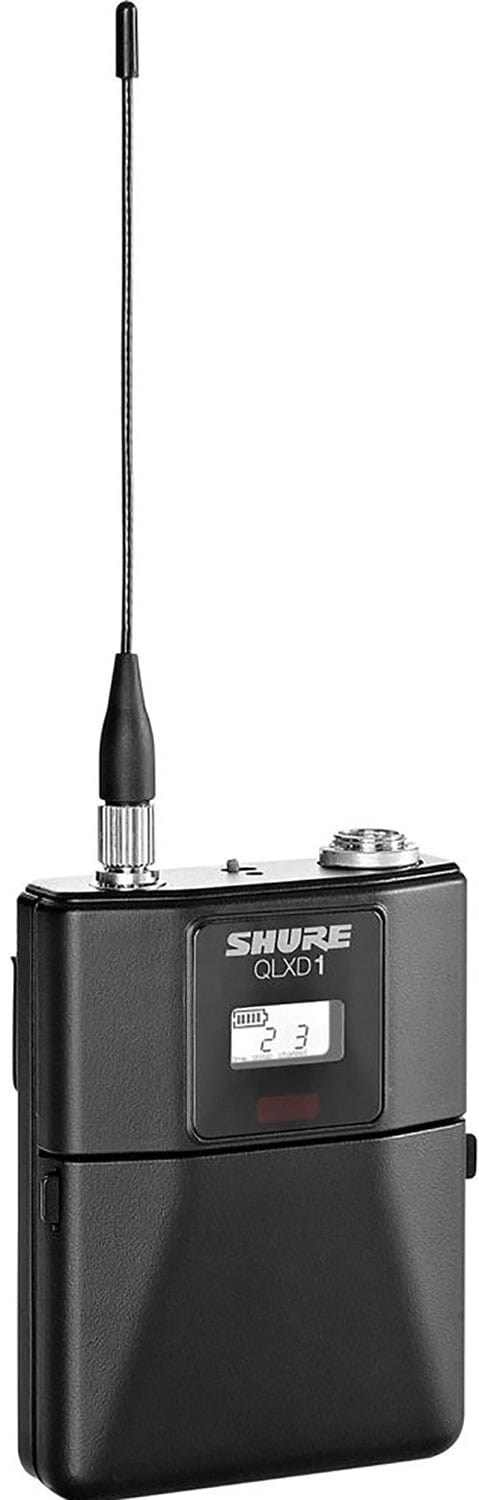

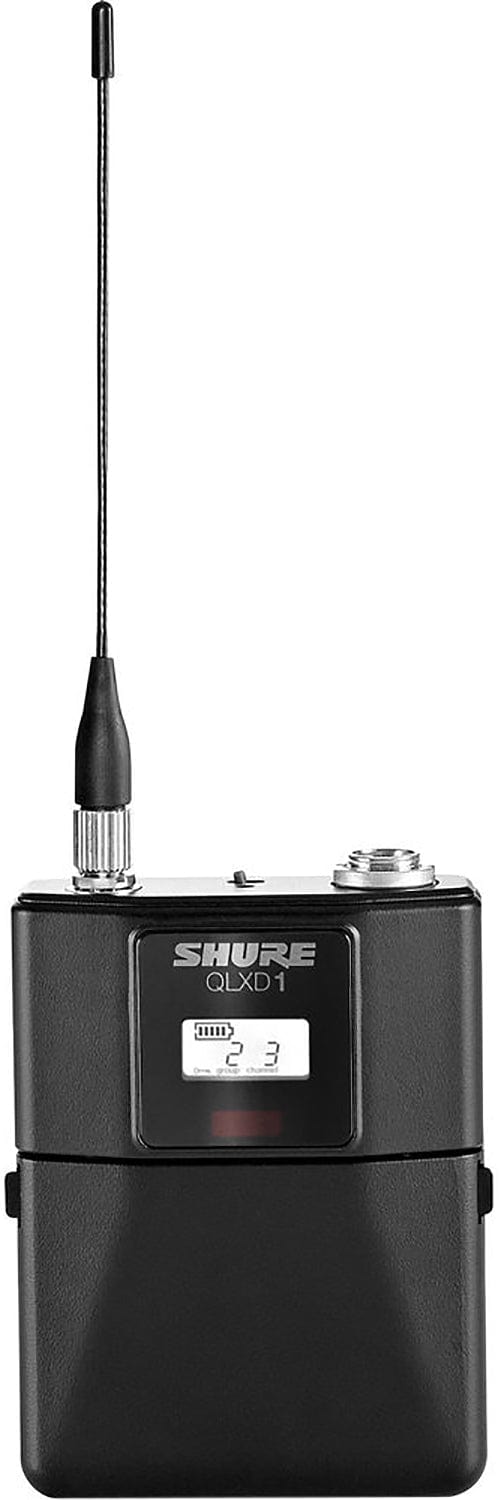

Shure QLXD1 QLXD1 Bodypack Transmitter
The Shure QLXD1 is a bodypack digital wireless microphone transmitter compatible with QLX-D receivers. With rugged, yet lightweight aluminium housing, it delivers pristine audio quality, reliable RF performance, and AES 256-bit encryption for secure transmission. The transmitter is well suited for sound-reinforcement applications in medium-sized venues and houses of worship as well as A/V installations in conference, educational, and corporate facilities.
The Shure QLXD1 Transmitter is available with V50 or X52 frequency band.
Why this product
Key Benefits
-
For QLX-D Receivers
-
Use with Lav/Headset Mic or Instrument
-
Locking TA4M Connector
-
1680 Auto-Scan Frequencies
-
1/10mW RF Output Power
-
Backlit LCD, Detachable Antenna
-
Adjustable Gain Control
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
9-Hr AA Batteries
Technical details
Technical Specifications
Microphone
- Audio Input Level
- 8.5 dBV / 7.5 Vpp
- Gain Range
- 0 to 21 dB (3 dB Steps)
- Frequency Response
- 20 Hz to 20 kHz
Wireless
- RF Frequency Band
- V50 (174 to 216 MHz)
- RF Bandwidth
- 42 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 330' / 100.6 m
- Latency
- < 2.9 ms
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Bodypack
- RF Output Power
- 1 / 10 mW
- Sync Method
- IR
- Antenna
- 1 x 1/4 Wave Detachable
Battery
- Approx. Battery Life
- 9 Hours (Alkaline)
Connectivity
- Sample Rate/Resolution
- 48 kHz / 24-Bit
- Audio I/O
- 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Lockable)
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1 x Backlit LCD (Channel, Group, RF Output Power)
- Housing
- Aluminum
- Dimensions
- 2.6 x 3.4 x 0.9" / 65 x 86 x 23 mm
- Weight
- 4.9 oz / 138 g (without Batteries)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB900A (Not Included, Replaceable)
- Battery Type:
