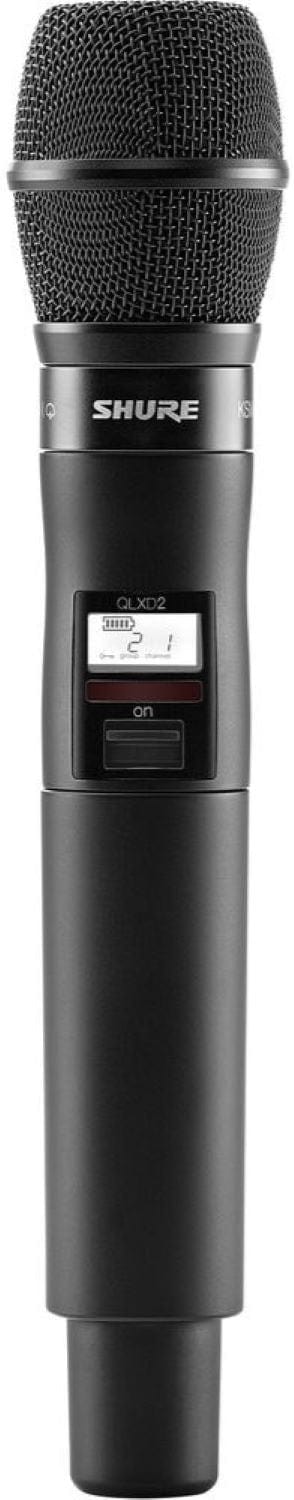

Shure QLXD2/KSM9 Handheld Transmitter
Model QLXD2-K9HS-V50
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure QLXD2/KSM9 KSM9 with QLXD2 Handheld Transmitter
The Shure QLXD2/KSM9HS is a digital handheld wireless microphone transmitter compatible with QLX-D receivers. It comes equipped with a dual-diaphragm KSM9HS condenser capsule that captures sonic nuances with superior detail, delivering precise vocal reproduction for high-end live performance.
The KSM9HS capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The hypercardioid pattern offers excellent off-axis rejection and extended gain before feedback, making it an ideal choice in loud environments. The subcardioid pattern provides a wide coverage angle with subtle off axis-rejection, resulting in a natural sound and minimized proximity effect.
The Shure QLXD2/KSM9 Handheld Transmitter is available with G50, H50, X52, or V50 frequency bands.
Why this product
Key Benefits
-
For QLX-D Receivers
-
KSM9HS Condenser Mic Capsule
-
Hypercardioid/Subcardioid Polar Pattern
-
1680 Selectable Frequencies
-
Interchangeable Capsule Design
-
1/10mW RF Output Power
-
Backlit LCD, Adjustable Gain Control
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
9-Hr AA Batteries
Technical details
Technical Specifications
Microphone
- Gain Range
- 0 to 21 dB (3 dB Steps)
- Frequency Response
- 30 Hz to 20 kHz
- Microphone Type
- Handheld Capsule
- Sound Field
- Mono
- Capsule
- Condenser
- Polar Pattern
- Hypercardioid, Subcardioid
- Frequency Range
- 50 Hz to 20 kHz
- Maximum SPL
- Hypercardioid (150.8 dB SPL)
- Sensitivity
- Hypercardioid (-50.5 dBV/Pa)
Wireless
- RF Frequency Band
- V50 (174 to 216 MHz)
- RF Bandwidth
- 42 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 330' / 100.6 m
- Latency
- < 2.9 ms
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Handheld
- RF Output Power
- 1 / 10 mW
- Sync Method
- IR
- Antenna
- 1x 1/4 Wave
Battery
- Approx. Battery Life
- 9 Hours (Alkaline)
Connectivity
- Sample Rate/Resolution
- 48 kHz / 24-Bit
- Audio I/O
- No
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1x Backlit LCD (Channel, Group, RF Output Power)
- Housing
- Aluminum
- Dimensions
- 2 x 10.1" / 51 x 256 mm
- Weight
- 12.2 oz / 347 g (without Batteries)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Battery Type:
- Microphone:
