Shure QLXD2/KSM9 Handheld Transmitter with KSM9 Capsule - G50 Band
Model QLXD2-KSM9-G50
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

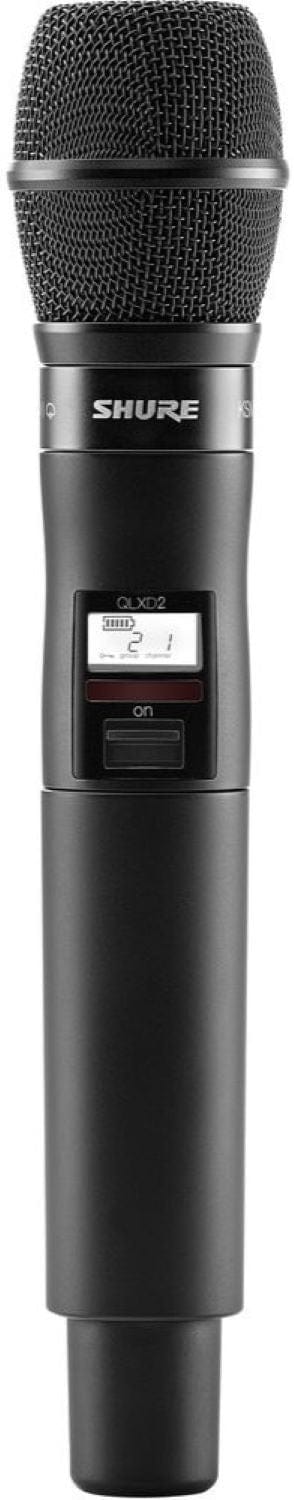

Shure QLXD2/KSM9 Handheld Transmitter with KSM9 Capsule - G50 Band
The Shure QLXD2/KSM9 is a digital handheld wireless microphone transmitter compatible with QLX-D receivers. It comes equipped with a dual-diaphragm KSM9 condenser capsule that captures sonic nuances with superior detail, delivering precise vocal reproduction for high-end live performance. The KSM9 capsule offers two switchable polar patterns to provide FOH engineers with more choices in dealing with varying environments or the microphone techniques of different performers. The cardioid pattern offers solid gain before feedback, with minimal off-axis coloration, for a warm, full sound. The supercardioid pattern offers increased sound isolation and gain before feedback, an ideal choice for applications where there are high levels of ambient noise, or where multiple instruments or vocalists are close together.
Why this product
Key Benefits
-
For QLX-D Receivers
-
KSM9 Condenser Cardioid/Supercardioid
-
Interchangeable Capsule Design
-
2560 Selectable Frequencies
-
1/10mW RF Output Power
-
Backlit LCD
-
Adjustable Gain Control
-
Secure AES-256 Encryption
-
Networked Intelligent Charging
-
9-Hr AA Batteries
Technical details
Technical Specifications
Microphone
- Gain Range
- 0 to 21 dB (3 dB Steps)
- Frequency Response
- 30 Hz to 20 kHz
- Microphone Type
- Handheld Capsule
- Sound Field
- Mono
- Capsule
- Condenser
- Polar Pattern
- Cardioid, Supercardioid
- Frequency Range
- 50 Hz to 20 kHz
- Maximum SPL
- 152 dB SPL
- Sensitivity
- -51 dBV/Pa
Wireless
- RF Frequency Band
- G50 (470 to 534 MHz)
- RF Bandwidth
- 64 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 330' / 100.6 m
- Latency
- < 2.9 ms
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Handheld
- RF Output Power
- 1 / 10 mW
- Sync Method
- IR
- Antenna
- 1x 1/4 Wave
Battery
- Approx. Battery Life
- 9 Hours (Alkaline)
Connectivity
- Sample Rate/Resolution
- 48 kHz / 24-Bit
- Audio I/O
- No
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- 1x Backlit LCD (Channel, Group, RF Output Power)
- Housing
- Aluminum
- Dimensions
- 2 x 10.1" / 51 x 256 mm
- Weight
- 12.2 oz / 347 g (without Batteries)
More details
Additional Information
Specifications:
- Transmitter:
- Battery Type:
- 2x AA (Included)
- 1x Shure SB900A (Not Included, Replaceable)
- Battery Type:
- Microphone:
