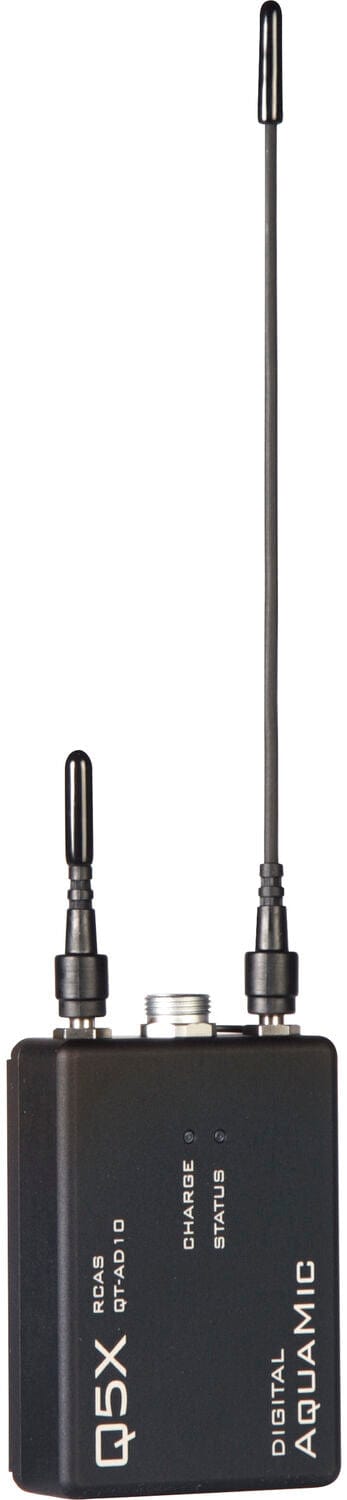

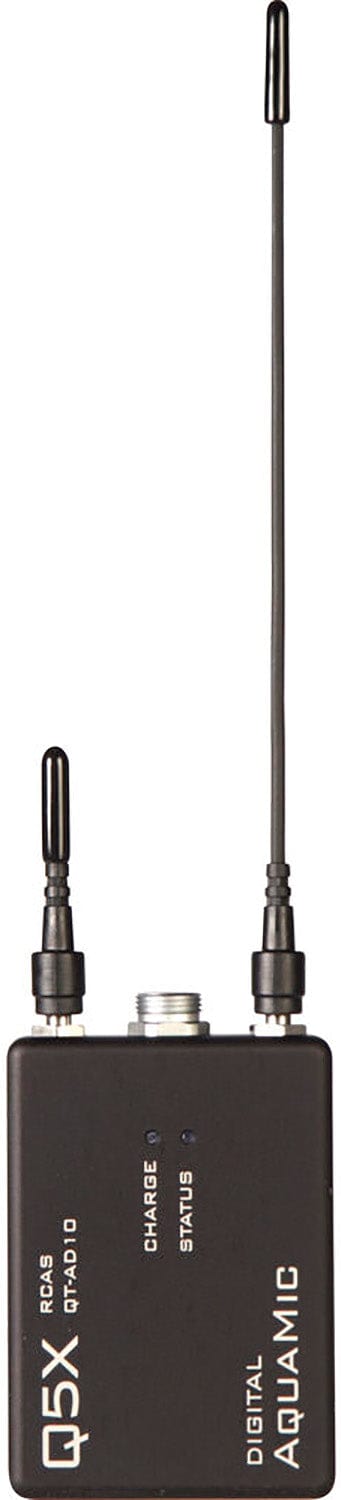

Shure QTAD10A=-K55 AD10A AquaMic Waterproof Submersible Wireless Bodypack Transmitter - 606-694 MHz
Model QTAD10A-K55
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure QTAD10A=-K55 AD10A AquaMic Waterproof Submersible Wireless Bodypack Transmitter - 606-694 MegaHertz
The Shure QX5 QT-AD10 AquaMic is a waterproof digital wireless bodypack transmitter compatible with Axient Digital series receivers. The transmitter features a LEMO 6-pin connector ready to accommodate the compatible lavalier of choice (available separately) and is well suited to a wide variety of uses, including filmmaking, reality TV, and sports broadcasting.
Engineered to handle unpredictable on-set conditions and inclement weather, the AquaMic features an IP68-rated waterproof aluminum casing without controls or a screen, making it impervious to dust and fully water-submersible at a depth up to 100 feet. Setup is handled remotely via the QX5's Remote Control Audio System (RCAS) using the handheld MicCommander module (available separately). The transmitter provides up to 8 hours of operation on its built-in rechargeable battery and features a selectable 2/10/20mW RF output power.
Why this product
Key Benefits
-
Reality TV, Film, Sports Broadcasting
-
For Axient Digital Systems
-
Dustproof and Waterproof Transmitter
-

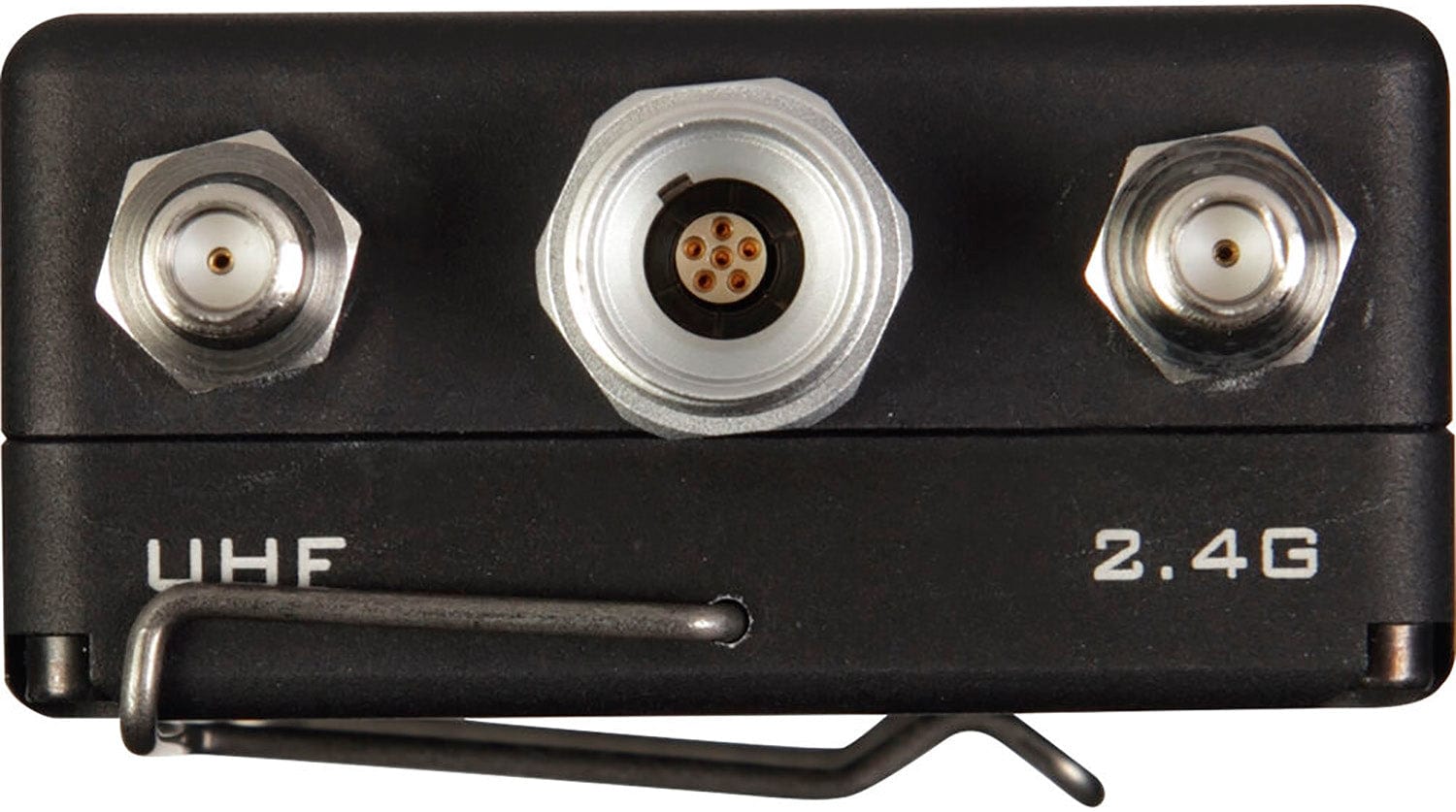

LEMO 6-Pin Connector
-
Gain Adjustment, Detachable Antennas
-
2/10/20mW RF Output, AES-256 Encryption
-
3520 Scannable Frequencies
-
High-Density Mode for More Channels
-
8 Hours on Built-In Rechargeable Battery
-
Requires MicCommander for Set Up
Technical details
Technical Specifications
Microphone
- Auto-Level Control
- No
Wireless
- RF Frequency Band
- 606 to 694 MHz
- RF Bandwidth
- Up to 200 kHz (Max)
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Encryption
- AES 256
- Modulation
- Proprietary
- Transmitter Type
- Bodypack
- RF Output Power
- 2 / 10 / 20 mW
- Sync Method
- 2.4 GHz QPSK
Battery
- Battery Type
- 1x Built-In Rechargeable (Included, Not Replaceable)
- Approx. Battery Life
- Med. - 8 Hours (Lithium Rechargeable)
Connectivity
- Audio I/O
- 1x LEMO 6-Pin Male Unbalanced Input (Locking)
Power
- Power Requirements
- Battery
Physical
- Display & Indicators
- No
- Housing
- Aluminum
- Dimensions
- 1.8 x 2.6 x 0.7" / 46 x 65 x 19 mm (without Antennas)
- Weight
- 3.7 oz / 104 g (with Batteries)
Environmental
- Operating Temperature
- -4 to 122°F / -20 to 50°C
- Storage Temperature
- -4 to 113°F / -20 to 45°C
Included & Optional Accessories
- Included Cable Connector
- No
General
- Built-In Recorder
- No
- Timecode Support
- No
- Mobile App Compatible
- No
- Muting
- Via Control App
- Memory Card Support
- No
More details
Additional Information
Specifications:
- Transmitter:
- Antenna:
- 1x 1/4 Wave Flexible Whip, Detachable (Beltpack)
- 1x External, Detachable (Beltpack)
- Antenna:
