Shure RPM181/PRE Preamplifier
Model RPM181-PRE
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

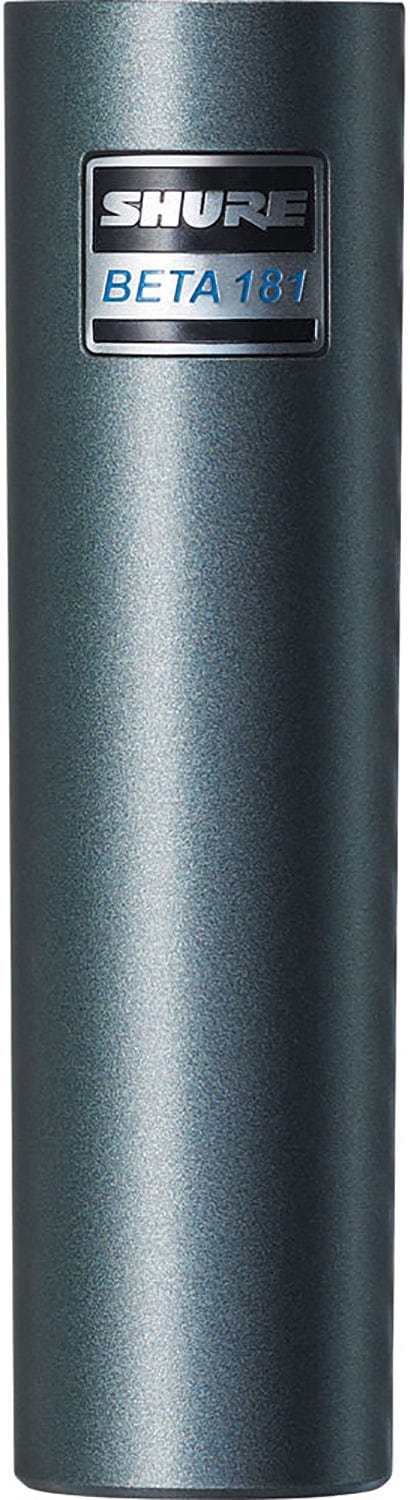

Shure RPM181/PRE Replacement XLR Preamplifier for Beta 181 Condenser Microphone
The RPM181/PRE Replacement XLR Preamplifier by Shure is designed to work in combination with one of four interchangeable capsules for the Shure Beta 181 side-address instrument microphone. The capsules come in cardioid, supercardioid, omnidirectional, and bidirectional polar patterns, making a highly versatile pair.
With a capsule attached, it weighs only 5.1 oz and can get close to any source even in the tightest conditions. Its wide frequency response and high SPL handling are great for miking dual sound sources, such as between toms or acoustic instruments. It is also very useful as a mono drum overhead, or pair two to create the Blumlein stereo effect.
The RPM181/PRE matched with any of the available capsules performs with little to no crossover distortion and provides exceptional low-frequency reproduction. The pair provides exceptional audio with consistent, textbook-like polar responses, resulting in a mic with noteworthy sound and versatility.
Why this product
Key Benefits
-
Works with one of four interchangeable capsules for the Shure Beta 181 instrument microphone
-
The cardioid, supercardioid, omnidirectional, and bidirectional capsules make this mic highly versatile
-
Weighs only 5.1 oz with attached capsule and captures any source even in the tightest conditions
-
Matched with any available capsule it performs with little to no crossover distortion and provides exceptional low-frequency reproduction
Technical details
Technical Specifications
Microphone
- Frequency Response
- 20 to 20,000 Hz
- Cardioid
- -46.5 dBV/Pa (2.4 mV)
- Supercardioid
- -49.5 dBV/Pa (2.5 mV)
- Omnidirectional
- -52.0 dBV/Pa (2.6 mV)
- Cardioid
- 73.5 dB
- Supercardioid
- 71.5 dB
- Omnidirectional
- 70.5 dB
- Cardioid
- 20.5 dB SPL-A
- Supercardioid
- 22.5 dB SPL-A
- Omnidirectional
- 23.5 dB SPL-A
- Cardioid
- 149.0 dB SPL
- Supercardioid
- 152.0 dB SPL
- Omnidirectional
- 154.0 dB SPL
- Cardioid
- 151.5 dB SPL
- Supercardioid
- 154.5 dB SPL
- Omnidirectional
- 157.0 dB SPL
- Cardioid
- 128.5 dB
- Supercardioid
- 129.5 dB
- Omnidirectional
- 130.5 dB
- Cardioid
- 131.0 dB
- Supercardioid
- 132.0 dB
- Omnidirectional
- 133.5 dB
Connectivity
- Output Impedance
- 110 ohms (at 1 kHz)
- Polarity
- Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3
Power
- Power Requirements
- 11-52 V DC phantom power (IEC-61938), 2.4 mA maximum
Physical
- Weight
- 5.1 oz (145 grams)
General
- Type
- Condenser
- 181/C
- Cardioid
- 181/S
- Supercardioid
- 181/O
- Omnidirectional
- 181/BI
- Bidirectional
- Bidirectional
- -51.0 dBV/Pa (2.6 mV)
- Bidirectional
- 71.0 dB
- Bidirectional
- 23.0 dB SPL-A
- Common Mode Rejection
- ≥55 dB
- Bidirectional
- 153.5 dB SPL
- Bidirectional
- 156.0 dB SPL
- Bidirectional
- 130.5 dB
- Bidirectional
- 133.0 dB
- 1000 Ohm Load
- 7.5 dBV
- 2500 Ohm Load
- 10.5 dBV
More details
Additional Information
Specifications:
- Polar Pattern:
- Sensitivity:
- Signal to Noise Ratio:
- Self Noise:
- Maximum SPL:
- 1000 Ohm Load:
- 2500 Ohm Load:
- 1000 Ohm Load:
- Dynamic Range:
- 1000 Ohm Load:
- 2500 Ohm Load:
- 1000 Ohm Load:
- Clipping Level:
