Shure SBC203 Dual Docking Station for SLX-D Transmitters and SB903 Battery
Model SBC203-US
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

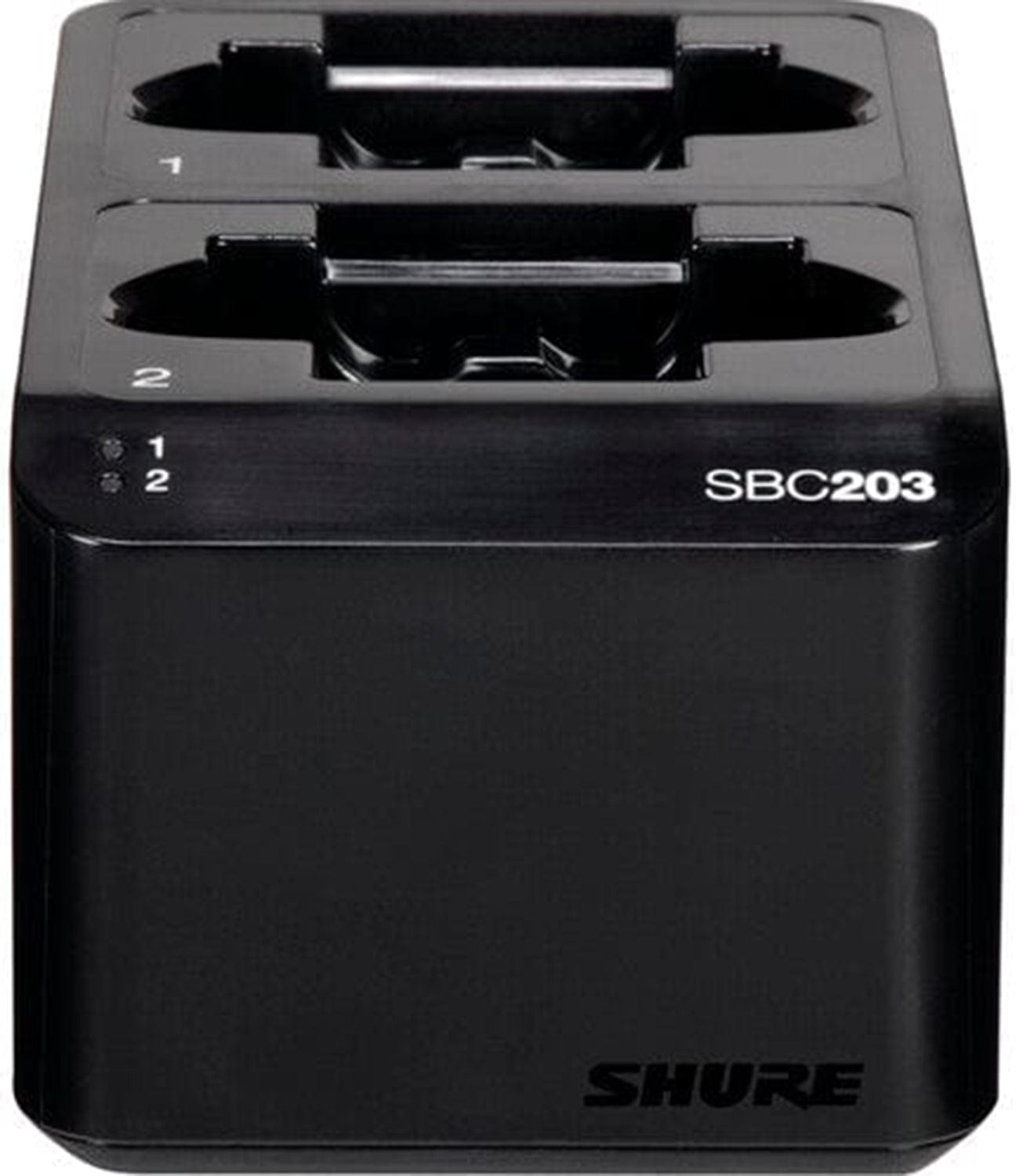

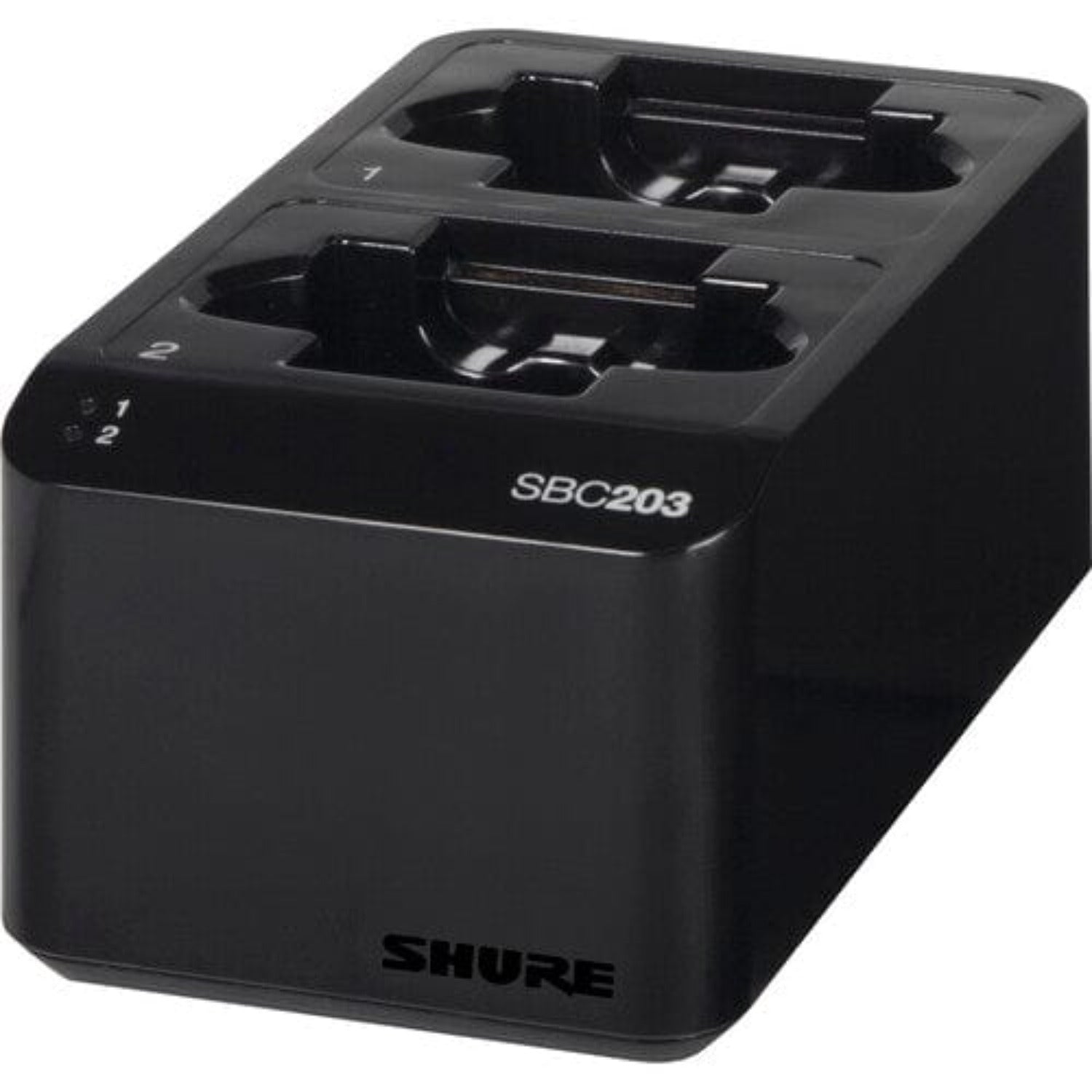

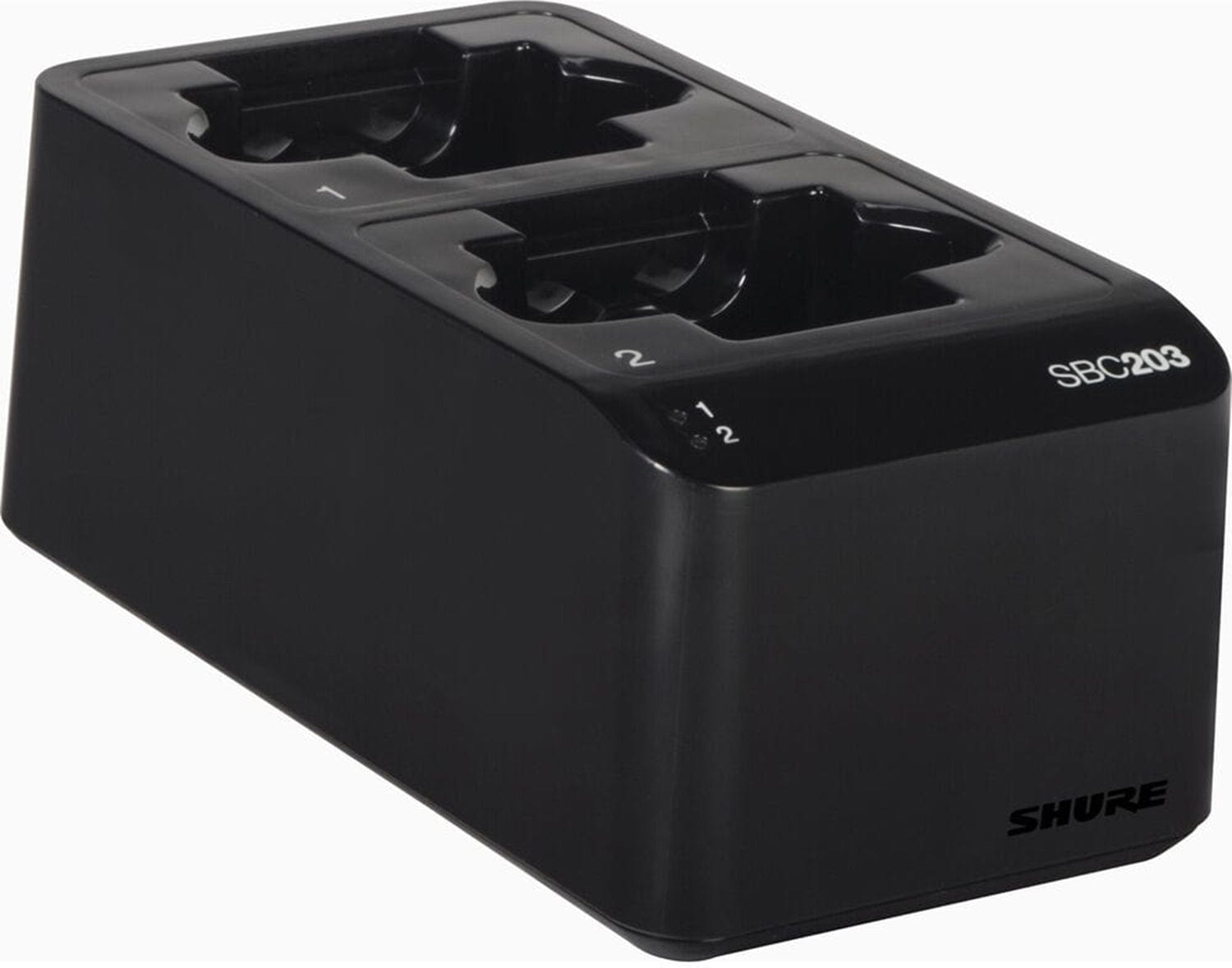

Shure SBC203 Dual Docking Station for SLX-D Transmitters and SB903 Battery

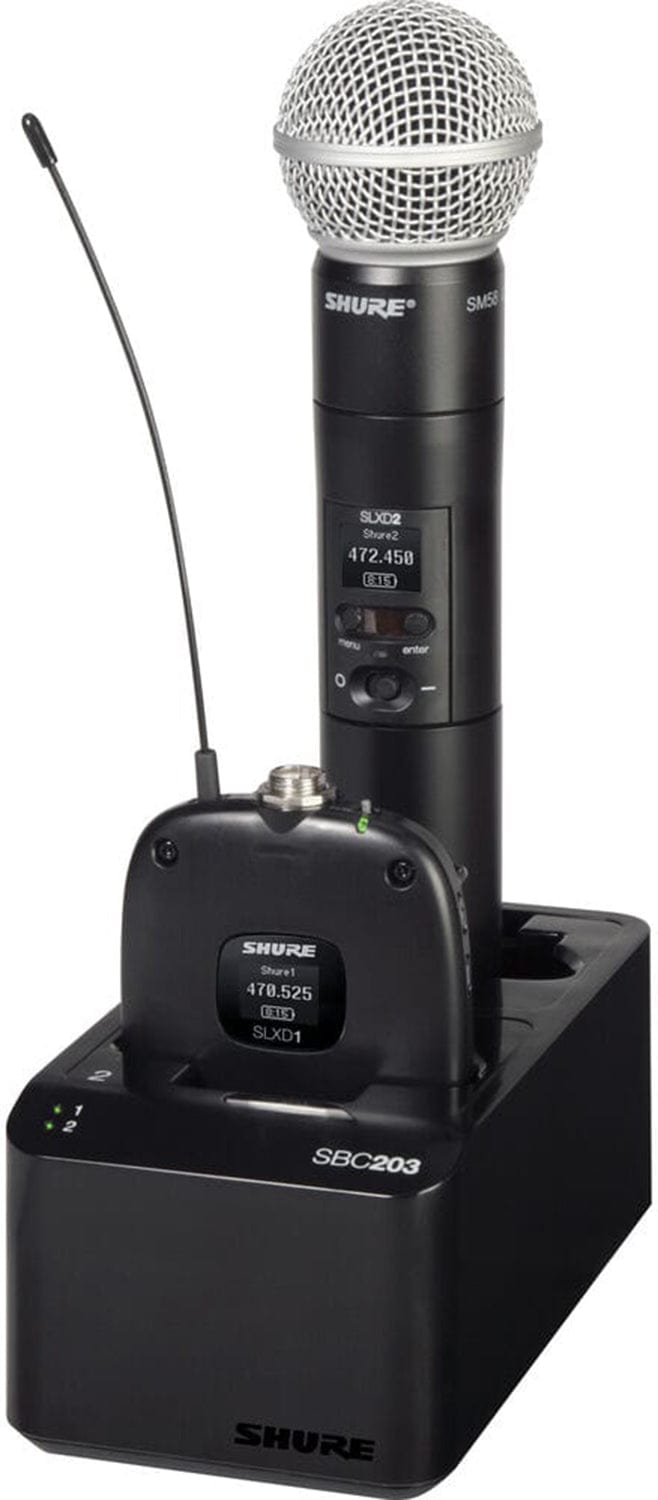

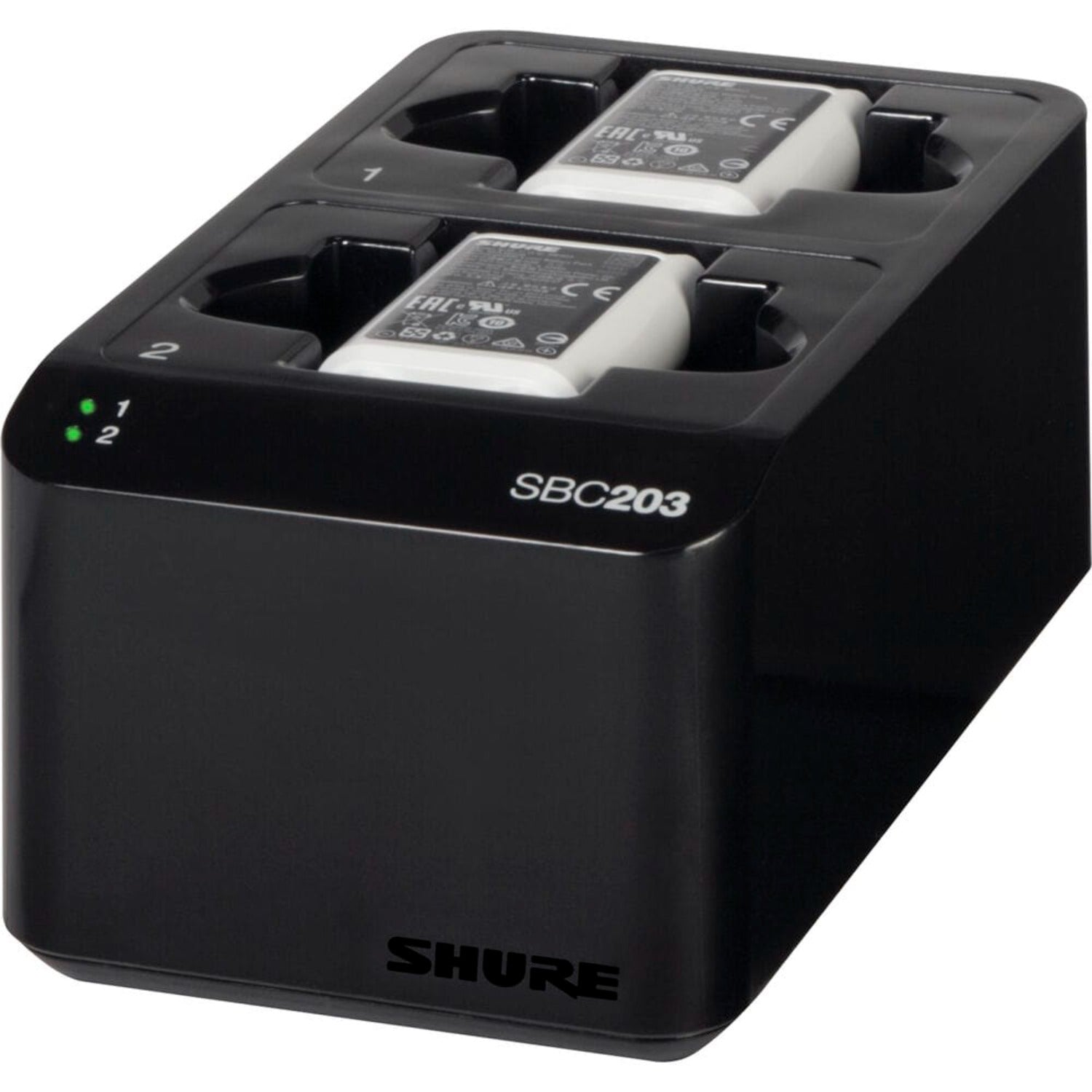

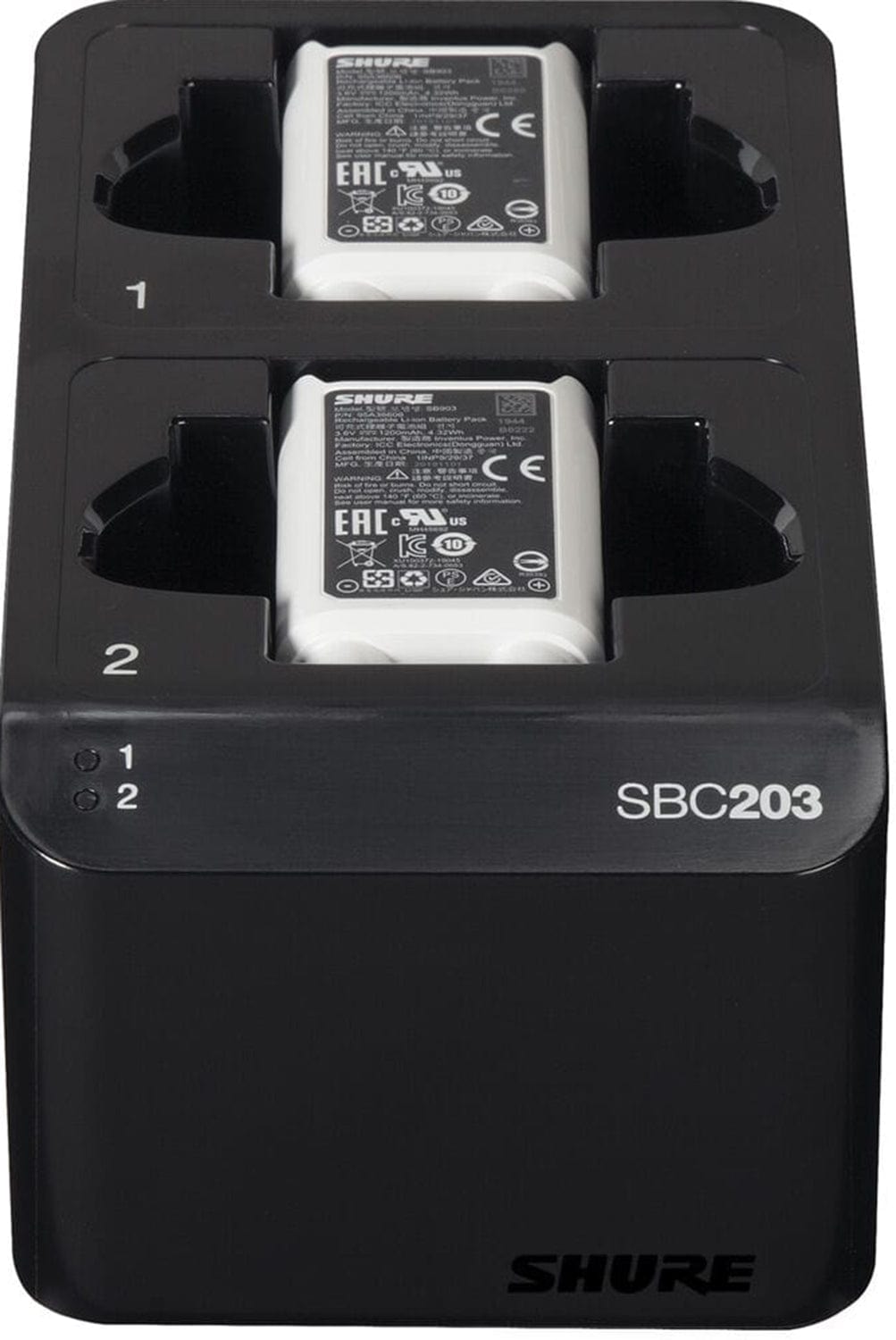

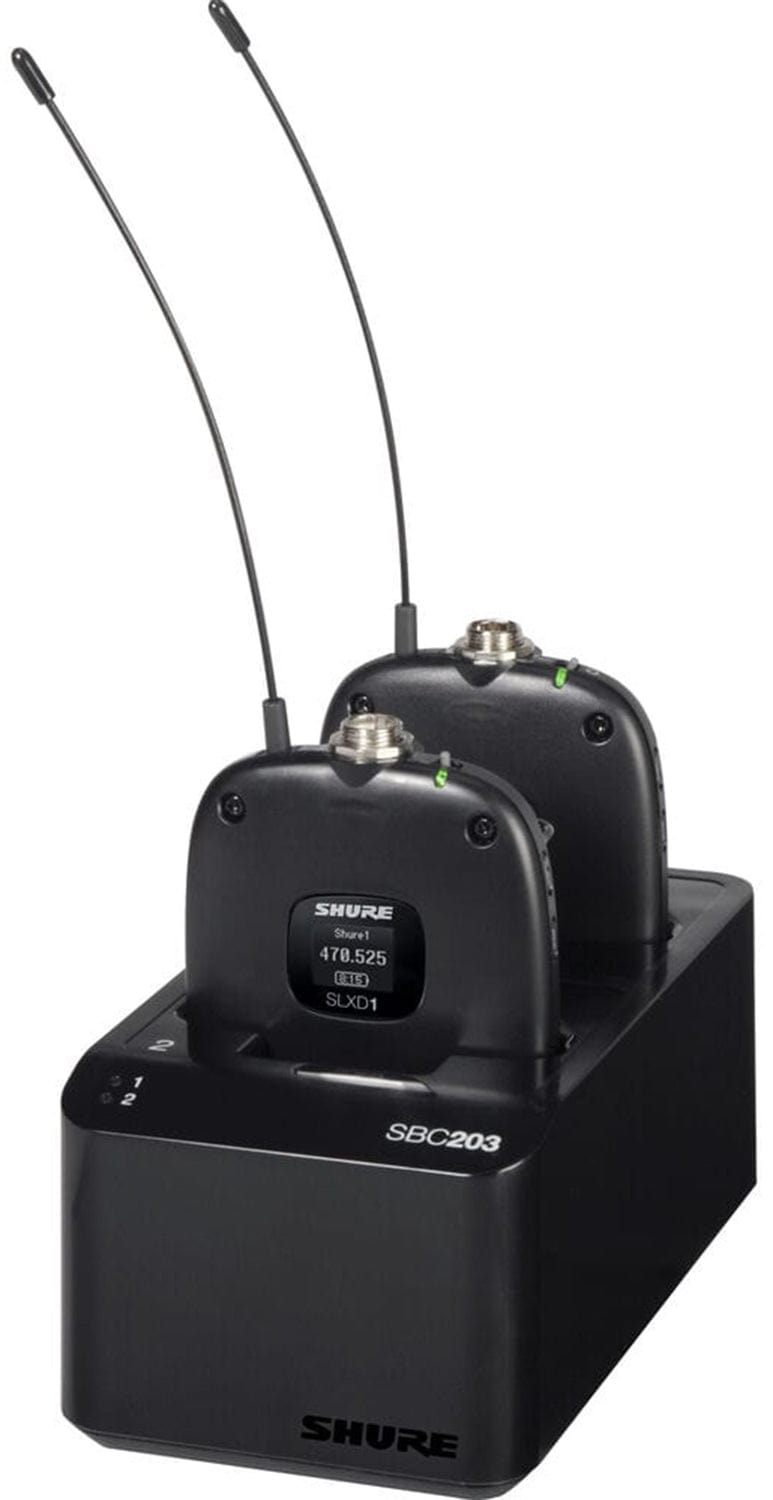

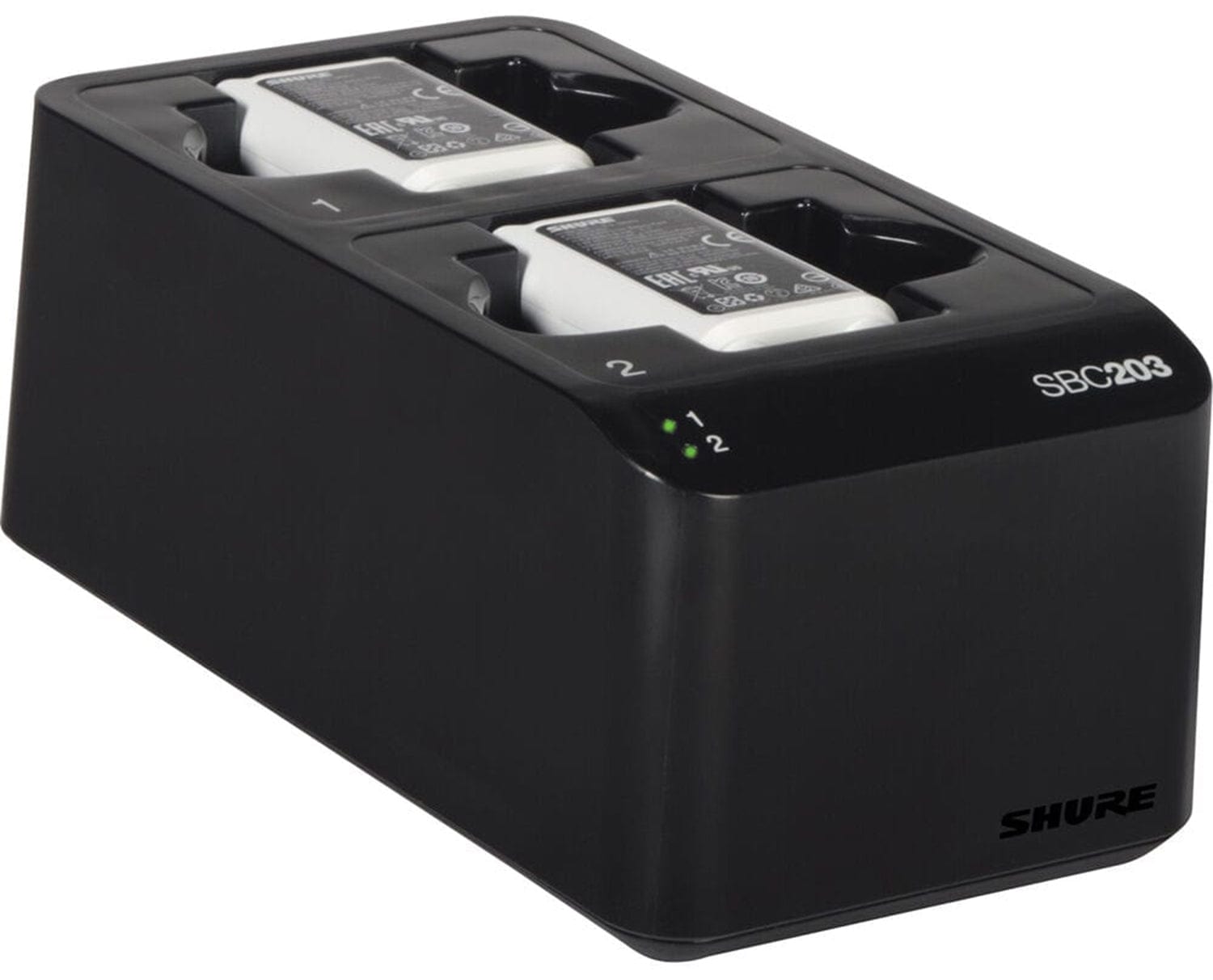

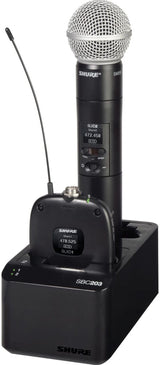

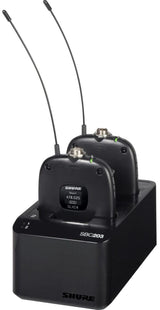

The Shure SBC203 is a dual-docking recharging station capable of recharging two SB903 lithium-ion batteries in or out of their transmitters. The SBC203 is built to charge two batteries, two bodypack transmitters, two handheld transmitters, or any pairing of two SLX-D Series transmitters and SB903 batteries.
- Compatible with all Shure SLX-D Series wireless transmitters as well as the SB903 rechargeable battery
- Charges 2 batteries from 0 to 50% capacity within 1 hour and 15 minutes (providing 4 hours of runtime), or to 100% capacity within 2 hours and 30 minutes (providing a full 8 hours of runtime)
- Automatic RF/Audio mute of docked transmitters
- Secure and tidy installation: Optionally surface-mountable, while the included link plate also allows multiple SBC203 units to be connected together
- Sleek design with heavy-duty ABS construction
- Powered via included power supply and/or USB-C cable
Technical details
Technical Specifications
Battery & Charging
- Charge Current
- 625 or 250 mA
- Charge Time
- 50%: 1 Hour, 15 Minutes 100%: 2 Hours, 30 Minutes
Power
- DC Input Voltage
- 5 DC, 3 A Max
- Power Supply
- Input Voltage Range: 100 to 240 VAC
- Power Supply
- Operating Frequency: 50 to 60 Hz
- Power Supply
- Maximum Input Power: 0.6 A at 100 VAC (Full Load)
- Power Supply
- Output Voltage: 4.75 to 5.25 VDC
- Power Supply
- Maximum Output Power: 3.0 A at 5 V
- Power Supply
- Charging Temperature Range: 32 to 140° F / 0 to 60°C
Environmental
- Charging Temperature Range
- 21 to 113°F / 0 to 45°C
Physical
- Housing
- ABS
- Dimensions
- 2.6 × 3.9 × 6.5" / 66 × 99 × 165 mm
- Weight
- 10 oz / 284 g
More details
Additional Information
Packaging Info
- Package Weight
- 1.73 lb
- Box Dimensions (LxWxH)
- 9.6 x 7.9 x 3.3"
