Shure SBC220 2 Bay Networked Docking Charging Station
Model SBC220
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

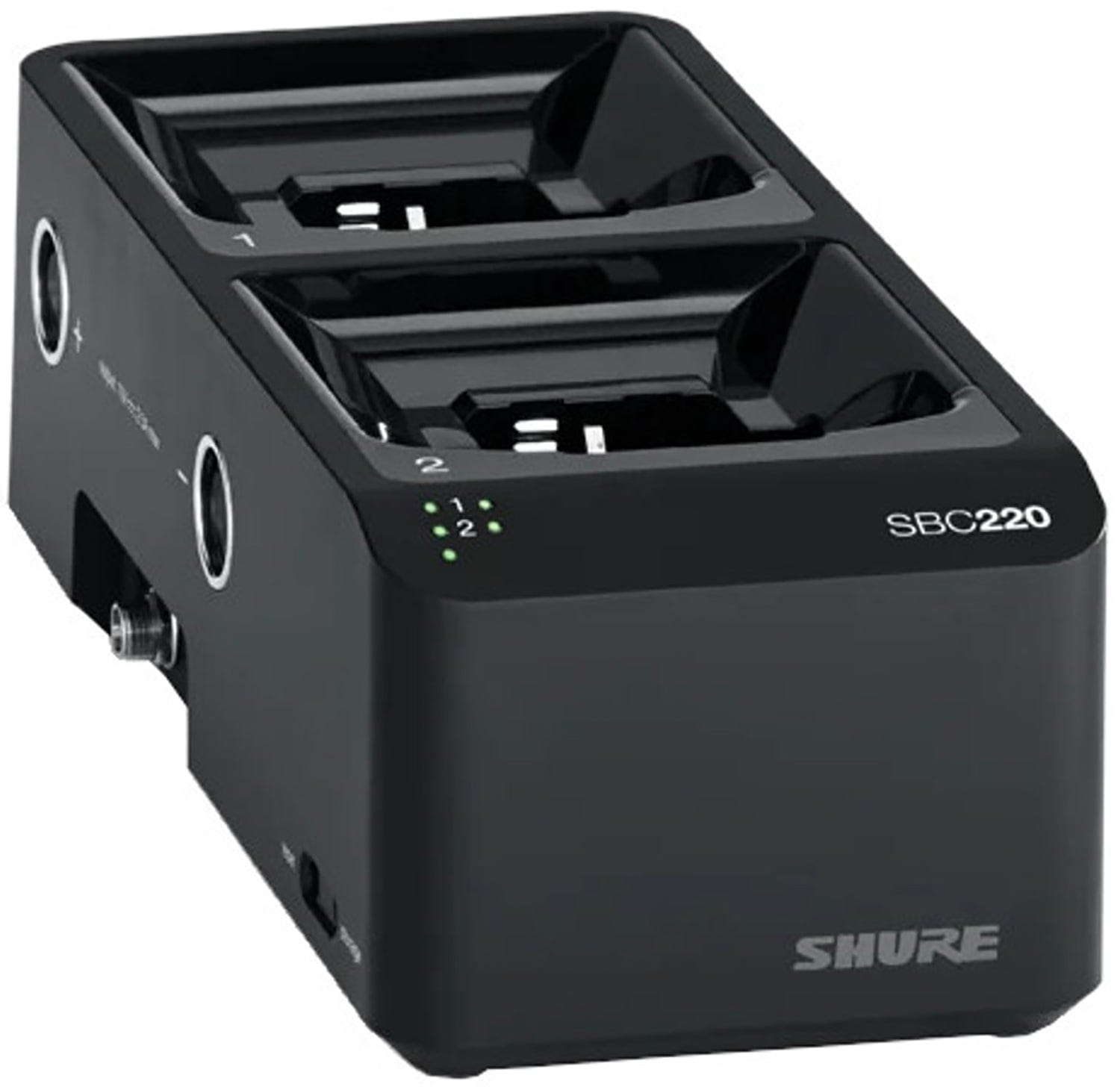

Shure SBC220 2 Bay Networked Docking Charging Station

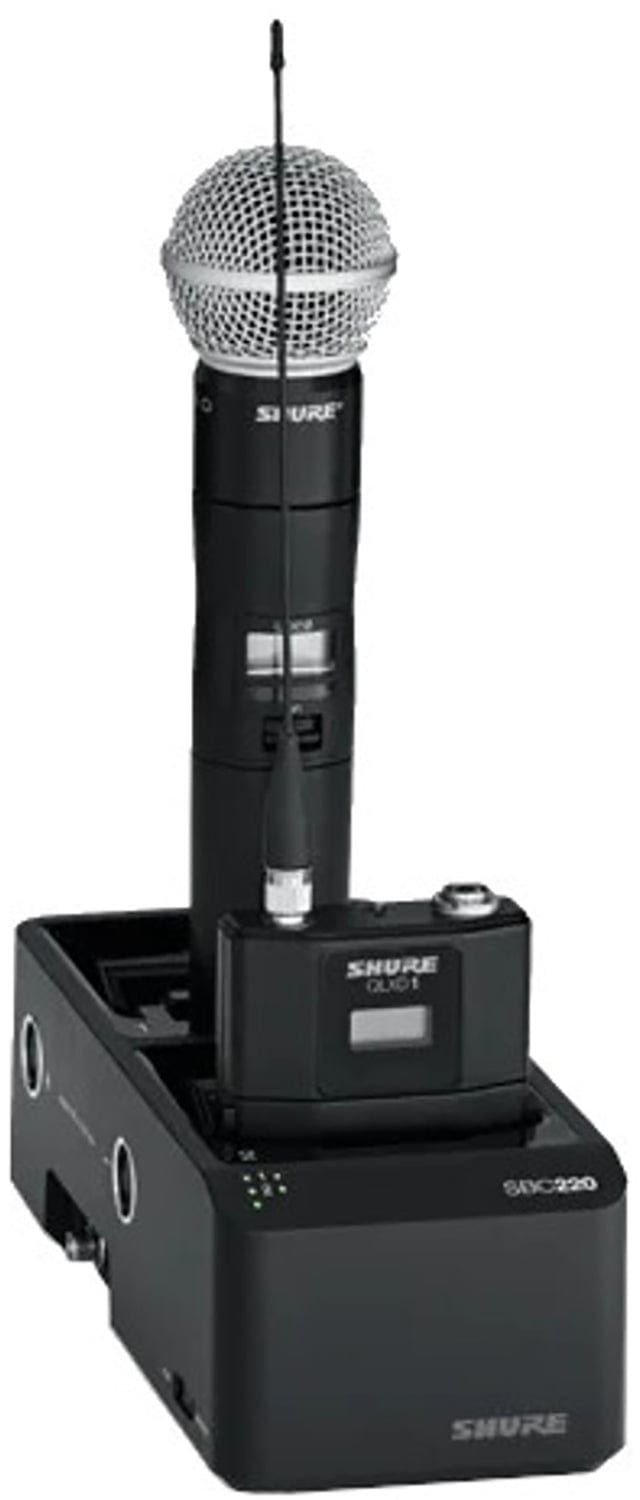

The SBC220 2-Bay Networked Charging Station enables docked charging and storage for any combination of two sb900b batteries or ULXD1, QLXD1, AD1 (bodypack) or ULXD2, QLXD2 or AD2 (handheld) wireless transmitters. When the connected to a network, the charging status of each transmitter can be viewed remotely, and up to four SBC220 units can be linked together using shared power and network connectivity.
Why this product
Key Benefits
-
Charging for any combination of up to 2 supported batteries, or transmitters using Shure rechargeable batteries
-
Connect up to 4 of any combination of SB220 and SB240 chargers together to share power and network connections and save space
-
LEDs indicate charge status and battery errors
-
Storage mode to prepare batteries for long-term storage
-
Network-enabled for remote monitoring
Technical details
Technical Specifications
Compatibility
- Compatible Batteries
- Up to 2 SB900/SB900A
- Compatible Transmitters
- Up to 2 ULXD1, ULXD2, QLXD1, QLXD2, AD1 or AD2
Battery & Charging
- Charge Current
- 0.75 A maximum
- Charge Time
- 1 hour = 50% charged; 3 hours = 100% charged
Connectivity
- Network Interface
- 10/100 Mbps Ethernet
- Network Addressing Capability
- DHCP or Manual IP address
Power
- External Power Supply
- PS60
- Power Requirement
- 15 V, 4 A maximum
Environmental
- Operating Temperature Range
- 0°C (32°F) to 45°C (113°F)
- Storage Temperature Range
- -29°C (-20°F) to 74°C (165°F)
Physical
- Housing
- Molded Plastic
- Dimensions
- 66.31 x 88.74 x 210.82 mm (2.61 x 3.49 x 8.30 in.) H x W x D
- Weight
- 0.45 kg (1 lb) without batteries
