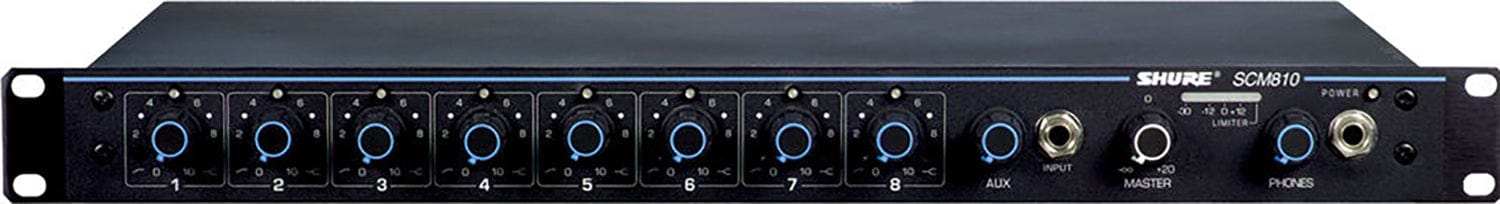

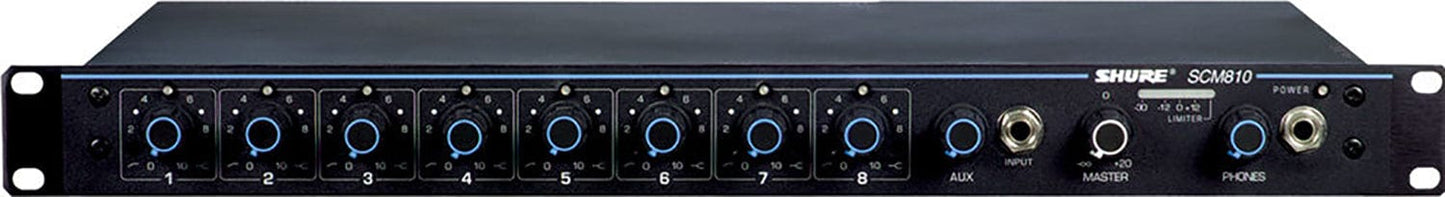

Shure SCM810 8-Channel Automatic Mixer
Model SCM810
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure SCM810 8-Channel Automatic Mixer
8-channel automatic mixer improves audio quality in any application in which multiple microphones are required. Features include fast microphone selection, adjustable EQ, adjustable low-frequency roll off, and peak-responding output limiter.
Why this product
Key Benefits
-
Fast, noise-free microphone selection, which automatically adjusts to changes in background noise
-
Automatic gain adjustment as additional microphones are activated - NOMA (Number of Open Microphones Attenuated)
-
Last Mic Lock-On circuit maintains ambient sound
-
Adjustable low-frequency roll off and high-frequency shelving for each channel
-
Channel activation and clipping indicators
-
Active balanced microphone-level XLR inputs and an active balanced Mic/Line level XLR output
-
Aux-level input with manual level control
-
Front-panel headphones output with level control
-
Peak-responding output limiter with selectable thresholds and LED indicator
-
Linking capability for up to 400 microphones
Technical details
Technical Specifications
Power
- Low-impedance mic (150 ohms) Input
- Line 80dB, Headphones 88dB, Direct Out 34dB - Outputs
- Phantom Power
- 46 Vdc open-circuit through 6.8k ohms series resistance per DIN 45 596
- Power
- 120 Vac rated nominal, 50/60Hz, 200mA

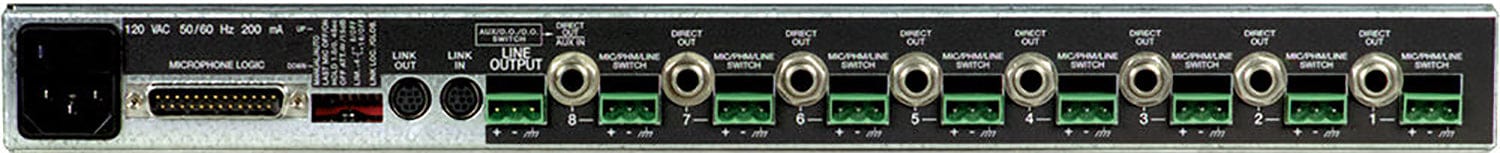

Connectivity
- Link Input/Output
- 2 - Link In / Link Out 1/4" Phone jacks
- Line Input
- Line 40dB, Headphones 48dB, Direct Out -6dB - Outputs
- Aux Input
- Line 44dB, Headphones 52dB - Outputs
- Send/Return Input
- Line 20dB, Headphones 28dB - Outputs
Physical
- Dimensions
- 1.75 x 19.13 x 12.4 (44.5 x 483 x 317mm) (H x W x D)
- Weight
- 9.57 lbs (4.3kg)
General
- Monitor/Headphone Out
- 1 - 1/4" TRS Phone jack (Headphone)
- MIC
- Designed for use with 19-600 ohm load, 1.6k ohms actual, -15dBv clipping level
- LINE
- Designed for use with < 2k ohm load, 10k ohms actual, +22dBV clipping level
- AUX
- Designed for use with < 2k ohm load, 10k ohms actual, +22dBV clipping level
- SEND/RETURN
- Designed for use with < 2k ohm load, 10k ohms, +18dBV
- LINE
- Designed for use with >600 ohm load, 60 ohms actual, +18dBV clipping level
- HEADPHONES
- Designed for use with 8-200 ohms, 60 ohm recommended, 300 ohms actual, +12dBV clipping level
- DIRECT OUT
- Designed for use with > 2k ohm load, 1k ohms actual, +18dBV clipping level
- SEND/RETURN
- Designed for use with > 2k ohm load, 1k ohms actual, +18dBV clipping level
- Operating
- 0 to 60 degrees C (32 to 140 degrees F)
- Storage
- -30 to 70 degrees C (-20 to 165 degrees F)
More details
Additional Information
Specifications:
- ALT I/O:
- 1 - AUX line input 1/4" Phone (front panel)
- 1 - Microphone Logic connection DB25 male connector
- Impedance:
- Input:
- Output:
- Input:
- Gain:
- Operating Temperature:
