Shure SLXD14 Wireless System with SLXD1 Bodypack Transmitter and DL4 Lavalier Microphone - G58 Band
Model SLXD14-DL4B-G58
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

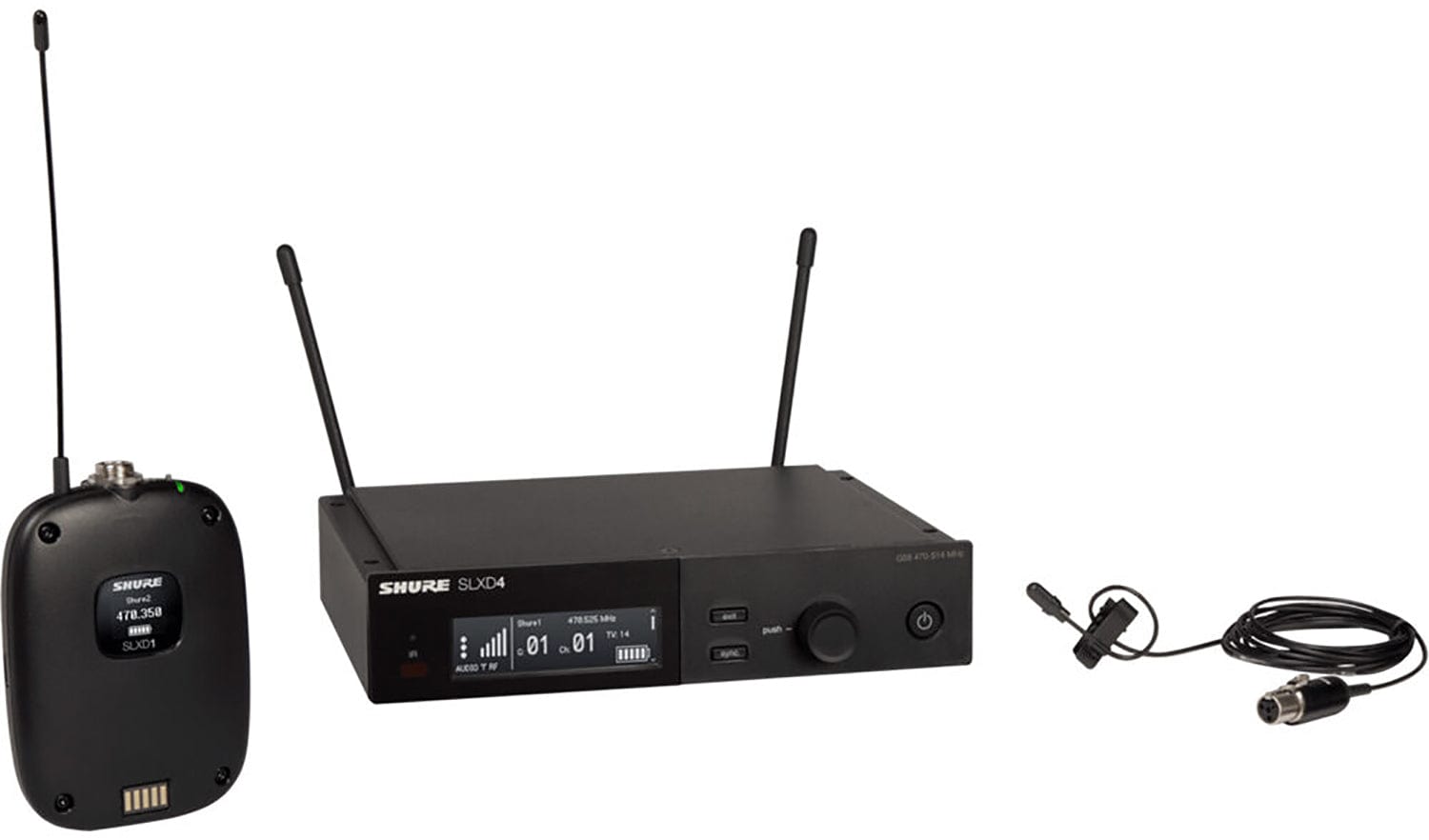

Shure SLXD14 Wireless System with SLXD1 Bodypack Transmitter and DL4 Lavalier Microphone - G58 Band
The Shure SLXD14/DL4B offers actors, performers, instructors, clergy, and presenters a wireless lavalier microphone system that's easy to set up and dependable, which delivers crystal-clear digital sound quality. Built around a rugged, single-channel, half-rack receiver with removable antennas, the system is ideally suited for portable rigs or long-term installations in small- to medium-sized venues, event spaces, conference rooms, houses of worship, and education facilities.
Why this product
Key Benefits
-
For Active Performers & Actors
-

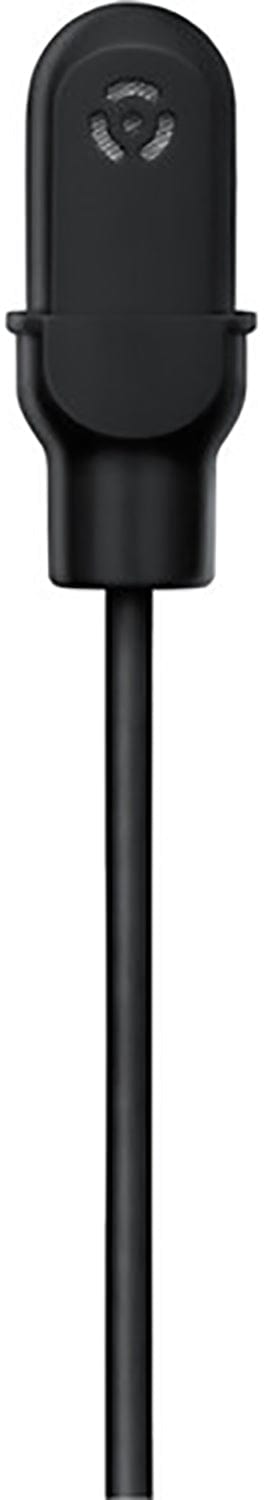

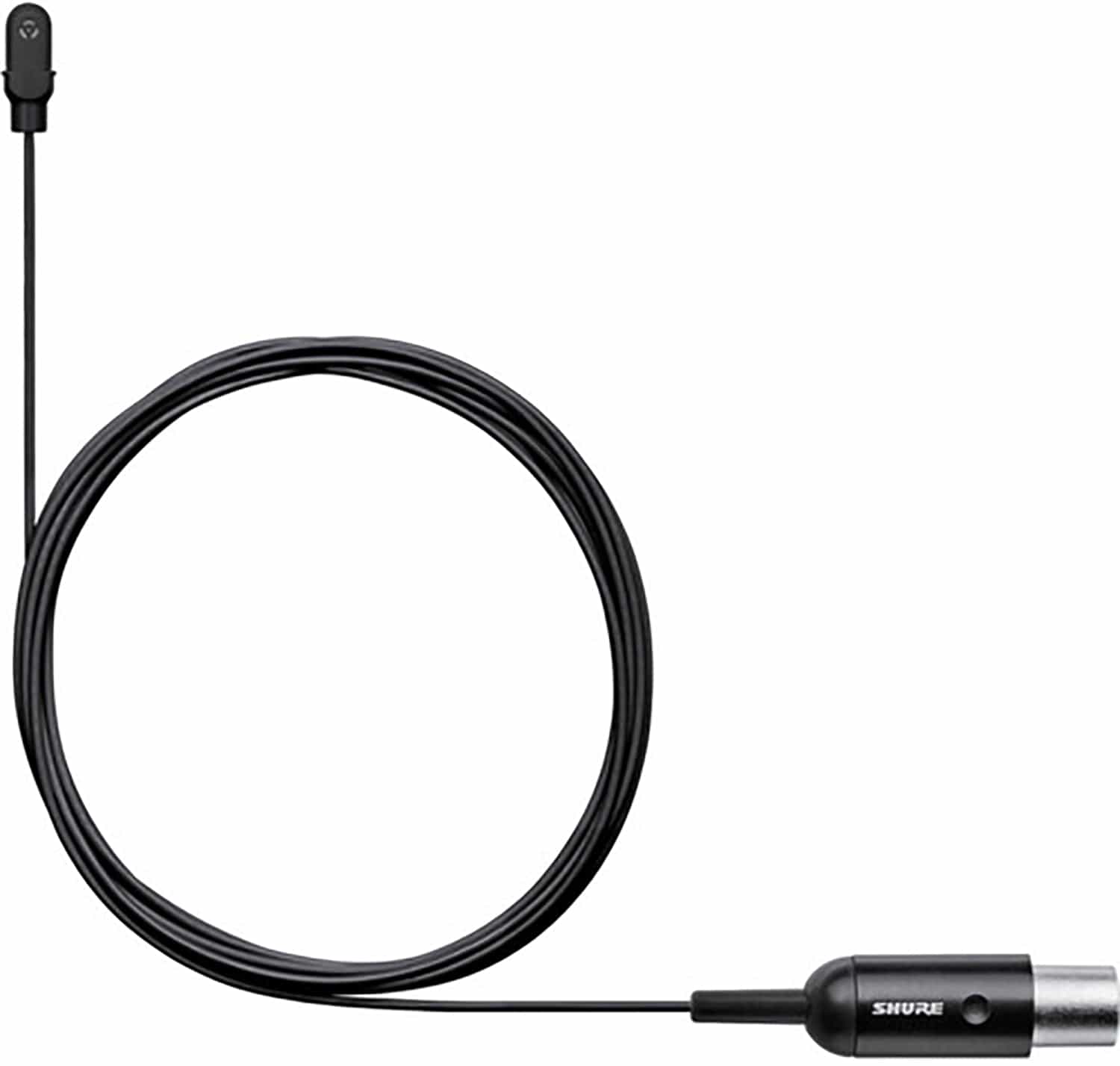

DL4 Waterproof Omni Lavalier Mic (Black)
-
Lightweight Bodypack Transmitter
-
Digital Predictive Diversity Receiver
-
1760 Auto-Scan Frequencies
-
1/10mW RF Power
-
High-Contrast LCD Screens
-
Ethernet for Group Scans & Local Control
-
Compatible with 8-Hr Rechargeable SB903
-
Expandable to 32 Mic Channels/330' Range
Technical details
Technical Specifications
Microphone
- Dynamic Range
- 120 dBA (Typical)
- Gain Range
- 0 to +21 dB (3 dB Steps)
- Pad
- 30 dB
- Auto-Level Control
- No
- Gain Range
- 0 to 21 dB
- Microphone Type
- Lavalier
- Sound Field
- Mono
- Capsule
- MEMS
- Polar Pattern
- Omnidirectional
- Frequency Range
- 20 Hz to 20 kHz
- SNR
- 63 dB
- Equivalent Noise Level
- 31 dB A-Weighted
- Maximum SPL
- 132 dB SPL
- Sensitivity
- -42.5 dBV/Pa
- Dynamic Range
- 101 dB
Wireless
- Wireless Technology
- Digital UHF
- Number of RF Channel Frequencies
- 1760
- Diversity
- Antenna Diversity
- RF Frequency Band
- G58 (470 to 514 MHz)
- RF Bandwidth
- 44 MHz
- Frequency Step Size
- 25 kHz
- RF Channel Scanning
- Auto-Scan
- Max Operating Range
- 328' / 100 m
- Max Transmitters per Band
- 32
- Latency
- 3.2 ms
- Encryption
- No
- Receiver Type
- Tabletop / Rackmount
- Antenna
- 2 x 1/4 Wave External, BNC (Rear-Mount)
- Adjacent Channel Isolation
- >70 dB
- Transmitter Type
- Bodypack with Microphone
- RF Output Power
- 1 / 10 mW
- Sync Method
- IR
- Antenna
- 1/4 Wave External, Fixed
Battery
- Battery Charging Time
- 1.25 to 5.5 Hours
Connectivity
- Sample Rate/Resolution
- 24-Bit
- Number of Audio Channels
- 1
- Audio Output Level
- -18 to +42 dB (Balanced, Unbalanced)/li>
- Network I/O
- 1 x RJ45 (10/100 Mb/s)
- Network Protocols
- DHCP, Manual IP
- Word Clock I/O
- No
- USB/Lightning Connectivity
- No
- XLR Output
- 400 Ohms (Balanced), 150 Ohms (Balanced)
- 1/4" Output
- 1.3 Kilohms (Balanced)
- 1/4" Output
- 670 Ohms (Unbalanced)
- Audio I/O
- 1 x TA4/Mini XLR 4-Pin Male Unbalanced Input (Locking)
- Output Connector
- 1 x TA4F/Mini-XLR 4-Pin Female Unbalanced
- Cable Length
- 66" / 1.7 m
Power
- Phantom Power Protection
- On 1/4", XLR Outputs
- Power Requirements
- AC/DC Power Adapter
- AC/DC Power Adapter
- 15 VDC at 600 mA, Center-Positive (Included)
- AC Input Power
- 100 to 240 VAC, 50 / 60 Hz
- Power Requirements
- Battery
- Operating Voltage
- 5 V
- Operating Current Consumption
- 220 µA
Physical
- Mounting Options
- Rackmount (with Included Hardware)
- Display & Indicators
- LCD (AF Level, Channel, Frequency, Group, RF Level, Transmitter Battery Status)
- Housing
- Steel
- Dimensions
- 7.8 x 1.7 x 6" / 197 x 42 x 152 mm
- Weight
- 1.8 lb / 816 g (without Antenna)
- Display & Indicators
- LCD (Battery Status, Channel, Group)
- Housing
- ABS, Plastic
- Dimensions
- 2.7 x 3.9 x 1" / 68 x 98 x 25.5 mm
- Weight
- 3.1 oz / 89 g
- Color
- Black
- Length
- 0.6" / 14.5 mm
- Diameter
- 0.2" / 5.2 mm
- Weight
- 0.5 oz / 15 g
Environmental
- Operating Temperature
- 0 to 122°F / -17 to 50°C
- Storage Temperature
- -20 to 165°F / -28 to 73°C
Included & Optional Accessories
- Included Transmitters
- 1 x Bodypack with Microphone
Shipping & Packaging
- Package Weight
- 7.015 lb
- Box Dimensions (LxWxH)
- 17.8 x 13.7 x 4.5"
General
- Built-In Recorder
- No
- Timecode Support
- No
- Yes
- Android & iOS
- App Name
- ShurePlus Channels
- Functionality
- Remote Control
- Rackmount Size
- 1 RU (1/2 Rack)
- Spurious
- Rejection >75dB
More details
Additional Information
Specifications:
- System:
- Mobile App Compatible:
- OS Compatibility:
- Windows 10 or Later
- macOS 10.14
- Mobile App Compatible:
- Receiver:
- Audio I/O:
- 1 x XLR 3-Pin Male Balanced Output
- 1 x 1/4" TRS Female Balanced Output
- Impedance:
- Audio I/O:
- Transmitter:
- Battery Type:
- 2 x AA (Included)
- 1 x Shure SB903 (Not Included)
- Approx. Battery Life:
- 8 Hours (Lithium Shure SB903)
- 8 Hours (Alkaline)
- Battery Type:
- Microphone:
- Packaging Info:
