Shure TL45 Lavalier Microphone
Model TL45C-O-LEMO
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

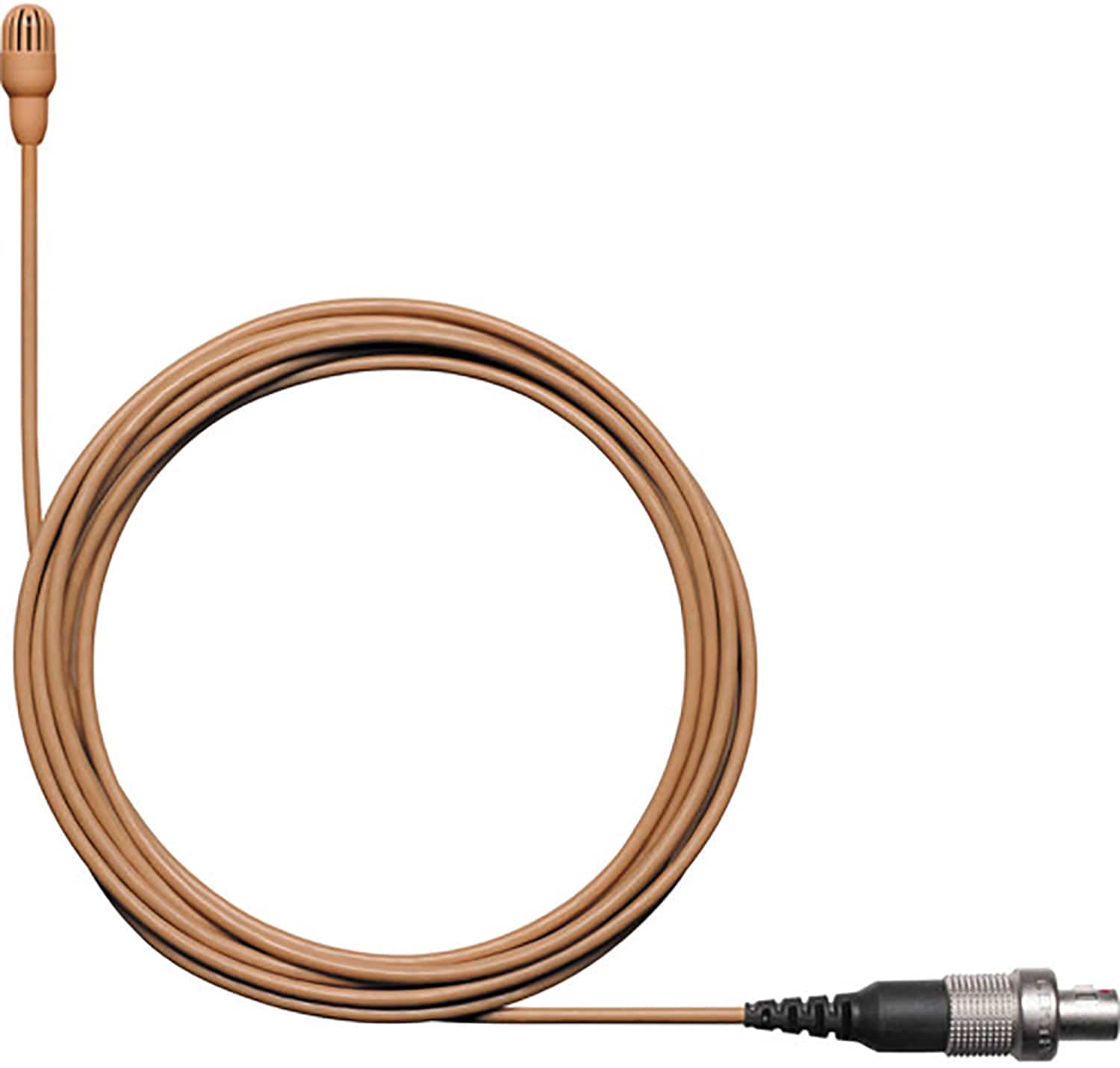

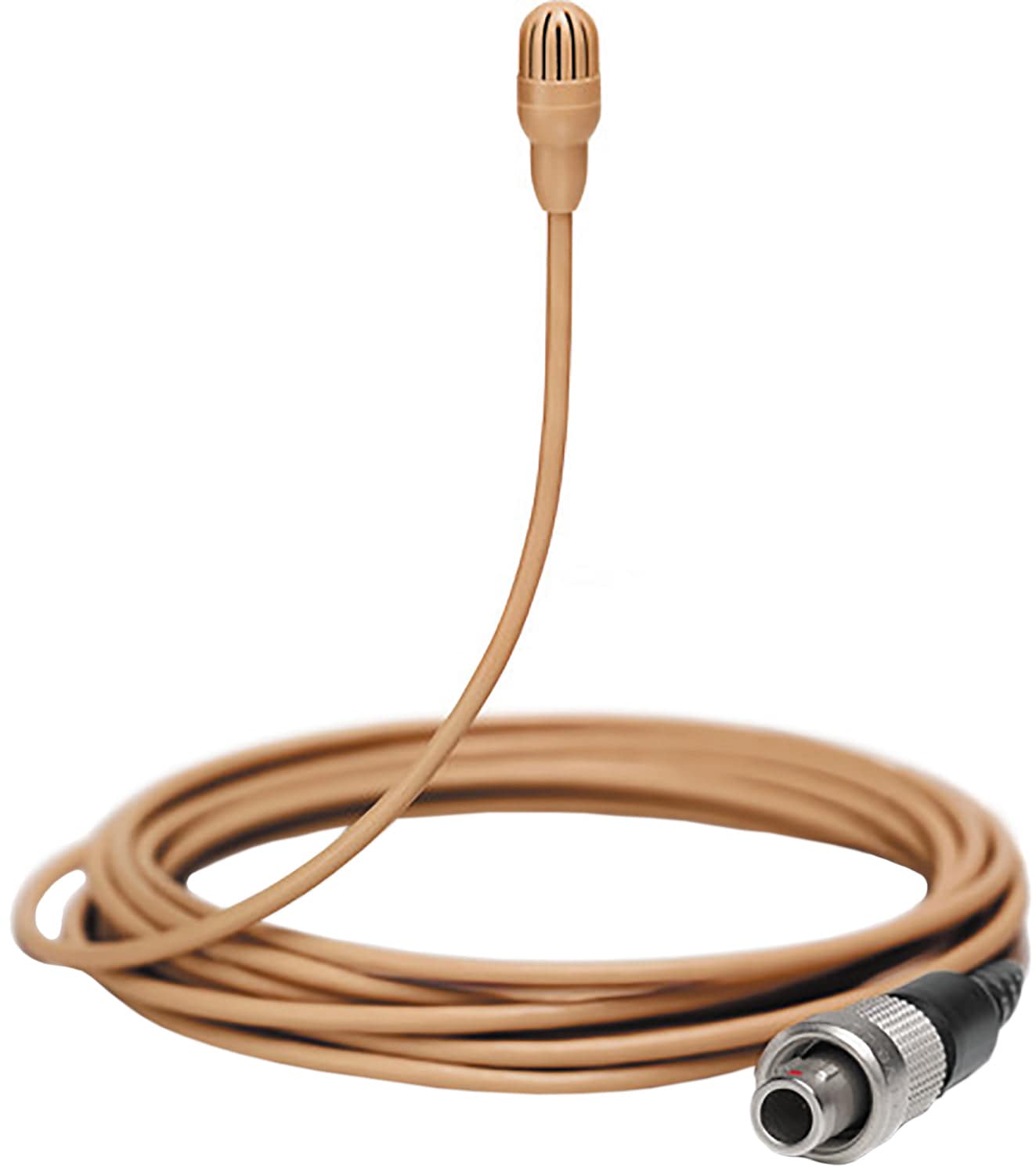

Shure TL45 TwinPlex TL45 Subminiature Lavalier Microphone
Expressively natural sound, low sensitivity, high max SPL, and interchangeable sweat-resistant frequency caps all make the TwinPlex™ TL45 the perfect companion for professional theater applications. The thin 1.1 mm diameter paintable cable is terminated with a professional LEMO connector and is easily concealed in a costume or wig.
The Shure TL45 Lavalier Microphone is available in cocoa or white.
Why this product
Key Benefits
-
The TL45 is ideal for use in theater settings
-
Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
-
Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
-
Best-in-class low self-noise and dynamic range for cleaner audio production
-
Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic, nanoscopic coating
-
Paintable 1.1 mm cable that is immune to memory effect and kinks
-
A single medical-grade spiraling conductor in the cable delivers increased flexibility while built-in reinforcing fibers offer additional cable strength for longevity
-
Sound signature: Natural
-
Sensitivity: Low
-
Colors: Cocoa
-
Connectors: LEMO
-
Accessories: Available separately
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Sensitivity
- -45.0 dBV (5.62 mV) at 1 kHz
- Signal-To-Noise Ratio
- 69.5 dB
- Maximum SPL
- 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range
- 117.5 dB typical
Connectivity
- Output Clipping Level
- 3.0 dBV,1 kHz at 1% THD, typical
- Polarity
- Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter
- 1.1 mm
- Cable Length
- 66 in. (1.67 m)
Power
- Microphone Current Draw
- 120 to 240 μA, typical
Physical
- Housing
- Molded ABS
- Microphone Length
- 13.5 mm
- Microphone Diameter
- 5.6 mm
- Net Weight with Cable
- 12.0 g (0.42 oz.)
More details
Additional Information
Specifications:
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Bias Voltage Recommended Operating Voltage: 5 VDC
