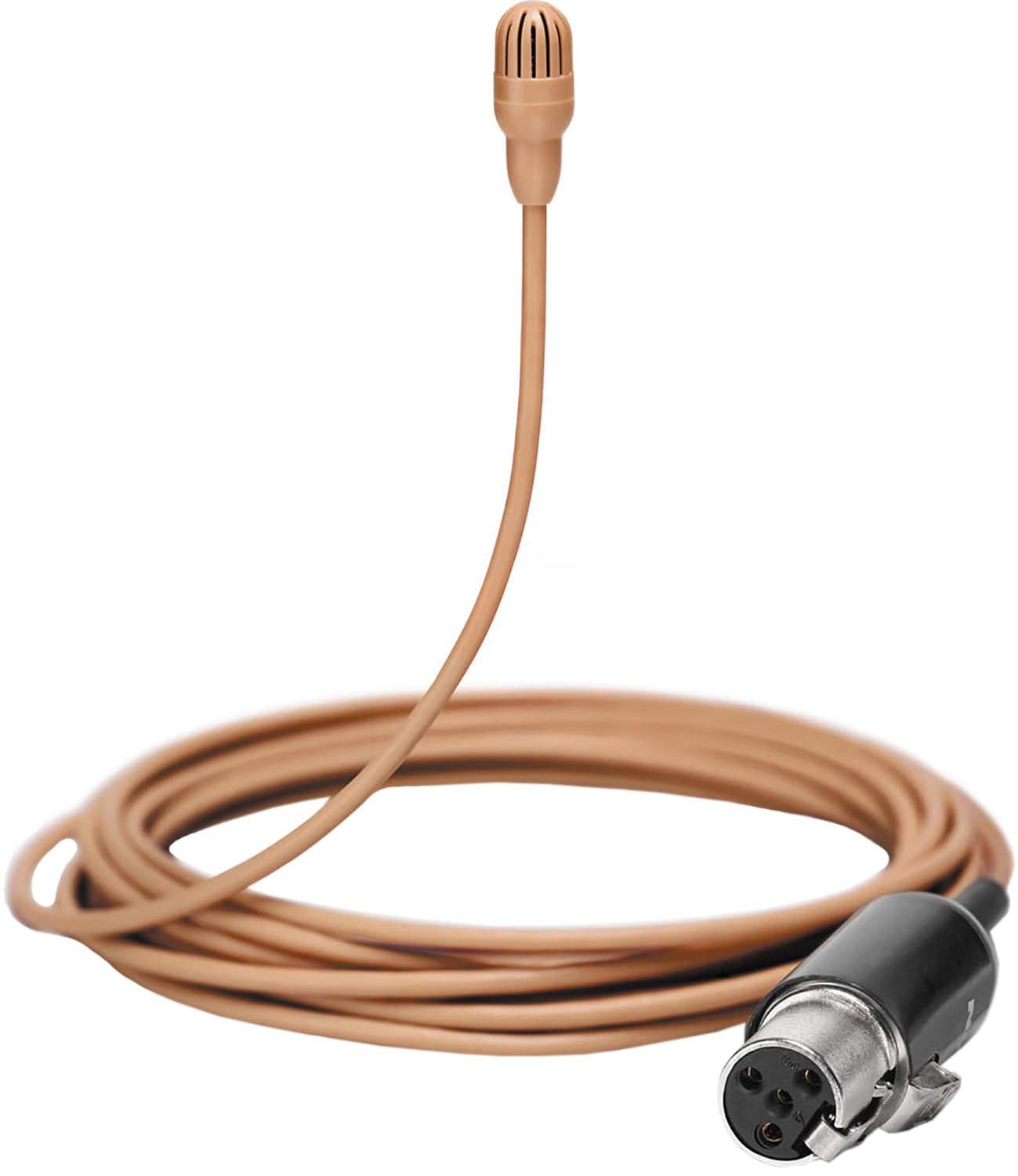

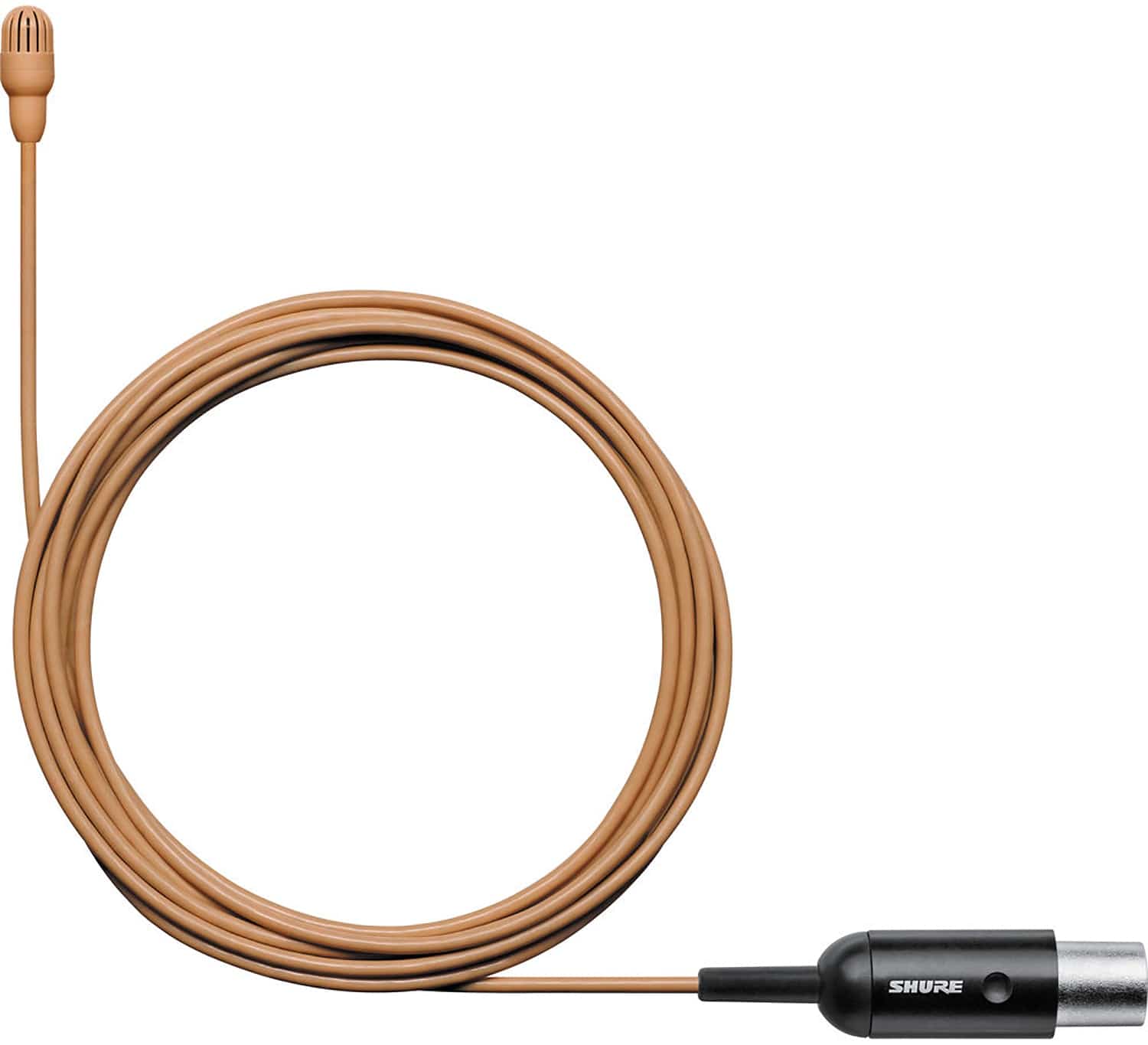

Shure TL46C/O-MTQG TwinPlex Subminiature Omnidirectional Lavalier Microphone with MTQG Plug - Cocoa
Model TL46C-O-MTQG
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure TL46C/O-MTQG TwinPlex Subminiature Omnidirectional Lavalier Microphone with MTQG Plug - Cocoa
TwinPlex™ TL46 offers unmatched signal-to-noise, superior natural sound quality, and a high sensitivity output. Perfect for dialogue and medium SPL applications, the TL46 also features an ultra-durable 1.6 mm paintable cable, interchangeable moisture-resistant frequency caps with both LEMO and TA4F (TQG) connector options. It’s the premium choice when the message needs to rise above the noise.
Why this product
Key Benefits
-
The TL46 is ideal for a variety of theater, film, broadcast, and live TV applications when additional output (8-10dB) is required
-
Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
-
Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
-
Best-in-class low self-noise and dynamic range for cleaner audio production
-
Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic nanoscopic coating
-
Paintable 1.6 mm cable that is immune to memory effect and kinks
-
Dual redundant ground in cable serves as secondary shield for longevity
-
Sound signature: Natural
-
Sensitivity: High (8-10db increased output)
-
Colors: Cocoa
-
Connectors: MTQG/TA4F
-
Accessories: Available separately
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Sensitivity
- -37.0 dBV(14.1 mV) at 1 kHz
- Signal-To-Noise Ratio
- 69.5 dB
- Maximum SPL
- 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range
- 117.5 dB typical
Connectivity
- Output Clipping Level
- 3.0 dBV,1 kHz at 1% THD, typical
- Polarity
- Positive pressure at diaphragm leads to negative voltage with respect to ground
- Cable Diameter
- 1.1 mm
- Cable Length
- 66 in. (1.67 m)
Power
- Microphone Current Draw
- 120 to 240 μA, typical
Physical
- Housing
- Molded ABS
- Microphone Length
- 13.5 mm
- Microphone Diameter
- 5.6 mm
- Net Weight with Cable
- 12.0 g (0.42 oz.)
More details
Additional Information
Specifications:
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Bias Voltage Recommended Operating Voltage: 5 VDC
