Shure TL47C/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone - MTQG with Accessories - Cocoa
Model TL47C-O-MTQG-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview

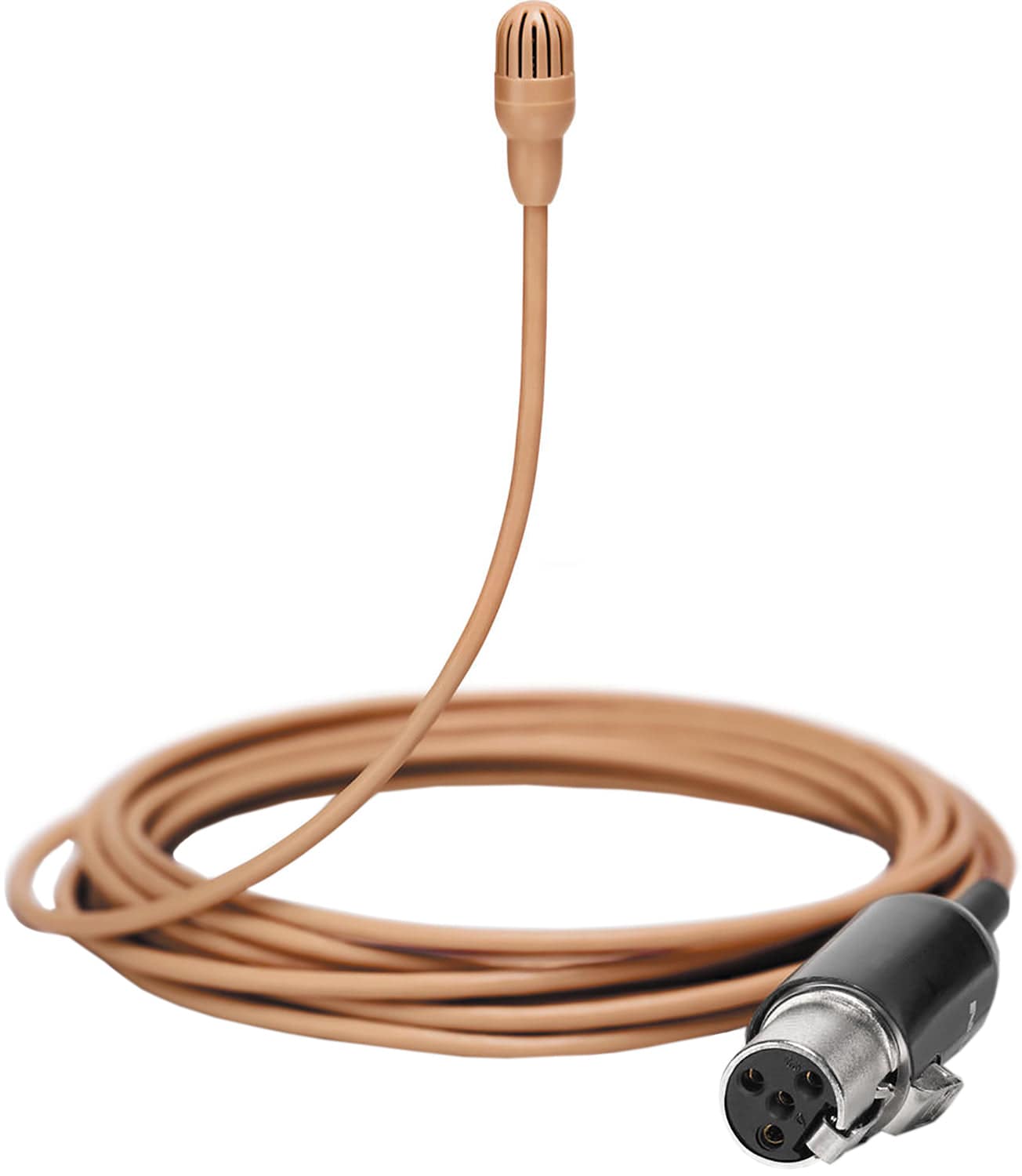

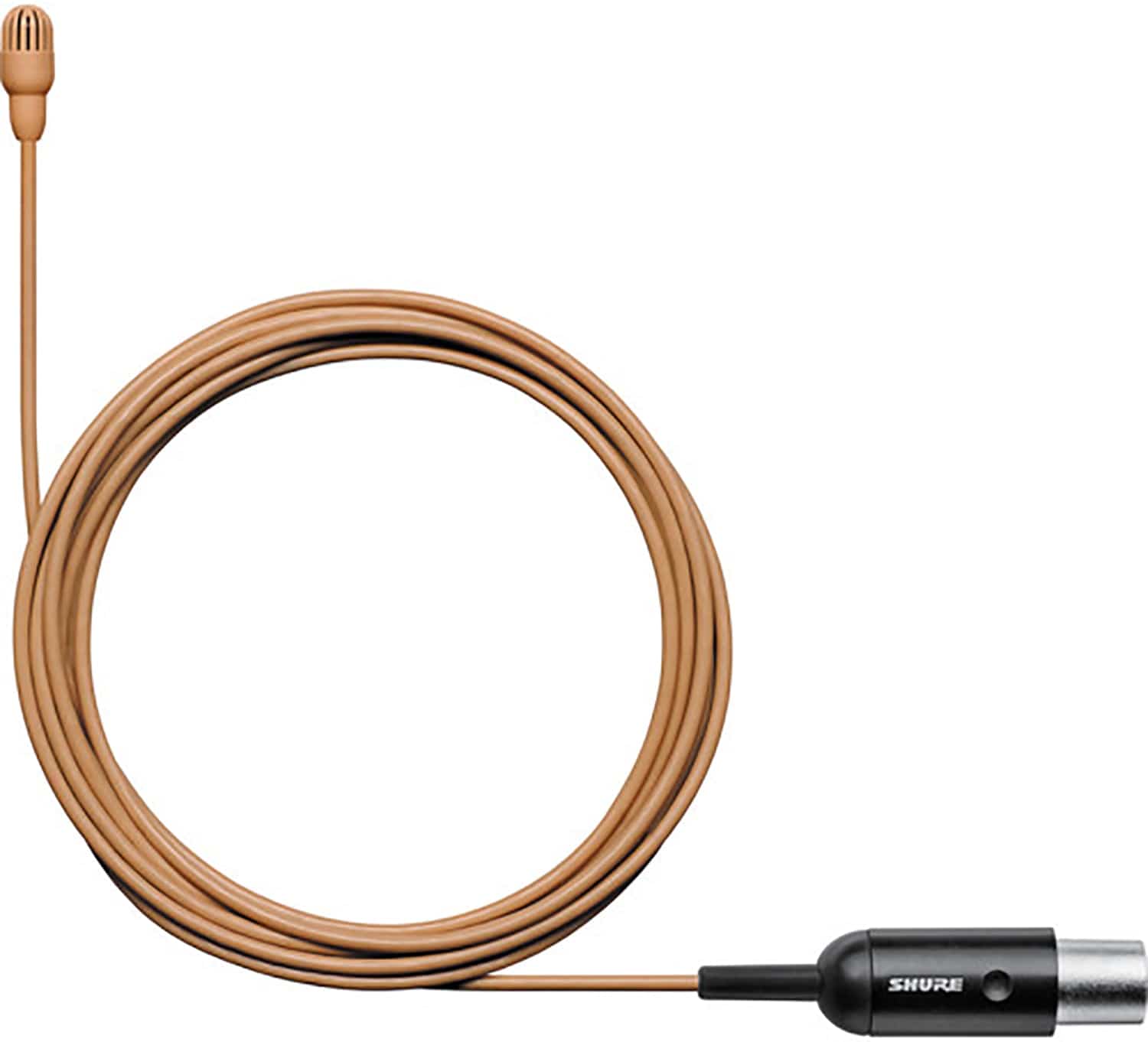

Shure TL47C/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone - MTQG with Accessories - Cocoa
The expressively natural sounding TwinPlex™ TL47 is available with color options and mounting choices for all professional applications. The low sensitivity can handle critical acoustic environments without distortion and the 1.6 mm paintable cable stands up to the most demanding and challenging situations. The TL47 is the go-to subminiature lavalier line for flexibility.
Why this product
Key Benefits
-
With a variety of colors and connectors, the TL47 is ideal for nearly any application
-
Twice the surface area of other subminiature microphones for pristine, natural response and robust low-frequency response due to the patent pending dual-diaphragm design
-
Improved off-axis consistency yields accurate reproduction regardless of vocal source position or movement
-
Best-in-class low self-noise and dynamic range for cleaner audio production
-
Interchangeable sweat- and moisture-resistant frequency caps prevent sweat-outs due to an invisible syperhydrophobic nanoscopic coating
-
Paintable 1.6 mm cable that is immune to memory effect and kinks
-
Dual redundant ground in cable serves as secondary shield for longevity
-
Sound signature: Natural
-
Sensitivity: Low
-
Colors: Cocoa
-
Connectors: MTQG/TA4F
-

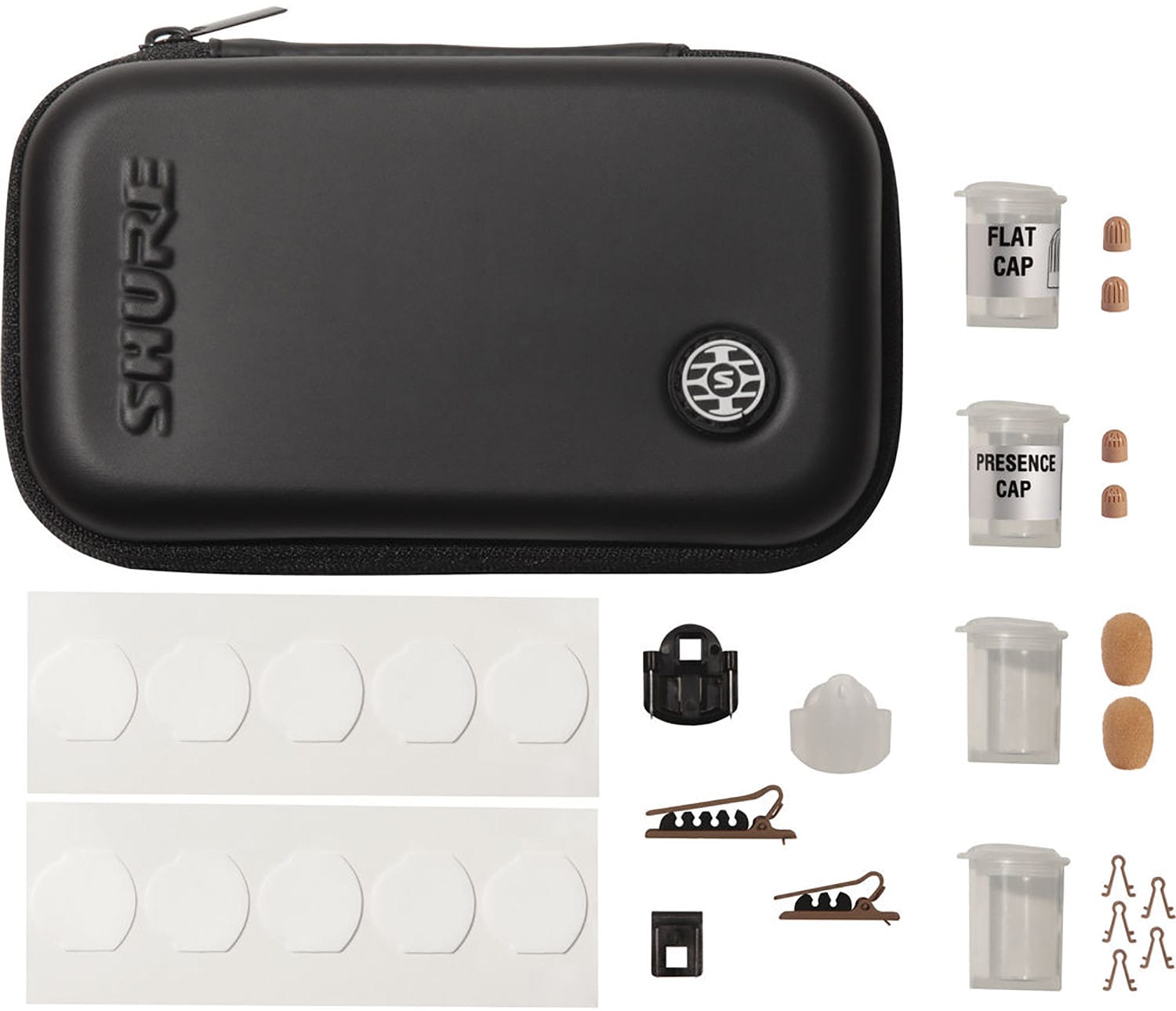

Accessories: Available with or without accessories
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Sensitivity
- -45.0 dBV (5.62 mV) at 1kHz
- Signal-To-Noise Ratio
- 69.5 dB
- Maximum SPL
- 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range
- 117.5 dB typical
Connectivity
- Output Clipping Level
- 3.0 dBV,1 kHz at 1% THD, typical
- Polarity
- Positive pressure at diaphragm leads to positive voltage with respect to ground
- Cable Diameter
- 1.6 mm
- Cable Length
- 66 in. (1.67 m)
Power
- Microphone Current Draw
- 120 to 240 μA, typical
Physical
- Housing
- Molded ABS
- Microphone Length
- 13.5 mm
- Microphone Diameter
- 5.6 mm
- Net Weight with Cable
- 12.0 g (0.42 oz.)
More details
Additional Information
Specifications:
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Bias Voltage Recommended Operating Voltage: 5 VDC
