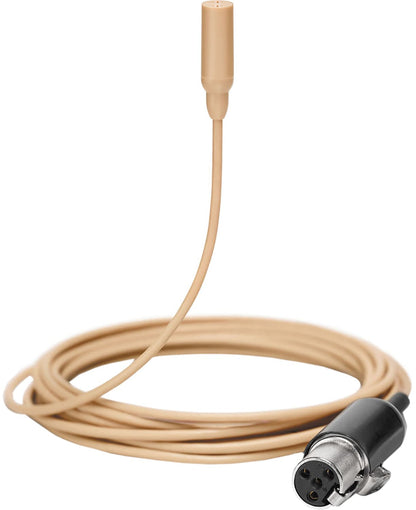

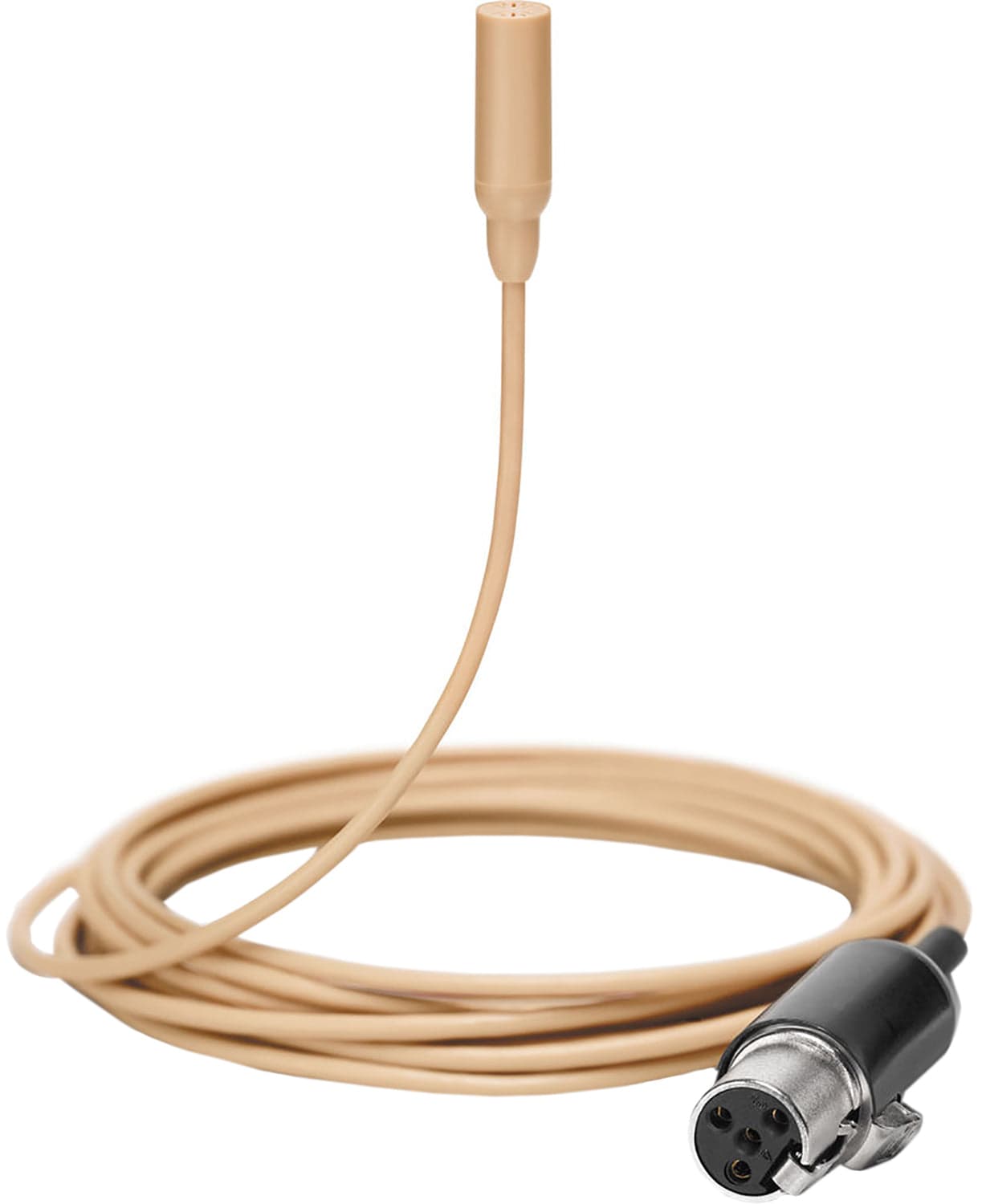

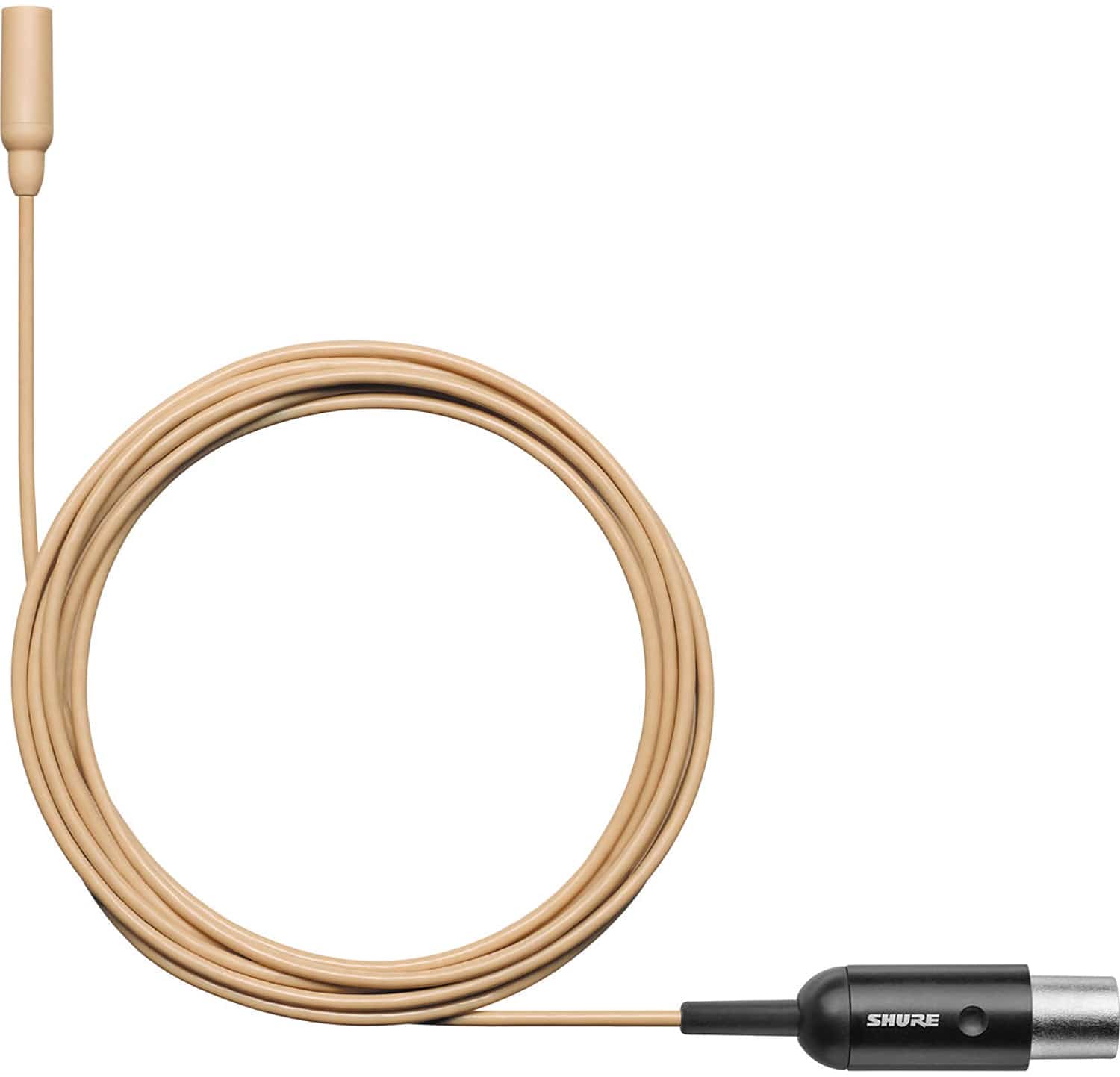

Shure TL48T/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone - MTQG with Accessories - Tan
Model TL48T-O-MTQG-A
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure TL48T/O-MTQG-A TwinPlex Omnidirectional Lavalier Microphone - MTQG with Accessories - Tan
The TwinPlex™ TL48 offers a tailored response with a mid-range rise that’s ideal for speech and dialogue applications, such as film and TV. Designed with leading audio professionals’ input, the TL48 is easily concealed in a costume or directly against the skin under wardrobe, and offers extensive accessories to ensure quick, easy, and secure mounting—all with no impact on sound quality.
Why this product
Key Benefits
-
With a paintable, fixed frequency cap and mid-band boost that accentuates dialogue, the TL48 is ideal for film and TV applications
-
Improved off-axis consistency, due to the patent pending dual-diaphragm design, yields accurate reproduction regardless of vocal source position or movement
-
Best-in-class low self-noise and dynamic range for cleaner audio production
-
Fixed frequency cap with internal hydrophobic woven lining resists sweat and moisture
-
Paintable 1.6 mm cable that is immune to memory effect and kinks
-
Dual redundant ground in cable serves as secondary shield for longevity
-
Sound signature: Tailored for dialogue (6dB mid-band boost at about 7kHz)
-
Sensitivity: Low
-
Colors: Tan
-
Connectors: MTQG/TA4F
-

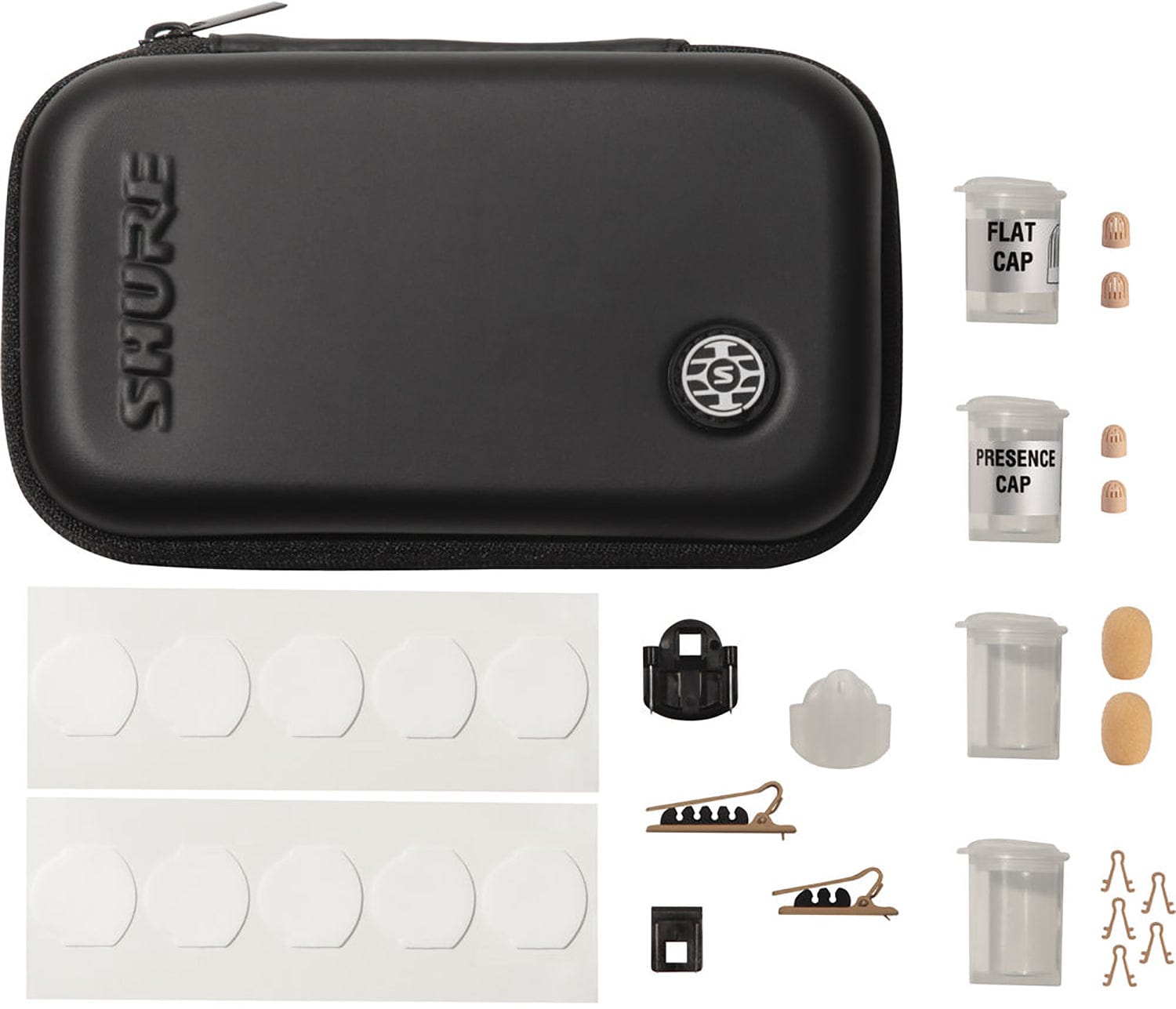

Accessories: Available with accessories
Technical details
Technical Specifications
Microphone
- Microphone Capsule
- Dual-Diaphragm, Prepolarized Condenser
- Polar Pattern
- Omnidirectional
- Frequency Response
- 20 Hz to 20 kHz
- Sensitivity
- -45.0 dBV (5.62 mV) at 1kHz
- Signal-To-Noise Ratio
- 69.5 dB
- Maximum SPL
- 142.0 dB SPL 1 kHz at 1% THD, typical
- Dynamic Range
- 117.5 dB typical
Connectivity
- Output Clipping Level
- 3.0 dBV,1 kHz at 1% THD, typical
- Polarity
- Positive pressure at diaphragm leads to positive voltage with respect to ground
- Cable Diameter
- 1.6 mm
- Cable Length
- 66 in. (1.67 m)
Power
- Microphone Current Draw
- 120 to 240 μA, typical
Physical
- Housing
- Molded ABS
- Microphone Length
- 19 mm
- Microphone Diameter
- 5.6 mm
- Net Weight with Cable
- 12.0 g (0.42 oz.)
More details
Additional Information
Specifications:
- Self-Noise, A-Weighted, Equivalent Acoustical: 24.5 dB SPL-A
- Bias Voltage Recommended Operating Voltage: 5 VDC
