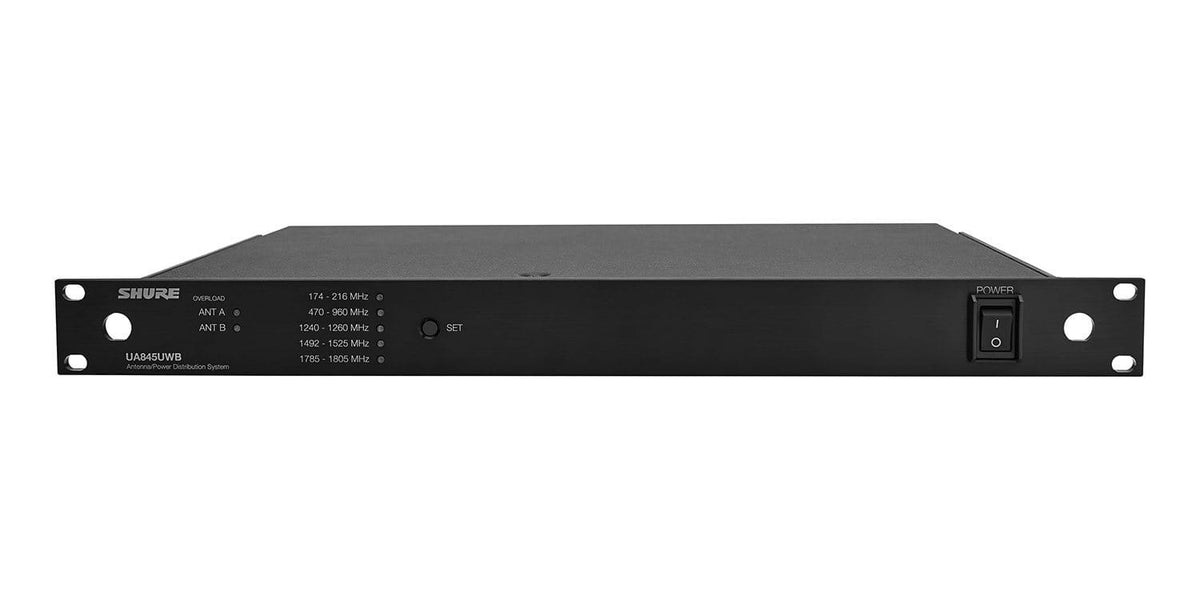

Shure UA845UWB Antenna Distribution System
Model UA845UWB
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure UA845UWB Antenna Distribution System

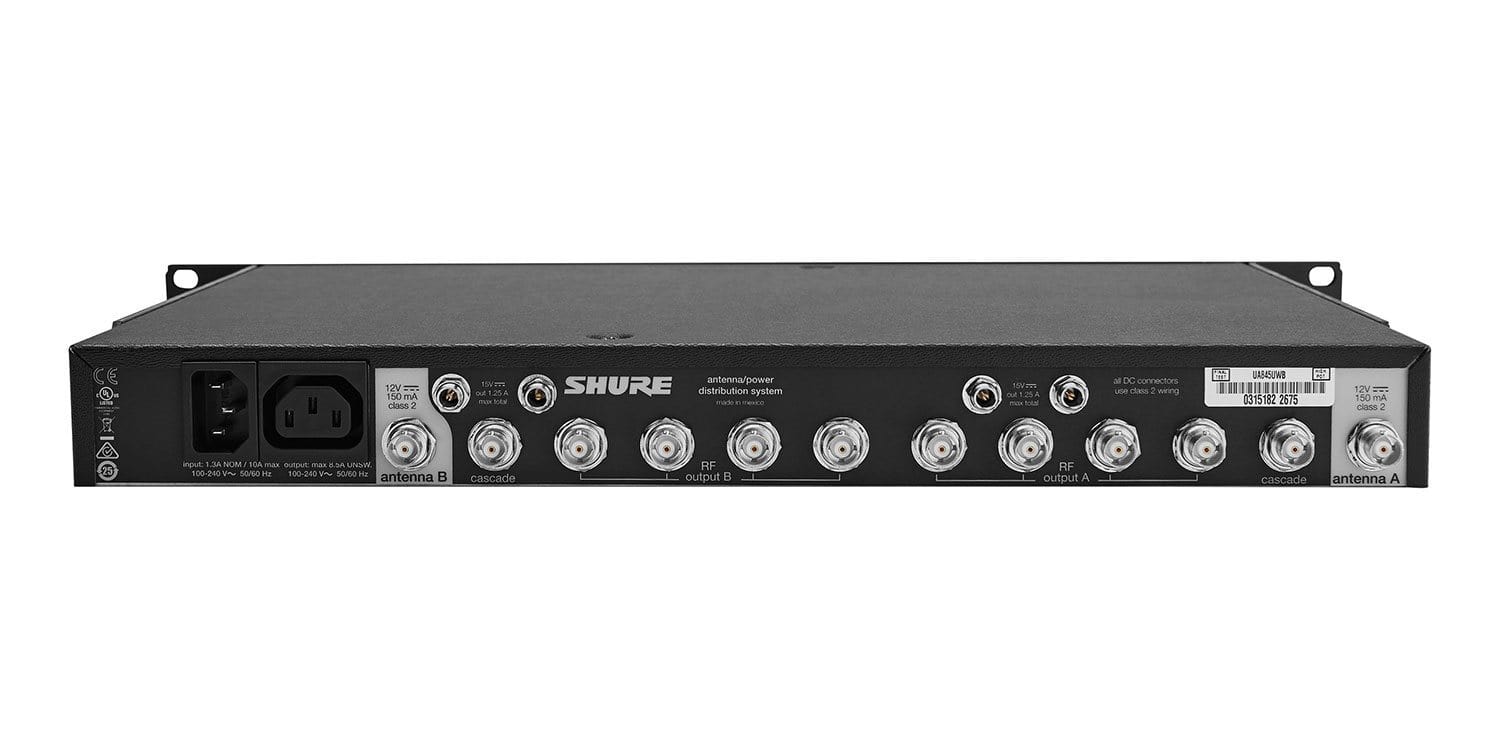

The Shure Model UA845UWB Antenna Distribution System allows four receivers to use the same set of antennas. The cascade connectors allow connections to a fifth receiver or a second UA845UWB.
There are also power connectors for distributing power to each receiver. RF signal amplification compensates for insertion loss from splitting the antenna input to multiple outputs. A button on the front panel switches between one of five frequency bands from 174 to 1805MHz.

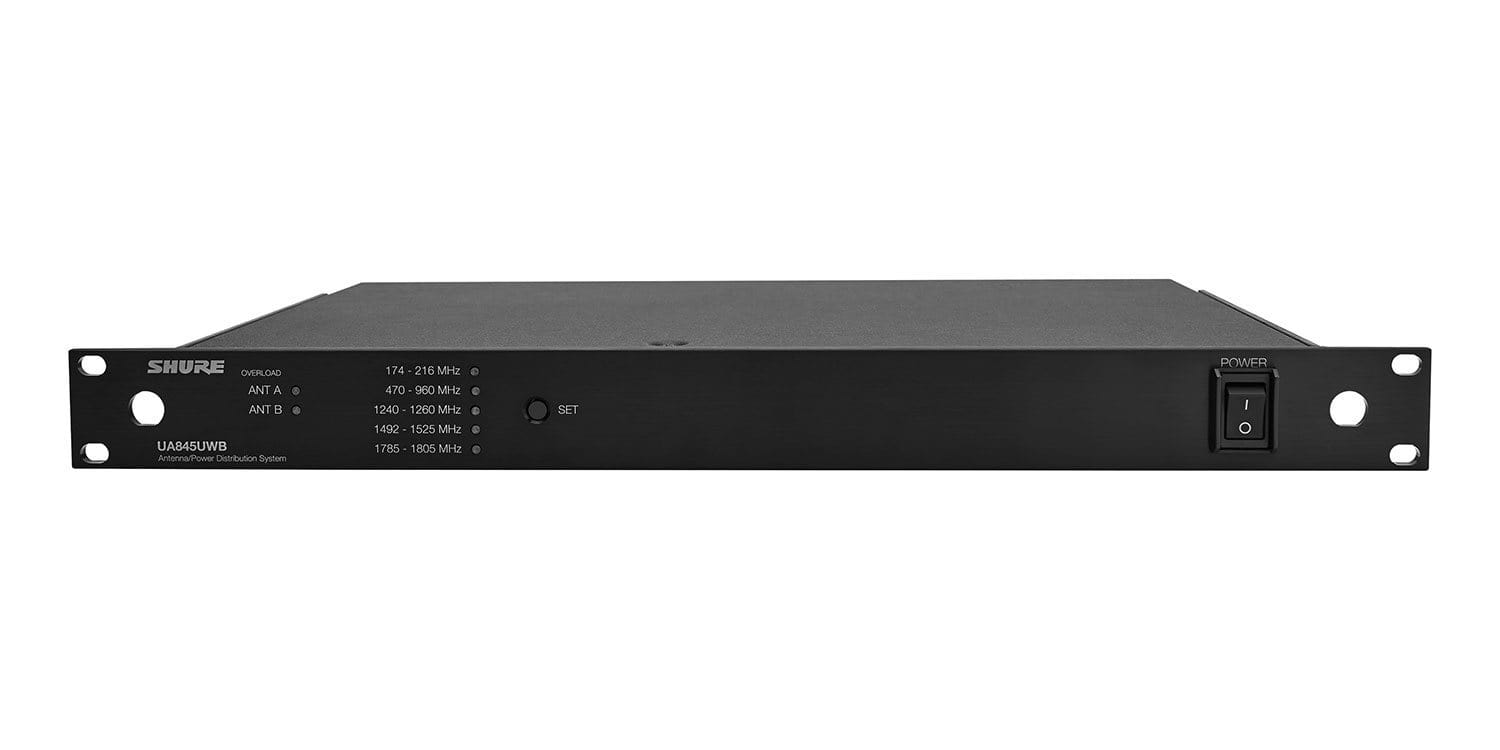

UA845UWB Band Selection on the Front Panel
- 174-216 MHz
- 470-960 MHz
- 1240-1260 MHz
- 1492-1525 MHz
- 1785-1805 MHz
Why this product
Key Benefits
-
5 selectable frequency ranges
-
Antenna A and B input overload LED indicators
-
Five-way RF signal output
-
Support QLX-D®, ULX®, ULX-D®, SLX®, and BLX® (BLX4R only) receivers
-
Front-mounting antenna hardware
-
Rack-mounting hardware
-
Internal power supply
-
4 DC power feeds for receivers (15V, 2.5A max)
-
DC outputs for antenna bias (12V, 300mA max)
More details
Additional Information
UA845UWB models include:
- 1 UA845UWB Antenna/Power Distribution System
- 4 Locking DC power cables (for UR4, ULXD4, ULXP4)
- 4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
- Ten 22 in. BNC cables
- Two 6 ft. BNC cables
- 2 Bulkhead adaptors
- 1 AC Power Cable (IEC power)
- 1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q receiver)
- 1 Rack mount Hardware kit
- 1 Literature Package
UA845UWB/LC (less cable) models include:
- 1 UA845UWB Antenna/Power Distribution System
- 4 Non-locking DC power cables (QLXD4, SLX4, BLX4R)
- 2 22 in. BNC cables
- 2 6 ft. BNC cables
- 2 Bulkhead adaptors
- 1 AC Power Cable (IEC power)
- 1 Pig-tail AC Cable (for the second UA845UWB or UR4, ULXD4D, ULXD4Q receiver)
- 1 Rack mount Hardware kit
- 1 Literature Package
