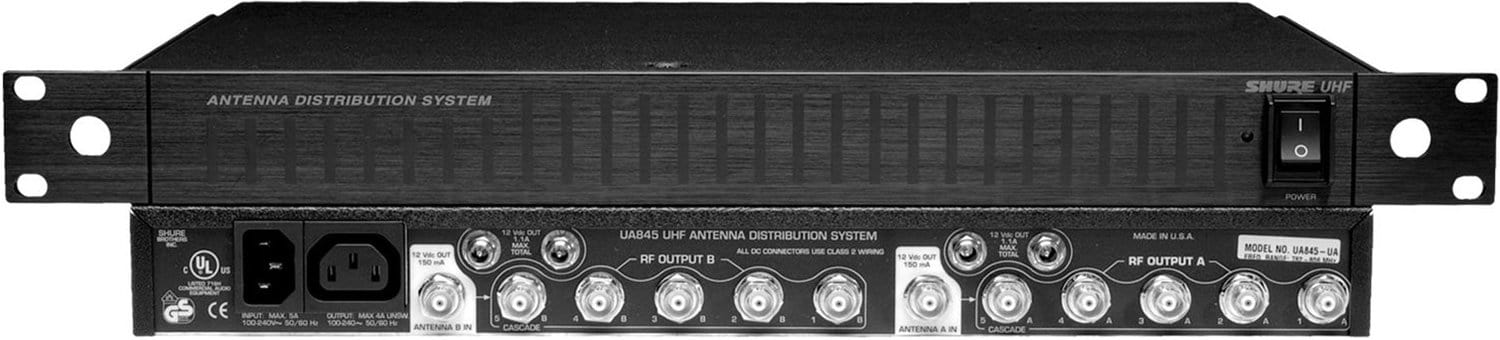

Shure UA845WB Wideband Active UHF Antenna Distribution System
Model TZ-UA845WB
Price on Request
Availability: In Stock
- Authorized Shure Reseller
- Manufacturer Warranty
- Fast UAE Delivery
- Expert Project Support
Delivery, Warranty, Returns and Installation
- Delivery
- Fast UAE Delivery: Same-Day or Next-Day Delivery Available, Subject to Product Availability and Location. Free Delivery on Orders Above AED 2,000.
- Warranty
- Manufacturer Warranty with Local UAE Support where applicable.
- Returns
- B2B Orders are non-returnable. Please confirm product specifications and compatibility before ordering.
- Installation
- Site Surveys, System Design and Professional Installation are available across the UAE.
Product details
Overview
Shure UA845WB Wideband Active UHF Antenna Distribution System
The Shure UA845WB UHF Antenna Distribution Amplifier distributes a boosted radio-frequency (RF) signal from Shure wireless microphone transmitters, to four receivers. The Shure UR4, UC4 and UHFR series are among some of the compatible wireless microphone systems.
Why this product
Key Benefits
-
5 Selectable Frequency Ranges-
The UA845UWB allows more options for avoiding intermodulation artifacts by switching between one of the five frequency bands.
-
RF Power LED Indicators-
Front panel LED indicators display red if RF power is overloading.
-
Expandability-
The UA845UWB Antenna Distribution System is designed for large wireless systems. Each unit allows up to four wireless receivers to use the same two antennas, and the cascade ports allow connection to a fifth receiver or a second UA845UWB.
-
Compatibility-
The UA845UWB is compatible with all Shure wireless microphone receivers operating within a compatible frequency range.
-
Cascade Ports-
Two 50 ohm, BNC-antenna cascade ports allow an additional UA845UWB unit or a fifth wireless receiver. A large wireless system can be run off of a single pair of antennas.
-
Power Output and Out Connectors-
Multiple receivers can be daisy-chained and powered from a single source via the power output connectors.
-
Low Noise and Intermodulation Distortion-
The UA845UWB maintains clean signals with minimal distortion.
-
Insertion Loss Compensation-
Whenever a signal is split to multiple output ports, there is a loss in signal strength. The UA845UWB amplifies signals to compensate, ensuring a strong signal to the receivers.
-
Front-Mounted Antennas-
The UA845UWB comes with hardware to front-mount the antennas, if desired.
Technical details
Technical Specifications
Microphone
- Gain Control
- 3dB typical, 0dB to 3.5dB from antenna input (Output ports 1-4)
- Gain Control
- 1dB typical, -1.6dB to +1.8dB from antenna input (Cascade port)
Wireless
- Carrier Frequency Range
- Wideband (470-952MHz)
Connectivity
- Connector Type
- BNC-type x4
- Impedance
- 50 ohms
Power
- Operating Voltage
- AC Power Consumption- 15W per unit typical (when used with 4UC4's, 55W max.)
Physical
- Weight
- 7 lbs, 5 oz (3.32kg)
- Dimensions (HxWxD)
- 1.75 x 19 x 11.63" (4.45 x 48.26 x 29.53cm)
